CloudWatch is a service which collects operational and monitoring data in the form of logs, metrics, and events in AWS Cloud platform. It then visualizes the data by using automated dashboards so you can get a unified view of your AWS resources, applications, and services that run in AWS and on-premises.

After deployment of EKS or Kubernetes cluster, there is a need to configure Container Insights to send data to CloudWatch.

A pre-requisite for this setup is a functional Amazon EKS or Kubernetes cluster. If you need reference installation posts we have them available in our website.

Easily Setup Kubernetes Cluster on AWS with EKS

Install Kubernetes Cluster on Ubuntu with kubeadm

Install Kubernetes Cluster on CentOS 7 with kubeadm

Check to confirm kubectl can connect to the Kubernetes API Server.

$ kubectl get nodes
NAME                                            STATUS   ROLES    AGE   VERSION
ip-192-168-138-244.eu-west-1.compute.internal   Ready    <none>   9d    v1.17.9-eks-4c6976
ip-192-168-176-247.eu-west-1.compute.internal   Ready    <none>   9d    v1.17.9-eks-4c6976

Create and Attach a policy to the IAM role of your worker nodes

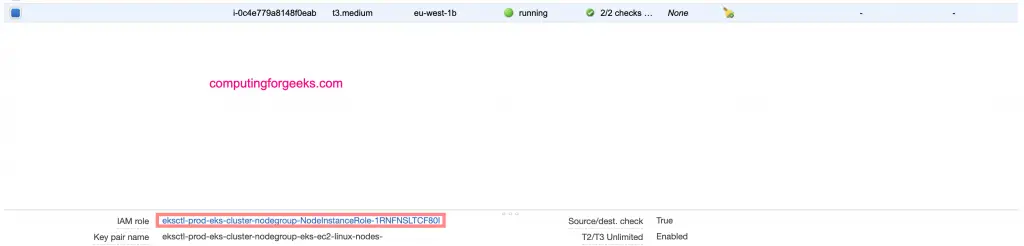

Open the Amazon EC2 console at https://console.aws.amazon.com/ec2/ and select one of the Worker nodes.

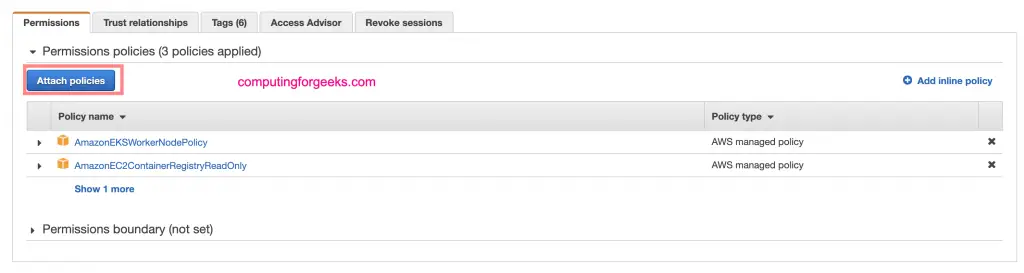

Choose the IAM role in the description. On the IAM role page, choose Attach policies.

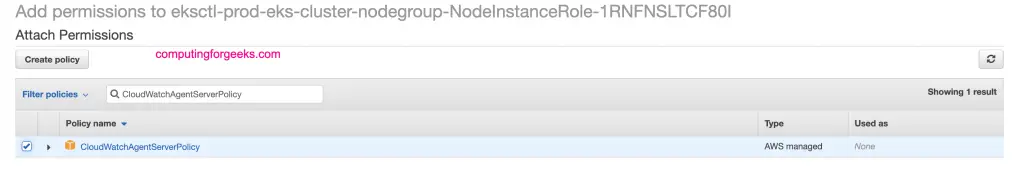

Select CloudWatchAgentServerPolicy checkbox and attach the policy.

Setup Container Insights on Amazon EKS

Once the policy has been attached to the EKS worker nodes role proceed to deploy Container Insights on Amazon EKS.

Save your cluster name and region as variables.

EKS_CLUSTER_NAME="prod-eks-cluster"
EKS_CLUSTER_REGION="eu-west-1"

Download installation manifest:

curl -O https://raw.githubusercontent.com/aws-samples/amazon-cloudwatch-container-insights/latest/k8s-deployment-manifest-templates/deployment-mode/daemonset/container-insights-monitoring/quickstart/cwagent-fluentd-quickstart.yaml

Update the file to set correct name of cluster and region.

sed -ie "s/{{cluster_name}}/${EKS_CLUSTER_NAME}/;s/{{region_name}}/${EKS_CLUSTER_REGION}/" cwagent-fluentd-quickstart.yaml

Install Container Insights on Amazon EKS with the following command.

kubectl apply -f ./cwagent-fluentd-quickstart.yaml

A number of resources are created as seen in the command execution output:

namespace/amazon-cloudwatch unchanged
serviceaccount/cloudwatch-agent unchanged
clusterrole.rbac.authorization.k8s.io/cloudwatch-agent-role unchanged
clusterrolebinding.rbac.authorization.k8s.io/cloudwatch-agent-role-binding unchanged
configmap/cwagentconfig unchanged
daemonset.apps/cloudwatch-agent unchanged
configmap/cluster-info unchanged
serviceaccount/fluentd unchanged
clusterrole.rbac.authorization.k8s.io/fluentd-role unchanged
clusterrolebinding.rbac.authorization.k8s.io/fluentd-role-binding unchanged
configmap/fluentd-config unchanged
daemonset.apps/fluentd-cloudwatch unchanged

Get status of all resources in amazon-cloudwatch namespace.

$ kubectl get all -n amazon-cloudwatch
NAME                           READY   STATUS    RESTARTS   AGE
pod/cloudwatch-agent-lqtfw     1/1     Running   0          5m21s
pod/cloudwatch-agent-lsz92     1/1     Running   0          5m21s
pod/fluentd-cloudwatch-6j2jf   1/1     Running   0          5m17s
pod/fluentd-cloudwatch-dzrdq   1/1     Running   0          5m17s

NAME                                DESIRED   CURRENT   READY   UP-TO-DATE   AVAILABLE   NODE SELECTOR   AGE
daemonset.apps/cloudwatch-agent     2         2         2       2            2           <none>          5m22s
daemonset.apps/fluentd-cloudwatch   2         2         2       2            2           <none>          5m18s

We can see all pods are in running state.These were created by daemon sets.

Viewing Container Insights Metrics

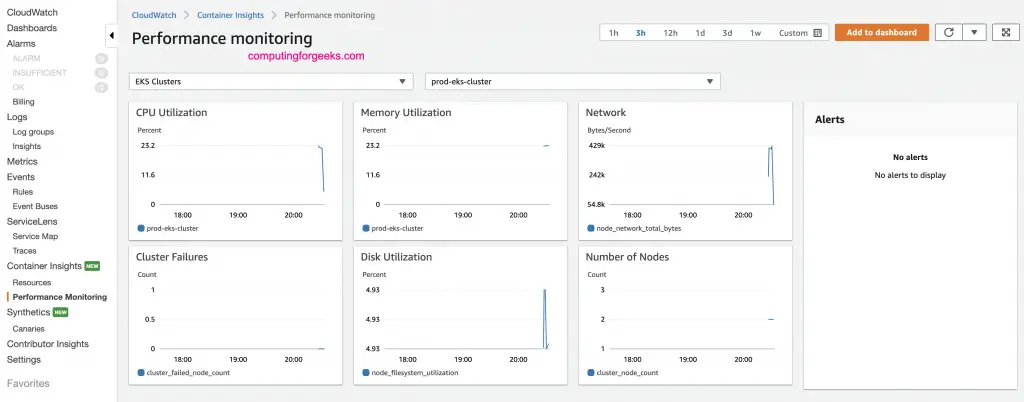

After you have Container Insights set up and it is collecting metrics, you can view those metrics in the CloudWatch console.

Choose Performance Monitoring in the navigation pane from where you can select resource type metrics to view.
