How To Install Headscale on Ubuntu 24.04|22.04|20.04

July 22, 2024

11795

Headscale is an open source implementation of Tailscale coordination server. Tailscale has been around for some time and it allows users to create secure networks with multiple devices connected seamlessly, regardless of the physical location of these devices. In a nutshell, Tailscale makes the process of deploying and managing a VPN easier and more user-friendly.

Tailscale technology creates a secure mesh network that enables all devices connected to it communicate with each other and behave as if they are on the same local network. Headscale is completely separate from Tailscale and developed independently. In this article we shall install, configure and use Headscale to create a mesh network and connect your devices.

1. Download Headscale Apt package

Update system apt package index.

sudo apt update

Visit Headscale releases page on Github. Under tags you can get the latest stable release number.

VERSION=$(curl --silent "https://api.github.com/repos/juanfont/headscale/releases/latest"|grep '"tag_name"'|sed -E 's/.*"([^"]+)".*/\1/'|sed 's/v//')
wget https://github.com/juanfont/headscale/releases/download/v${VERSION}/headscale_${VERSION}_linux_amd64.deb

Install the package once it is downloaded using apt command.

sudo apt install -f ./headscale_${VERSION}_linux_amd64.deb

We can enable the service to start at system boot.

sudo systemctl enable headscale

2. Configure Headscale Service

You can adjust Headscale configuration settings by editing the file /etc/headscale/config.yaml

sudo vim /etc/headscale/config.yaml

Notable parameters to configure are;

# The url clients will connect to.
server_url: http://127.0.0.1:8080

# Address to listen to / bind to on the server
listen_addr: 127.0.0.1:8080

# Address to listen to /metrics, you may want
metrics_listen_addr: 127.0.0.1:9090

You can configure to listen on all interfaces.

server_url: http://0.0.0.0:8080
listen_addr: 0.0.0.0:8080

Or specific IP address.

server_url: http://192.168.20.10:8080
listen_addr: 192.168.20.10:8080

You can adjust other parameters to suit your use case and restart the service when done.

sudo systemctl restart headscale.service

Status of the service can be checked using systemctl command.

$ systemctl status headscale.service
● headscale.service - headscale coordination server for Tailscale
     Loaded: loaded (/lib/systemd/system/headscale.service; enabled; vendor preset: enabled)
     Active: active (running) since Mon 2024-07-22 07:11:04 UTC; 3s ago
   Main PID: 5901 (headscale)
      Tasks: 8 (limit: 19092)
     Memory: 9.4M
        CPU: 68ms
     CGroup: /system.slice/headscale.service
             └─5901 /usr/bin/headscale serve

Jul 22 07:11:04 workstation systemd[1]: Started headscale coordination server for Tailscale.
Jul 22 07:11:04 workstation headscale[5901]: An updated version of Headscale has been found (0.23.0-alpha1 vs. your current v0.22.3). Check it out https://github.com/juanfont/headscale/releases
Jul 22 07:11:04 workstation headscale[5901]: 2024-07-22T07:11:04Z INF Setting up a DERPMap update worker frequency=86400000
Jul 22 07:11:04 workstation headscale[5901]:2024-07-22T07:11:04Z INF listening and serving HTTP on: 0.0.0.0:9080
Jul 22 07:11:04 workstation headscale[5901]: 2024-07-22T07:11:04Z INF listening and serving metrics on: 0.0.0.0:9090

Listing ports used by Headscale service.

$ ss -tunelp | egrep '9080|9090'
tcp   LISTEN 0      128                *:9080             *:*    users:(("headscale",pid=5901,fd=11)) uid:1002 ino:69679 sk:b cgroup:/system.slice/headscale.service v6only:0 <->
tcp   LISTEN 0      128                *:9090             *:*    users:(("headscale",pid=5901,fd=13)) uid:1002 ino:69680 sk:c cgroup:/system.slice/headscale.service v6only:0 <->

3. Configuring Nginx Proxy for Headscale

In this guide we’ll configure Nginx as a proxy server for Headscale. The mappings for IP address and DNS names are:

vpn.hirebestengineers.com points to 128.140.96.199.

We can confirm the DNS record configured is working.

$ host vpn.hirebestengineers.com
vpn.hirebestengineers.com has address 128.140.96.199

Install Nginx web server in your Ubuntu system.

sudo apt install nginx

Create a virtual host for Headscale.

sudo vim /etc/nginx/conf.d/headscale.conf

Paste below information and update server_name value.

map $http_upgrade $connection_upgrade {
    default      keep-alive;
    'websocket'  upgrade;
    ''           close;
}

server {
    listen 80;
	listen [::]:80;

    server_name vpn.hirebestengineers.com;

    location / {
        proxy_pass  http://localhost:8080;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection $connection_upgrade;
        proxy_set_header Host $server_name;
        proxy_redirect http:// https://;
        proxy_buffering off;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $http_x_forwarded_proto;
        add_header Strict-Transport-Security "max-age=15552000; includeSubDomains" always;
    }
}

Confirm nginx configurations are correct.

$ sudo nginx  -t
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful

Headscale can be configured to use domain name.

$ sudo vim /etc/headscale/config.yaml
server_url: http://vpn.hirebestengineers.com:80

You’ll need to restart Headscale service for the change to be effected.

4. Securing Headscale with SSL Certificates

We’ll configure Headscale to use TLS. This can be commercial certificates, Free Let’s Encrypt SSL or self-signed certificates.

Using Let’s Encrypt SSL

Start by installing certbot tool

sudo apt update && sudo apt install snapd
sudo snap install --classic certbot

Generate Let’s Encrypt SSL for Headscale using domain name configured in nginx headscale.conf file.

DOMAIN=vpn.hirebestengineers.com
sudo certbot --register-unsafely-without-email --agree-tos --nginx -d $DOMAIN

Successful renew output.

Saving debug log to /var/log/letsencrypt/letsencrypt.log
Account registered.
Requesting a certificate for vpn.hirebestengineers.com

Successfully received certificate.
Certificate is saved at: /etc/letsencrypt/live/vpn.hirebestengineers.com/fullchain.pem
Key is saved at:         /etc/letsencrypt/live/vpn.hirebestengineers.com/privkey.pem
This certificate expires on 2024-01-02.
These files will be updated when the certificate renews.
Certbot has set up a scheduled task to automatically renew this certificate in the background.

Deploying certificate
Successfully deployed certificate for vpn.hirebestengineers.com to /etc/nginx/conf.d/headscale.conf
Congratulations! You have successfully enabled HTTPS on https://vpn.hirebestengineers.com

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
If you like Certbot, please consider supporting our work by:
 * Donating to ISRG / Let's Encrypt:   https://letsencrypt.org/donate
 * Donating to EFF:                    https://eff.org/donate-le
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Certbot tool will automatically inject SSL configurations into the file. You can confirm by viewing its contents.

cat /etc/nginx/conf.d/headscale.conf

Restart nginx web server.

sudo systemctl restart nginx

Finally update Headscale configuration and set the url to domain and https.

$ sudo vim /etc/headscale/config.yaml
server_url: https://vpn.hirebestengineers.com:443

Restart headscale service.

sudo systemctl restart headscale

Note that certificates can also be specified inside Headscale configuration file if not using Nginx proxy.

$ sudo vim /etc/headscale/config.yaml
## Use already defined certificates:
tls_cert_path: ""
tls_key_path: ""

Using custom SSL certificates

If using custom certificates you can modify

map $http_upgrade $connection_upgrade {
    default      keep-alive;
    'websocket'  upgrade;
    ''           close;
}

server {
    listen 80;
	listen [::]:80;

	listen 443      ssl http2;
	listen [::]:443 ssl http2;

    server_name your_fqdn;

    ssl_certificate <PATH_TO_CERT>;
    ssl_certificate_key <PATH_CERT_KEY>;
    ssl_protocols TLSv1.2 TLSv1.3;

    location / {
        proxy_pass http://localhost:8080;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection $connection_upgrade;
        proxy_set_header Host $server_name;
        proxy_redirect http:// https://;
        proxy_buffering off;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $http_x_forwarded_proto;
        add_header Strict-Transport-Security "max-age=15552000; includeSubDomains" always;
    }
}

5. Joining Client devices to Headscale mesh

Let’s create a user named computingforgeeks on Headscale server.

$ sudo su -
# headscale users create computingforgeeks
User created

Install Tailscale clients

Install Tailscale on Linux

To install tailscale on Linux run the following commands.

curl -fsSL https://tailscale.com/install.sh | sudo sh

Checking the version of Tailscale can be done with the commands below.

$ tailscale --version
1.70.0
  tailscale commit: 0e0a212418fbf8243cb3f06634367b61e81ea9db
  other commit: 26f80df929d9ae698931e4dd1fbdf05f2138ff6f
  go version: go1.22.5

Installing on macOS

You can install using Homebrew:

brew install tailscale

Or by running the script.

curl -fsSL https://tailscale.com/install.sh | sudo sh

You can check usage help pages:

tailscale up --help

Register machine using a pre authenticated key

You can register a new machine using pre authenticated key.

List users created in Headscale server.

$ headscale user list
ID | Name        | Created
1  | myfirstuser | 2023-10-04 14:01:42
2  | jkmutai     | 2023-10-04 14:03:31

First generate a key using the command line:

headscale --user <username> preauthkeys create --reusable --expiration 24h

Executing the command returns a pre-authenticated key used to connect a node to headscale when running the tailscale command:

tailscale up --login-server <YOUR_HEADSCALE_URL> --authkey <YOUR_AUTH_KEY>

Let’s see example below.

# On Headscale server
# headscale --user jkmutai preauthkeys create --reusable --expiration 24h
4763c4f4293b260eff230065378e5668c13db44f4569ed7b

# On Machine to be registered
# tailscale up --login-server http://vpn.hirebestengineers.com --authkey 4763c4f4293b260eff230065378e5668c13db44f4569ed7b

To list Pre-auth key for a user use:

headscale preauthkeys --user <username> list

The machine registration command with pre-authenticated key gives no output. But you can confirm if a new nodes is added from Headscale server CLI.

# headscale node list
ID | Hostname | Name   | MachineKey | NodeKey | User    | IP addresses                  | Ephemeral | Last seen           | Expiration          | Online | Expired
1  | rocky8   | rocky8 | [s+TG9]    | [QQFV0] | jkmutai | 100.64.0.1, fd7a:115c:a1e0::1 | false     | 2023-10-05 17:05:58 | 0001-01-01 00:00:00 | online | no
2  | mail     | mail   | [V8WI2]    | [OvPLb] | jkmutai | 100.64.0.2, fd7a:115c:a1e0::2 | false     | 2023-10-05 17:06:32 | 0001-01-01 00:00:00 | online | no

On a client machine, execute the tailscale login command:

tailscale up --login-server YOUR_HEADSCALE_URL

See example below.

# tailscale up --login-server http://vpn.hirebestengineers.com

To authenticate, visit:
	https://vpn.hirebestengineers.com:443/register/nodekey:410155d1792d0f81a5f39415a1a418f882208751570c2e5195f7a6842ca44e6a

When you open the link in your browser you’re given the commands to use in registration of the machine being added to Headscale network.

List users created in Headscale server.

$ headscale user list
ID | Name        | Created
1  | myfirstuser | 2023-10-04 14:01:42
2  | jkmutai     | 2023-10-04 14:03:31

Copy and paste the command on the Headscale server terminal while replacing USERNAME with created user.

$ headscale nodes register --user computingforgeeks --key nodekey:410155d1792d0f81a5f39415a1a418f882208751570c2e5195f7a6842ca44e6a
Machine rocky8 registered

To register a machine through headscale the command syntax is:

headscale --user <username> nodes register --key <YOU_+MACHINE_KEY>

You can now list nodes added to Headscale network.

# headscale node list
ID | Hostname | Name   | MachineKey | NodeKey | User    | IP addresses                  | Ephemeral | Last seen           | Expiration          | Online | Expired
1  | rocky8   | rocky8 | [s+TG9]    | [QQFV0] | jkmutai | 100.64.0.1, fd7a:115c:a1e0::1 | false     | 2023-10-05 16:48:58 | 0001-01-01 00:00:00 | online | no

6. Helpful Headscale commands

Delete a node in your network.

headscale node delete -i <ID>

Move node to another user

headscale node move  -i  <ID> -u <New-User>

Rename a machine in your network

headscale node rename  -i  <ID>  <NEW_NAME>

Expire (log out) a machine in your network

headscale node expire -i <ID>

List Pre-auth keys:

headscale preauthkeys --user <username> list

Generate Pre-authentication key:

headscale --user <username> preauthkeys create --reusable --expiration <expiry>

Expire Pre-auth key:

headscale preauthkeys --user <username>  expire <key>

Create a API key:

headscale apikeys create --expiration 90d

List API keys:

headscale apikeys list

Expire an API key:

headscale apikeys expire --prefix "<PREFIX>"

Enable routes:

# headscale routes list
ID | Machine         | Prefix          | Advertised | Enabled | Primary
2  | pfsense-chaileo | 192.168.88.0/24 | true       | true    | true
3  | pfsense-gulled  | 192.168.89.0/24 | true       | false   | false

# headscale routes enable -r 3
# headscale routes list
ID | Machine         | Prefix          | Advertised | Enabled | Primary
2  | pfsense-chaileo | 192.168.88.0/24 | true       | true    | true
3  | pfsense-gulled  | 192.168.89.0/24 | true       | true    | true

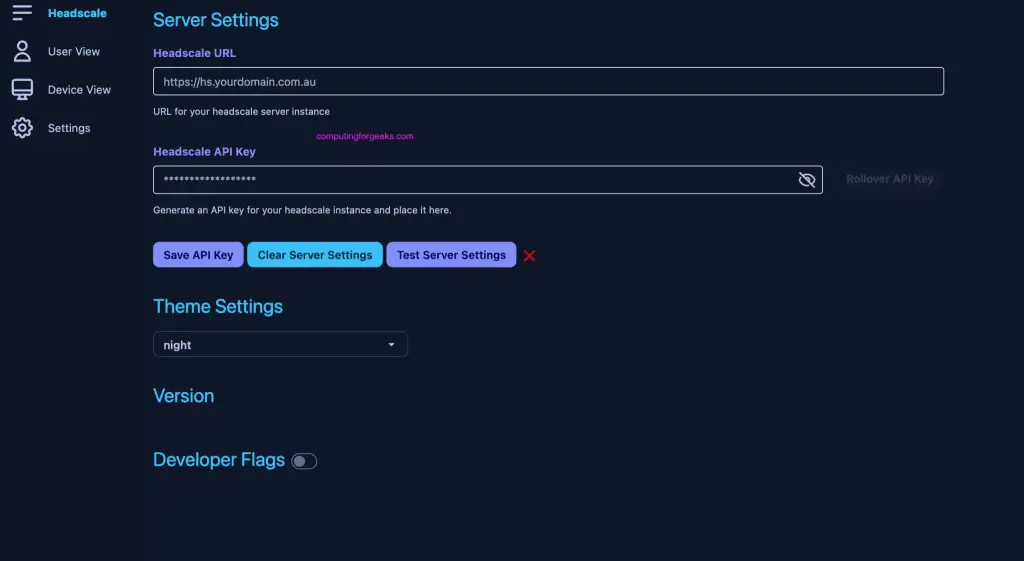

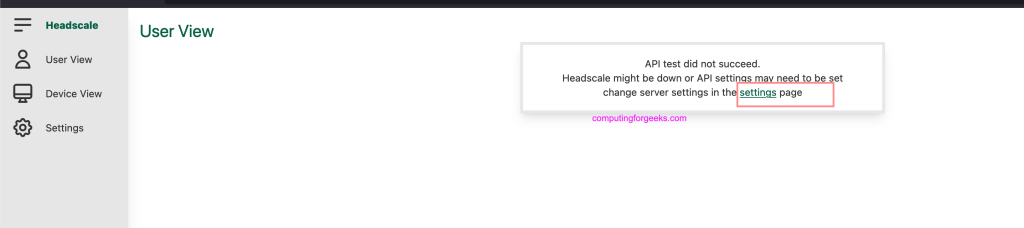

7. Installing Headscale UI

Headscale-UI is a web frontend for the headscale Tailscale-compatible coordination server. We’ll run this in Docker Container.

Install Docker CE.

sudo apt update
sudo apt install ca-certificates curl gnupg lsb-release

sudo mkdir -p /etc/apt/keyrings
curl -fsSL https://download.docker.com/linux/ubuntu/gpg | sudo gpg --dearmor -o /etc/apt/keyrings/docker.gpg

echo \
  "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.gpg] https://download.docker.com/linux/ubuntu \
  $(lsb_release -cs) stable" | sudo tee /etc/apt/sources.list.d/docker.list > /dev/null

sudo apt update
sudo apt install docker-ce docker-ce-cli containerd.io docker-compose-plugin

Create Compose file for Headscale UI.

$ vim docker-compose.yml
services:
  headscale-ui:
    container_name: headscale-ui
    image: ghcr.io/gurucomputing/headscale-ui:latest
    pull_policy: always
    restart: unless-stopped
    ports:
        - 9080:80

Then start the container

docker compose up -d

Check the status with docker command.

$ docker ps
CONTAINER ID   IMAGE                                       COMMAND                  CREATED      STATUS      PORTS                                            NAMES
5fa151abfa99   ghcr.io/gurucomputing/headscale-ui:latest   "/bin/sh -c '/bin/sh…"   9 days ago   Up 9 days   443/tcp, 0.0.0.0:9080->80/tcp, :::9080->80/tcp   headscale-ui

Update Nginx Proxy /etc/nginx/conf.d/headscale.conf config for Headscale to include UI.

map $http_upgrade $connection_upgrade {
    default      keep-alive;
    'websocket'  upgrade;
    ''           close;
}

server {

    server_name vpn.example.com;

    location /web/ {
    proxy_pass http://ServerIP:9080/web/;
    }


    location / {
        proxy_pass  http://localhost:8080;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection $connection_upgrade;
        proxy_set_header Host $server_name;
        proxy_redirect http:// https://;
        proxy_buffering off;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $http_x_forwarded_proto;
        add_header Strict-Transport-Security "max-age=15552000; includeSubDomains" always;
	add_header 'Access-Control-Allow-Origin' '';
    }

    listen [::]:443 ssl ipv6only=on; # managed by Certbot
    listen 443 ssl; # managed by Certbot
    ssl_certificate /etc/letsencrypt/live/vpn.example.com/fullchain.pem; # managed by Certbot
    ssl_certificate_key /etc/letsencrypt/live/vpn.example.com/privkey.pem; # managed by Certbot
    include /etc/letsencrypt/options-ssl-nginx.conf; # managed by Certbot
    ssl_dhparam /etc/letsencrypt/ssl-dhparams.pem; # managed by Certbot

}


server {
    if ($host = vpn.example.com) {
        return 301 https://$host$request_uri;
    } # managed by Certbot


    listen 80;
	listen [::]:80;

    server_name vpn.example.com;
    return 404; # managed by Certbot
}

Restart Nginx after updating the configurations.

sudo systemctl restart nginx

Visit Headscale-UI web interface at http://yourfqdn/web. Click on Settings to set Headscale URL and API key.

Generate API Key on Headscale server if you don’t have one.

headscale apikeys create --expiration 120d

Input Headscale URL and API key.

Next reading:

Joining pfSense to Tailscale / Headscale VPN Mesh

4 COMMENTS

bmullan December 1, 2023 At 3:19 pm

Thanks for pulling all of this into one Guide.
Now I have to try it out.

Reply
- Josphat Mutai December 4, 2023 At 4:58 pm

  Nice welcome!

  Reply
Richard December 15, 2023 At 10:35 am

Followed the guide and everything is working BUT what is the URL for the tailscale UI?

I can get to https://xxx.com/apple, https://xxx.com/windows, https://xxx.com/register etc but what is the url for the main dashboard?

Reply
Josphat Mutai December 18, 2023 At 11:54 pm

The article has been updated to include UI in step 7.

Reply

1. Download Headscale Apt package

2. Configure Headscale Service

3. Configuring Nginx Proxy for Headscale

4. Securing Headscale with SSL Certificates

Using Let’s Encrypt SSL

Using custom SSL certificates

5. Joining Client devices to Headscale mesh

Install Tailscale clients

Install Tailscale on Linux

Installing on macOS

Register machine using a pre authenticated key

6. Helpful Headscale commands

7. Installing Headscale UI

4 COMMENTS

LEAVE A REPLY Cancel reply

Recent Posts

More Content

Books

EDITOR PICKS

POPULAR POSTS

POPULAR CATEGORY

Books
