In this guide we will be performing an installation of OKD / OpenShift 4.7 Cluster on OpenStack Cloud Platform. OpenShift is a powerful, enterprise grade containerization software solution developed by Red Hat. The solution is built around Docker containers orchestrated and managed by Kubernetes on a foundation of Red Hat Enterprise Linux .

The OpenShift platform offers automated installation, upgrades, and lifecycle management throughout the container stack – from the operating system, Kubernetes and cluster services, to deployed applications. Operating system that will be used on both the Control plan and Worker machines is Fedora CoreOS (FCOS) for OKD deployment, and Red Hat CoreOS (RHCOS) for OpenShift deployment. This OS includes the kubelet, which is the Kubernetes node agent, and the CRI-O container runtime, which is optimized for Kubernetes.

Fedora CoreOS / Red Hat Enterprise Linux CoreOS also includes a critical first-boot provisioning tool called Ignition which enables the cluster to configure the machines. With all the machines in the cluster running on RHCOS/FCOS, the cluster will manage all aspects of its components and machines, including the operating system.

Below are a subset of the installation targets and dependencies for OpenShift / OKD Cluster.

openshift okd installation steps

The latest release of OpenShift as of this article writing is version 4.7. Follow the steps outlined in this article to have a working installation of OpenShift / OKD Cluster on OpenStack. There is a requirement of having a running installation of OpenStack Cloud – on-premise, co-located infrastructure or Cloud IaaS setup.

Step 1: Download Installation Program / Client Tools

Download the installation program(openshift-install) and cluster management tools from:

OKD 4.7 Installation program and Client tools

Downloading OKD 4.7 installer:

mkdir -p ~/okd/tools
cd ~/okd/tools
wget https://github.com/openshift/okd/releases/download/4.7.0-0.okd-2021-05-22-050008/openshift-install-linux-4.7.0-0.okd-2021-05-22-050008.tar.gz

Extract the file after downloading:

$ tar xvf openshift-install-linux-4.7.0-0.okd-2021-05-22-050008.tar.gz
README.md
openshift-install

Move resulting binary file to /usr/local/bin directory:

sudo mv openshift-install /usr/local/bin

Download Client tools:

wget https://github.com/openshift/okd/releases/download/4.7.0-0.okd-2021-05-22-050008/openshift-client-linux-4.7.0-0.okd-2021-05-22-050008.tar.gz
tar xvf openshift-client-linux-4.7.0-0.okd-2021-05-22-050008.tar.gz
sudo mv kubectl oc /usr/local/bin

Check versions of both oc and openshift-install to confirm successful installation:

$ oc version
Client Version: 4.7.0-0.okd-2021-05-22-050008
Kubernetes Version: v1.21.1

$ openshift-install version
openshift-install 4.7.0-0.okd-2021-05-22-050008
built from commit ba1a5fc61dd3be134a24fa6d89ae24012a93385a
release image quay.io/openshift/[email protected]:301cd36b2ab370027ddb0ec43e540a03a24748a25b69578dec504d130475304b

OpenShift 4.7 Installation program and client tools

Before you install OpenShift Container Platform, download the installation file on a local computer.

  • Access the Infrastructure Provider page on the Red Hat OpenShift Cluster Manager site
  • Select your infrastructure provider – (Red Hat OpenStack)
  • Download the installation program for your operating system
# Linux
mkdir -p ~/ocp/tools
cd ~/ocp/tools
wget https://mirror.openshift.com/pub/openshift-v4/clients/ocp/stable/openshift-install-linux.tar.gz
tar xvf openshift-install-linux.tar.gz
sudo mv openshift-install /usr/local/bin/

# macOS
wget https://mirror.openshift.com/pub/openshift-v4/clients/ocp/stable/openshift-install-mac.tar.gz
tar xvf openshift-install-mac.tar.gz
sudo mv openshift-install /usr/local/bin/

Installation of Cluster Management tools:

# Linux
wget https://mirror.openshift.com/pub/openshift-v4/clients/ocp/stable/openshift-client-linux.tar.gz
tar xvf openshift-client-linux.tar.gz
sudo mv oc kubectl  /usr/local/bin/

Confirm installation:

$ oc version
Client Version: 4.7.12

$ kubectl version --client --short
Client Version: v1.20.1-5-g76a04fc

$ oc version
Client Version: 4.7.12

Step 2: Configure OpenStack Clouds in clouds.yaml file

In OpenStack, clouds.yaml is a configuration file that contains everything needed to connect to one or more clouds. It may contain private information and is generally considered private to a user.

OpenStack Client will look for the  clouds.yaml file in the following locations:

  • current working directory
  • ~/.config/openstack
  • /etc/openstack

We will place our Clouds configuration file in the ~/.config/openstack directory:

mkdir -p ~/.config/openstack/

Create a new file:

vim ~/.config/openstack/clouds.yaml

Sample configuration contents for two clouds. Change accordinly:

clouds:
  osp1:
    auth:
      auth_url: http://192.168.200.2:5000/v3
      project_name: admin
      username: admin
      password: 'AdminPassword'
      user_domain_name: Default
      project_domain_name: Default
    identity_api_version: 3
    region_name: RegionOne
  osp2:
    auth:
      auth_url: http://192.168.100.2:5000/v3
      project_name: admin
      username: admin
      password: 'AdminPassword'
      user_domain_name: Default
      project_domain_name: Default
    identity_api_version: 3
    region_name: RegionOne

A cloud can be selected on the command line:

$ openstack --os-cloud osp1 network list --format json
[
  {
    "ID": "44b32734-4798-403c-85e3-fbed9f0d51f2",
    "Name": "private",
    "Subnets": [
      "1d1f6a6d-9dd4-480e-b2e9-fb51766ded0b"
    ]
  },
  {
    "ID": "70ea2e21-79fd-481b-a8c1-182b224168f6",
    "Name": "public",
    "Subnets": [
      "8244731c-c119-4615-b134-cfad768a27d4"
    ]
  }
]

Reference: OpenStack Clouds configuration guide

Step 3: Create Compute Flavors for OpenShift Cluster Nodes

A flavor with at least 16 GB memory, 4 vCPUs, and 25 GB storage space is required for cluster creation.

Let’s create the Compute flavor:

$ openstack flavor create  --ram 16384    --vcpus 4 --disk 30 m1.openshift
+----------------------------+--------------------------------------+
| Field                      | Value                                |
+----------------------------+--------------------------------------+
| OS-FLV-DISABLED:disabled   | False                                |
| OS-FLV-EXT-DATA:ephemeral  | 0                                    |
| description                | None                                 |
| disk                       | 30                                   |
| id                         | 90234d29-e059-48ac-b02d-e72ce3f6d771 |
| name                       | m1.openshift                         |
| os-flavor-access:is_public | True                                 |
| properties                 |                                      |
| ram                        | 16384                                |
| rxtx_factor                | 1.0                                  |
| swap                       |                                      |
| vcpus                      | 4                                    |
+----------------------------+--------------------------------------+

If you have more compute resources you can add more CPU, Memory and Storage to the flavor being created.

Step 4: Create Floating IP Addresses

You’ll two Floating IP addresses for:

  • A floating IP address to associate with the Ingress port
  • A floating IP Address to associate with the API load balancer.

Create API Load balancer floating IP Address:

$ openstack floating ip create --description "API <cluster_name>.<base_domain>" <external_network>

Create Ingress Floating IP:

$ openstack floating ip create --description "Ingress <cluster_name>.<base_domain>" <external_network>

You can list your networks using the command:

$ openstack network list
+--------------------------------------+---------------------+--------------------------------------+
| ID                                   | Name                | Subnets                              |
+--------------------------------------+---------------------+--------------------------------------+
| 155ef402-bf39-494c-b2f7-59509828fcc2 | public              | 9d0e8119-c091-4a20-b03a-80922f7d43dd |
| af7b4f7c-9095-4643-a470-fefb47777ae4 | private             | 90805451-e2cd-4203-b9ac-a95dc7d92957 |
+--------------------------------------+---------------------+--------------------------------------+

My Floating IP Addresses will be created from the public subnet. An external network should be configured in advance.

$ openstack floating ip create --description "API  ocp.mycluster.com"  public
+---------------------+--------------------------------------+
| Field               | Value                                |
+---------------------+--------------------------------------+
| created_at          | 2021-05-29T19:48:23Z                 |
| description         | API  ocp.mycluster.com               |
| dns_domain          | None                                 |
| dns_name            | None                                 |
| fixed_ip_address    | None                                 |
| floating_ip_address | 172.21.200.20                        |
| floating_network_id | 155ef402-bf39-494c-b2f7-59509828fcc2 |
| id                  | a0f41edb-c90b-417d-beff-9c03f180c71b |
| name                | 172.21.200.20                        |
| port_details        | None                                 |
| port_id             | None                                 |
| project_id          | d0515ffa23c24e54a3b987b491f17acb     |
| qos_policy_id       | None                                 |
| revision_number     | 0                                    |
| router_id           | None                                 |
| status              | DOWN                                 |
| subnet_id           | None                                 |
| tags                | []                                   |
| updated_at          | 2021-05-29T19:48:23Z                 |
+---------------------+--------------------------------------+

$ openstack floating ip create --description "Ingress ocp.mycluster.com"  public
+---------------------+--------------------------------------+
| Field               | Value                                |
+---------------------+--------------------------------------+
| created_at          | 2021-05-29T19:42:02Z                 |
| description         | Ingress ocp.mycluster.com            |
| dns_domain          | None                                 |
| dns_name            | None                                 |
| fixed_ip_address    | None                                 |
| floating_ip_address | 172.21.200.22                        |
| floating_network_id | 155ef402-bf39-494c-b2f7-59509828fcc2 |
| id                  | 7035ff39-2903-464c-9ffc-c07a3245448d |
| name                | 172.21.200.22                        |
| port_details        | None                                 |
| port_id             | None                                 |
| project_id          | d0515ffa23c24e54a3b987b491f17acb     |
| qos_policy_id       | None                                 |
| revision_number     | 0                                    |
| router_id           | None                                 |
| status              | DOWN                                 |
| subnet_id           | None                                 |
| tags                | []                                   |
| updated_at          | 2021-05-29T19:42:02Z                 |
+---------------------+--------------------------------------+

Step 5: Create required DNS Entries

Access your DNS server management portal or console and create required DNS entries:

api.<cluster_name>.<base_domain>.  IN  A  <API_FIP>
*.apps.<cluster_name>.<base_domain>. IN  A <apps_FIP>

Where:

  • <cluster_name> is the base domain – e.g computingforgeeks.com
  • <cluster_name> is the name that will be given to your cluster – e.g ocp
  • <API_FIP> is the floating IP address created in Step 4 for API load balancer
  • <apps_FIP> is the floating IP address created in Step 4 for Ingress (Access to apps deployed)

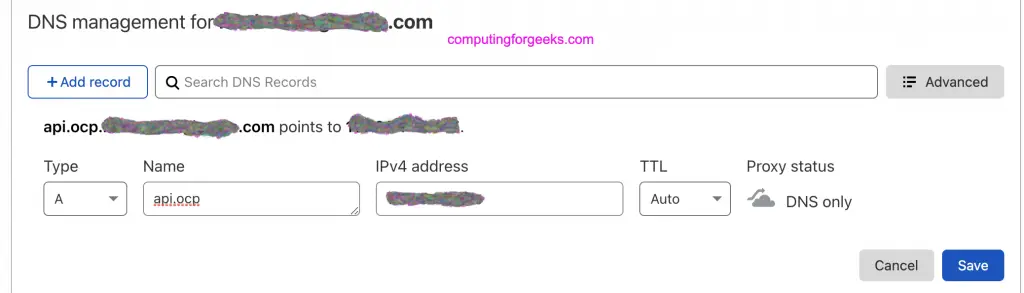

Example of API DNS entry:

openshift api dns record

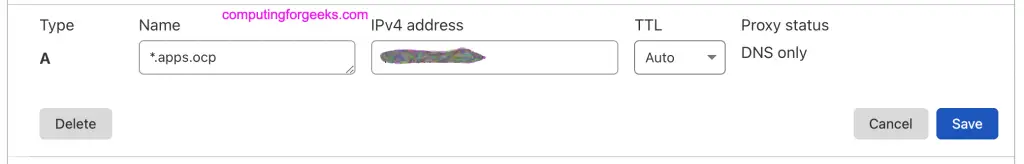

Example of Ingress DNS entry:

openshift ingress dns record

Step 6: Generate OpenShift install-config.yaml file

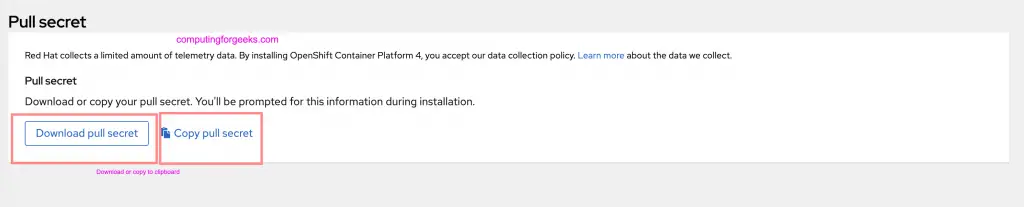

From the Pull Secret page on the Red Hat OpenShift Cluster Manager site, download your installation pull secret as a .txt file.

openshift install pull secret

Run the following command to generate install-config.yaml file:

cd ~/
openshift-install create install-config --dir=<installation_directory>

For <installation_directory>, specify the directory name to store the files that the installation program creates. The installation directory specified must be empty.

Example:

$ openshift-install create install-config --dir=ocp

At the prompts, provide the configuration details for your cloud:

? Platform openstack # Select openstack as the platform to target.
? Cloud osp1 # Choose cloud configured in clouds.yml
? ExternalNetwork public # Specify OpenStack external network name to use for installing the cluster.
? APIFloatingIPAddress  [Use arrows to move, enter to select, type to filter, ? for more help]
> 172.21.200.20 # Specify the floating IP address to use for external access to the OpenShift API
  172.21.200.22
? FlavorName  [Use arrows to move, enter to select, type to filter, ? for more help]
  m1.large
  m1.magnum
  m1.medium
> m1.openshift # Specify a RHOSP flavor with at least 16 GB RAM to use for control plane and compute nodes.
  m1.small
  m1.tiny
  m1.xlarge
? Base Domain [? for help] mycluster.com # Select the base domain to deploy the cluster to
? Cluster Name ocp # Enter a name for your cluster. The name must be 14 or fewer characters long.
? Pull Secret [? for help] <paste-pull-secret>
INFO Install-Config created in: ocp

File creation

$ ls ocp/
install-config.yaml

You can edit to customize further:

$ vim ocp/install-config.yaml
  • Confirm that Floating IPs are added to the install-config.yaml file as the values of the following parameters:
platform.openstack.ingressFloatingIP
platform.openstack.apiFloatingIP

Example:

...
platform:
  openstack:
    apiFloatingIP: 172.21.200.20
    ingressFloatingIP: 172.21.200.22
    apiVIP: 10.0.0.5
    cloud: osp1

Also add ssh public key

$ vim ocp/install-config.yaml
...
sshKey: replace-me-with-ssh-pub-key-contents

If you do not have an SSH key that is configured for password-less authentication on your computer, create one:

$ ssh-keygen -t ed25519 -N '' -f <path>/<file_name>

Step 7: Deploy OKD / OpenShift Cluster on OpenStack

Change to the directory that contains the installation program and backup up the install-config.yaml file:

cp install-config.yaml install-config.yaml.bak

Initialize the cluster deployment:

$ openshift-install create cluster --dir=ocp --log-level=info
INFO Credentials loaded from file "/root/.config/openstack/clouds.yaml"
INFO Consuming Install Config from target directory
INFO Obtaining RHCOS image file from 'https://builds.coreos.fedoraproject.org/prod/streams/stable/builds/33.20210217.3.0/x86_64/fedora-coreos-33.20210217.3.0-openstack.x86_64.qcow2.xz?sha256=ae088d752a52859ad38c53c29090efd5930453229ef6d1204645916aab856fb1'
INFO The file was found in cache: /root/.cache/openshift-installer/image_cache/41b2fca6062b458e4d5157ca9e4666f2. Reusing...
INFO Creating infrastructure resources...
INFO Waiting up to 20m0s for the Kubernetes API at https://api.ocp.mycluster.com:6443...
INFO API v1.20.0-1073+df9c8387b2dc23-dirty up
INFO Waiting up to 30m0s for bootstrapping to complete...
INFO Destroying the bootstrap resources...
INFO Waiting up to 40m0s for the cluster at https://api.ocp.mycluster.com:6443 to initialize...
INFO Waiting up to 10m0s for the openshift-console route to be created...
INFO Install complete!
INFO To access the cluster as the system:admin user when using 'oc', run 'export KUBECONFIG=/root/okd/ocp/auth/kubeconfig'
INFO Access the OpenShift web-console here: https://console-openshift-console.apps.ocp.mycluster.com
INFO Login to the console with user: "kubeadmin", and password: "33yzG-Ogiup-huGI9"
INFO Time elapsed: 42m39s

Listing created servers on OpenStack:

$ openstack server list --column  Name --column Networks --column Status
+--------------------------------------+--------+---------------------------------------+
| Name                                 | Status | Networks                              |
+--------------------------------------+--------+---------------------------------------+
| ocp-nlrnw-worker-0-nz2ch             | ACTIVE | ocp-nlrnw-openshift=10.0.1.197        |
| ocp-nlrnw-worker-0-kts42             | ACTIVE | ocp-nlrnw-openshift=10.0.0.201        |
| ocp-nlrnw-worker-0-92kvf             | ACTIVE | ocp-nlrnw-openshift=10.0.2.197        |
| ocp-nlrnw-master-2                   | ACTIVE | ocp-nlrnw-openshift=10.0.3.167        |
| ocp-nlrnw-master-1                   | ACTIVE | ocp-nlrnw-openshift=10.0.1.83         |
| ocp-nlrnw-master-0                   | ACTIVE | ocp-nlrnw-openshift=10.0.0.139        |
+--------------------------------------+--------+---------------------------------------+

Export the cluster access config file:

export KUBECONFIG=ocp/auth/kubeconfig

You can as well make it default kubeconfig:

cp ocp/auth/kubeconfig ~/.kube/config

List available nodes in the cluster

$ oc get nodes
NAME                       STATUS   ROLES    AGE     VERSION
ocp-nlrnw-master-0         Ready    master   3h48m   v1.20.0+df9c838-1073
ocp-nlrnw-master-1         Ready    master   3h48m   v1.20.0+df9c838-1073
ocp-nlrnw-master-2         Ready    master   3h48m   v1.20.0+df9c838-1073
ocp-nlrnw-worker-0-92kvf   Ready    worker   3h33m   v1.20.0+df9c838-1073
ocp-nlrnw-worker-0-kts42   Ready    worker   3h33m   v1.20.0+df9c838-1073
ocp-nlrnw-worker-0-nz2ch   Ready    worker   3h33m   v1.20.0+df9c838-1073

View your cluster cluster’s version:

$ oc get clusterversion
NAME      VERSION                         AVAILABLE   PROGRESSING   SINCE   STATUS
version   4.7.0-0.okd-2021-05-22-050008   True        False         3h16m   Cluster version is 4.7.0-0.okd-2021-05-22-050008

Confirm that all cluster operators are available and none is degraded:

$ oc get clusteroperator
NAME                                       VERSION                         AVAILABLE   PROGRESSING   DEGRADED   SINCE
authentication                             4.7.0-0.okd-2021-05-22-050008   True        False         False      3h24m
baremetal                                  4.7.0-0.okd-2021-05-22-050008   True        False         False      3h52m
cloud-credential                           4.7.0-0.okd-2021-05-22-050008   True        False         False      3h57m
cluster-autoscaler                         4.7.0-0.okd-2021-05-22-050008   True        False         False      3h51m
config-operator                            4.7.0-0.okd-2021-05-22-050008   True        False         False      3h52m
console                                    4.7.0-0.okd-2021-05-22-050008   True        False         False      3h31m
csi-snapshot-controller                    4.7.0-0.okd-2021-05-22-050008   True        False         False      3h52m
dns                                        4.7.0-0.okd-2021-05-22-050008   True        False         False      3h51m
etcd                                       4.7.0-0.okd-2021-05-22-050008   True        False         False      3h51m
image-registry                             4.7.0-0.okd-2021-05-22-050008   True        False         False      3h37m
ingress                                    4.7.0-0.okd-2021-05-22-050008   True        False         False      3h38m
insights                                   4.7.0-0.okd-2021-05-22-050008   True        False         False      3h45m
kube-apiserver                             4.7.0-0.okd-2021-05-22-050008   True        False         False      3h49m
kube-controller-manager                    4.7.0-0.okd-2021-05-22-050008   True        False         False      3h50m
kube-scheduler                             4.7.0-0.okd-2021-05-22-050008   True        False         False      3h49m
kube-storage-version-migrator              4.7.0-0.okd-2021-05-22-050008   True        False         False      3h37m
machine-api                                4.7.0-0.okd-2021-05-22-050008   True        False         False      3h46m
machine-approver                           4.7.0-0.okd-2021-05-22-050008   True        False         False      3h51m
machine-config                             4.7.0-0.okd-2021-05-22-050008   True        False         False      3h50m
marketplace                                4.7.0-0.okd-2021-05-22-050008   True        False         False      3h50m
monitoring                                 4.7.0-0.okd-2021-05-22-050008   True        False         False      3h37m
network                                    4.7.0-0.okd-2021-05-22-050008   True        False         False      3h52m
node-tuning                                4.7.0-0.okd-2021-05-22-050008   True        False         False      3h50m
openshift-apiserver                        4.7.0-0.okd-2021-05-22-050008   True        False         False      3h45m
openshift-controller-manager               4.7.0-0.okd-2021-05-22-050008   True        False         False      3h44m
openshift-samples                          4.7.0-0.okd-2021-05-22-050008   True        False         False      3h43m
operator-lifecycle-manager                 4.7.0-0.okd-2021-05-22-050008   True        False         False      3h52m
operator-lifecycle-manager-catalog         4.7.0-0.okd-2021-05-22-050008   True        False         False      3h52m
operator-lifecycle-manager-packageserver   4.7.0-0.okd-2021-05-22-050008   True        False         False      3h46m
service-ca                                 4.7.0-0.okd-2021-05-22-050008   True        False         False      3h52m
storage                                    4.7.0-0.okd-2021-05-22-050008   True        False         False      3h50m

You can always print OpenShift Login Console using the command:

$ oc whoami --show-console
https://console-openshift-console.apps.ocp.mycluster.com

You can then login using URL printed out:

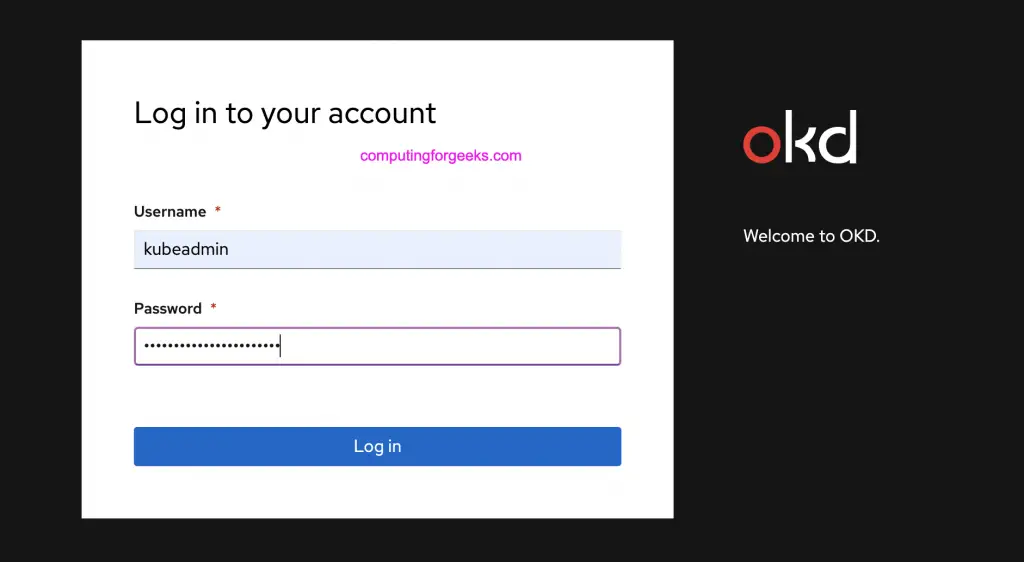

okd console login

Step 8: Configure HTPasswd Identity Provider

By default you’ll login in as a temporary administrative user and you need to update the cluster OAuth configuration to allow others to log in. Refer to guide in the link below:

Manage OpenShift / OKD Users with HTPasswd Identity Provider

Uninstalling OKD / OpenShift Cluster

For you to destroy Cluster created on OpenStack you’ll need to have:

  • A copy of the installation program that you used to deploy the cluster.
  • Files that the installation program generated when you created your cluster.

A cluster can then be destroyed using the command below:

$ openshift-install destroy cluster --dir=<installation_directory> --log-level=info

You can optionally delete the directory and the OpenShift Container Platform installation program.

More OpenStack related guides:

Create Kubernetes Cluster on OpenStack Magnum with Fedora CoreOS

Upgrade Kubernetes Cluster on OpenStack Magnum

Scale up Worker Nodes in OpenStack Magnum Kubernetes Cluster

Your support is our everlasting motivation,
that cup of coffee is what keeps us going!


As we continue to grow, we would wish to reach and impact more people who visit and take advantage of the guides we have on our blog. This is a big task for us and we are so far extremely grateful for the kind people who have shown amazing support for our work over the time we have been online.

Thank You for your support as we work to give you the best of guides and articles. Click below to buy us a coffee.

LEAVE A REPLY

Please enter your comment!
Please enter your name here
