This guide will cover how to install and configure Cacti on RHEL / CentOS 8. Monitoring is a key component of any Infrastructure. At computingforgeeks, so far, we have covered the usage of Zabbixtelegraf/ InfluxdbGrafana, and Prometheus. Cacti is a completely open-source network monitoring and graphing tool that was designed as a front-end application for the industry-standard data logging tool – RRDtool.

Cacti harnesses the power of RRDTool’s data storage and graphing functionality. Some good features of Cacti include:

  • Fast polling of metrics
  • Support for multiple data acquisition methods
  • Support for advanced graph templating
  • User management functionality with ACL

Cacti provides an intuitive and easy to use web interface for managing network monitoring and configurations. There are dependencies needed for building and running Cacti on RHEL 8 / CentOS 8. This section will cover installation and configuration of each component.

Step 1: Install Build tools and System Dependencies

Start with installation of Development Tools set.

Install GCC and Development Tools on RHEL / CentOS 8

After installation of Development tools, install SNMP packages.

sudo dnf install -y net-snmp net-snmp-utils rrdtool

Step 2: Install php and required extensions

Install PHP and extensions required by Cacti on your RHEL / CentOS 8.

sudo dnf install @php
sudo dnf install -y php php-{mysqlnd,curl,gd,intl,pear,recode,ldap,xmlrpc,snmp,mbstring,gettext,gmp,json,xml,common}

Verify PHP version and loaded modules.

$ php -v
PHP 7.2.11 (cli) (built: Oct 9 2018 15:09:36) ( NTS )
Copyright (c) 1997-2018 The PHP Group
Zend Engine v3.2.0, Copyright (c) 1998-2018 Zend Technologies

Set PHP timezone inside /etc/php.ini file.

$ grep date.timezone /etc/php.ini
; http://php.net/date.timezone
date.timezone = Africa/Nairobi

Change PHP memory limit to 400M

limit.memory_limit = 400M

Start php-fpm service.

sudo systemctl enable --now php-fpm

Confirm status.

$ systemctl status php-fpm
● php-fpm.service - The PHP FastCGI Process Manager
Loaded: loaded (/usr/lib/systemd/system/php-fpm.service; enabled; vendor preset: disabled)
Active: active (running) since Sun 2019-03-17 10:23:52 EAT; 5s ago
Main PID: 31139 (php-fpm)
Status: "Ready to handle connections"
Tasks: 6 (limit: 11510)
Memory: 38.2M
CGroup: /system.slice/php-fpm.service
├─31139 php-fpm: master process (/etc/php-fpm.conf)
├─31140 php-fpm: pool www
├─31141 php-fpm: pool www
├─31142 php-fpm: pool www
├─31143 php-fpm: pool www
└─31144 php-fpm: pool www
Mar 17 10:23:52 rhel8.local systemd[1]: Starting The PHP FastCGI Process Manager…
Mar 17 10:23:52 rhel8.local systemd[1]: Started The PHP FastCGI Process Manager.

Step 3: Install Apache Web server

Use the command below to install Apache httpd server.

sudo dnf install @httpd

Start and enable service to start at boot.

sudo systemctl enable --now httpd

Status should indicate running.

$ systemctl status httpd
● httpd.service - The Apache HTTP Server
Loaded: loaded (/usr/lib/systemd/system/httpd.service; enabled; vendor preset: disabled)
Drop-In: /usr/lib/systemd/system/httpd.service.d
└─php-fpm.conf
Active: active (running) since Sun 2019-03-17 10:49:20 EAT; 2s ago
Docs: man:httpd.service(8)
Main PID: 32106 (httpd)
Status: "Started, listening on: port 443, port 80"
Tasks: 213 (limit: 11510)
Memory: 29.2M
CGroup: /system.slice/httpd.service
├─32106 /usr/sbin/httpd -DFOREGROUND
├─32108 /usr/sbin/httpd -DFOREGROUND
├─32109 /usr/sbin/httpd -DFOREGROUND
├─32110 /usr/sbin/httpd -DFOREGROUND
└─32111 /usr/sbin/httpd -DFOREGROUND
Mar 17 10:49:20 rhel8.local systemd[1]: Starting The Apache HTTP Server…
Mar 17 10:49:20 rhel8.local httpd[32106]: Server configured, listening on: port 443, port 80
Mar 17 10:49:20 rhel8.local systemd[1]: Started The Apache HTTP Server.

Allow http and https ports on the firewall.

sudo firewall-cmd --add-service={http,https} --permanent
sudo firewall-cmd --reload

Ref: How to Install Apache with mod_ssl & mod_http2 on RHEL 8

Step 4: Install and Configure Database Server

You can choose to use MySQL or MariaDB database server. if you don’t have either installed, below guides should be helpful.

How to Install MySQL 8.0 on RHEL 8 / CentOS 8

How to Install MariaDB on RHEL 8 / CentOS 8

After Database server installation, create database and user for Cacti Monitoring tool.

$ mysql -u root -p
CREATE DATABASE cacti;
GRANT ALL ON cacti.* TO 'cacti'@'localhost' IDENTIFIED BY 'StrongDBPassword';
FLUSH PRIVILEGES;
exit

Tune MariaDB database for Cacti

Add the following settings under [mysqld] setion the file /etc/my.cnf.d/mariadb-server.cnf

[mysqld]
character-set-server=utf8mb4
collation-server=utf8mb4_unicode_ci
max_heap_table_size=64M
tmp_table_size=64M
join_buffer_size=64M
innodb_buffer_pool_size=512M
innodb_doublewrite=OFF
innodb_flush_log_at_timeout=3
innodb_read_io_threads=32
innodb_write_io_threads=16
innodb_buffer_pool_instances=5

Restart mariadb service after adding the lines.

sudo systemctl restart mariadb

Step 5: Download and Configure Cacti

Download the latest release of Cacti tarball to your system.

mkdir cacti && cd cacti
curl -SL https://www.cacti.net/downloads/cacti-latest.tar.gz | tar --strip 1 -xzf -

Move cacti folder to /var/www/html directory.

cd ..
sudo mv cacti/ /var/www/html/

Import Cacti database data

mysql -u root -p cacti < /var/www/html/cacti/cacti.sql

Setup mysql timezone for cacti database user.

mysql_tzinfo_to_sql /usr/share/zoneinfo | mysql -u root -p mysql

Grant cacti MySQL database user access to Timezone database:

$ mysql -u root -p
Enter password:
Welcome to the MariaDB monitor. Commands end with ; or \g.
Your MariaDB connection id is 12
Server version: 10.3.10-MariaDB MariaDB Server
Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB [(none)]> GRANT SELECT ON mysql.time_zone_name TO [email protected];
Query OK, 0 rows affected (0.001 sec)

MariaDB [(none)]> ALTER DATABASE cacti CHARACTER SET utf8mb4 COLLATE utf8mb4_unicode_ci;
Query OK, 0 rows affected (0.001 sec)

MariaDB [(none)]> FLUSH PRIVILEGES;
Query OK, 0 rows affected (0.001 sec)

MariaDB [(none)]> QUIT
Bye

Configure SELinux.

sudo semanage fcontext -a -t httpd_sys_rw_content_t "/var/www/html/cacti(/.*)?"
sudo restorecon -Rv /var/www/html/cacti

You need to restart apache service after making above modifications,

sudo systemctl restart httpd php-fpm

Configure Cacti

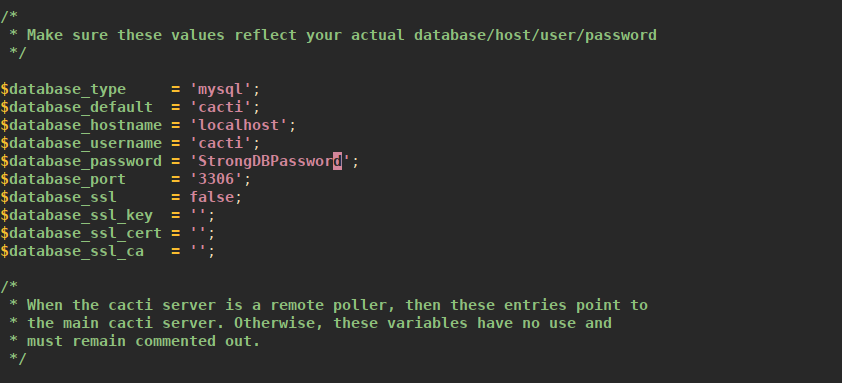

Edit the file /var/www/html/cacti/include/config.php and set database connection parameters.

$database_type     = 'mysql';
$database_default = 'cacti';
$database_hostname = 'localhost';
$database_username = 'cacti';
$database_password = 'StrongDBPassword';
$database_port = '3306';
.............

Replace StrongDBPassword with your cacti user database password. When done. save file and exit.

Create Cacti system log file.

touch /var/www/html/cacti/log/cacti.log

Set directory permissions

sudo chown -R apache:apache  /var/www/html/cacti

Setup Cacti cron job.

sudo crontab -u apache -e

Add below.

*/5 * * * * php /var/www/html/cacti/poller.php > /dev/null 2>&1

Step 6: Access Cacti installation wizard

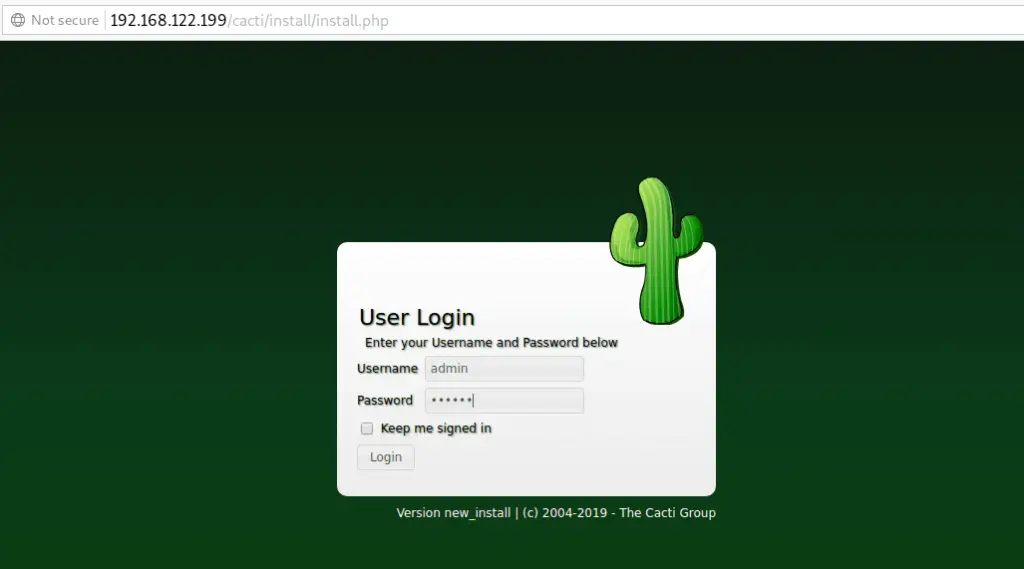

Access Cacti Installation Wizard interface on http://[ServerIP/Hostname]/cacti.

The default Logins are:

Username: admin
Password: admin

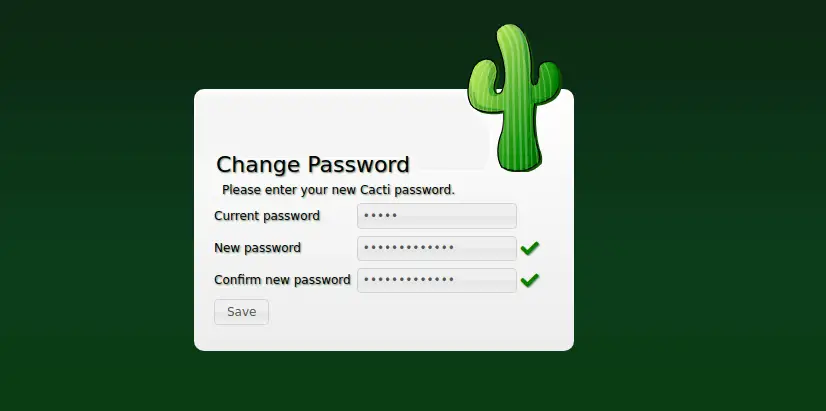

Change password on the next screen.

The new password should:

  • Contain at least 1 numerical character!
  • Contain at least 1 special character!

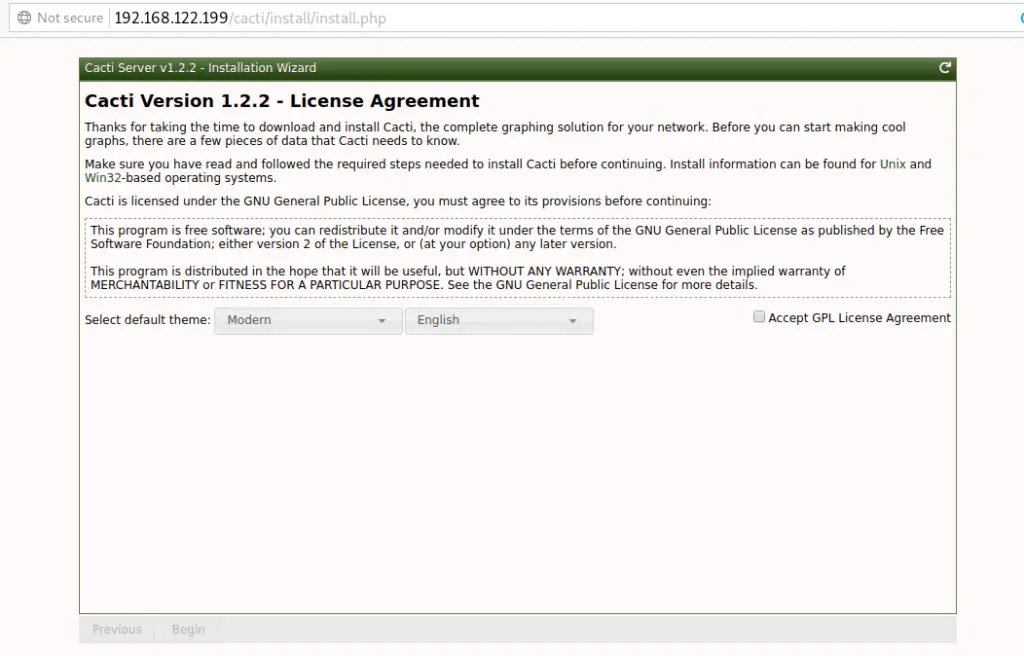

Accept GPL License Agreement and click “Begin

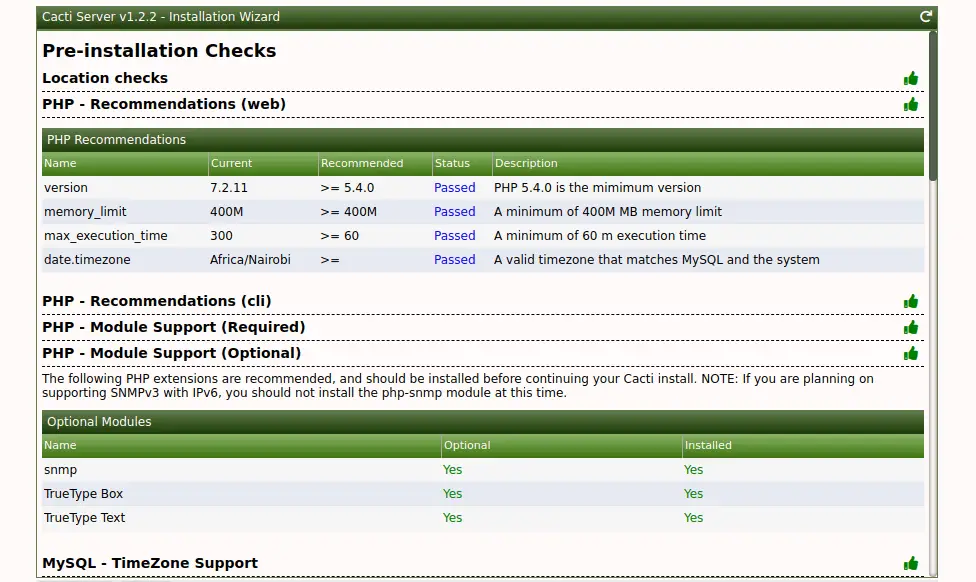

All pre-installation checks should show green – passed.

Select type of installation in the next window.

Ensure that Directory Permission Checks are Okay.

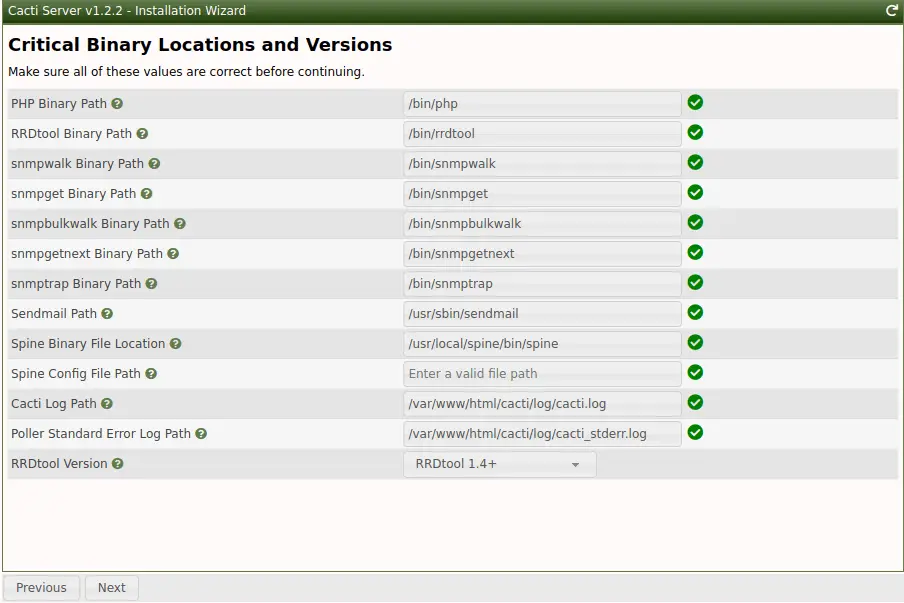

Confirm that all binaries all located and click Next.

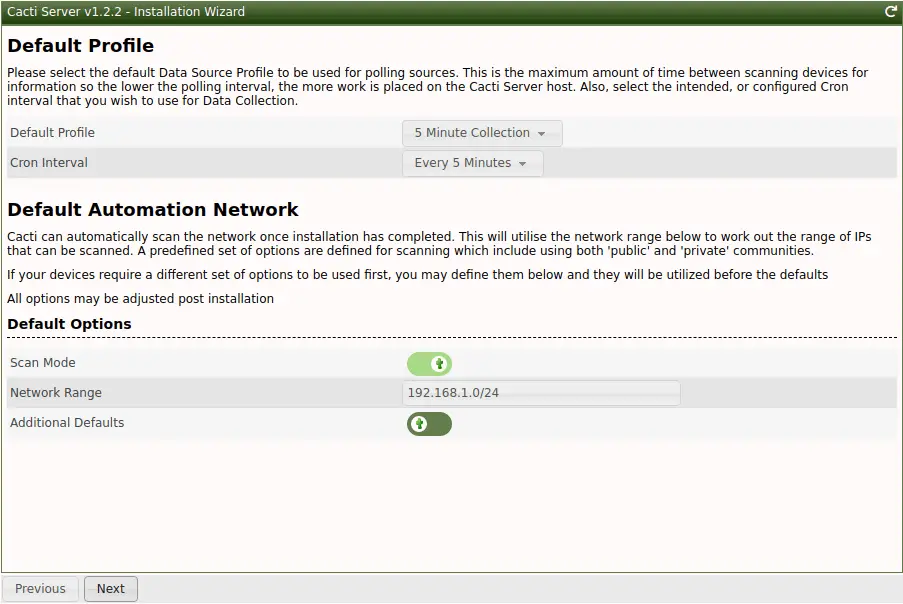

Select default data source profile for polling sources.

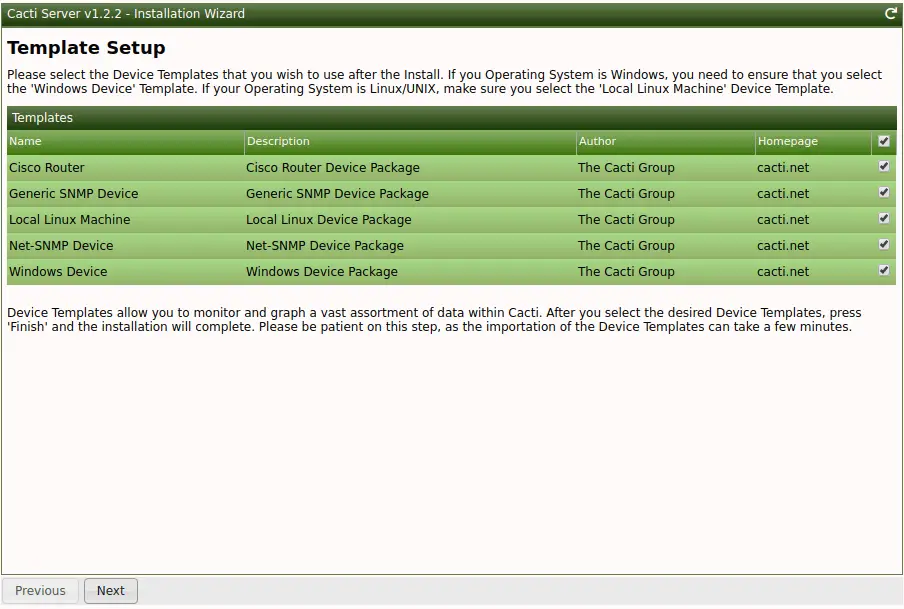

Select Device templates to be used after installation.

Confirm database settings are okay.

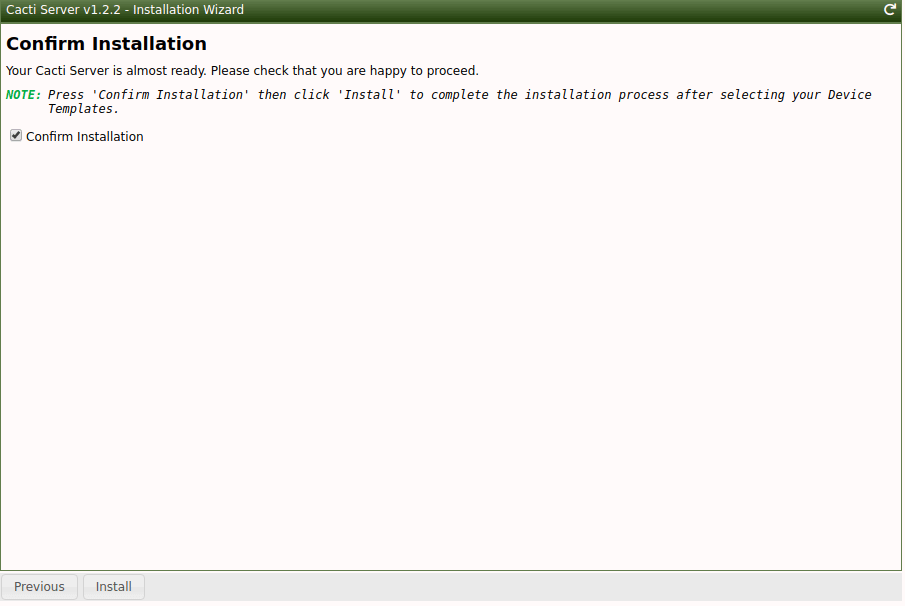

Confirm installation.

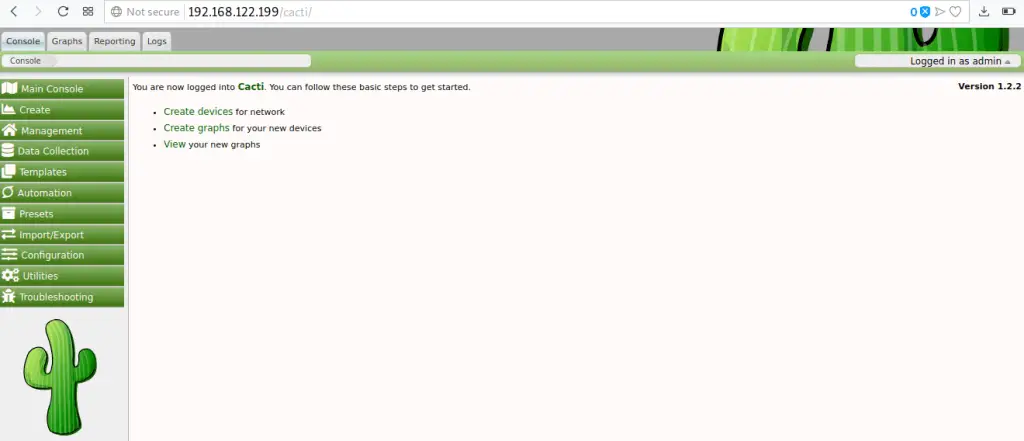

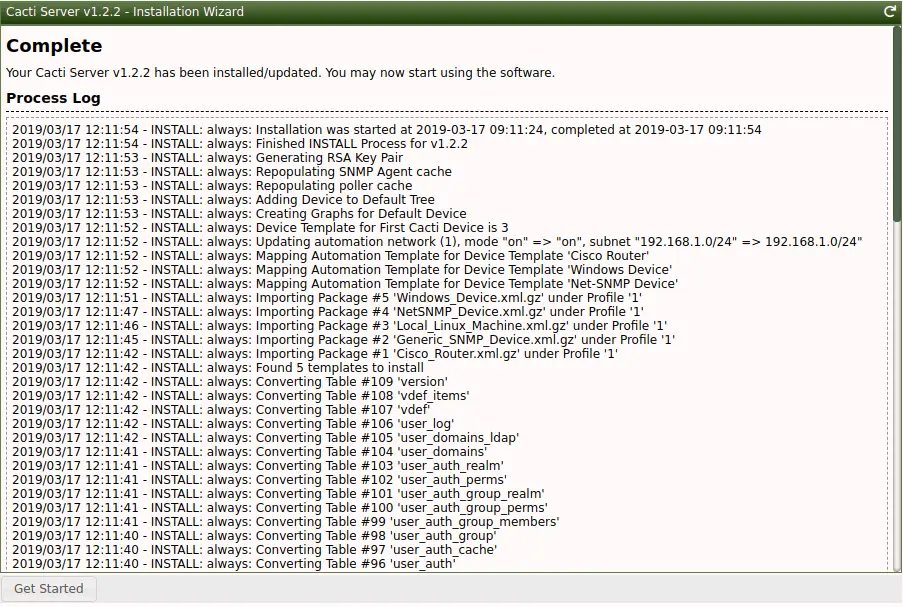

Installation should start, wait for it to finish then access cacti administration web dashboard.

Step 7: Monitor Linux Servers with Cacti

Start and enable snmpd daemon to start at boot.

sudo systemctl enable --now snmpd

Confirm it is running.

$ systemctl status snmpd
● snmpd.service - Simple Network Management Protocol (SNMP) Daemon.
Loaded: loaded (/usr/lib/systemd/system/snmpd.service; enabled; vendor preset: disabled)
Active: active (running) since Sun 2019-03-17 12:24:50 EAT; 4s ago
Main PID: 3129 (snmpd)
Tasks: 1 (limit: 11510)
Memory: 4.9M
CGroup: /system.slice/snmpd.service
└─3129 /usr/sbin/snmpd -LS0-6d -f
Mar 17 12:24:49 rhel8.local systemd[1]: Starting Simple Network Management Protocol (SNMP) Daemon….
Mar 17 12:24:50 rhel8.local snmpd[3129]: NET-SNMP version 5.8
Mar 17 12:24:50 rhel8.local systemd[1]: Started Simple Network Management Protocol (SNMP) Daemon..

Add the Linux server for monitoring.  Login to Cacti as admin user and go to:

Console > Create > New Device

Provide Server details and save the configuration.
