How To Install Apache Hadoop / HBase on CentOS 7

This guide will discuss the Installation of Hadoop and HBase on CentOS 7. HBase is an open-source distributed non-relational database developed under the Apache Software Foundation. It is written in Java and runs on top of Hadoop File Systems (HDFS).

In our last tutorial, we covered the installation of Hadoop & HBase on Ubuntu 18.04.

Install Hadoop on CentOS 7

Here are the steps used to install a Single node Hadoop cluster on CentOS 7.

Step 1: Update System

Because Hadoop & HBase service ports are so dynamic, I recommend you install them on a Server in secure Private network and disable both SELinux and Firewalld.

sudo systemctl disable --now firewalld
sudo setenforce 0
sudo sed -i 's/^SELINUX=.*/SELINUX=permissive/g' /etc/selinux/config
cat /etc/selinux/config | grep SELINUX= | grep -v '#'

Update your CentOS 7 system before starting deployment of Hadoop and HBase.

sudo yum -y install epel-release
sudo yum -y install vim wget curl bash-completion
sudo yum -y update
sudo reboot

Step 2: Install Java

Install Java if it is missing on your CentOS 7 server.

sudo yum -y install java-1.8.0-openjdk java-1.8.0-openjdk-devel

Validate is Java has been installed successfully.

$ java -version
java version "1.8.0_201"
Java(TM) SE Runtime Environment (build 1.8.0_201-b09)
Java HotSpot(TM) 64-Bit Server VM (build 25.201-b09, mixed mode)

Set JAVA_HOME variable.

cat <<EOF | sudo tee /etc/profile.d/hadoop_java.sh
export JAVA_HOME=\$(dirname \$(dirname \$(readlink \$(readlink \$(which javac)))))
export PATH=\$PATH:\$JAVA_HOME/bin
EOF

Update your $PATH and setting.

source /etc/profile.d/hadoop_java.sh

Then test:

$ echo $JAVA_HOME
/usr/lib/jvm/java-1.8.0-openjdk-1.8.0.201.b09-2.el7_6.x86_64

Step 3: Create a User Account for Hadoop

Let’s create a separate user for Hadoop so we have isolation between the Hadoop file system and the Unix file system.

sudo adduser hadoop
passwd hadoop
sudo usermod -aG wheel hadoop

Once the user is added, generate SS key pair for the user.

$ sudo su - hadoop
$ ssh-keygen -t rsa
 Generating public/private rsa key pair.
 Enter file in which to save the key (/home/hadoop/.ssh/id_rsa):
 Created directory '/home/hadoop/.ssh'.
 Enter passphrase (empty for no passphrase):
 Enter same passphrase again:
 Your identification has been saved in /home/hadoop/.ssh/id_rsa.
 Your public key has been saved in /home/hadoop/.ssh/id_rsa.pub.
 The key fingerprint is:
 SHA256:mA1b0nzdKcwv/LPktvlA5R9LyNe9UWt+z1z0AjzySt4 [email protected]
 The key's randomart image is:
 +---[RSA 2048]----+
 |                 |
 |       o   + . . |
 |      o + . = o o|
 |       O . o.o.o=|
 |      + S . *ooB=|
 |           o *=.B|
 |          . . *+=|
 |         o o o.O+|
 |          o E.=o=|
 +----[SHA256]-----+

Add this user’s key to list of Authorized ssh keys.

cat ~/.ssh/id_rsa.pub >> ~/.ssh/authorized_keys
chmod 0600 ~/.ssh/authorized_keys

Verify that you can ssh using added key.

$ ssh localhost
The authenticity of host 'localhost (::1)' can't be established.
ECDSA key fingerprint is SHA256:WTqP642Xijk3xtTb/zt32o0Q7PqYlxzwX+H/B72z4P4.
ECDSA key fingerprint is MD5:47:dc:17:78:63:f7:bc:12:72:70:4b:e3:2f:8a:c3:8d.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'localhost' (ECDSA) to the list of known hosts.
Last login: Sun Apr  7 12:47:16 2019
[[email protected]ase ~]$

Step 4: Download and Install Hadoop

Check for the most recent version of Hadoop before downloading version specified here. As of this writing, this is version 3.2.1.

Save the recent version to a variable.

RELEASE="3.2.1"

Then download Hadoop archive to your local system.

wget https://www-eu.apache.org/dist/hadoop/common/hadoop-$RELEASE/hadoop-$RELEASE.tar.gz

Extract the file.

tar -xzvf hadoop-$RELEASE.tar.gz

Move resulting directory to /usr/local/hadoop.

rm hadoop-$RELEASE.tar.gz
sudo mv hadoop-$RELEASE/ /usr/local/hadoop

Set HADOOP_HOME and add directory with Hadoop binaries to your $PATH.

cat <<EOF | sudo tee /etc/profile.d/hadoop_java.sh
export JAVA_HOME=\$(dirname $(dirname $(readlink $(readlink $(which javac)))))
export HADOOP_HOME=/usr/local/hadoop
export HADOOP_HDFS_HOME=\$HADOOP_HOME
export HADOOP_MAPRED_HOME=\$HADOOP_HOME
export YARN_HOME=\$HADOOP_HOME
export HADOOP_COMMON_HOME=\$HADOOP_HOME
export HADOOP_COMMON_LIB_NATIVE_DIR=\$HADOOP_HOME/lib/native
export PATH=\$PATH:\$JAVA_HOME/bin:\$HADOOP_HOME/bin:\$HADOOP_HOME/sbin
EOF

Source file.

source /etc/profile.d/hadoop_java.sh

Confirm your Hadoop version.

$ hadoop version
Hadoop 3.2.1
Source code repository https://github.com/apache/hadoop.git -r 1019dde65bcf12e05ef48ac71e84550d589e5d9a
Compiled by sunilg on 2019-01-29T01:39Z
Compiled with protoc 2.5.0
From source with checksum 64b8bdd4ca6e77cce75a93eb09ab2a9
This command was run using /usr/local/hadoop/share/hadoop/common/hadoop-common-3.2.1.jar

Step 5: Configure Hadoop on CentOS 7

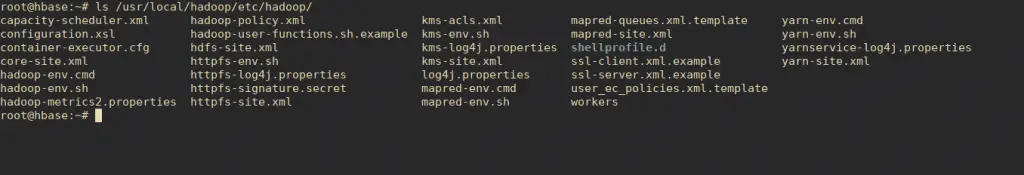

All your Hadoop configurations are located under /usr/local/hadoop/etc/hadoop/ directory.

A number of configuration files need to be modified to complete Hadoop installation on CentOS 7.

First edit JAVA_HOME in shell script hadoop-env.sh:

$ sudo vim /usr/local/hadoop/etc/hadoop/hadoop-env.sh
# Set JAVA_HOME - Line 54
export JAVA_HOME=$(dirname $(dirname $(readlink $(readlink $(which javac)))))

Then configure:

1. core-site.xml

The core-site.xml file contains Hadoop cluster information used when starting up. These properties include:

• The port number used for Hadoop instance
• The memory allocated for file system
• The memory limit for data storage
• The size of Read / Write buffers.

Open core-site.xml

sudo vim /usr/local/hadoop/etc/hadoop/core-site.xml

Add the following properties in between the <configuration> and </configuration> tags.

<configuration>
   <property>
      <name>fs.default.name</name>
      <value>hdfs://localhost:9000</value>
      <description>The default file system URI</description>
   </property>
</configuration>

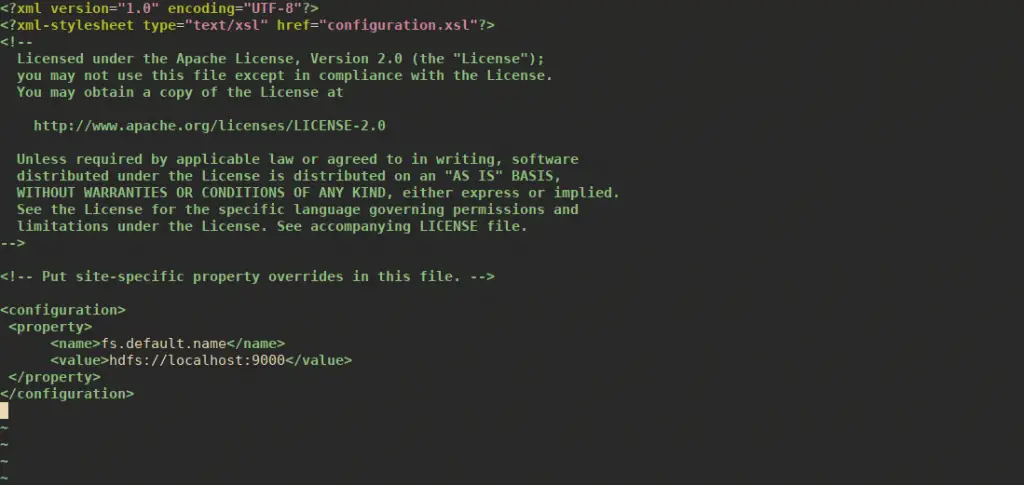

See screenshot below.

2. hdfs-site.xml

This file needs to be configured for each host to be used in the cluster. This file holds information such as:

• The namenode and datanode paths on the local filesystem.
• The value of replication data

In this setup, I want to store Hadoop infrastructure in a secondary disk – /dev/sdb.

$ lsblk
 NAME   MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT
 sda      8:0    0 76.3G  0 disk
 └─sda1   8:1    0 76.3G  0 part /
 sdb      8:16   0   50G  0 disk
 sr0     11:0    1 1024M  0 rom

I’ll partition and mount this disk to /hadoop directory.

sudo parted -s -- /dev/sdb mklabel gpt
sudo parted -s -a optimal -- /dev/sdb mkpart primary 0% 100%
sudo parted -s -- /dev/sdb align-check optimal 1
sudo mkfs.xfs /dev/sdb1
sudo mkdir /hadoop
echo "/dev/sdb1 /hadoop xfs defaults 0 0" | sudo tee -a /etc/fstab
sudo mount -a

Confirm:

$ df -hT | grep /dev/sdb1
/dev/sdb1      xfs        50G   33M   50G   1% /hadoop

Create directories for namenode and datanode.

sudo mkdir -p /hadoop/hdfs/{namenode,datanode}

Set ownership to hadoop user and group.

sudo chown -R hadoop:hadoop /hadoop

Now open the file:

sudo vim /usr/local/hadoop/etc/hadoop/hdfs-site.xml

Then add the following properties in between the <configuration> and </configuration> tags.

<configuration>
   <property>
      <name>dfs.replication</name>
      <value>1</value>
   </property>

   <property>
      <name>dfs.name.dir</name>
      <value>file:///hadoop/hdfs/namenode</value>
   </property>

   <property>
      <name>dfs.data.dir</name>
      <value>file:///hadoop/hdfs/datanode</value>
   </property>
</configuration>

See screenshot below.

3. mapred-site.xml

This is where you set the MapReduce framework to use.

sudo vim /usr/local/hadoop/etc/hadoop/mapred-site.xml

Set like below.

<configuration>
   <property>
      <name>mapreduce.framework.name</name>
      <value>yarn</value>
   </property>
</configuration>

4. yarn-site.xml

Settings in this file will overwrite the configurations for Hadoop yarn. It defines resource management and job scheduling logic.

sudo vim /usr/local/hadoop/etc/hadoop/yarn-site.xml

Add:

<configuration>
   <property>
      <name>yarn.nodemanager.aux-services</name>
      <value>mapreduce_shuffle</value>
   </property>
</configuration>

Here is the screenshot of my configuration.

Step 6: Validate Hadoop Configurations

Initialize Hadoop Infrastructure store.

sudo su -  hadoop
hdfs namenode -format

See output below:

Test HDFS configurations.

$ start-dfs.sh
Starting namenodes on [localhost]
Starting datanodes
Starting secondary namenodes [hbase]
hbase: Warning: Permanently added 'hbase' (ECDSA) to the list of known hosts.

Lastly verify YARN configurations:

$ start-yarn.sh
Starting resourcemanager
Starting nodemanagers

Hadoop 3.x defult Web UI ports:

• NameNode – Default HTTP port is 9870.
• ResourceManager – Default HTTP port is 8088.
• MapReduce JobHistory Server – Default HTTP port is 19888.

You can check ports used by hadoop using:

$ ss -tunelp | grep java

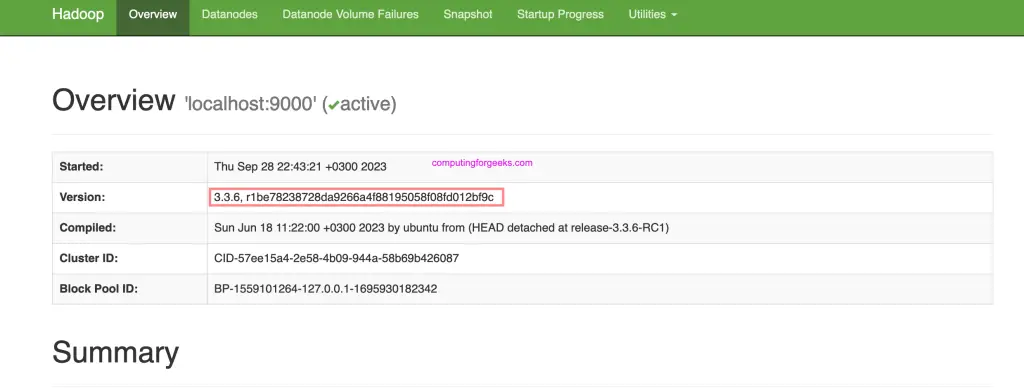

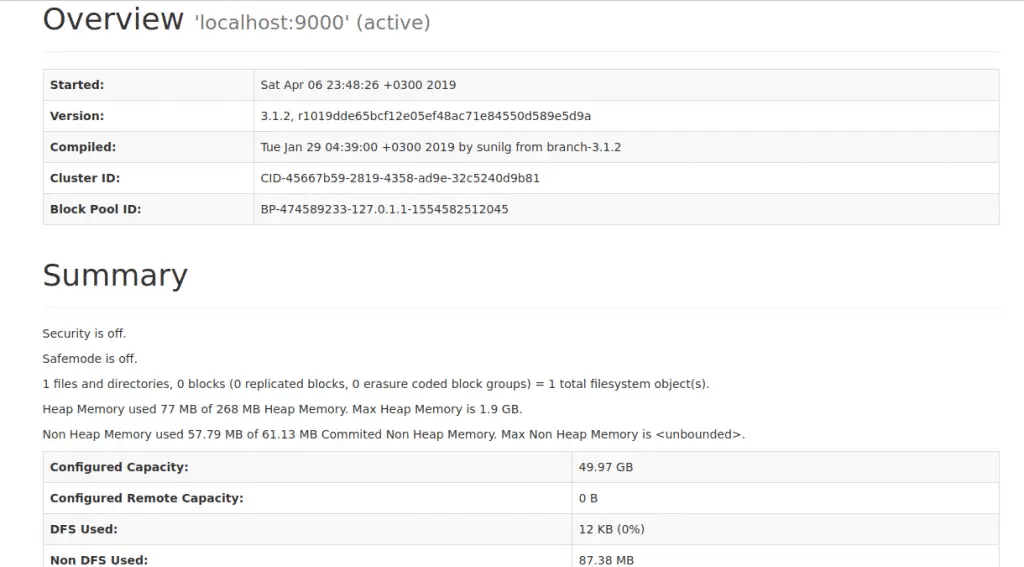

Access Hadoop Web Dashboard on http://ServerIP:9870.

Check Hadoop Cluster Overview at http://ServerIP:8088.

Test to see if you can create directory.

$ hadoop fs -mkdir /test
$ hadoop fs -ls /
Found 1 items
drwxr-xr-x   - hadoop supergroup          0 2019-04-07 13:04 /test

Stopping Hadoop Services

Use the commands:

$ stop-dfs.sh
$ stop-yarn.sh

Install HBase on CentOS 7

You can choose to install HBase in Standalone Mode or Pseudo-Distributed Mode. The setup process is similar to our Hadoop installation.

Step 1: Download and Install HBase

Check latest release or Stable release version before you download. For production use, I recommend you go with Stabke release.

VER="1.4.10"
wget http://apache.mirror.gtcomm.net/hbase/stable/hbase-$VER-bin.tar.gz

Extract Hbase archive downloaded.

tar xvf hbase-$VER-bin.tar.gz
sudo mv hbase-$VER/ /usr/local/HBase/

Update your $PATH values.

cat <<EOF | sudo tee /etc/profile.d/hadoop_java.sh
export JAVA_HOME=$(dirname $(dirname $(readlink $(readlink $(which javac)))))
export HADOOP_HOME=/usr/local/hadoop
export HADOOP_HDFS_HOME=\$HADOOP_HOME
export HADOOP_MAPRED_HOME=\$HADOOP_HOME
export YARN_HOME=\$HADOOP_HOME
export HADOOP_COMMON_HOME=\$HADOOP_HOME
export HADOOP_COMMON_LIB_NATIVE_DIR=\$HADOOP_HOME/lib/native
export HBASE_HOME=/usr/local/HBase
export PATH=\$PATH:\$JAVA_HOME/bin:\$HADOOP_HOME/bin:\$HADOOP_HOME/sbin:\$HBASE_HOME/bin
EOF

Update your shell environment values.

$ source /etc/profile.d/hadoop_java.sh
$ echo $HBASE_HOME
/usr/local/HBase

Edit JAVA_HOME in shell script hbase-env.sh:

$ sudo vim /usr/local/HBase/conf/hbase-env.sh
# Set JAVA_HOME - Line 27
export JAVA_HOME=$(dirname $(dirname $(readlink $(readlink $(which javac)))))

Step 2: Configure HBase

We will do configurations like we did for Hadoop. All configuration files for HBase are located on /usr/local/HBase/conf/ directory.

Option 1: Install HBase in Standalone Mode (Not recommended)

In standalone mode all daemons (HMaster, HRegionServer, and ZooKeeper) ran in one jvm process/instance

Create HBase root directory.

sudo mkdir -p /hadoop/HBase/HFiles
sudo mkdir -p /hadoop/zookeeper
sudo chown -R hadoop:hadoop /hadoop/

Open the file for editing.

sudo vim /usr/local/HBase/conf/hbase-site.xml

Now add the following configurations between the <configuration> and </configuration> tags to look like below.

<configuration>
   <property>
      <name>hbase.rootdir</name>
      <value>file:/hadoop/HBase/HFiles</value>
   </property>

   <property>
      <name>hbase.zookeeper.property.dataDir</name>
      <value>/hadoop/zookeeper</value>
   </property>
</configuration>

By default, unless you configure the hbase.rootdir property, your data is still stored in /tmp/.

Now start HBase by using start-hbase.sh script in HBase bin directory.

$ sudo su - hadoop
$ start-hbase.sh
running master, logging to /usr/local/HBase/logs/hbase-hadoop-master-hbase.out

Option 2: Install HBase in Pseudo-Distributed Mode (Recommended)

Our value of hbase.rootdir set earlier will start in Standalone Mode. Pseudo-distributed mode means that HBase still runs completely on a single host, but each HBase daemon (HMaster, HRegionServer, and ZooKeeper) runs as a separate process.

To install HBase in Pseudo-Distributed Mode, set its values to:

<configuration>
   <property>
      <name>hbase.rootdir</name>
      <value>hdfs://localhost:8030/hbase</value>
   </property>

   <property>
      <name>hbase.zookeeper.property.dataDir</name>
      <value>/hadoop/zookeeper</value>
   </property>

   <property>
     <name>hbase.cluster.distributed</name>
     <value>true</value>
   </property>
</configuration>

In this setup, Data is stored your data in HDFS instead.

Ensure Zookeeper directory is created.

sudo mkdir -p /hadoop/zookeeper
sudo chown -R hadoop:hadoop /hadoop/

Now start HBase by using start-hbase.sh script in HBase bin directory.

$ sudo su - hadoop
$ start-hbase.sh
localhost: running zookeeper, logging to /usr/local/HBase/logs/hbase-hadoop-zookeeper-hbase.out
running master, logging to /usr/local/HBase/logs/hbase-hadoop-master-hbase.out
: running regionserver, logging to /usr/local/HBase/logs/hbase-hadoop-regionserver-hbase.out

Check the HBase Directory in HDFS:

$ hadoop fs -ls /hbase
Found 9 items
drwxr-xr-x   - hadoop supergroup          0 2019-04-07 09:19 /hbase/.tmp
drwxr-xr-x   - hadoop supergroup          0 2019-04-07 09:19 /hbase/MasterProcWALs
drwxr-xr-x   - hadoop supergroup          0 2019-04-07 09:19 /hbase/WALs
drwxr-xr-x   - hadoop supergroup          0 2019-04-07 09:17 /hbase/corrupt
drwxr-xr-x   - hadoop supergroup          0 2019-04-07 09:16 /hbase/data
drwxr-xr-x   - hadoop supergroup          0 2019-04-07 09:16 /hbase/hbase
-rw-r--r--   1 hadoop supergroup         42 2019-04-07 09:16 /hbase/hbase.id
-rw-r--r--   1 hadoop supergroup          7 2019-04-07 09:16 /hbase/hbase.version
drwxr-xr-x   - hadoop supergroup          0 2019-04-07 09:17 /hbase/oldWALs

Step 3: Managing HMaster & HRegionServer

The HMaster server controls the HBase cluster. You can start up to 9 backup HMaster servers, which makes 10 total HMasters, counting the primary.

The HRegionServer manages the data in its StoreFiles as directed by the HMaster. Generally, one HRegionServer runs per node in the cluster. Running multiple HRegionServers on the same system can be useful for testing in pseudo-distributed mode.

Master and Region Servers can be started and stopped using the scripts local-master-backup.sh and local-regionservers.sh respectively.

$ local-master-backup.sh start 2 # Start backup HMaster
$ local-regionservers.sh start 3 # Start multiple RegionServers

• Each HMaster uses two ports (16000 and 16010 by default). The port offset is added to these ports, so using an offset of 2, the backup HMaster would use ports 16002 and 16012

The following command starts 3 backup servers using ports 16002/16012, 16003/16013, and 16005/16015.

$ local-master-backup.sh start 2 3 5

• Each RegionServer requires two ports, and the default ports are 16020 and 16030

The following command starts four additional RegionServers, running on sequential ports starting at 16022/16032 (base ports 16020/16030 plus 2).

$ local-regionservers.sh start 2 3 4 5

To stop, replace start parameter with stop for each command followed by the offset of the server to stop. Example.

$ local-regionservers.sh stop 5

Starting HBase Shell

Hadoop and Hbase should be running before you can use HBase shell. Here the correct order of starting services.

$ start-all.sh
$ start-hbase.sh

Then use HBase shell.

[email protected]:~$ hbase shell
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/usr/local/HBase/lib/slf4j-log4j12-1.7.10.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/usr/local/hadoop/share/hadoop/common/lib/slf4j-log4j12-1.7.25.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.slf4j.impl.Log4jLoggerFactory]
HBase Shell
Use "help" to get list of supported commands.
Use "exit" to quit this interactive shell.
Version 1.4.9, rd625b212e46d01cb17db9ac2e9e927fdb201afa1, Wed Dec  5 11:54:10 PST 2018
hbase(main):001:0>

Stopping HBase.

stop-hbase.sh

Books to Read:

Conclusion

You have successfully installed Hadoop and HBase on CentOS 7. Refer to Apache Hadoop Documentation and Apache HBase book to learn more.

How to run Java Jar Application with Systemd on Linux

How to install WildFly (JBoss) Application Server on CentOS 7
