XenCenter / XCP-ng Center is a Windows-based management tool for XCP-ng and Citrix® XenServer® Hypervisor environments. This tool enables you to manage/monitor virtualization servers and resource pools in your Infrastructure. it also allows you to deploy, manage, monitor, and migrate virtual machines. XCP-ng Center is forked from XenCenter source code.

The official graphical client for XCP-ng is Xen Orchestra, which gets support from a team of several developers. On the other hand, XCP-ng Center is maintained by community members on their free time and hosted by the XCP-ng project.

XenCenter/XCP-ng Center must be installed on a Windows machine that can connect to the XCP-ng / Citrix Hypervisor server through your network. Ensure that .NET framework version 4.8 or above is installed on this system.

Step 1: Download and install XenCenter /XCP-ng Center

For XenCenter, visit the Citrix Hypervisor Download page to get the latest release of XenCenter. A working Citrix account will be required to download XenCenter installation file.

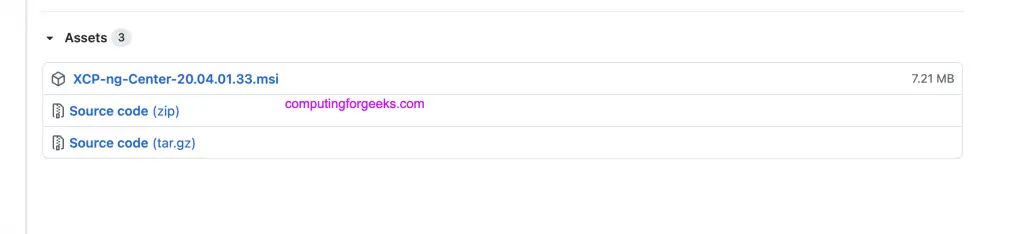

If you’ll opt for XCP-ng Center, visit the github releases page to download the .exe file:

Managing XCP ng Hypervisor with XenCenter XCP ng Center 01

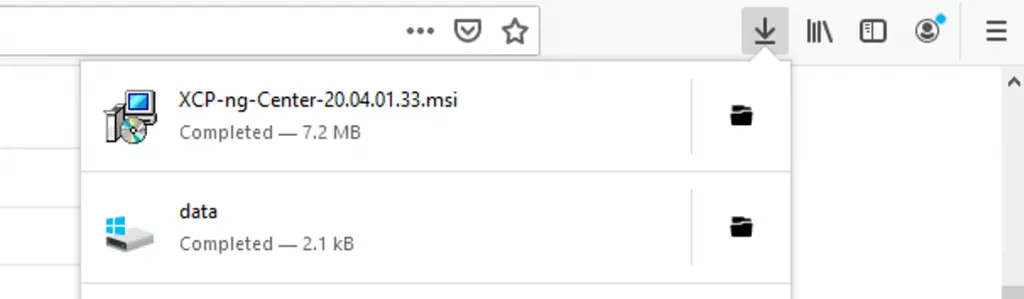

Once the file is downloaded double-click to start installation.

Managing XCP ng Hypervisor with XenCenter XCP ng Center 01 2

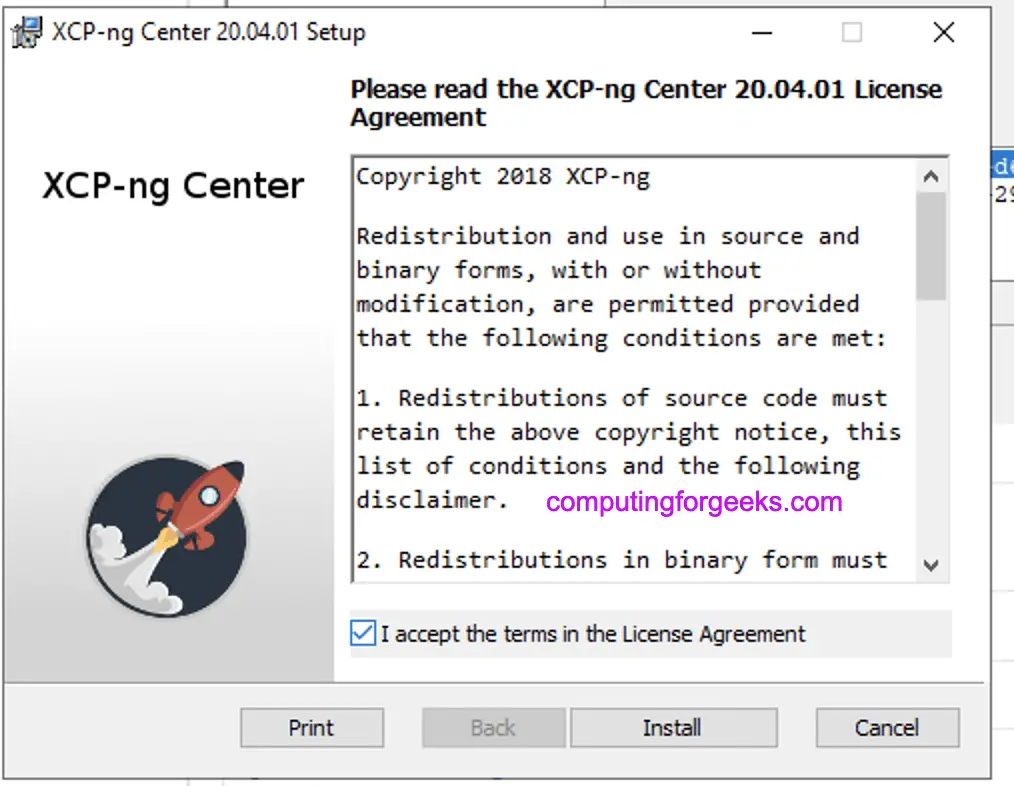

Read and accept License Agreement to proceed.

Managing XCP ng Hypervisor with XenCenter XCP ng Center 02

Click finish button to complete installation and exit setup wizard.

Managing XCP ng Hypervisor with XenCenter XCP ng Center 03

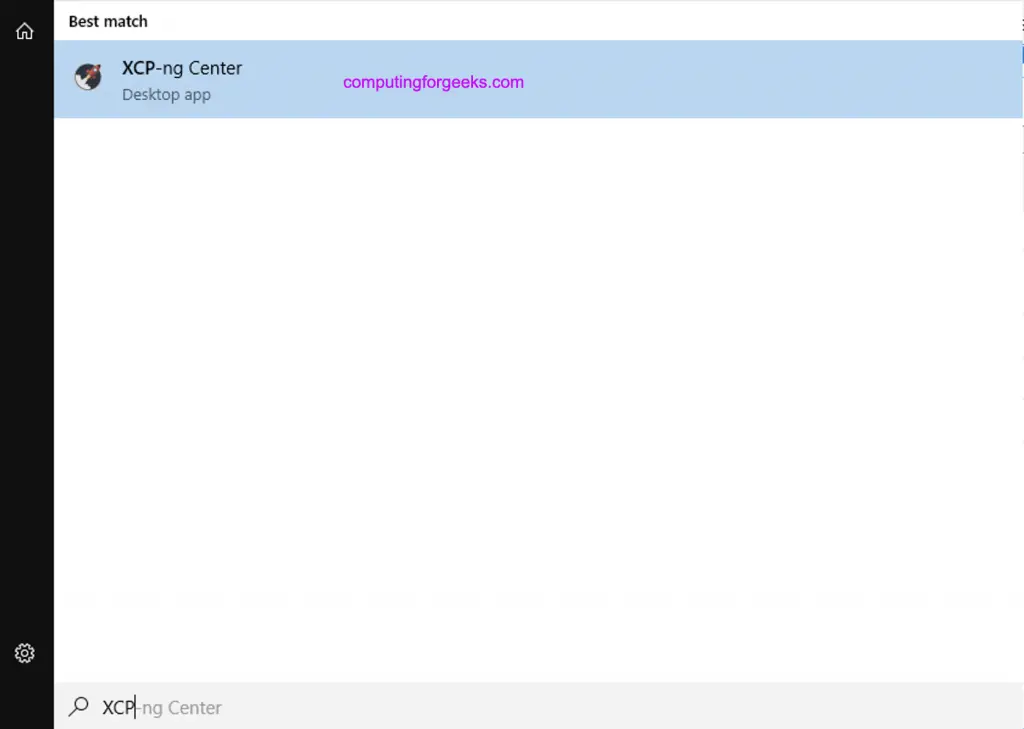

Launch the application after installation by going to the Start menu, and type XCP-ng Center in the search box.

Managing XCP ng Hypervisor with XenCenter XCP ng Center 04

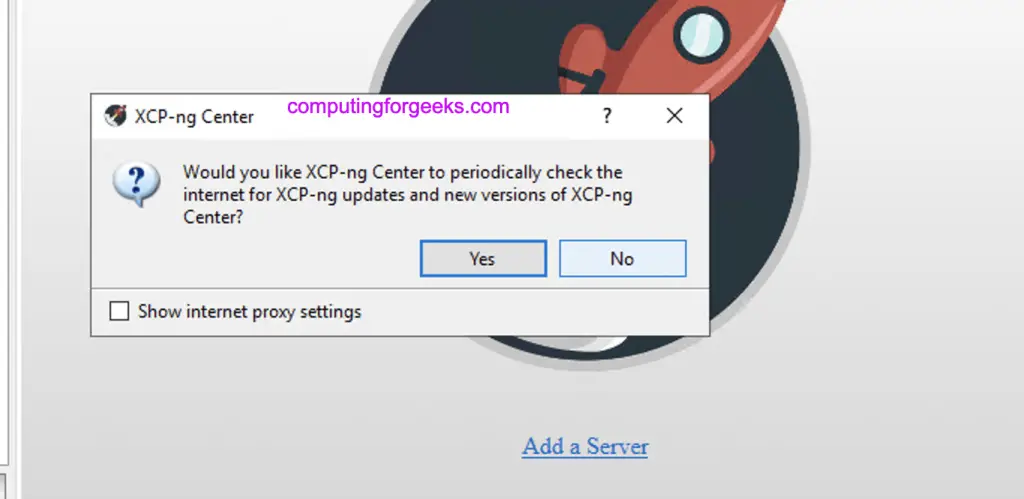

Disable or enable automatic updates for the XCP-ng Center application.

Managing XCP ng Hypervisor with XenCenter XCP ng Center 05

Step 2: Connect your Xen / XCP Hypervisor server

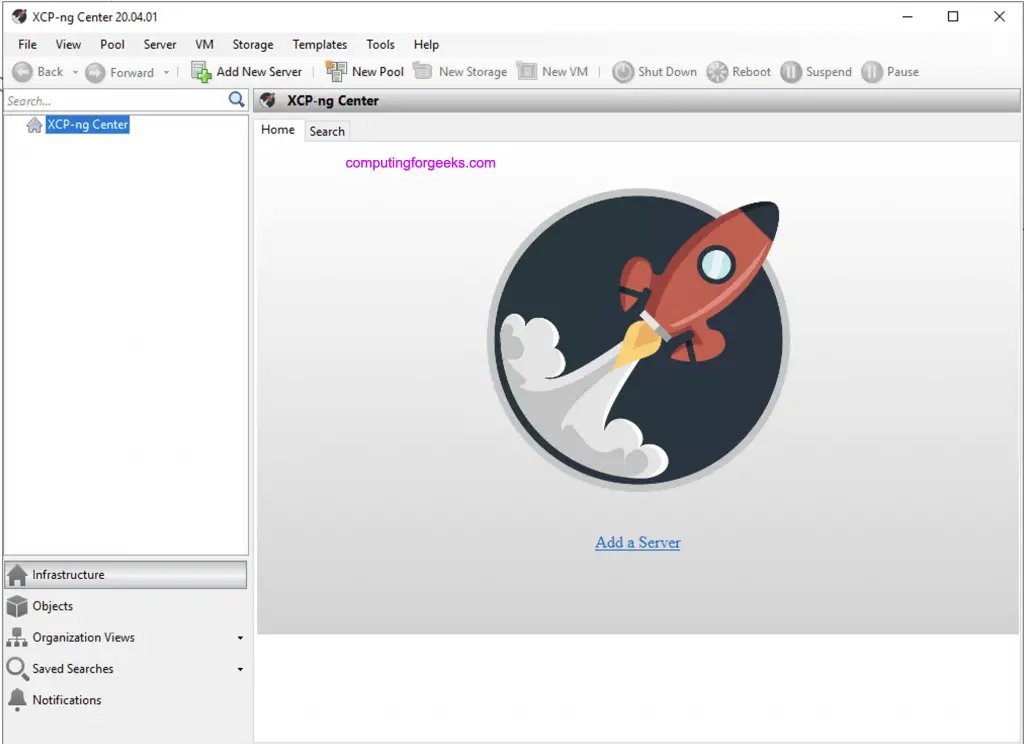

Connect your Xen / XCP-ng Hypervisor to be managed by clicking the “Add a Server” icon

Managing XCP ng Hypervisor with XenCenter XCP ng Center 06

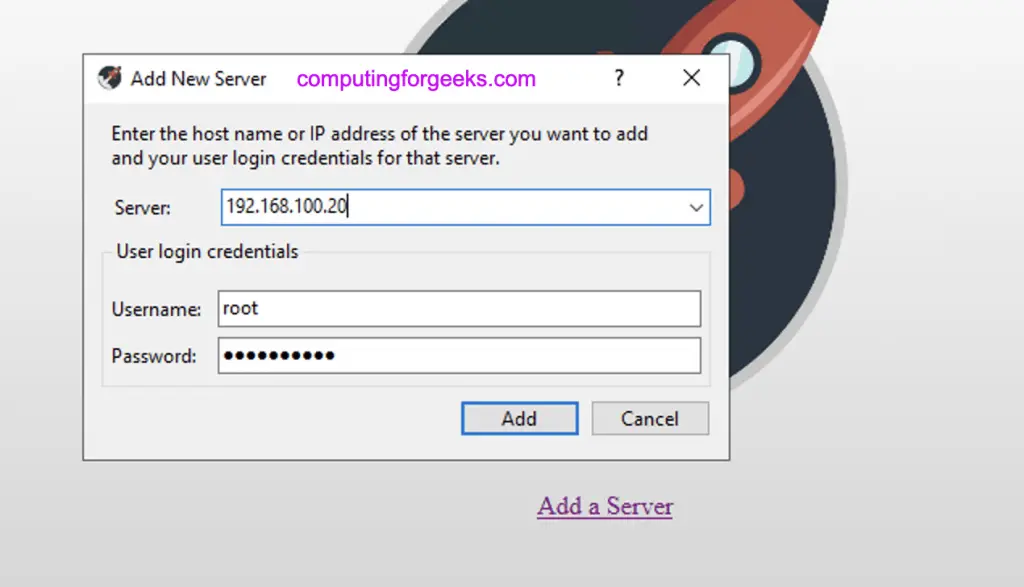

Enter hypervisor host name or IP address and user login credentials for connection. Username is root and password is what you set during XCP-ng Hypervisor installation:

Managing XCP ng Hypervisor with XenCenter XCP ng Center 07

The first time you add a host, the Save and Restore Connection State dialog box appears. You can choose to save server connection state including login credentials at startup.

Managing XCP ng Hypervisor with XenCenter XCP ng Center 08

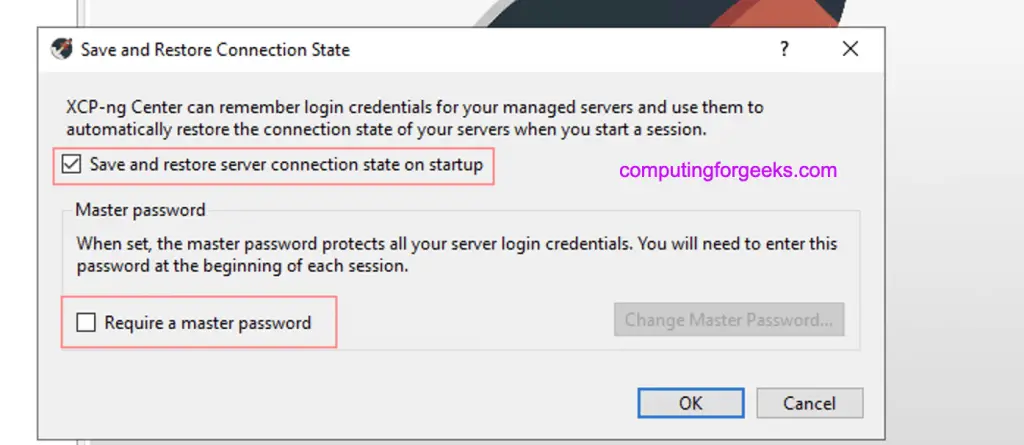

If you choose to save server connection details consider setting master password for better security.

Managing XCP ng Hypervisor with XenCenter XCP ng Center 08 02

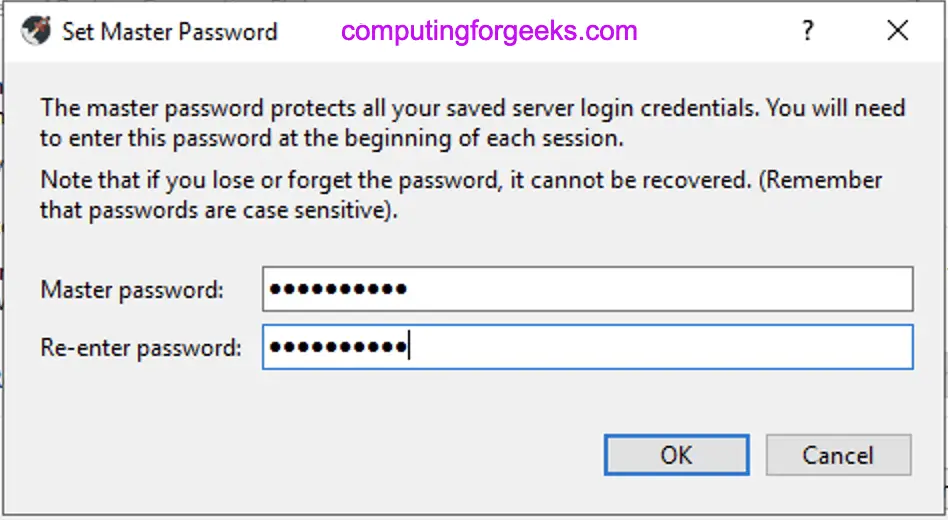

You’ll be asked to enter and confirm master password.

Managing XCP ng Hypervisor with XenCenter XCP ng Center 09

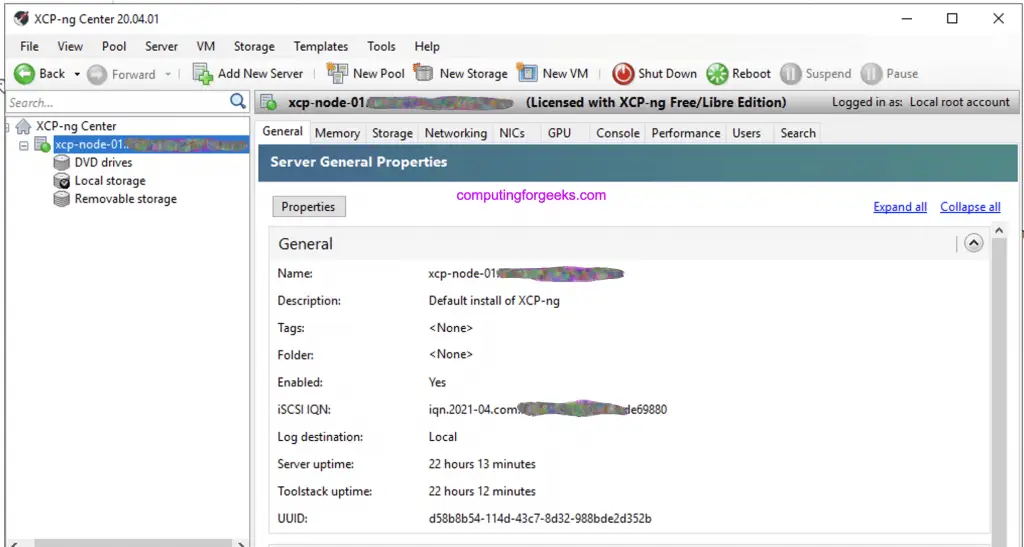

Upon successful connection hypervisor should be visible for management from the XCP-ng Center console.

Managing XCP ng Hypervisor with XenCenter XCP ng Center 11

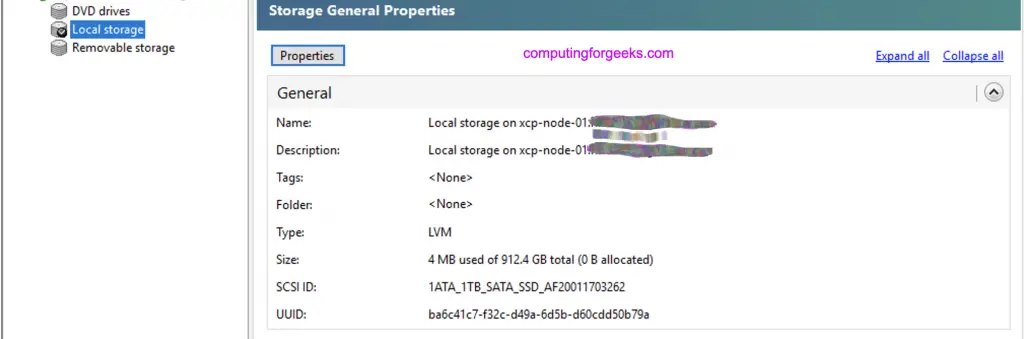

You’re now ready to perform full cycle management of virtual machines and compute, network and storage infrastructure in your Virtualization environment using XCP-ng Center / XenCenter.

Managing XCP ng Hypervisor with XenCenter XCP ng Center 12

Step 3: Add ISO Storage repository

Next is to add storage repository for OS installation ISO files. We have a guide dedicated to this:

Add and Use ISO Library Storage Repository in Xen XCP-ng

We’ll be creating more guides on Xen hypervisor and XCP-ng virtualization platform administration. Keep checking our website for latest content.
