In our last article, we covered the installation of Icinga 2 on CentOS 8 / RHEL 8 Linux machine. This is a continuation guide discussing how you can install Icinga Web 2 on CentOS 8 / RHEL 8. Icinga Web 2 is a powerful PHP framework for web applications that comes in a clean and reduced design. It’s fast, responsive, accessible and easily extensible with modules.

We’ll install Icinga Web 2 from packages available on the official Icinga2 package repositories. After installation, the setup and configuration is done from a web interface with the help of a setup wizard.

Step 1: Install Icinga 2 on CentOS 8 / RHEL 8

You have to start with the installation of Icinga 2 using our guide below.

Install Icinga 2 on CentOS / RHEL 8

After installation of Icinga 2 server, proceed to install Icinga Web 2 on CentOS 8 / RHEL 8 Linux system.

Step 2: Install Icinga Web 2 on CentOS 8 / RHEL 8 Linux

Enable PowerTools repository and EPEL.

sudo dnf install -y 'dnf-command(config-manager)'
sudo dnf config-manager --set-enabled PowerTools
sudo dnf install -y epel-release

Then add the repository contents for Icinga Web 2 to our system.

sudo dnf install https://packages.icinga.com/epel/8/release/noarch/icinga-rpm-release/icinga-rpm-release-8-4.el8.icinga.noarch.rpm

Here is my installation output:

Last metadata expiration check: 0:02:42 ago on Sat 28 Dec 2019 09:03:06 AM EAT.
icinga-rpm-release-8-4.el8.icinga.noarch.rpm                                                                            8.3 kB/s | 9.5 kB     00:01
Dependencies resolved.
========================================================================================================================================================
 Package                                  Arch                         Version                                 Repository                          Size
========================================================================================================================================================
Installing:
 icinga-rpm-release                       noarch                       8-4.el8.icinga                          @commandline                       9.5 k

Transaction Summary
========================================================================================================================================================
Install  1 Package

Total size: 9.5 k
Installed size: 2.6 k
Is this ok [y/N]: y
Downloading Packages:
Running transaction check
Transaction check succeeded.
Running transaction test
Transaction test succeeded.
Running transaction
  Preparing        :                                                                                                                                1/1
  Installing       : icinga-rpm-release-8-4.el8.icinga.noarch                                                                                       1/1
  Verifying        : icinga-rpm-release-8-4.el8.icinga.noarch                                                                                       1/1

Installed:
  icinga-rpm-release-8-4.el8.icinga.noarch

Complete!

Update package index:

sudo dnf makecache

Install Apache web server ans Icinga Web 2 on CentOS 8 / RHEL 8 Linux using the commands:

sudo dnf install httpd icingacli icingaweb2 php-json php-ldap

The dependency packages like PHP and other extensions will be installed from the AppStream repository.

We need to start httpd, service and configure firewalld.

sudo systemctl enable --now httpd
sudo firewall-cmd --add-service={http,https} --permanent
sudo firewall-cmd --reload

Also start PHP-FPM service.

sudo systemctl enable --now php-fpm.service

Icinga Web 2 configuration file is: /etc/httpd/conf.d/icingaweb2.conf

Put SELinux in Permissive Mode

For easy setup, consider disabling SELinux or putting it in permissive mode.

sudo setenforce 0
sudo sed -i 's/^SELINUX=.*/SELINUX=permissive/g' /etc/selinux/config
cat /etc/selinux/config | grep SELINUX=

Before doing the next steps, confirm httpd and php-fpm services are in running state:

$ systemctl status php-fpm httpd
● php-fpm.service - The PHP FastCGI Process Manager
   Loaded: loaded (/usr/lib/systemd/system/php-fpm.service; enabled; vendor preset: disabled)
   Active: active (running) since Sat 2019-12-28 09:14:58 EAT; 9min ago
 Main PID: 12132 (php-fpm)
   Status: "Processes active: 0, idle: 5, Requests: 0, slow: 0, Traffic: 0req/sec"
    Tasks: 6 (limit: 11512)
   Memory: 27.6M
   CGroup: /system.slice/php-fpm.service
           ├─12132 php-fpm: master process (/etc/php-fpm.conf)
           ├─12270 php-fpm: pool www
           ├─12271 php-fpm: pool www
           ├─12272 php-fpm: pool www
           ├─12273 php-fpm: pool www
           └─12274 php-fpm: pool www

Dec 28 09:14:58 centos8.novalocal systemd[1]: Starting The PHP FastCGI Process Manager...
Dec 28 09:14:58 centos8.novalocal systemd[1]: Started The PHP FastCGI Process Manager.

● httpd.service - The Apache HTTP Server
   Loaded: loaded (/usr/lib/systemd/system/httpd.service; enabled; vendor preset: disabled)
  Drop-In: /usr/lib/systemd/system/httpd.service.d
           └─php-fpm.conf
   Active: active (running) since Sat 2019-12-28 09:14:58 EAT; 9min ago
     Docs: man:httpd.service(8)
 Main PID: 12131 (httpd)
   Status: "Running, listening on: port 80"
    Tasks: 213 (limit: 11512)
   Memory: 25.1M
   CGroup: /system.slice/httpd.service
           ├─12131 /usr/sbin/httpd -DFOREGROUND
           ├─12133 /usr/sbin/httpd -DFOREGROUND
           ├─12134 /usr/sbin/httpd -DFOREGROUND
           ├─12135 /usr/sbin/httpd -DFOREGROUND
           └─12136 /usr/sbin/httpd -DFOREGROUND

Dec 28 09:14:58 centos8.novalocal systemd[1]: Starting The Apache HTTP Server...
Dec 28 09:14:58 centos8.novalocal httpd[12131]: Server configured, listening on: port 80
Dec 28 09:14:58 centos8.novalocal systemd[1]: Started The Apache HTTP Server.

Step 2: Configure Icinga Web 2 on CentOS 8 / RHEL 8

Run the commands on CLI to start configurations:

sudo icingacli setup config webserver apache

Generate authentication token required for web setup. In order to generate a token use the command:

$ sudo icingacli setup token create
The newly generated setup token is: 879cae394a246ddc

Starting Web Setup

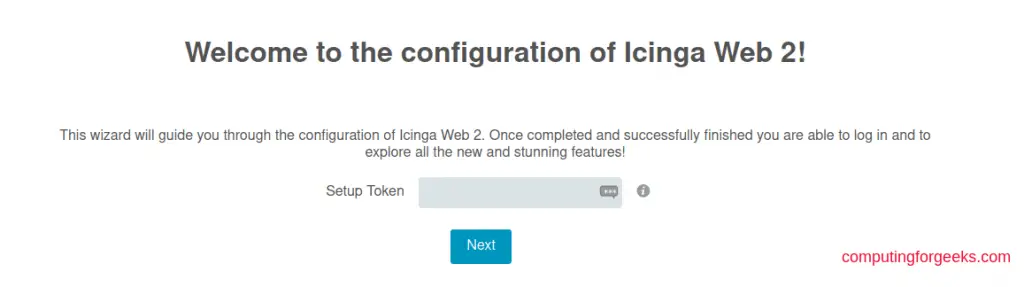

Finally visit Icinga Web 2 in your browser to access the setup wizard and complete the installation: /icingaweb2/setup.

setup icinga web 2 centos rhel 8 01

Paste token generated earlier and click next. In case you do not remember the token you can show it using the icingacli:

$ icingacli setup token show

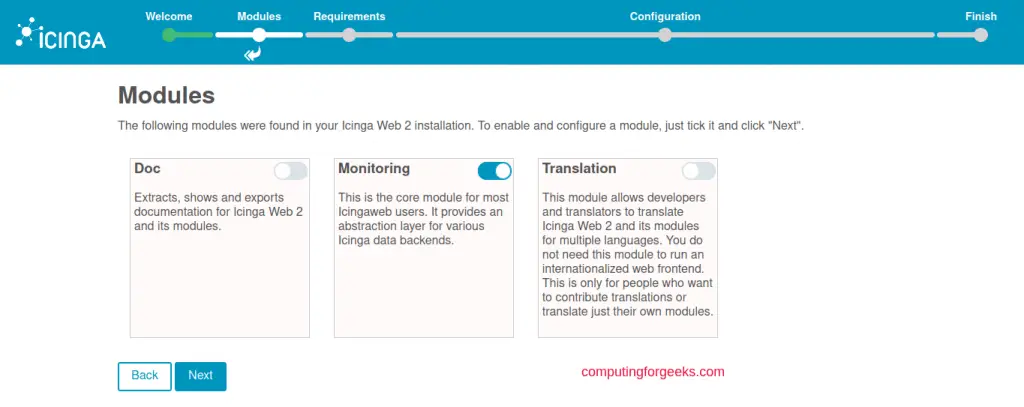

On the next page, select the modules to enable:

setup icinga web 2 centos rhel 8 02

Confirm requirements then proceed to setup database.

setup icinga web 2 centos rhel 8 03

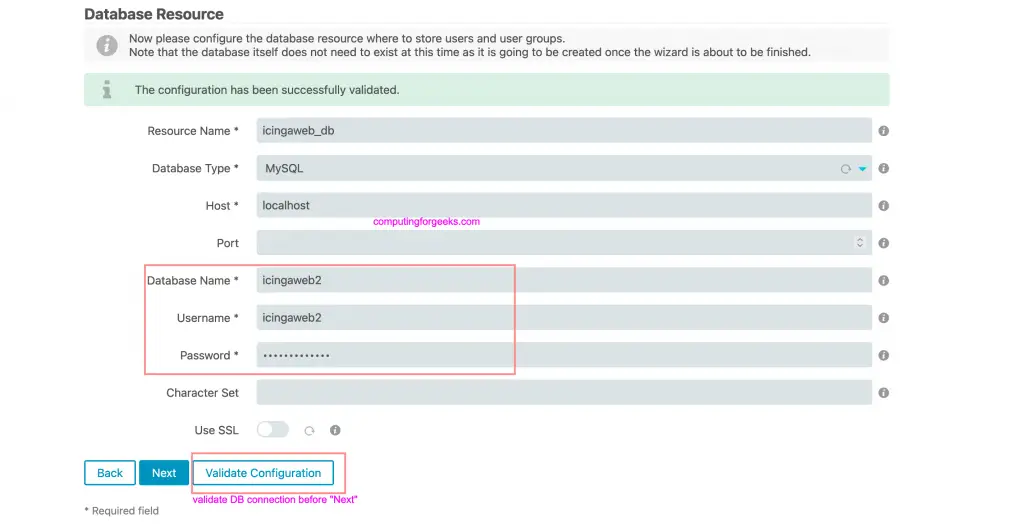

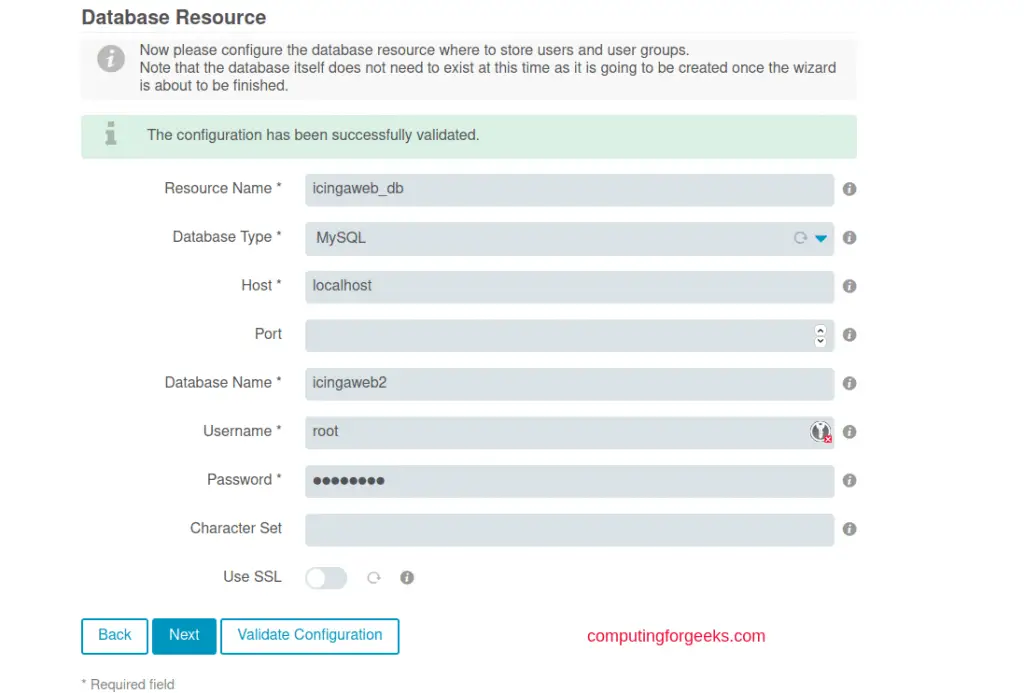

Fill and validate database configs.

setup icinga web 2 centos rhel 8 04

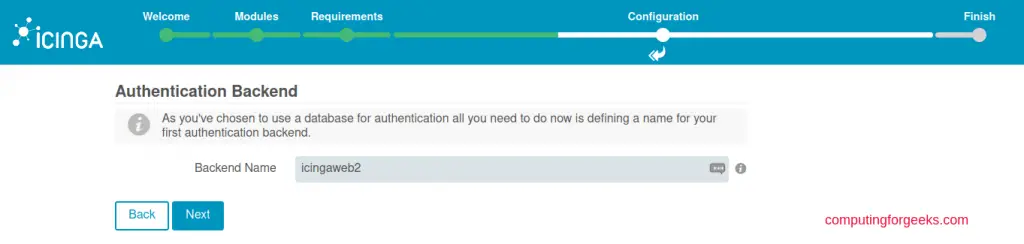

Configure backend name.

setup icinga web 2 centos rhel 8 05

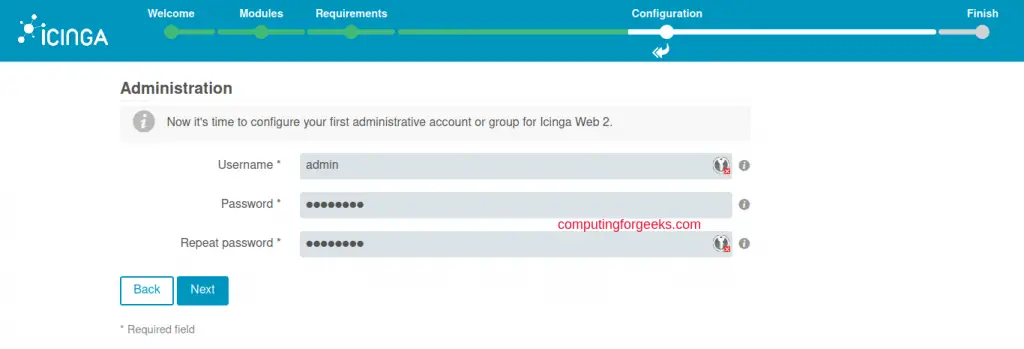

Create the first admin user:

setup icinga web 2 centos rhel 8 06

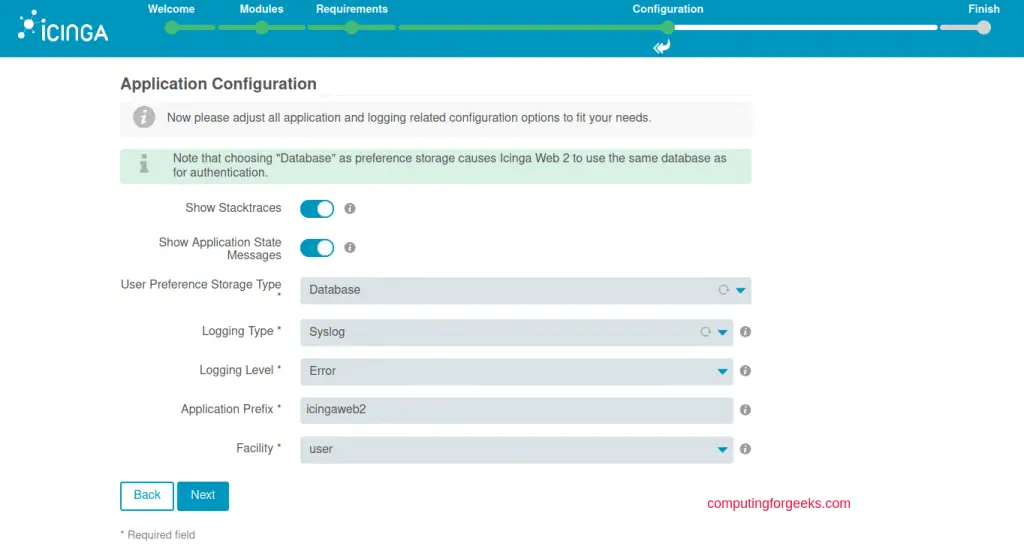

Configure Logging:

setup icinga web 2 centos rhel 8 07

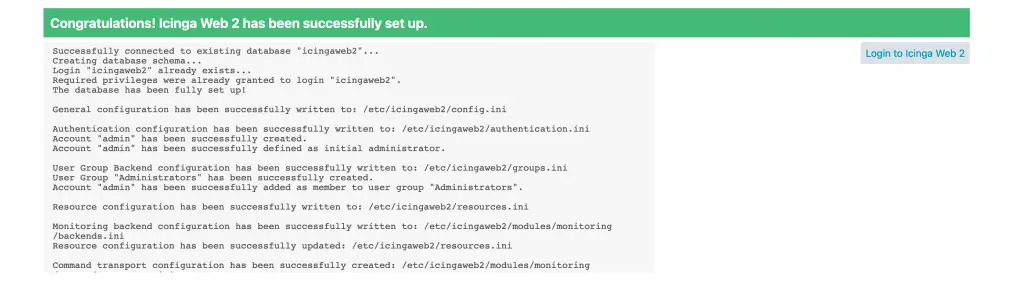

Fill all other required settings to finish installation of Icinga Web 2 on CentOS 8 / RHEL 8 Linux system.
