Nested virtualization is a feature that’s useful in some scenarios such as debugging hypervisors in a constrained environment and testing larger virtual deployments on a limited amount of physical resources. Nested virtualization is not recommended in production user environments, it is primarily intended for development and testing purposes. For Nested virtualization to work your XenServer/XCP-ng hosts needs to have virtualization extensions enabled.

$  cat /sys/hypervisor/properties/capabilities
xen-3.0-x86_64 xen-3.0-x86_32p hvm-3.0-x86_32 hvm-3.0-x86_32p hvm-3.0-x86_64

In this guide we’ll show you how to enable nested virtualization on a Virtual Machine running in XenServer / XCP-ng Infrastructure. Follow these steps to enable, configure, and start using nested virtualization in Xen virtualization environment.

Enable Nested Virtualization on Xen | XCP-ng Virtual Machine using Xen Orchestra

Xen Orchestra is a user friendly administration tool for Xen Servers. It is designed to ease the administration time for your infrastructure. We can easily turn on Nested Virtualization for a Virtual Machine on Xen | XCP-ng Virtual Machine from Xen Orchestra console.

Login to Xen Orchestra Web interface.

Install Xen Orchestra Ubuntu Debian 01

If you don’t have Xen Orchestra check out our installation guide:

Deploy Xen Orchestra Appliance on Xen/XCP-ng from CLI

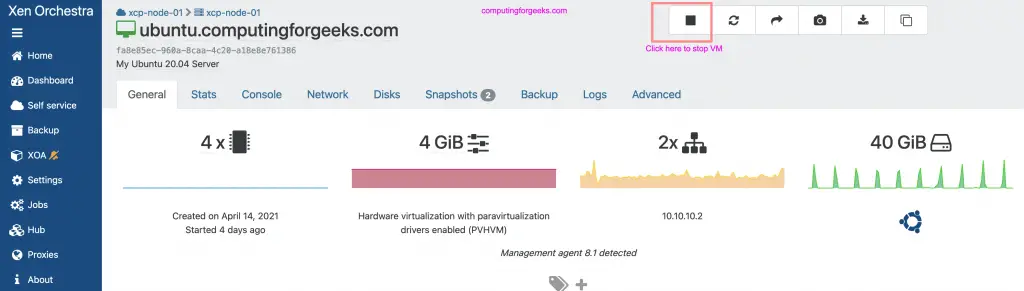

Select the Virtual Machine to enable Nested Virtualization from “Home” > “VMs” > “VM Name” and Stop the instance.

Enable Nested Virtualization Xen XCP ng 01

Then go to Advanced tab of the Virtual Machine.

Enable Nested Virtualization Xen XCP ng 02

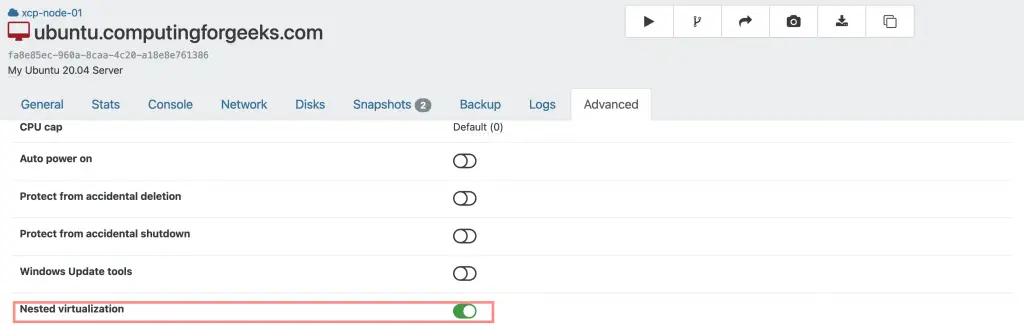

Enable nested virtualization by toggling the switch to on.

Enable Nested Virtualization Xen XCP ng 03

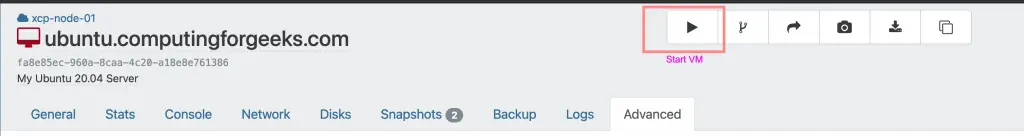

Once done boot the VM machine.

Enable Nested Virtualization Xen XCP ng 04

Login to the instance and confirm whether nested virtualization is available on your host system.

$ cat /sys/module/kvm_intel/parameters/nested
Y

If this command returns Y or 1, the feature is enabled.
