Welcome to this guide on how to attach multiple network interfaces to pods in Kubernetes using Multus CNI, but before that, we need to know a few things.
Kubernetes is a container orchestration tool that has gained popularity in recent years. This has forced many companies to modernise applications and rethink their infrastructure strategies. It provides a powerful platform for automating the deployment, scaling, and management of containerized applications. It eliminates the underlying infrastructure while providing a consistent and declarative approach to managing applications. This makes it easier to deploy and scale services efficiently.
Container Network Interface (CNI) is a set of tools that define how container runtimes interact with networking plugins to establish and manage network connectivity for containers. It also provides a consistent and flexible approach to container networking, which makes it easier for container runtimes and network plugins to work together.
By default, only one network interface (apart from a loopback) can be attached to a pod. This can be a disadvantage in certain scenarios, especially when dealing with complex networking requirements. The disadvantages of that are limited network functionality, limited network segregation, etc.
Multus is a container network interface (CNI) plugin that enables one to attach multiple network interfaces to pods. It makes it easy to create a multi-homed pod with multiple interfaces. Multus serves as a “meta-plugin”, this is to mean that, it can call other multiple CNI plugins.

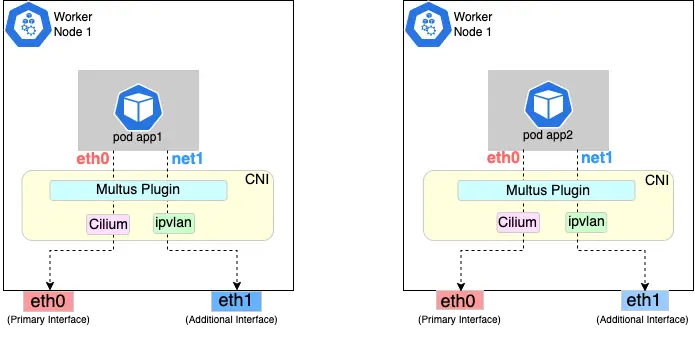

Below is a diagram that shows a simple Multus setup of two pods that use two interfaces eth0 and net1 to establish communication within the pods and two other network interfaces on the worker node (eth0 and eth1) to provide communication outside the node.
The good feature is that Multus CNI adheres to the Network Custom Resource Definition (CRD) standard set by the Kubernetes Network Plumbing Working Group. By following this de-facto standard, it offers a consistent and standardized approach for defining configurations for additional network interfaces within Kubernetes clusters.
In this guide, we will learn how you can easily attach multiple network interfaces to pods in Kubernetes using Multus CNI.
1. Getting started with setup
For this guide, you need the following:
- A Kubernetes cluster with cluster machines having multiple network interfaces attached. To set up a Kubernetes cluster, you can follow any of the below guides:
Next, install kubectl:
curl -LO "https://storage.googleapis.com/kubernetes-release/release/$(curl -s https://storage.googleapis.com/kubernetes-release/release/stable.txt)/bin/linux/amd64/kubectl"
chmod +x kubectl
sudo mv kubectl /usr/local/binExport your admin config for the cluster:
##For RKE2
export PATH=$PATH:/var/lib/rancher/rke2/bin
export KUBECONFIG=/etc/rancher/rke2/rke2.yaml
##For K0s
export KUBECONFIG=/var/lib/k0s/pki/admin.confVerify that the cluster is ready using the command:
$ kubectl get nodes
NAME STATUS ROLES AGE VERSION
master Ready control-plane 14m v1.27.4
worker1 Ready <none> 9m55s v1.27.4
worker2 Ready <none> 9m49s v1.27.42. Install and Configure Multus CNI
There are two options to deploy Multus CNI. These are;
- Thin Plugin: this is the release that has limited features
- Thick Plugin: this is the latest deployment plugin that consists of two binaries, multus-daemon and multus-shim CNI plugin. The ‘multus-daemon‘ will be deployed to all nodes as a local agent and provides additional features, such as metrics, which were not available with the ‘thin plugin’ deployment before.
To install Multus, you need to clone the Multus CNI repository:
git clone https://github.com/k8snetworkplumbingwg/multus-cni.git && cd multus-cniIn this repository, you get both the thick and thin options. Here, we will go for the Thin Plugin which can be installed quickly with the command:
##Thin Plugin
kubectl apply -f ./deployments/multus-daemonset.ymlIf you want the Thick Plugin, you can use the command:
##Thick Plugin
kubectl apply -f ./deployments/multus-daemonset-thick.ymlOnce executed, verify that the Multus pods are up and running:
$ kubectl get pods --all-namespaces | grep -i multus
kube-system kube-multus-ds-6pn6j 1/1 Running 0 12s
kube-system kube-multus-ds-hcp4r 1/1 Running 0 12s
kube-system kube-multus-ds-tfrkd 1/1 Running 0 12sYou can also use the below command to check if Multus is running:
$ kubectl get pods -A | grep multus
kube-system kube-multus-ds-6pn6j 1/1 Running 0 23s
kube-system kube-multus-ds-hcp4r 1/1 Running 0 23s
kube-system kube-multus-ds-tfrkd 1/1 Running 0 23s3. Create Network Attachment Definition
The next thing to do is create a Network Attachment Definition for the CNI you wish to use as the plugin for the additional interface. First. you need to ensure that the CNI you want to use is supported and present in the /opt/cni/bin directory.
$ ls /opt/cni/bin
bandwidth dhcp firewall host-device ipvlan macvlan portmap sbr tuning vrf
bridge dummy flannel host-local loopback multus-shim ptp static vlanWe will use macvlan CNI for this guide, but you can also use ipvlan if interested. You also need to ensure that you have a secondary network interface attached to your worker nodes. For my case the secondary NIC is ens19
$ ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: ens18: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
link/ether de:57:17:e0:f9:48 brd ff:ff:ff:ff:ff:ff
altname enp0s18
inet 192.168.200.56/24 brd 192.168.200.255 scope global noprefixroute ens18
valid_lft forever preferred_lft forever
inet6 fe80::dc57:17ff:fee0:f948/64 scope link noprefixroute
valid_lft forever preferred_lft forever
4: ens19: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
link/ether be:5a:31:04:c7:59 brd ff:ff:ff:ff:ff:ff
altname enp0s19
inet 192.168.200.175/24 brd 192.168.200.255 scope global dynamic noprefixroute ens19
valid_lft 37300sec preferred_lft 37300sec
inet6 fe80::e3dd:10fc:1651:1e5/64 scope link noprefixroute
valid_lft forever preferred_lft foreverNow create a Network Attachment Definition YAML file.
vim network-definition.ymlAdd any of the below lines depending on your preferred option:
- For Macvan CNI with bridged mode use:
apiVersion: "k8s.cni.cncf.io/v1"
kind: NetworkAttachmentDefinition
metadata:
name: multus-conf
spec:
config: '{
"cniVersion": "0.3.0",
"type": "macvlan",
"master": "ens19",
"mode": "bridge",
"ipam": {
"type": "host-local",
"subnet": "192.168.200.0/24",
"rangeStart": "192.168.200.100",
"rangeEnd": "192.168.200.216",
"gateway": "198.168.200.1"
}
}'- For Ipvlan CNI with l3 node, use:
apiVersion: "k8s.cni.cncf.io/v1"
kind: NetworkAttachmentDefinition
metadata:
name: multus-conf
spec:
config: '{
"cniVersion": "0.3.0",
"type": "ipvlan",
"master": "ens19",
"mode": "l3",
"ipam": {
"type": "host-local",
"subnet": "192.168.200.0/24",
"rangeStart": "192.168.200.100",
"rangeEnd": "192.168.200.216",
"gateway": "198.168.200.1"
}
}'In the file, replace the network interface, ens19 to match an interface available on the hosts on the cluster and also the network range, subnet and gateway to match your own. Once the changes have been made, apply the manifest:
kubectl apply -f network-definition.ymlVerify if everything is okay:
$ kubectl get network-attachment-definitions
NAME AGE
multus-conf 4s
$ kubectl describe network-attachment-definitions multus-conf
Name: multus-conf
Namespace: default
Labels: <none>
Annotations: <none>
API Version: k8s.cni.cncf.io/v1
Kind: NetworkAttachmentDefinition
Metadata:
Creation Timestamp: 2023-08-11T09:27:41Z
Generation: 1
Resource Version: 176404
UID: c7bb65eb-7f66-44fb-94a4-b4e1add45529
Spec:
Config: { "cniVersion": "0.3.0", "type": "macvlan", "master": "ens19", "mode": "bridge", "ipam": { "type": "host-local", "subnet": "192.168.200.0/24", "rangeStart": "192.168.200.100", "rangeEnd": "192.168.200.216", "gateway": "198.168.200.1" } }
Events: <none>
4. Attaching Multiple Network Interfaces to a Pod
Now we can test if the Multus CNI plugin works as desired by attaching an additional network to a Kubernetes pod. To test that, we will create a simple application that uses the network created in the above step.
cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: Pod
metadata:
name: app1
annotations:
k8s.v1.cni.cncf.io/networks: multus-conf
spec:
containers:
- name: app1
command: ["/bin/sh", "-c", "trap : TERM INT; sleep infinity & wait"]
image: alpine
EOFWe will also create another app on the same network:
cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: Pod
metadata:
name: app2
annotations:
k8s.v1.cni.cncf.io/networks: multus-conf
spec:
containers:
- name: app2
command: ["/bin/sh", "-c", "trap : TERM INT; sleep infinity & wait"]
image: alpine
EOFYou should see the annotations if you describe the pod:
$ kubectl describe pod app1
Name: app1
Namespace: default
Priority: 0
Service Account: default
Node: node2/192.168.200.175
Start Time: Fri, 11 Aug 2023 12:28:56 +0300
Labels: <none>
Annotations: k8s.v1.cni.cncf.io/network-status:
[{
"name": "mynet",
"interface": "eth0",
"ips": [
"10.244.2.8"
],
"mac": "86:69:28:4f:54:b3",
"default": true,
"dns": {},
"gateway": [
"10.244.2.1"
]
},{
"name": "default/multus-conf",
"interface": "net1",
"ips": [
"192.168.200.100"
],
"mac": "2a:1b:4d:89:66:c0",
"dns": {}
}]
k8s.v1.cni.cncf.io/networks: multus-conf
Status: Running
IP: 10.244.2.8
IPs:
IP: 10.244.2.8
Containers:
.....To add more network interfaces, you need to have multiple network attachment definitions and then declare them under the annotations for the pod when creating it. For example:
....
annotations:
k8s.v1.cni.cncf.io/networks: '[
{ "name" : "macvlan-conf" },
{ "name" : "ipvlan-conf" }
....Now view the IP address of the first app:
$ kubectl exec -it app1 -- ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0@if19: <BROADCAST,MULTICAST,UP,LOWER_UP,M-DOWN> mtu 1500 qdisc noqueue state UP
link/ether 4a:80:ec:0f:4b:8a brd ff:ff:ff:ff:ff:ff
inet 10.244.1.15/24 brd 10.244.1.255 scope global eth0
valid_lft forever preferred_lft forever
inet6 fe80::4880:ecff:fe0f:4b8a/64 scope link
valid_lft forever preferred_lft forever
3: net1@if7: <BROADCAST,MULTICAST,NOARP,UP,LOWER_UP,M-DOWN> mtu 1500 qdisc noqueue state UNKNOWN
link/ether 62:2f:dd:ec:66:f5 brd ff:ff:ff:ff:ff:ff
inet 192.168.200.100/24 brd 192.168.200.255 scope global net1
valid_lft forever preferred_lft forever
inet6 fe80::622f:dd00:1ec:66f5/64 scope link
valid_lft forever preferred_lft foreverFor app2, use:
$ kubectl exec -it app2 -- ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0@if20: <BROADCAST,MULTICAST,UP,LOWER_UP,M-DOWN> mtu 1500 qdisc noqueue state UP
link/ether a2:e4:af:05:43:01 brd ff:ff:ff:ff:ff:ff
inet 10.244.1.16/24 brd 10.244.1.255 scope global eth0
valid_lft forever preferred_lft forever
inet6 fe80::a0e4:afff:fe05:4301/64 scope link
valid_lft forever preferred_lft forever
3: net1@if7: <BROADCAST,MULTICAST,NOARP,UP,LOWER_UP,M-DOWN> mtu 1500 qdisc noqueue state UNKNOWN
link/ether 62:2f:dd:ec:66:f5 brd ff:ff:ff:ff:ff:ff
inet 192.168.200.101/24 brd 192.168.200.255 scope global net1
valid_lft forever preferred_lft forever
inet6 fe80::622f:dd00:2ec:66f5/64 scope link
valid_lft forever preferred_lft foreverFrom the output, the two apps have an additional interface, net1 with each pod having an IP address in the specified range. You can now test if the pods can communicate:
kubectl exec -it app1 -- ping -I net1 192.168.200.101Sample Output:
Test the other way:

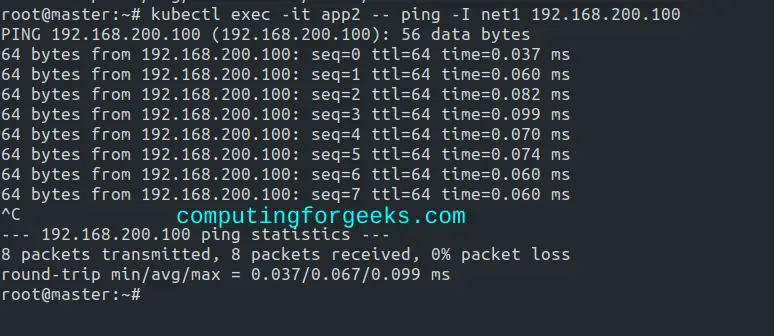

kubectl exec -it app2 -- ping -I net1 192.168.200.100Sample Output:
If you used macvlan and set the mode to bridge, you should also be able to access the pods from your local network.
$ ping 192.168.200.100
PING 192.168.200.100 (192.168.200.100) 56(84) bytes of data.
64 bytes from 192.168.200.100: icmp_seq=1 ttl=64 time=0.618 ms
64 bytes from 192.168.200.100: icmp_seq=2 ttl=64 time=0.286 ms
64 bytes from 192.168.200.100: icmp_seq=3 ttl=64 time=0.334 ms
64 bytes from 192.168.200.100: icmp_seq=4 ttl=64 time=0.277 ms
64 bytes from 192.168.200.100: icmp_seq=5 ttl=64 time=0.328 ms
64 bytes from 192.168.200.100: icmp_seq=6 ttl=64 time=0.281 ms
64 bytes from 192.168.200.100: icmp_seq=7 ttl=64 time=0.348 ms
64 bytes from 192.168.200.100: icmp_seq=8 ttl=64 time=0.317 ms
64 bytes from 192.168.200.100: icmp_seq=9 ttl=64 time=0.330 ms
......Verdict
By following this guide, you should be able to attach multiple network interfaces to pods in Kubernetes using Multus CNI. I hope this was of great importance to you.
