Hello and thank you for visiting our website. In today’s article we cover the installation, configuration and running of Mayan EDMS in Docker Containers. Mayan EDMS and Open Source and free to use Electronic Document Management System written in Python language using the Django web application framework. The software is released under the Apache 2.0 License. Mayan aims at providing a repository or an electronic vault for all your electronic documents. Using Docker image is the easiest way to use Mayan EDMS.
For list of features that comes with Mayan EDMS, visit its official features documentation.
1) Installation Requirements
For all deployment methods, Mayan EDMS has the following recommended set of requirements:
- Minimum RAM of 4 GB.
- A 64 bit CPU, 4 cores or more, 2 GHz or faster
- PostgreSQL 13 or later Database system
- GNU/Linux distributions or operating systems platform with Docker & Docker Compose support.
- Access to the system as user with administrative privileges
2) Install Docker Engine
Make sure Docker is installed properly and working on your host system before attempting to install Mayan EDMS. Refer to our article on the installation of Docker:
After the installation of Docker, we can confirm it works by checking on the versions of Engine and Compose.
$ docker --version
Docker version 24.0.5, build ced0996
$ docker compose version
Docker Compose version v2.20.23) Clone Mayan EDMS Code

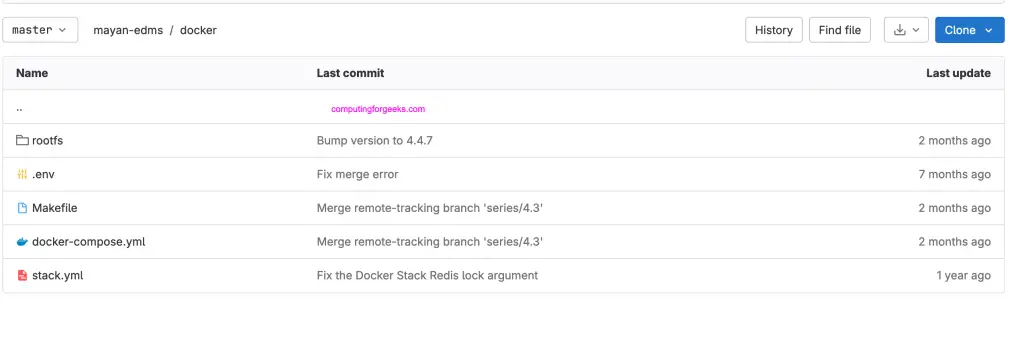

Mayan EDMS files are located at: https://gitlab.com/mayan-ed.ms/mayan-edms/-/tree/master/docker/. We can download it locally.
git clone https://gitlab.com/mayan-edms/mayan-edms.gitThe docker subdirectory contains the compose file.
Navigate to docker directory.
cd mayan-edms/docker/4) Create Mayan EDMS Customizations
You can add an entry for each of the environment variables to change inside .env file.
vim .envIn our example we updated below variables.
MAYAN_DATABASE_NAME=edms
MAYAN_DATABASE_PASSWORD=StrongDBPassword
MAYAN_DATABASE_USER=edms
MAYAN_ELASTICSEARCH_PASSWORD=StrongELPassword
MAYAN_RABBITMQ_USER=edms
MAYAN_RABBITMQ_PASSWORD=StrongMQPassword
MAYAN_RABBITMQ_VHOST=/edms
MAYAN_REDIS_PASSWORD=StrongRedisPasswordThe default compose project name is named mayan and can be updated.
COMPOSE_PROJECT_NAME=mayanTo confirm configuration changes run:
docker compose --file docker-compose.yml --project-name mayan config5) Launch Mayan EDMS Docker containers
Once done with the customizations start all Mayan EDMS containers.
$ docker compose up -d
[+] Running 4/0
✔ Container mayan-redis-1 Running 0.0s
✔ Container mayan-rabbitmq-1 Running 0.0s
✔ Container mayan-app-1 Running 0.0s
✔ Container mayan-postgresql-1 RunningTo check on the status of the container run:
$ docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
86f2e85204ea rabbitmq:3.11.13-management-alpine "docker-entrypoint.s…" 12 hours ago Up 12 hours 4369/tcp, 5671-5672/tcp, 15671-15672/tcp, 15691-15692/tcp, 25672/tcp mayan-rabbitmq-1
b78c36da3752 redis:7.0.10-alpine "docker-entrypoint.s…" 12 hours ago Up 12 hours 6379/tcp mayan-redis-1
c9e19096b579 postgres:13.10-alpine "docker-entrypoint.s…" 12 hours ago Up 12 hours 5432/tcp mayan-postgresql-1
cdf73c48b96e mayanedms/mayanedms:s4.4 "/usr/local/bin/entr…" 12 hours ago Up 12 hours 0.0.0.0:80->8000/tcp, :::80->8000/tcp mayan-app-1Or use
docker compose psListing created volumes.
$ docker volume ls
DRIVER VOLUME NAME
local mayan_app
local mayan_postgres
local mayan_rabbitmq
local mayan_redisCreated network for Mayan EDMS.
$ docker network ls
NETWORK ID NAME DRIVER SCOPE
25cf8cc0d317 bridge bridge local
bcb34458e540 host host local
46bc54f81680 mayan_mayan bridge local
1f8a758c9005 none null localTo view container logs use:
docker compose logsYou can access Mayan EDMS web interface on http://serverip_or_fqdn
6) Configuring Nginx as Proxy
Traefik is supported Proxy is supported natively in Mayan EDMS and can be enabled in .env configurations. For simplicity of administration we’re using Nginx Proxy server.
Begin with the installation of nginx
### Debian based systems ###
sudo apt install nginx
### RHEL based systems ###
sudo yum install nginxChange Mayan EDMS listen port from 80 to 8080.
$ vim .env
MAYAN_FRONTEND_HTTP_PORT=8080Restart Mayan containers.
docker compose down && docker compose up -dConfirm Mayan Frontend container is listening on port 8080 on the host.
$ docker ps|grep mayan-app-1
958df04e8459 mayanedms/mayanedms:s4.4 "/usr/local/bin/entr…" 17 seconds ago Up 16 seconds 0.0.0.0:8080->8000/tcp, :::8080->8000/tcpNow create mayan.conf nginx configuration file:
sudo vim /etc/nginx/conf.d/mayan.confIf not using SSL below configuraions can be used.
server {
listen 80 ;
server_name edms.example.net ;
location / {
proxy_pass http://127.0.0.1:7880;
proxy_http_version 1.1;
proxy_set_header Upgrade $http_upgrade;
proxy_set_header X-Forwarded-Host $host;
}
}Using Let’s Encrypt / Any other SSL
Your Nginx configuration file will look like below:
server {
listen 80 ;
server_name edms.example.net ;
location / {
return 301 https://$host$request_uri;
}
}
server {
listen 443 ssl http2 ;
server_name edms.example.net ;
access_log /var/log/nginx/mayan.log;
error_log /var/log/nginx/mayan_error.log;
client_max_body_size 50M; # Increase to upload bigger documents
ssl_certificate /etc/letsencrypt/live/edms.example.net/fullchain.pem;
ssl_certificate_key /etc/letsencrypt/live/edms.example.net/privkey.pem;
ssl_trusted_certificate /etc/letsencrypt/live/edms.example.net/fullchain.pem;
location / {
proxy_pass http://127.0.0.1:8080;
proxy_redirect off;
proxy_read_timeout 60s; # Increase if your doc uploads take more than 60 sec
proxy_http_version 1.1;
proxy_set_header Host $host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_pass_header Set-Cookie;
proxy_set_header Upgrade $http_upgrade;
proxy_set_header X-Forwarded-Host $host;
proxy_set_header X-Forwarded-Port 443;
proxy_set_header X-Forwarded-Proto https;
}
}To generate Let’s Encrypt SSL see our guides below:
- Generate Let’s Encrypt SSL Certificate using Cloudflare on Private Network
- How To Generate Let’s Encrypt SSL Certificates on Linux
- How To Generate Let’s Encrypt Wildcard SSL Certificate
- Using Let’s Encrypt Wildcard SSL Certificate with Nginx and Apache
7) Access Mayan EDMS on Web Console

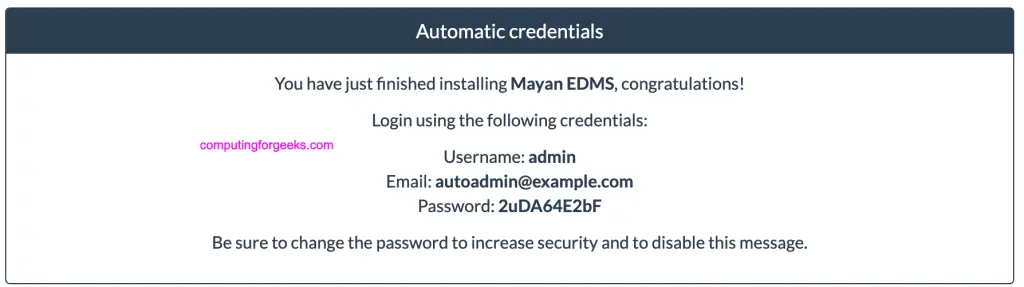

Access Mayan EDMS securely on https://YOUR_FQDN. On the first page you’ve provided with initial login details.

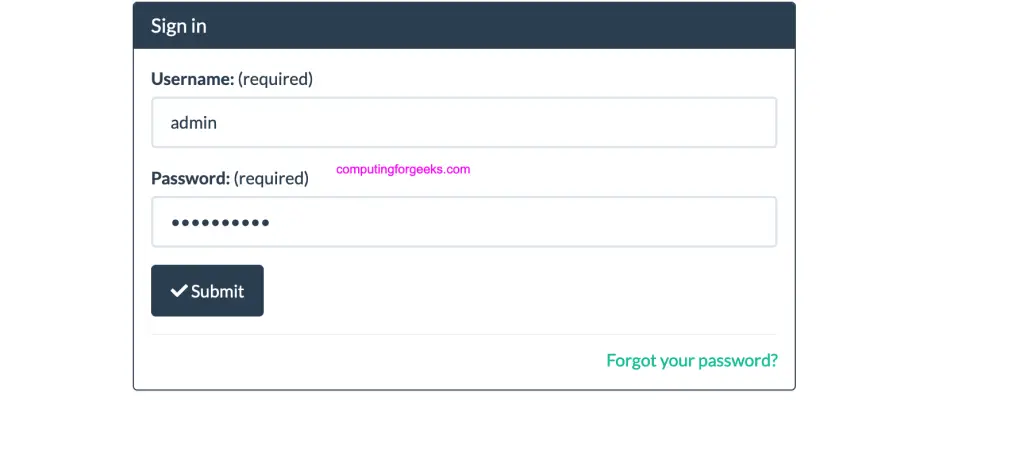

Use the Username and Password provided to login.

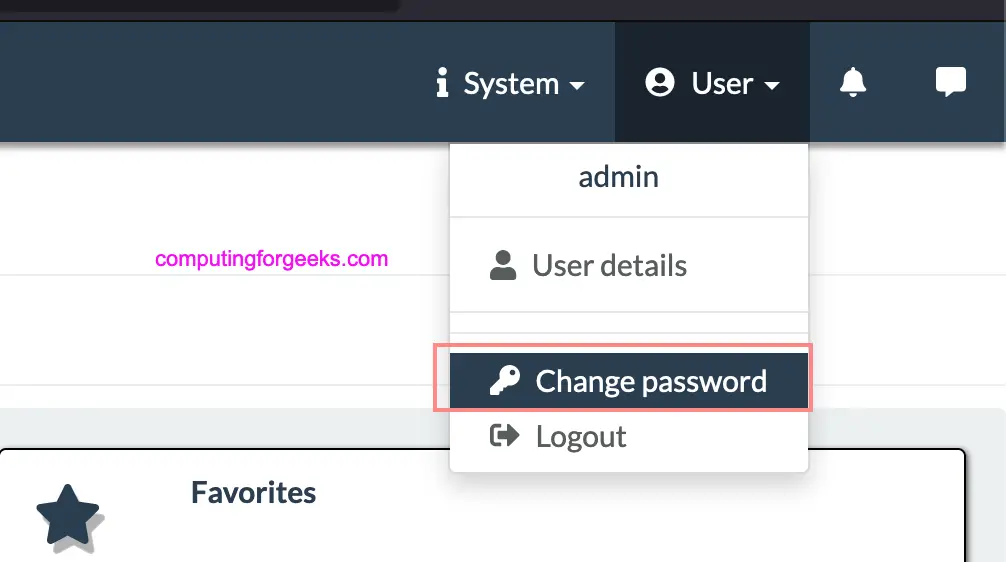

To change admin user password, go to User > admin > Change Password on the right top corner.

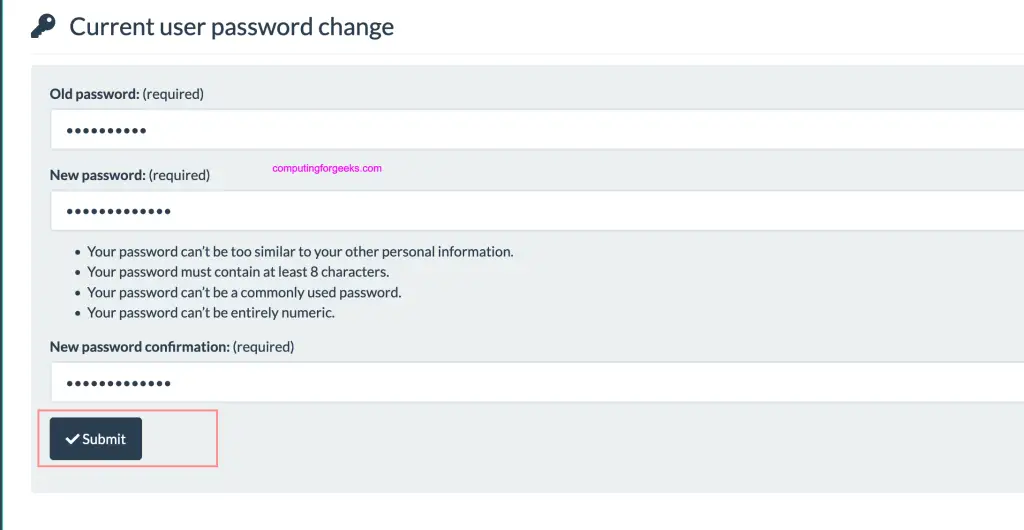

Provide default password and set new Password for the user.
You now have Mayan EDMS successfully installed on Docker Container. Visit Mayan Documentation pages to learn more about how to configure and start using it in your environment.
