Welcome to our guide on the installation and configuration of Consul Service Discovery cluster on Ubuntu 18.04 and Ubuntu 16.04 LTS server. Consul is an open source, distributed and a highly available solution used for service discovery, configuration, and segmentation functionalities.

You can choose to use each of the Consul features individually as needed, or use them together to build a full-service mesh solution. It ships with a simple built-in proxy so that everything works out of the box, but also supports 3rd party proxy integrations such as Envoy.

Key features of Consul ( source: Consul site)

  • Service Discovery: Clients register services and other applications can use Consul to discover services using DNS or HTTP.
  • Secure Service Communication: Consul can generate and distribute TLS certificates for services to establish mutual TLS connections.
  • KV Store:  The Consul’s hierarchical key/value store can be used for dynamic configuration, coordination, leader election, feature flagging, and more. It has a simple and easy to use HTTP API.
  • Health Checking: Consul clients do health checks, both for services (If OK) and for the local node (e.g resource utilization). This information is helpful to monitor cluster health and routing of traffic away from unhealthy nodes.
  • Multi-Datacenter: Consul supports multiple data centers out of the box.

Consul Architecture

Every node that provides services to Consul runs a Consul agent which is responsible for health checking the services on the node as well as the node itself. Consul agents talk to one or more Consul servers which store and replicate data. Consul servers themselves elect a leader.

Your infrastructure systems that need to discover other services or nodes can query any of the Consul servers or any of the Consul agents. The agents forward query to the servers automatically.

While Consul can function with one server, 3 to 5 Consul servers are the recommended number for Production environments to avoid failure scenarios which could lead to a complete data loss.

Step 1: Download and install Consul on Ubuntu 18.04

I have three nodes for this deployment.

Hostname IP Address
consul-01 192.168.18.40
consul-02 192.168.18.41
consul-03 192.168.18.42

Install Consul on all the three nodes. Check the latest release of Consul from the releases page. Here we will download and install v1.2.3

export VER="1.2.3"
wget https://releases.hashicorp.com/consul/${VER}/consul_${VER}_linux_amd64.zip

Extract the file

unzip consul_${VER}_linux_amd64.zip

Move extracted consul binary to  /usr/local/bindirectory

sudo mv consul /usr/local/bin/

To print consul help page, use --help option

$ consul --help
Usage: consul [--version] [--help] <command> [<args>]

Available commands are:
    agent          Runs a Consul agent
    catalog        Interact with the catalog
    connect        Interact with Consul Connect
    event          Fire a new event
    exec           Executes a command on Consul nodes
    force-leave    Forces a member of the cluster to enter the "left" state
    info           Provides debugging information for operators.
    intention      Interact with Connect service intentions
    join           Tell Consul agent to join cluster
    keygen         Generates a new encryption key
    keyring        Manages gossip layer encryption keys
    kv             Interact with the key-value store
    leave          Gracefully leaves the Consul cluster and shuts down
    lock           Execute a command holding a lock
    maint          Controls node or service maintenance mode
    members        Lists the members of a Consul cluster
    monitor        Stream logs from a Consul agent
    operator       Provides cluster-level tools for Consul operators
    reload         Triggers the agent to reload configuration files
    rtt            Estimates network round trip time between nodes
    snapshot       Saves, restores and inspects snapshots of Consul server state
    validate       Validate config files/directories
    version        Prints the Consul version
    watch          Watch for changes in Consul

To verify Consul is properly installed, run consul -v on your system.

# consul -v
Consul v1.2.3
Protocol 2 spoken by default, understands 2 to 3 (agent will automatically use protocol >2 when speaking to compatible agents)

Step 2: Bootstrap and start Consul Cluster

Since we have three nodes to use for our Consul cluster setup, we will bootstrap one by one. If you want to do a single node Consul setup, you can skip the other two.

Create a consul system user/group.

sudo groupadd --system consul
sudo useradd -s /sbin/nologin --system -g consul consul

Create consul data directory and set ownership to consul user

sudo mkdir -p /var/lib/consul
sudo chown -R consul:consul /var/lib/consul
sudo chmod -R 775 /var/lib/consul

Create Consul configurations directory

sudo mkdir /etc/consul.d
sudo chown -R consul:consul /etc/consul.d

Setup DNS or edit /etc/hosts file to configure hostnames for all servers ( set on all nodes)

$ sudo vim /etc/hosts

192.168.18.40 consul-01.example.com consul-01
192.168.18.41 consul-02.example.com consul-02
192.168.18.42 consul-03.example.com consul-03

Replace example.com with your actual domain name.

Bootstrap Consul first node – consul-01

For a single Node Consul:

For a single server Consul setup, create a system service file in /etc/systemd/system/consul.service with the following content.

[Unit]
Description=Consul Service Discovery Agent
Documentation=https://www.consul.io/
After=network-online.target
Wants=network-online.target

[Service]
Type=simple
User=consul
Group=consul
ExecStart=/usr/local/bin/consul agent -server -ui \
	-advertise=192.168.18.40 \
	-bind=192.168.18.40 \
	-data-dir=/var/lib/consul \
	-node=consul-01 \
	-config-dir=/etc/consul.d

ExecReload=/bin/kill -HUP $MAINPID
KillSignal=SIGINT
TimeoutStopSec=5
Restart=on-failure
SyslogIdentifier=consul

[Install]
WantedBy=multi-user.target

Where:

  • 192.168.18.40 is the IP address of the node
  • -server option: Switches agent to server mode.
  • -advertise: Sets the advertise address to use.
  • -ui:  Enables the built-in static web UI server
  • -node: Name of this node. Must be unique in the cluster.
  • -data-dir: Path to a data directory to store agent state

For a three node cluster:

Create a systemd service file /etc/systemd/system/consul.service and add:

[Unit]
Description=Consul Service Discovery Agent
Documentation=https://www.consul.io/
After=network-online.target
Wants=network-online.target

[Service]
Type=simple
User=consul
Group=consul
ExecStart=/usr/local/bin/consul agent \
	-node=consul-01 \
	-config-dir=/etc/consul.d

ExecReload=/bin/kill -HUP $MAINPID
KillSignal=SIGINT
TimeoutStopSec=5
Restart=on-failure
SyslogIdentifier=consul

[Install]
WantedBy=multi-user.target

Generate Consul secret

consul keygen

Then create a json configuration file for the node in /etc/consul.d/config.json

{
    "advertise_addr": "192.168.18.40",
    "bind_addr": "192.168.18.40",
    "bootstrap_expect": 3,
    "client_addr": "0.0.0.0",
    "datacenter": "KE-DC",
    "data_dir": "/var/lib/consul",
    "domain": "consul",
    "enable_script_checks": true,
    "dns_config": {
        "enable_truncate": true,
        "only_passing": true
    },
    "enable_syslog": true,
    "encrypt": "bnRHLmJ6TeLomirgEOWP2g==",
    "leave_on_terminate": true,
    "log_level": "INFO",
    "rejoin_after_leave": true,
    "retry_join": [
    	"consul-01",
    	"consul-02",
    	"consul-03"
    ],
    "server": true,
    "start_join": [
        "consul-01",
        "consul-02",
        "consul-03"
    ],
    "ui": true
}

Replace all occurrences of  192.168.18.40with the correct IP address of this node and value of encrypt with your generated secret. You need to have DNS or hosts file configured for the short DNS names (consul-01, consul-02, and consul-03) to work.

Bootstrap Consul the second and third node

Consul Node 2

Consul systemd service:

# cat   /etc/systemd/system/consul.service
[Unit]
Description=Consul Service Discovery Agent
Documentation=https://www.consul.io/
After=network-online.target
Wants=network-online.target

[Service]
Type=simple
User=consul
Group=consul
ExecStart=/usr/local/bin/consul agent \
	-node=consul-02 \
	-config-dir=/etc/consul.d

ExecReload=/bin/kill -HUP $MAINPID
KillSignal=SIGINT
TimeoutStopSec=5
Restart=on-failure
SyslogIdentifier=consul

[Install]
WantedBy=multi-user.target

Consul json configuration file

# cat /etc/consul.d/config.json
{
    "advertise_addr": "192.168.18.41",
    "bind_addr": "192.168.18.41",
    "bootstrap_expect": 3,
    "client_addr": "0.0.0.0",
    "datacenter": "KE-DC",
    "data_dir": "/var/lib/consul",
    "domain": "consul",
    "enable_script_checks": true,
    "dns_config": {
        "enable_truncate": true,
        "only_passing": true
    },
    "enable_syslog": true,
    "encrypt": "bnRHLmJ6TeLomirgEOWP2g==",
    "leave_on_terminate": true,
    "log_level": "INFO",
    "rejoin_after_leave": true,
    "retry_join": [
    	"consul-01",
    	"consul-02",
    	"consul-03"
    ],
    "server": true,
    "start_join": [
        "consul-01",
        "consul-02",
        "consul-03"
    ],
    "ui": true
}

Consul Node 3

Consul systemd service:

# cat   /etc/systemd/system/consul.service
[Unit]
Description=Consul Service Discovery Agent
Documentation=https://www.consul.io/
After=network-online.target
Wants=network-online.target

[Service]
Type=simple
User=consul
Group=consul
ExecStart=/usr/local/bin/consul agent \
	-node=consul-03 \
	-config-dir=/etc/consul.d

ExecReload=/bin/kill -HUP $MAINPID
KillSignal=SIGINT
TimeoutStopSec=5
Restart=on-failure
SyslogIdentifier=consul

[Install]
WantedBy=multi-user.target

Consul json configuration file:

# cat /etc/consul.d/config.json
{
    "advertise_addr": "192.168.18.42",
    "bind_addr": "192.168.18.42",
    "bootstrap_expect": 3,
    "client_addr": "0.0.0.0",
    "datacenter": "KE-DC",
    "data_dir": "/var/lib/consul",
    "domain": "consul",
    "enable_script_checks": true,
    "dns_config": {
        "enable_truncate": true,
        "only_passing": true
    },
    "enable_syslog": true,
    "encrypt": "bnRHLmJ6TeLomirgEOWP2g==",
    "leave_on_terminate": true,
    "log_level": "INFO",
    "rejoin_after_leave": true,
    "retry_join": [
    	"consul-01",
    	"consul-02",
    	"consul-03"
    ],
    "server": true,
    "start_join": [
        "consul-01",
        "consul-02",
        "consul-03"
    ],
    "ui": true
}

Start consul service on all nodes

sudo systemctl start consul

Enable the service to start on boot

sudo systemctl enable consul

Check cluster members

# consul members
Node       Address             Status  Type    Build  Protocol  DC     Segment
consul-01  192.168.18.40:8301  alive   server  1.2.3  2         ke-dc  <all>
consul-02  192.168.18.41:8301  alive   server  1.2.3  2         ke-dc  <all>
consul-03  192.168.18.42:8301  alive   server  1.2.3  2         ke-dc  <all>

The output shows the address, health state, role in the cluster, and consul version of each node in the cluster. You can obtain additional metadata by providing the -detailed flag.

Access Consul UI

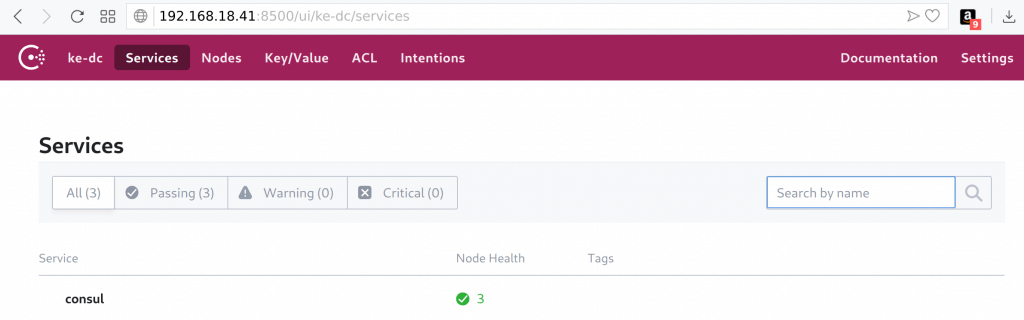

You can access the Consul in-built Web interface  using the URL http://<consul-IP>:8500/ui

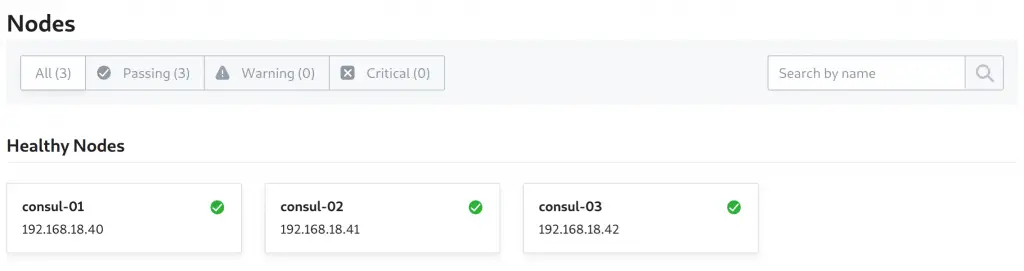

List of active nodes:

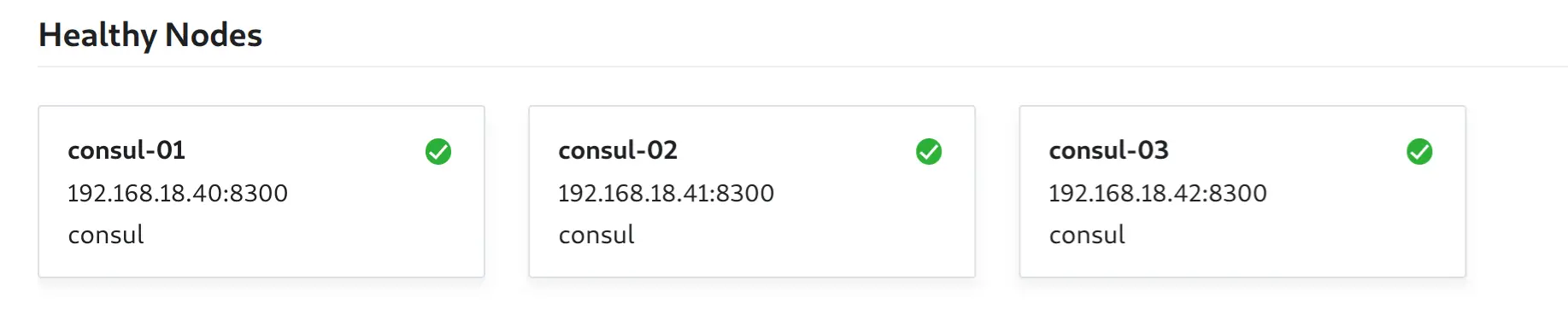

Check healthy nodes

Congratulations! You have successfully installed consul and bootstrapped a three-node Consul cluster on Ubuntu 18.04 / Ubuntu 16.04 Linux systems. In our next tutorial, I’ll cover how to monitor Consul with Grafana and Prometheus.
