Install Highly Available Kubernetes Cluster Using k3sup

Welcome to this guide on deploying a highly available Kubernetes Cluster Using k3sup. But before we dive into the crux of this matter, we need to know what this tool is all about.

Kubernetes is a free and open-source container orchestration tool that has been highly adopted in the past decade. It allows one to run applications over a cluster of hosts while offering other benefits such as autoscaling, automatic bin packing, self-healing, automated rollouts and rollbacks, service discovery storage orchestration and load balancing e.t.c.

There are several methods one can use to deploy a Kubernetes cluster. These include Minikube, Kubeadm, Kubernetes on AWS (Kube-AWS), Amazon EKS, RKE2 e.t.c

What is k3sup?

Many times, members of the cloud-native computing world find themselves in situations where Kubernetes falls short when running on resource-constrained environments. The simplest solution to this is k3sup(pronounced as “ketchup“). This is a lightweight tool that can be used to get deploy a Kubernetes cluster on a local or remote system. All you need for the deployment is SSH access and the k3sup binary.

k3sup developed by Alex Ellis (the founder of OpenFaaS ® & inlets) can be used for:

• Bootstrapping Kubernetes with k3s onto any VM, either manually, during CI or through cloudinit
• Getting from zero to kubectl with k3s on Raspberry Pi (RPi), VMs, AWS EC2, Packet bare-metal, DigitalOcean, Civo, Scaleway, e.t.c
• Fetching a working KUBECONFIG from an existing k3s cluster
• Building a HA, multi-master (server) cluster
• Joining nodes into an existing k3s cluster with k3sup join

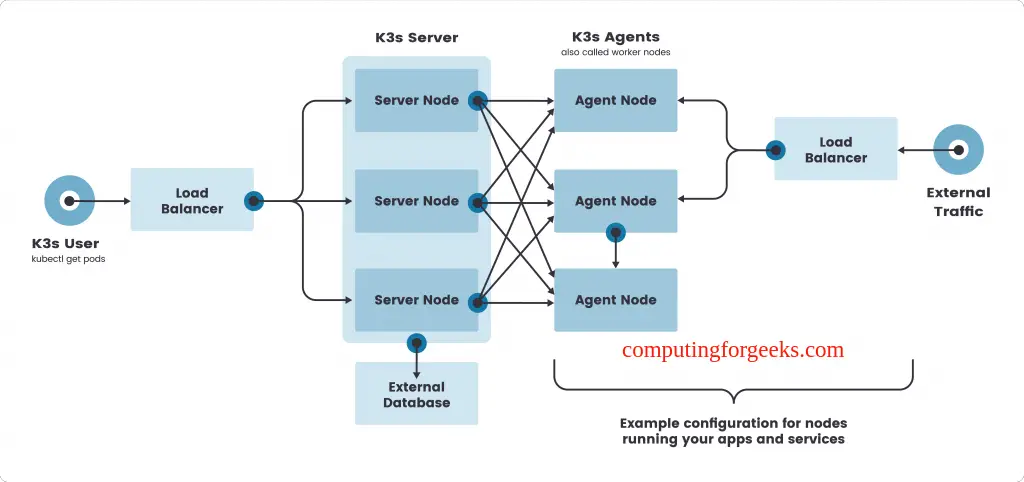

In this guide, we will deploy Kubernetes in a Highly Available Mode bearing a similar architecture as shown below

Setup Pre-requisites

For this deployment, we will use 5 servers configured as shown:

Hostname	IP Address	Role
workstation	192.168.205.2	Workstation
master1	192.168.205.11	etcd, server
master2	192.168.205.22	etcd, server
master3	192.168.205.4	etcd, server
worker1	192.168.205.12	agent

Before you proceed, ensure that:

• Passwordless SSH is configured on all the other servers. You need to copy SSH keys from your workstation to all the servers

ssh-copy-id remote_username@Remote_IP

Remember to replace remote_username and Remote_IP appropriately.

• Passwordless sudo is should be configured on all the servers as shown below

sudo vim /etc/sudoers

Edit the user permissions as shown:

<username>  ALL=(ALL) NOPASSWD:ALL

• Ensure curl is installed on all the nodes:

##On Debian/Ubuntu
sudo apt update && sudo apt install curl -y

##On CentOS/Rocky/Alma Linux
sudo yum install curl -y

Step 1 – Install k3sup on your System.

To install k3sup, you need to obtain a binary file from the Release page. On Linux workstation, you can easily pull the binary using the command:

curl -sLS https://get.k3sup.dev | sh

Now install k3sup using the command:

sudo install k3sup /usr/local/bin/

Verify the installation with the command:

$ k3sup --help
Usage:
  k3sup [flags]
  k3sup [command]

Examples:
  # Install k3s on a server with embedded etcd
  k3sup install \
    --cluster \
    --host $SERVER_1 \
    --user $SERVER_1_USER \
    --k3s-channel stable

  # Join a second server
  k3sup join \
    --server \
    --host $SERVER_2 \
    --user $SERVER_2_USER \
    --server-host $SERVER_1 \
    --server-user $SERVER_1_USER \
    --k3s-channel stable
.......

Step 2 – Set up a multi-master (HA) Kubernetes Cluster

Check your Server IP addess

$ ip ad
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens18: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 7a:b1:46:97:20:e7 brd ff:ff:ff:ff:ff:ff
    altname enp0s18
    inet 192.168.205.11/24 brd 192.168.205.255 scope global noprefixroute ens18
       valid_lft forever preferred_lft forever
    inet6 fe80::b86c:4229:16ad:d06/64 scope link noprefixroute
       valid_lft forever preferred_lft forever

Once k3sup has been installed, you can set up a Kubernetes cluster using the command with the below syntax:

k3sup install --ip <ip-of-server> --user <user-name> --local-path ~/.kube/config --context <mycontext>

Several other options can be used along with the install command. These are:

• –cluster: this starts the server in clustering mode using embedded etcd (embedded HA)
• –skip-install: this is used if you already have k3s installed, you run this command to get the kubeconfig
• –ssh-key: specifies a specific path for the SSH key for remote login.
• –ssh-port: specifies an alternative port i.e. 2222. The default port is 22
• –local: Performs a local install without using ssh
• –local-path: default is ./kubeconfig. You can set the file where you want to save your cluster’s kubeconfig. By default, this file will be overwritten.
• –merge: Merges the config into an existing file instead of overwriting (e.g. to add config to the default kubectl config, use –local-path ~/.kube/config –merge).
• –context: the default value is default but you can also set the name of the kubeconfig context.
• –k3s-extra-args: this is used to pass extra arguments to the k3s installer, wrapped in quotes. For example, –k3s-extra-args ‘–no-deploy traefik’
• –k3s-channel: sets a specific version of k3s based upon a channel i.e. stable
• –k3s-version: sets the specific version of k3s, i.e. v1.21.1
• –datastore: this is used to pass an SQL connection-string to the --datastore-endpoint flag of k3s. You must use the format required by k3s in the Rancher docs.

More options can be obtained by running the command:

$ k3sup install --help
Install k3s on a server via SSH.

🐳 k3sup needs your support: https://github.com/sponsors/alexellis

Usage:
  k3sup install [flags]

Examples:
  # Simple installation of stable version, outputting a
  # kubeconfig to the working directory
  k3sup install --ip IP --user USER

  # Merge kubeconfig into local file under custom context
  k3sup install \
    --host HOST \
    --merge \
    --local-path $HOME/.kube/kubeconfig \
    --context k3s-prod-eu-1
.......

For this guide, we will set up a Highly Available Kubernetes Cluster with embedded etcd. This requires a quorum of servers (an odd number of nodes say 3 masters).

1. Adding first server

Export the variables of the first server. For example:

export SERVER1_IP=192.168.205.11
export USER1=ubuntu

For this example, I have used a remote IP as 192.168.205.11 and a remote username as ubuntu. Replace these variables with your own.

Now initialize the cluster with the first server using the command:

k3sup install \
    --ip $SERVER1_IP \
    --user $USER1 \
    --cluster

Sample Output:

Install kubectl:

curl -LO "https://storage.googleapis.com/kubernetes-release/release/$(curl -s https://storage.googleapis.com/kubernetes-release/release/stable.txt)/bin/linux/amd64/kubectl"
chmod +x kubectl
sudo mv kubectl /usr/local/bin/ /bin

Export the config:

export KUBECONFIG=`pwd`/kubeconfig

Or copy it to default configuration path.

mkdir ~/.kube
sudo cp `pwd`/kubeconfig ~/.kube/config
sudo chown $USER:$USER ~/.kube/config

Verify if the server has been added:

$ kubectl get node
NAME      STATUS   ROLES                       AGE    VERSION
master1   Ready    control-plane,etcd,master   109s   v1.24.4+k3s1

2. Adding second and third server

Now add a second server. Begin by exporting its variables:

export SERVER2_IP=192.168.205.22
export USER2=ubuntu

Now join the cluster with the command:

k3sup join \
    --ip $SERVER2_IP \
    --user $USER2 \
    --server-user $USER1 \
    --server-ip $SERVER1_IP \
    --server

Join the third server:

export SERVER3_IP=192.168.205.4
export USER3=debian

Use the command below to join the cluster;

k3sup join \
    --ip $SERVER3_IP \
    --user $USER3 \
    --server-user $USER1 \
    --server-ip $SERVER1_IP \
    --server

Now verify if the control nodes have been added:

$ kubectl get node
NAME      STATUS     ROLES                       AGE     VERSION
master1   Ready      control-plane,etcd,master   7m32s   v1.24.4+k3s1
master2   Ready      control-plane,etcd,master   103s    v1.24.4+k3s1
master3   Ready    control-plane,etcd,master   19s     v1.24.4+k3s1

Step 3 – Join Worker Nodes to the Cluster

To join agent nodes to your cluster, export the variables:

##variables of the agent
export AGENT1_IP=192.168.205.12
export AGENT1_USER=rocky9

##Variables for the Control Node
export SERVER1_IP=192.168.205.11
export USER1=ubuntu

For Rhel-based systems, set SELinux in permissive mode on the agent before running the join command below.

sudo setenforce 0
sudo sed -i 's/^SELINUX=.*/SELINUX=permissive/g' /etc/selinux/config

Now add the agent as shown:

k3sup join \
    --user $AGENT1_USER \
    --ip $AGENT1_IP \
    --server-ip $SERVER1_IP \
    --server-user $USER1

Verify if the node has been added:

$ kubectl get node
NAME      STATUS   ROLES                       AGE   VERSION
master1   Ready    control-plane,etcd,master   32m   v1.24.4+k3s1
master2   Ready    control-plane,etcd,master   26m   v1.24.4+k3s1
master3   Ready    control-plane,etcd,master   25m   v1.24.4+k3s1
worker1   Ready    <none>                      15s   v1.24.4+k3s1

Step 4 – Deploy an Application on the Kubernetes Cluster

To test if the created Kubernetes Cluster is working as desired, we will deploy a sample Nginx application using the command:

kubectl apply -f - <<EOF
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-deployment
spec:
  selector:
    matchLabels:
      app: nginx
  replicas: 2
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx
        image: nginx:latest
        ports:
        - containerPort: 80
EOF

Verify if the pod is running:

$ kubectl get pods
NAME                                READY   STATUS    RESTARTS   AGE
nginx-deployment-544dc8b7c4-bztwj   1/1     Running   0          31s
nginx-deployment-544dc8b7c4-hzkw4   1/1     Running   0          31s

Now expose the deployment. For example with NodePort:

$ kubectl expose deployment nginx-deployment --type=NodePort --port=80
service/nginx-deployment exposed

Obtain the port to which the service has been exposed.

$ kubectl get svc
NAME               TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)        AGE
kubernetes         ClusterIP   10.43.0.1      <none>        443/TCP        40m
nginx-deployment   NodePort    10.43.244.44   <none>        80:30200/TCP   5s

If you have a firewall running, allow the port through it:

##For UFW
sudo ufw allow 30200

##For Firewalld
sudo firewall-cmd --add-port=30200/tcp --permanent
sudo firewall-cmd --reload

Verify if the service can be accessed on the port. Use the node IP and port to access the service as shown.

Books For Learning Kubernetes Administration:

• Best Kubernetes Study books

Verdict

That marks the end of this guide on how to deploy a Highly Available Kubernetes Cluster Using k3sup. I hope this was able to solve the problem faced when installing Kubernetes in resource-constrained environments.
