If you’re running your Production Virtual machines in AWS, chances are you’ve encountered scenarios where you need to build your custom Amazon Machine Images (AMI). An AMI provides the information required to launch an instance, which may include Base Operating system, application dependencies, and other runtime libraries required. Multiple instances can be started from a single AMI with the same configuration.

What is Packer?

Packer is an open source tool used to create machine images for multiple platforms from a single source configuration. It gives you the flexibility of building your custom AMI for use in AWS EC2 platform.

Ansible in the mix?

Ansible configuration management tool will be used during the build process to setup application environment, dependencies and even deploy an Application into the AMI. This process can be fully automated for integrating into CI/CD pipeline.

In this tutorial, we will consider an example, which builds an AMI using Packer and Ansible. We will use a simple Java Web Application (WAR) for demonstration. Ansible will be used to install Java Web Application dependencies and to deploy the WAR file.

Step 1: Setup Dependencies

  • A Linux/macOS system to work on
  • Install Ansible

To install Ansible, use the following commands.

###### CentOS / Fedora / RHEL ######
sudo yum install ansible
sudo dnf install ansible

###### Ubuntu/Debian/Linux Mint ######
sudo apt-get install -y  software-properties-common
sudo apt-add-repository --yes --update ppa:ansible/ansible
sudo apt-get update
sudo apt-get install -y ansible

###### Arch/Manjaro ######
$ sudo pacman -S ansible

###### macOS ######
sudo easy_install pip
sudo pip install ansible

Don’t forget to configure AWS Access Key ID and Secret Access Key as shown on the installation guide.

Once all the pre-requisite software are installed, proceed to the next sections.

Step 2: Create a Project Skeleton

Let’s create a directory for our project.

mkdir -p ~/projects/packer-ansible-aws
cd ~/projects/packer-ansible-aws

Under created directory, create folders for Packer, Ansible provisioners and where the Application source code/build packages are placed.

mkdir -p ~/projects/packer-ansible-aws/packer/provisioners/{ansible,scripts}
mkdir -p ~/projects/packer-ansible-aws/packer/provisioners/ansible/{templates,files}
mkdir -p ~/projects/packer-ansible-aws/src/application

This is my initial project tree.

$ cd ~/projects/packer-ansible-aws
$ tree
├── packer
│   └── provisioners
│       ├── ansible
│       └── scripts
└── src
    └── application

6 directories, 0 files

Step 3: Create Packer Templates

We can now create a packer json file that will be used to build an AMI image. Inside Packer file are keys defined. We’ll use variables, builders, and provisioners.

Create a Packer template to be used.

cd packer
vim packer-build.json

My contents looks like below.

    "variables": {
        "aws_access_key": "",
        "aws_secret_key": "",
        "ami_name": "tomcat-ami",
        "aws_region": "us-east-1",
        "ssh_username": "centos",
        "vpc_id": "",
        "subnet_id": ""
    "builders": [{
        "type": "amazon-ebs",
        "access_key": "{{user `aws_access_key`}}",
        "secret_key": "{{user `aws_secret_key`}}",
        "region": "{{user `aws_region`}}",
        "instance_type": "t2.micro",
        "force_deregister": "true",
        "ssh_username": "{{user `ssh_username`}}",
        "communicator": "ssh",
        "associate_public_ip_address": true,
        "subnet_id": "{{user `subnet_id`}}",
        "ami_name": "{{user `ami_name`}}",
        "source_ami_filter": {
            "filters": {
                "virtualization-type": "hvm",
                "name": "CentOS Linux 7 x86_64 HVM EBS *",
                "root-device-type": "ebs"
            "owners": ["679593333241"],
            "most_recent": true
        "run_tags": {
            "Name": "packer-build-image"
    "provisioners": [{
            "type": "shell",
            "inline": "while [ ! -f /var/lib/cloud/instance/boot-finished ]; do echo 'Waiting for cloud-init...'; sleep 1; done"
            "type": "shell",
            "script": "./provisioners/scripts/bootstrap.sh"
            "type": "ansible",
            "playbook_file": "./provisioners/ansible/setup-server.yml"
            "type": "ansible",
            "playbook_file": "./provisioners/ansible/deploy_app.yml"

Under variables key section, set required variables:

  • aws_access_key & aws_secret_key – Ignore this if configured in the AWS CLI tool installation section. Often set on ~/.aws/credentials
  • ami_name – Name to be given to AMI generated by Packer
  • aws_region – Region where Temporary instance will be created and created AMI stored.
  • ssh_username – AMI SSH user. Since I’m using CentOS 7 image available on AWS as a base image, the default ssh user is centos, for Ubuntu, use ubuntu.
  • vpc_id & subnet_id – The VPC ID and the Subnet ID to be used by a temporary instance created by the packer. It needs to be accessible from the workstation machine. I recommend you use public subnet.

Under builders key section, set:

  • instance_type – The EC2 instance type to use while building the AMI.
  • source_ami_filter: The initial AMI used as a base for the newly created machine image. Its value can be AMI ID or a filter to get ID.

Consult the AMI Builder documentation for more details.

On provisioners section, provide the paths to your Bash scripts and Ansible roles to be executed during build.

Step 4: Create Scripts & Ansible Playbooks

Let’s start with a playbook that will prepare a CentOS server for hosting a Java Web Application.

We’ll install Ansible on the VM using bash script which runs before Ansible playbooks are executed.

$ vim ./packer/provisioners/scripts/bootstrap.sh
set -ex

# Add EPEL repository
sudo yum install -y epel-release
sudo yum install -y ansible

Make the script executable:

chmod +x ./packer/provisioners/scripts/bootstrap.sh

Create a file named setup-server.yml inside provisioners/ansible directory.

vim ~/projects/packer-ansible-aws/packer/provisioners/ansible/setup-server.yml

The contents for the file are:

- name: Tomcat deployment playbook
  hosts: 'all'
  become: yes
  become_method: sudo
    - name: Add EPEL repository
        name: epel-release
        state: present

    - name: Update all packages
        state: latest

    - name: Install basic packages
        name: ['epel-release', 'firewalld', 'vim', 'bash-completion', 'htop', 'tmux', 'screen', 'telnet', 'tree', 'wget', 'curl', 'git', 'python-firewall']
        state: present

    - name: Install Java
        name: java-1.8.0-openjdk
        state: present

    - name: Add tomcat group
        name: tomcat

    - name: Add "tomcat" user
        name: tomcat
        group: tomcat
        home: /usr/share/tomcat
        createhome: no
        system: yes

    - name: Download Tomcat
        url: https://archive.apache.org/dist/tomcat/tomcat-8/v8.5.41/bin/apache-tomcat-8.5.41.tar.gz
        dest: /tmp/apache-tomcat-8.5.41.tar.gz

    - name: Create a tomcat directory
        path: /usr/share/tomcat
        state: directory
        owner: tomcat
        group: tomcat

    - name: Extract tomcat archive
        src: /tmp/apache-tomcat-8.5.41.tar.gz
        dest: /usr/share/tomcat
        owner: tomcat
        group: tomcat
        remote_src: yes
        extra_opts: "--strip-components=1"
        creates: /usr/share/tomcat/bin

    - name: Copy tomcat service file
        src: templates/tomcat.service.j2
        dest: /etc/systemd/system/tomcat.service

    - name: Start and enable tomcat
        daemon_reload: yes
        name: tomcat
        state: started
        enabled: yes

    - name: Start and enable firewalld
        name: firewalld
        state: started
        enabled: yes

    - name: Open tomcat port on the firewall
        port: 8080/tcp
        permanent: true
        state: enabled
        immediate: yes
      when: "ansible_os_family == 'RedHat' and ansible_distribution_major_version == '7'"

    - name: restart tomcat
        name: tomcat
        state: restarted

We also need to add Tomcat systemd service as template.

cd  ~/projects/packer-ansible-aws/packer/provisioners/ansible/templates/
vim tomcat.service.j2

Paste below contents into the file.

After=syslog.target network.target




Environment='CATALINA_OPTS=-Xms256M -Xmx512M'

ExecStart=/usr/share/tomcat/bin/catalina.sh start
ExecStop=/usr/share/tomcat/bin/catalina.sh stop


These ansible playbook will:

  • Install EPEL repository on CentOS 7 VM created by Packer
  • Update all system packages to latest releases
  • Install OS basic packages – vim, firewalld, wget e.t.c.
  • Install Java 8
  • Download, install and configure Tomcat 8.5.x
  • Start tomcat service and configure firewalld

The next playbook will deploy Sample Java Application packaged as war file and can be downloaded here.

So let’s start by downloading the sample war Application from Tomcat website.

cd ~/projects/packer-ansible-aws/packer/provisioners/ansible/files
wget https://tomcat.apache.org/tomcat-7.0-doc/appdev/sample/sample.war

Then create a playbook to deploy War Application to AMI to be created.

vim ~/projects/packer-ansible-aws/packer/provisioners/ansible/deploy_app.yml

The data to be populated is:

- name: Deploy tomcat war application
  hosts: 'all'
  become: yes
  become_method: sudo
    - name: Deploy war file to tomcat
        src: files/sample.war
        dest: /usr/share/tomcat/webapps/sample.war
        owner: tomcat
        mode: 0644
      notify: restart tomcat

    - name: restart tomcat
        name: tomcat
        state: restarted

Step 5: Run Packer build

Let’s now build the AMI and save results to build_artifact.txt file

cd ~/projects/packer-ansible-aws/packer
packer build -machine-readable packer-build.json | tee build_artifact.txt

Sample output:

1559285322,,ui,say,==> amazon-ebs: Force Deregister flag found%!(PACKER_COMMA) skipping prevalidating AMI Name
1559285327,,ui,message,    amazon-ebs: Found Image ID: ami-02eac2c0129f6376b
1559285330,,ui,say,==> amazon-ebs: Creating temporary keypair: packer_5cf0ce47-7f3e-ded7-9053-0732a3789020
1559285332,,ui,say,==> amazon-ebs: Creating temporary security group for this instance: packer_5cf0ce54-366a-3221-906e-cd3f1af3c1ee
1559285335,,ui,say,==> amazon-ebs: Authorizing access to port 22 from [] in the temporary security groups...
1559285337,,ui,say,==> amazon-ebs: Launching a source AWS instance...
1559285337,,ui,say,==> amazon-ebs: Adding tags to source instance
1559285337,,ui,message,    amazon-ebs: Adding tag: "Name": "packer-build-image"
1559285339,,ui,message,    amazon-ebs: Instance ID: i-0ffaa1eef9ea7966b
1559285339,,ui,say,==> amazon-ebs: Waiting for instance (i-0ffaa1eef9ea7966b) to become ready...
1559285374,,ui,say,==> amazon-ebs: Using ssh communicator to connect:
1559285374,,ui,say,==> amazon-ebs: Waiting for SSH to become available...
1559285449,,ui,say,==> amazon-ebs: Connected to SSH!
1559285449,,ui,say,==> amazon-ebs: Provisioning with shell script: /tmp/packer-shell051244737
1559285456,,ui,say,==> amazon-ebs: Provisioning with shell script: ./provisioners/scripts/bootstrap.sh
1559285460,,ui,error,==> amazon-ebs: + sudo yum install -y epel-release
1559285482,,ui,say,==> amazon-ebs: Provisioning with Ansible...
1559285483,,ui,say,==> amazon-ebs: Executing Ansible: ansible-playbook --extra-vars packer_build_name=amazon-ebs packer_builder_type=amazon-ebs -o IdentitiesOnly=yes -i /tmp/packer-provisioner-ansible406384377 /home/jmutai/projects/packer-ansible-aws/packer/provisioners/ansible/setup-server.yml -e ansible_ssh_private_key_file=/tmp/ansible-key463353218
1559285483,,ui,message,    amazon-ebs:
1559285483,,ui,message,    amazon-ebs: PLAY [Tomcat deployment playbook] **********************************************
1559285483,,ui,message,    amazon-ebs:
1559285483,,ui,message,    amazon-ebs: TASK [Gathering Facts] *********************************************************
1559285508,,ui,message,    amazon-ebs: ok: [default]
1559285508,,ui,message,    amazon-ebs:
1559285508,,ui,message,    amazon-ebs: TASK [Add EPEL repository] *****************************************************
1559285553,,ui,message,    amazon-ebs: ok: [default]
1559285553,,ui,message,    amazon-ebs:
1559285553,,ui,message,    amazon-ebs: TASK [Update all packages] *****************************************************
1559285564,,ui,message,    amazon-ebs: ok: [default]
1559285564,,ui,message,    amazon-ebs:
1559285564,,ui,message,    amazon-ebs: TASK [Install basic packages] **************************************************
1559285595,,ui,message,    amazon-ebs: changed: [default]
1559285595,,ui,message,    amazon-ebs:
1559285595,,ui,message,    amazon-ebs: TASK [Install Java] ************************************************************
1559285630,,ui,message,    amazon-ebs: changed: [default]
1559285630,,ui,message,    amazon-ebs:
1559285630,,ui,message,    amazon-ebs: TASK [Add tomcat group] ********************************************************
1559285640,,ui,message,    amazon-ebs: changed: [default]
1559285640,,ui,message,    amazon-ebs:
1559285640,,ui,message,    amazon-ebs: TASK [Add "tomcat" user] *******************************************************
1559285659,,ui,message,    amazon-ebs: changed: [default]
1559285659,,ui,message,    amazon-ebs:
1559285659,,ui,message,    amazon-ebs: TASK [Download Tomcat] *********************************************************
1559285674,,ui,message,    amazon-ebs: changed: [default]
1559285674,,ui,message,    amazon-ebs:
1559285674,,ui,message,    amazon-ebs: TASK [Create tomcat directory] *************************************************
1559285692,,ui,message,    amazon-ebs: changed: [default]
1559285692,,ui,message,    amazon-ebs:
1559285692,,ui,message,    amazon-ebs: TASK [Extract tomcat archive] **************************************************
1559285724,,ui,message,    amazon-ebs: changed: [default]
1559285724,,ui,message,    amazon-ebs:
1559285724,,ui,message,    amazon-ebs: TASK [Copy tomcat service file] ************************************************
1559285752,,ui,message,    amazon-ebs: changed: [default]
1559285752,,ui,message,    amazon-ebs:
1559285752,,ui,message,    amazon-ebs: TASK [Start and enable tomcat] *************************************************
1559285772,,ui,message,    amazon-ebs: changed: [default]
1559285772,,ui,message,    amazon-ebs:
1559285772,,ui,message,    amazon-ebs: TASK [Start and enable firewalld] **********************************************
1559285783,,ui,message,    amazon-ebs: changed: [default]
1559285783,,ui,message,    amazon-ebs:
1559285783,,ui,message,    amazon-ebs: TASK [Open tomcat port on firewall] ********************************************
1559285796,,ui,message,    amazon-ebs: changed: [default]
1559285796,,ui,message,    amazon-ebs:
1559285796,,ui,message,    amazon-ebs: PLAY RECAP *********************************************************************
1559285796,,ui,message,    amazon-ebs: default                    : ok=14   changed=11   unreachable=0    failed=0    skipped=0    rescued=0    ignored=0
1559285796,,ui,message,    amazon-ebs:
1559285796,,ui,say,==> amazon-ebs: Provisioning with Ansible...
1559285797,,ui,say,==> amazon-ebs: Executing Ansible: ansible-playbook --extra-vars packer_build_name=amazon-ebs packer_builder_type=amazon-ebs -o IdentitiesOnly=yes -i /tmp/packer-provisioner-ansible221665956 /home/jmutai/projects/packer-ansible-aws/packer/provisioners/ansible/deploy_app.yml -e ansible_ssh_private_key_file=/tmp/ansible-key672089113
1559285797,,ui,message,    amazon-ebs:
1559285797,,ui,message,    amazon-ebs: PLAY [Deploy tomcat war application] *******************************************
1559285797,,ui,message,    amazon-ebs:
1559285797,,ui,message,    amazon-ebs: TASK [Gathering Facts] *********************************************************
1559285811,,ui,message,    amazon-ebs: ok: [default]
1559285811,,ui,message,    amazon-ebs:
1559285811,,ui,message,    amazon-ebs: TASK [Deploy war file to tomcat] ***********************************************
1559285832,,ui,message,    amazon-ebs: changed: [default]
1559285832,,ui,message,    amazon-ebs:
1559285832,,ui,message,    amazon-ebs: RUNNING HANDLER [restart tomcat] ***********************************************
1559285846,,ui,message,    amazon-ebs: changed: [default]
1559285846,,ui,message,    amazon-ebs:
1559285846,,ui,message,    amazon-ebs: PLAY RECAP *********************************************************************
1559285846,,ui,message,    amazon-ebs: default                    : ok=3    changed=2    unreachable=0    failed=0    skipped=0    rescued=0    ignored=0

Once done with provisioning, packer will Stop and destroy temporary instance used, then create an AMI.

1559285846,,ui,message,    amazon-ebs:
1559285846,,ui,say,==> amazon-ebs: Stopping the source instance...
1559285846,,ui,message,    amazon-ebs: Stopping instance
1559285850,,ui,say,==> amazon-ebs: Waiting for the instance to stop...
1559285875,,ui,say,==> amazon-ebs: Creating AMI tomcat-ami from instance i-0ffaa1eef9ea7966b
1559285884,,ui,message,    amazon-ebs: AMI: ami-0f6cc044e485adabf
1559285884,,ui,say,==> amazon-ebs: Waiting for AMI to become ready...
1559285967,,ui,say,==> amazon-ebs: Terminating the source AWS instance...
1559285986,,ui,say,==> amazon-ebs: Cleaning up any extra volumes...
1559285987,,ui,say,==> amazon-ebs: Destroying volume (vol-0e34552c157dc217f)...
1559285988,,ui,say,==> amazon-ebs: Deleting temporary security group...
1559285990,,ui,say,==> amazon-ebs: Deleting temporary keypair...
1559285991,,ui,say,Build 'amazon-ebs' finished.
1559285991,,ui,say,\n==> Builds finished. The artifacts of successful builds are:
1559285991,amazon-ebs,artifact,0,string,AMIs were created:\nus-east-1: ami-0f6cc044e485adabf\n
1559285991,,ui,say,--> amazon-ebs: AMIs were created:\nus-east-1: ami-0f6cc044e485adabf\n

All provisioning output will be written to the build_artifact.txt file inside packer folder. AMI ID is printed at the end – ami-0f6cc044e485adabf.

Step 5: Testing AMI Created

In this section, I’ll use Terraform to provision a new instance with created AMI. The same can be done from AWS console.

See how to install Terraform on Linux. Check releases page for the latest version.

cd /tmp
export VER="0.12.0"
wget https://releases.hashicorp.com/terraform/${VER}/terraform_${VER}_linux_amd64.zip
unzip terraform_${VER}_linux_amd64.zip
sudo mv terraform /usr/local/bin/
terraform -v

Create terraform projects directory.

mkdir ~/projects/packer-ansible-aws/terraform
cd ~/projects/packer-ansible-aws/terraform
vim main.tf

My main.tf terraform file looks like this.

# Provider
provider "aws" {
  region = "us-east-1"

# Create EC2 Test instance
resource "aws_instance" "test-instance" {
  key_name = ""
  subnet_id = ""
  ami = ""
  instance_type = "t2.micro"
  associate_public_ip_address = "true"
  disable_api_termination = "false"
  monitoring = "false"
  vpc_security_group_ids = ["${aws_security_group.test-sg.id}"]
  tags {
    Name = "test-instance"

# Create Test SG
resource "aws_security_group" "test-sg" {
    vpc_id      = ""
    name = "test-sg"
    description = "Test Security group"
    tags {
        Name = "test-sg"
    ingress {
        from_port = 22
        to_port = 22
        protocol = "tcp"
        cidr_blocks = [""]
    ingress {
        from_port = 0
        to_port = 65535
        protocol = "tcp"
        cidr_blocks = [""]
    ingress {
      from_port = -1
      to_port = -1
      protocol = "icmp"
      cidr_blocks = [""]

    egress {
      from_port       = 0
      to_port         = 0
      protocol        = "-1"
      cidr_blocks     = [""]

Set all values required then initialize a Terraform working directory

$ terraform init
Initializing provider plugins...
- Checking for available provider plugins on https://releases.hashicorp.com...
- Downloading plugin for provider "aws" (2.12.0)...

The following providers do not have any version constraints in configuration,
so the latest version was installed.

To prevent automatic upgrades to new major versions that may contain breaking
changes, it is recommended to add version = "..." constraints to the
corresponding provider blocks in configuration, with the constraint strings
suggested below.

* provider.aws: version = "~> 2.12"

Terraform has been successfully initialized!

You may now begin working with Terraform. Try running "terraform plan" to see
any changes that are required for your infrastructure. All Terraform commands
should now work.

If you ever set or change modules or backend configuration for Terraform,
rerun this command to reinitialize your working directory. If you forget, other
commands will detect it and remind you to do so if necessary.

Show an execution plan.

$ terraform plan
Plan: 2 to add, 0 to change, 0 to destroy.


Finally, build your infrastructure according to Terraform configuration files in DIR.

$ terraform apply
Plan: 2 to add, 0 to change, 0 to destroy.

Do you want to perform these actions?
  Terraform will perform the actions described above.
  Only 'yes' will be accepted to approve.

  Enter a value: yes

aws_security_group.test-sg: Creating...
  arn:                                   "" => "<computed>"
  description:                           "" => "Test Security group"
  egress.#:                              "" => "1"
aws_security_group.test-sg: Still creating... (10s elapsed)
aws_security_group.test-sg: Creation complete after 11s (ID: sg-062a8615dd461fc1e)
aws_instance.test-instance: Creating...

aws_instance.test-instance: Still creating... (10s elapsed)
aws_instance.test-instance: Still creating... (20s elapsed)
aws_instance.test-instance: Still creating... (30s elapsed)
aws_instance.test-instance: Still creating... (40s elapsed)
aws_instance.test-instance: Creation complete after 45s (ID: i-0bf06f3b3cbf99791)

Apply complete! Resources: 2 added, 0 changed, 0 destroyed.

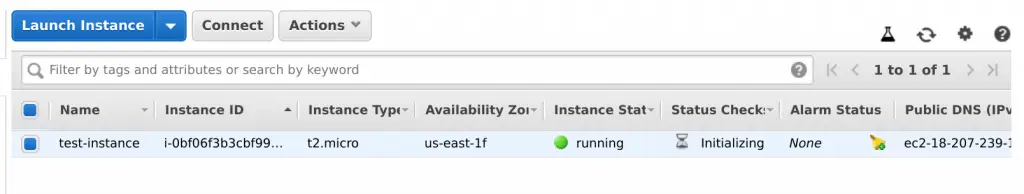

The new instance created can be confirmed from AWS EC2 dashboard.

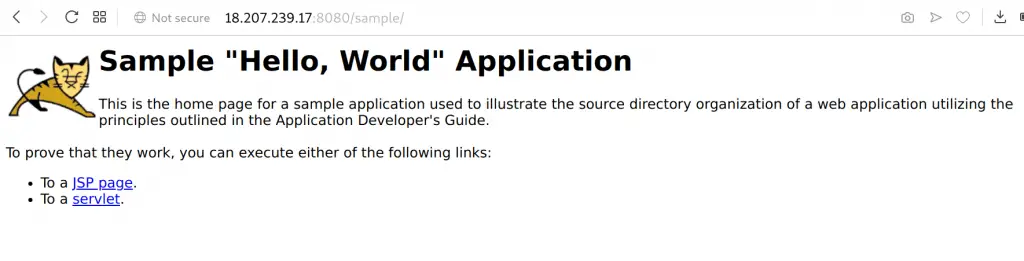

Get instance IP and access service port. Test Java Application should be accessible on:


Similar to this:

To destroy your test infrastructure, run:

$ terraform destroy
aws_security_group.test-sg: Refreshing state... (ID: sg-062a8615dd461fc1e)
aws_instance.test-instance: Refreshing state... (ID: i-0bf06f3b3cbf99791)

An execution plan has been generated and is shown below.
Resource actions are indicated with the following symbols:
  - destroy

Terraform will perform the following actions:

  - aws_instance.test-instance

  - aws_security_group.test-sg

Plan: 0 to add, 0 to change, 2 to destroy.

Do you really want to destroy all resources?
  Terraform will destroy all your managed infrastructure, as shown above.
  There is no undo. Only 'yes' will be accepted to confirm.

  Enter a value: yes

You should see

aws_instance.test-instance: Destroying... (ID: i-0bf06f3b3cbf99791)
aws_instance.test-instance: Still destroying... (ID: i-0bf06f3b3cbf99791, 10s elapsed)
aws_instance.test-instance: Still destroying... (ID: i-0bf06f3b3cbf99791, 20s elapsed)
aws_instance.test-instance: Destruction complete after 25s
aws_security_group.test-sg: Destroying... (ID: sg-062a8615dd461fc1e)
aws_security_group.test-sg: Destruction complete after 2s

Destroy complete! Resources: 2 destroyed.

You have learned how to use Packer and Ansible to create AWS AMI. Stay connected for more cool tutorials.


Best Storage Solutions for Kubernetes & Docker Containers

How to reset / change IAM user password on AWS

How to Reset RDS Master User Password on AWS

How to extend EBS boot disk on AWS without an instance reboot

How to Provision VMs on KVM with Terraform
