How can I use Ceph RBD for Kubernetes Dynamic persistent volume provisioning?. Kubernetes (K8s) is an open-source system for automating deployment, scaling, and management of containerized applications. One of the key requirements when deploying stateful applications in Kubernetes is data persistence. In this tutorial, we’ll look at how you can create a storage class on Kubernetes which provisions persistent volumes from an external Ceph Cluster using RBD (Ceph Block Device).

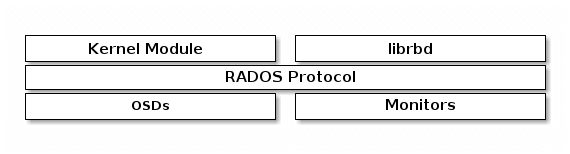

Ceph block devices are thin-provisioned, resizable and store data striped over multiple OSDs in a Ceph cluster. Ceph block devices leverage RADOS capabilities such as snapshotting, replication and consistency. The Ceph’s RADOS Block Devices (RBD) interact with OSDs using kernel modules or the librbd library.

Before you begin this exercise, you should have a working external Ceph cluster. Most Kubernetes deployments using Ceph will involve using Rook. This guide assumes you have a Ceph storage cluster deployed with Ceph Ansible, Ceph Deploy or manually.

How To Install Ceph Storage Cluster on Ubuntu 18.04 LTS

Step 1: Deploy Ceph Provisioner on Kubernetes

Login to your Kubernetes cluster and Create a manifest file for deploying RBD provisioner which is an out-of-tree dynamic provisioner for Kubernetes 1.5+.

$ vim ceph-rbd-provisioner.yml

Add the following contents to the file. Notice our deployment uses RBAC, so we’ll create cluster role and bindings before creating service account and deploying Ceph RBD provisioner.

---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: rbd-provisioner
  namespace: kube-system
rules:
  - apiGroups: [""]
    resources: ["persistentvolumes"]
    verbs: ["get", "list", "watch", "create", "delete"]
  - apiGroups: [""]
    resources: ["persistentvolumeclaims"]
    verbs: ["get", "list", "watch", "update"]
  - apiGroups: ["storage.k8s.io"]
    resources: ["storageclasses"]
    verbs: ["get", "list", "watch"]
  - apiGroups: [""]
    resources: ["events"]
    verbs: ["create", "update", "patch"]
  - apiGroups: [""]
    resources: ["services"]
    resourceNames: ["kube-dns","coredns"]
    verbs: ["list", "get"]
  - apiGroups: [""]
    resources: ["endpoints"]
    verbs: ["get", "list", "watch", "create", "update", "patch"]

---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: rbd-provisioner
  namespace: kube-system
subjects:
  - kind: ServiceAccount
    name: rbd-provisioner
    namespace: kube-system
roleRef:
  kind: ClusterRole
  name: rbd-provisioner
  apiGroup: rbac.authorization.k8s.io

---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: rbd-provisioner
  namespace: kube-system
rules:
- apiGroups: [""]
  resources: ["secrets"]
  verbs: ["get"]
- apiGroups: [""]
  resources: ["endpoints"]
  verbs: ["get", "list", "watch", "create", "update", "patch"]

---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: rbd-provisioner
  namespace: kube-system
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: rbd-provisioner
subjects:
- kind: ServiceAccount
  name: rbd-provisioner
  namespace: kube-system

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: rbd-provisioner
  namespace: kube-system
spec:
  replicas: 1
  selector:
    matchLabels:
      app: rbd-provisioner
  strategy:
    type: Recreate
  template:
    metadata:
      labels:
        app: rbd-provisioner
    spec:
      containers:
      - name: rbd-provisioner
        image: "quay.io/external_storage/rbd-provisioner:latest"
        env:
        - name: PROVISIONER_NAME
          value: ceph.com/rbd
      serviceAccount: rbd-provisioner

Apply the file to create the resources.

$ kubectl apply -f ceph-rbd-provisioner.yml
clusterrole.rbac.authorization.k8s.io/rbd-provisioner created
clusterrolebinding.rbac.authorization.k8s.io/rbd-provisioner created
role.rbac.authorization.k8s.io/rbd-provisioner created
rolebinding.rbac.authorization.k8s.io/rbd-provisioner created
deployment.apps/rbd-provisioner created

Confirm that RBD volume provisioner pod is running.

$ kubectl get pods -l app=rbd-provisioner -n kube-system
NAME                               READY   STATUS    RESTARTS   AGE
rbd-provisioner-75b85f85bd-p9b8c   1/1     Running   0          3m45s

Step 2: Get Ceph Admin Key and create Secret on Kubernetes

Login to your Ceph Cluster and get the admin key for use by RBD provisioner.

$ sudo ceph auth get-key client.admin

Save the Value of the admin user key printed out by the command above. We’ll add the key as a secret in Kubernetes.

$ kubectl create secret generic ceph-admin-secret \
    --type="kubernetes.io/rbd" \
    --from-literal=key='<key-value>' \
    --namespace=kube-system

Where <key-value> is your ceph admin key. You can confirm creation with the command below.

$ kubectl get secrets ceph-admin-secret -n kube-system
NAME                TYPE                DATA   AGE
ceph-admin-secret   kubernetes.io/rbd   1      5m

Step 3: Create Ceph pool for Kubernetes & client key

Next is to create a new Ceph Pool for Kubernetes.

$ sudo ceph ceph osd pool create <pool-name> <pg-number>

# Example
$ sudo ceph ceph osd pool create k8s 100

For more details, check our guide: Create a Pool in Ceph Storage Cluster

Then create a new client key with access to the pool created.

$ sudo ceph auth add client.kube mon 'allow r' osd 'allow rwx pool=<pool-name>'

# Example
$ sudo ceph auth add client.kube mon 'allow r' osd 'allow rwx pool=k8s'

Where k8s is the name of pool created in Ceph.

You can then associate the pool with an application and initialize it.

sudo ceph osd pool application enable <pool-name> rbd
sudo rbd pool init <pool-name>

Get the client key on Ceph.

$ sudo ceph auth get-key client.kube

Create client secret on Kubernetes

kubectl create secret generic ceph-k8s-secret \
  --type="kubernetes.io/rbd" \
  --from-literal=key='<key-value>' \
  --namespace=kube-system

Where <key-value> is your Ceph client key.

Step 4: Create a RBD Storage Class

A StorageClass provides a way for you to describe the “classes” of storage you offer in Kubernetes. We’ll create a storageclass called ceph-rbd.

$ vim ceph-rbd-sc.yml

The contents to be added to file:

---
kind: StorageClass
apiVersion: storage.k8s.io/v1
metadata:
  name: ceph-rbd
provisioner: ceph.com/rbd
parameters:
  monitors: 10.10.10.11:6789, 10.10.10.12:6789, 10.10.10.13:6789
  pool: k8s-uat
  adminId: admin
  adminSecretNamespace: kube-system
  adminSecretName: ceph-admin-secret
  userId: kube
  userSecretNamespace: kube-system
  userSecretName: ceph-k8s-secret
  imageFormat: "2"
  imageFeatures: layering

Where:

  • ceph-rbd is the name of the StorageClass to be created.
  • 10.10.10.11, 10.10.10.12 & 10.10.10.13 are the IP address of Ceph Monitors. You can list them with the command:
$ sudo ceph -s
  cluster:
    id:     7795990b-7c8c-43f4-b648-d284ef2a0aba
    health: HEALTH_OK

  services:
    mon: 3 daemons, quorum cephmon01,cephmon02,cephmon03 (age 32h)
    mgr: cephmon01(active, since 30h), standbys: cephmon02
    mds: cephfs:1 {0=cephmon01=up:active} 1 up:standby
    osd: 9 osds: 9 up (since 32h), 9 in (since 32h)
    rgw: 3 daemons active (cephmon01, cephmon02, cephmon03)

  data:
    pools:   8 pools, 618 pgs
    objects: 250 objects, 76 KiB
    usage:   9.6 GiB used, 2.6 TiB / 2.6 TiB avail
    pgs:     618 active+clean

After modifying the file with correct values of Ceph monitors, apply config:

$ kubectl apply -f ceph-rbd-sc.yml
storageclass.storage.k8s.io/ceph-rbd created

List available StorageClasses:

kubectl get sc
NAME       PROVISIONER       RECLAIMPOLICY   VOLUMEBINDINGMODE   ALLOWVOLUMEEXPANSION   AGE
ceph-rbd   ceph.com/rbd      Delete          Immediate           false                  17s
cephfs     ceph.com/cephfs   Delete          Immediate           false                  18d

Step 5: Create a test Claim and Pod on Kubernetes

To confirm everything is working, let’s create a test persistent volume claim.

$ vim ceph-rbd-claim.yml
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
  name: ceph-rbd-claim1
spec:
  accessModes:
    - ReadWriteOnce
  storageClassName: ceph-rbd
  resources:
    requests:
      storage: 1Gi

Apply manifest file to create claim.

$ kubectl apply -f ceph-rbd-claim.yml
persistentvolumeclaim/ceph-rbd-claim1 created

If it was successful in binding, it should show Bound status.

$ kubectl get pvc
NAME              STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   AGE
ceph-rbd-claim1   Bound    pvc-c6f4399d-43cf-4fc1-ba14-cc22f5c85304   1Gi        RWO            ceph-rbd       43s

Nice!.. We are able create dynamic Persistent Volume Claims on Ceph RBD backend. Notice we didn’t have to manually create a Persistent Volume before a Claim. How cool is that?..

We can then deploy a test pod using the claim we created. First create a file to hold the data:

$ vim rbd-test-pod.yaml

Add:

---
kind: Pod
apiVersion: v1
metadata:
  name: rbd-test-pod
spec:
  containers:
  - name: rbd-test-pod
    image: busybox
    command:
      - "/bin/sh"
    args:
      - "-c"
      - "touch /mnt/RBD-SUCCESS && exit 0 || exit 1"
    volumeMounts:
      - name: pvc
        mountPath: "/mnt"
  restartPolicy: "Never"
  volumes:
    - name: pvc
      persistentVolumeClaim:
        claimName: ceph-rbd-claim1

Create pod:

$ kubectl apply -f rbd-test-pod.yaml
pod/rbd-test-pod created

If you describe the Pod, you’ll see successful attachment of the Volume.

$ kubectl describe pod rbd-test-pod
.....
vents:
  Type    Reason                  Age        From                     Message
  ----    ------                  ----       ----                     -------
  Normal  Scheduled               <unknown>  default-scheduler        Successfully assigned default/rbd-test-pod to rke-worker-02
  Normal  SuccessfulAttachVolume  3s         attachdetach-controller  AttachVolume.Attach succeeded for volume "pvc-c6f4399d-43cf-4fc1-ba14-cc22f5c85304"

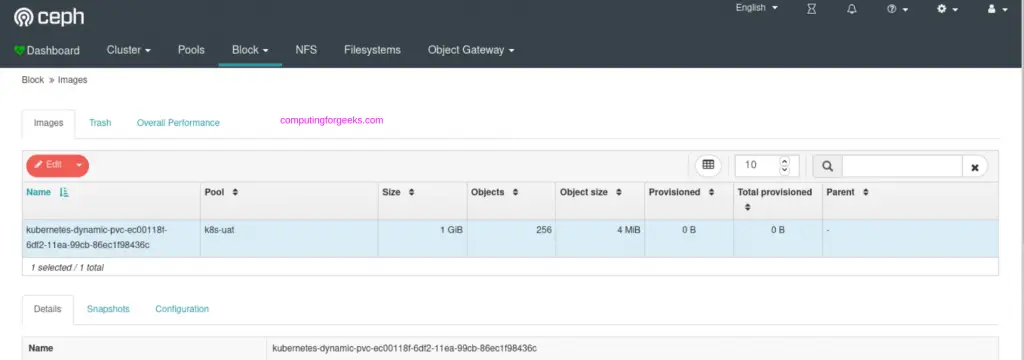

If you have Ceph Dashboard, you can see a new block image created.

Learning courses:

$15.22
$152.19
in stock
Udemy.com
$15.22
$152.19
in stock
Udemy.com
$15.22
$46.82
in stock
Udemy.com

Our next guide will cover use of Ceph File System on Kubernetes for Dynamic persistent volume provisioning.
