Install Red Hat ACM on OpenShift 4.x

Josphat Mutai Updated Mar 22, 2026 · 1 min read

Red Hat Advanced Cluster Management (ACM) for Kubernetes is a multi-cluster management platform that gives you a single control plane to manage, observe, and govern your OpenShift and Kubernetes clusters across hybrid and multi-cloud environments. It handles cluster lifecycle management, application deployment, security policies, and observability from one unified console.

Original content from computingforgeeks.com - post 85761

This guide walks through installing Red Hat ACM 2.13 on an OpenShift 4.14+ cluster using the OperatorHub, creating a MultiClusterHub instance, importing existing clusters, setting up governance policies, managing application lifecycles, and configuring observability with Thanos and Grafana.

Prerequisites

Before you begin, make sure you have the following in place:

  • An OpenShift Container Platform 4.14 or later cluster (hub cluster) with cluster-admin access
  • At least 3 worker nodes with 8 GB RAM and 4 vCPUs each on the hub cluster
  • The oc CLI tool installed and authenticated to your hub cluster
  • A valid Red Hat subscription that includes Advanced Cluster Management
  • Network connectivity between the hub cluster and any managed clusters you plan to import
  • Persistent storage provisioner configured on the hub cluster (for observability components)

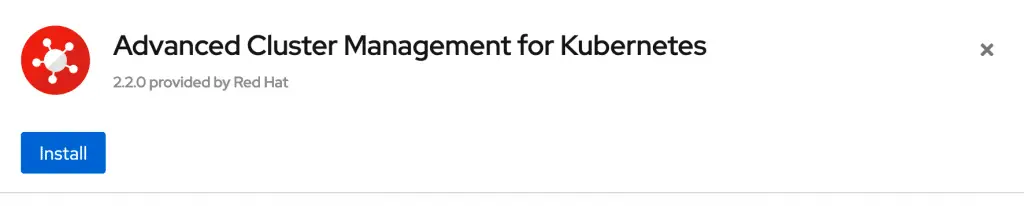

Step 1: Install the ACM Operator from OperatorHub

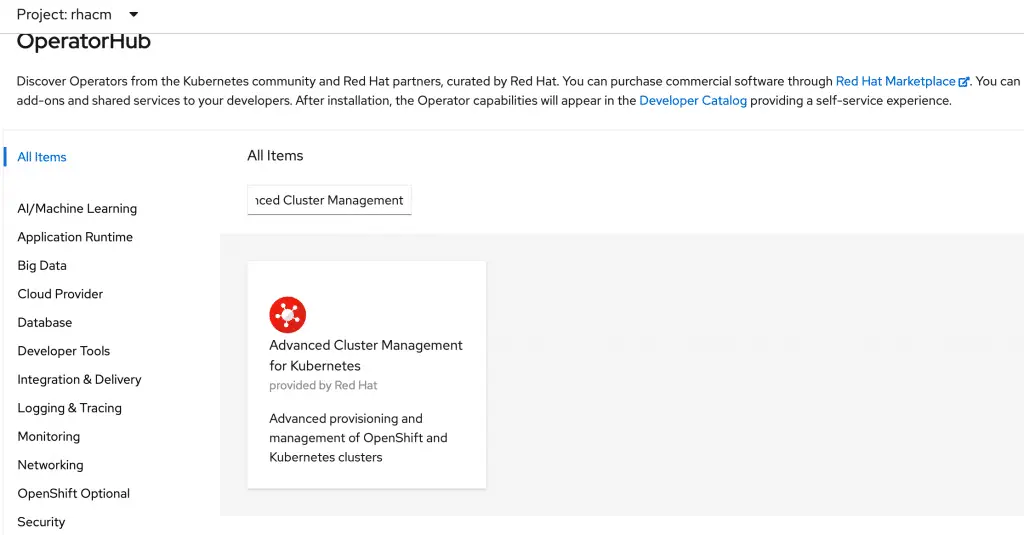

ACM is distributed as an Operator on OpenShift. You install it through the OperatorHub, which handles dependency resolution and lifecycle management automatically. Start by creating a dedicated namespace for ACM components.

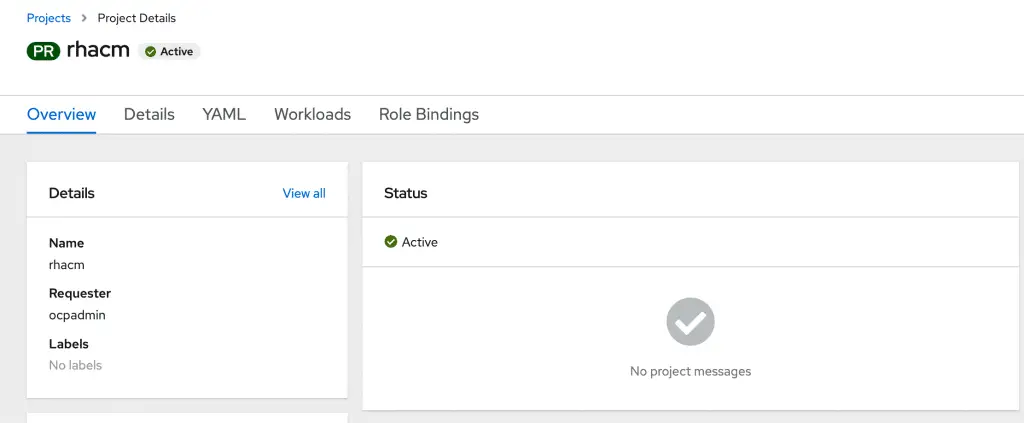

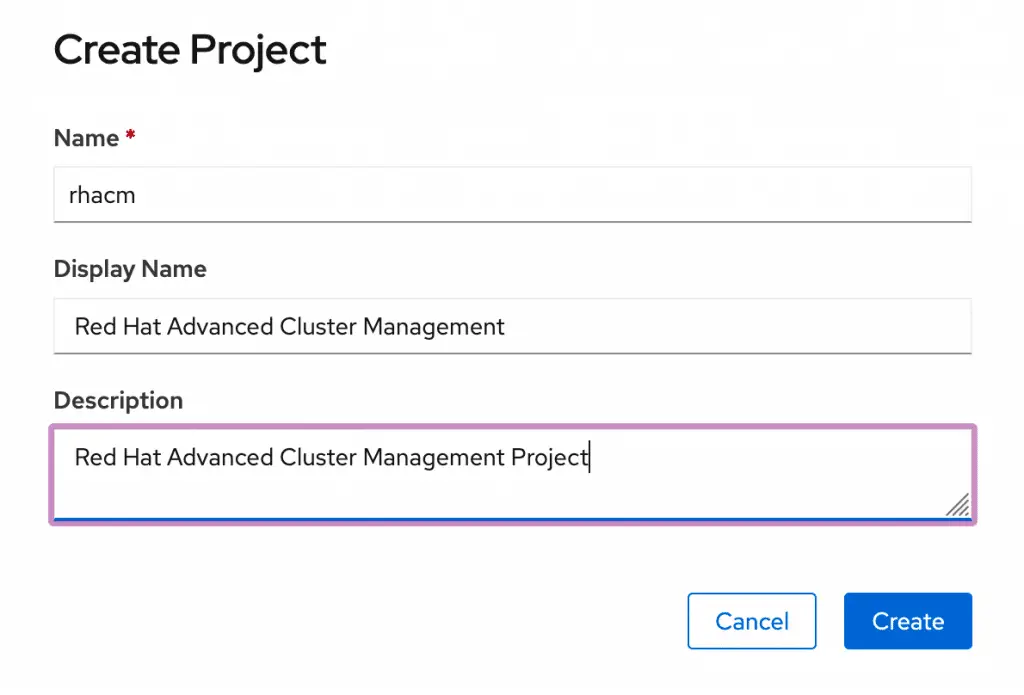

Create the open-cluster-management namespace:

oc create namespace open-cluster-management

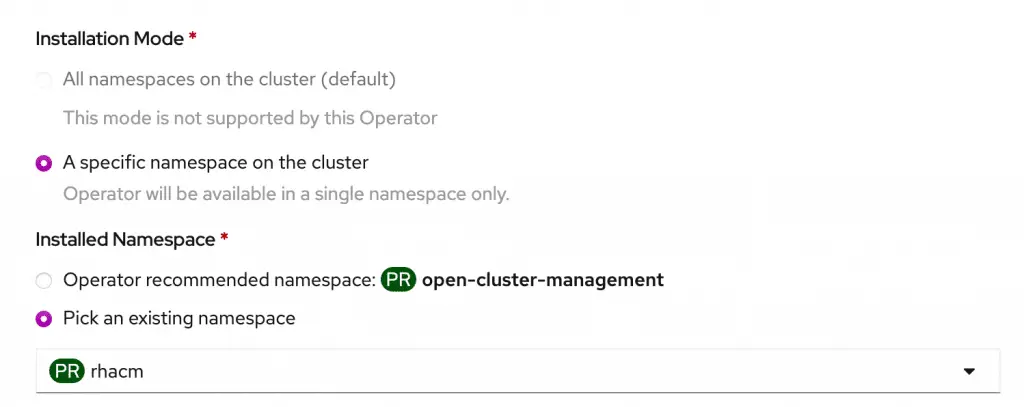

The namespace is created immediately. Next, create an OperatorGroup in this namespace so the Operator can watch for resources:

cat << 'EOF' | oc apply -f -
apiVersion: operators.coreos.com/v1
kind: OperatorGroup
metadata:
  name: acm-operator-group
  namespace: open-cluster-management
spec:
  targetNamespaces:
    - open-cluster-management
EOF

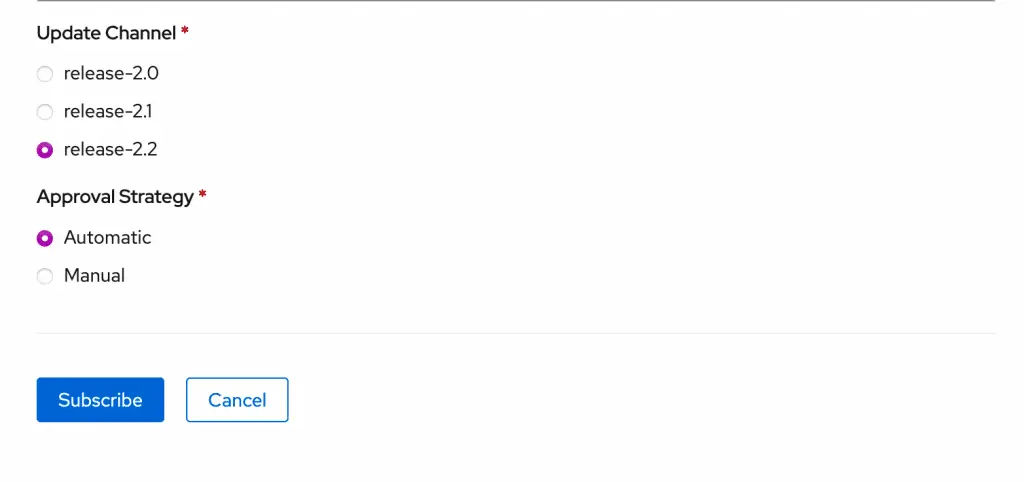

Now create the Subscription resource to install the ACM Operator from the Red Hat catalog:

cat << 'EOF' | oc apply -f -
apiVersion: operators.coreos.com/v1alpha1
kind: Subscription
metadata:
  name: acm-operator-subscription
  namespace: open-cluster-management
spec:
  sourceNamespace: openshift-marketplace
  source: redhat-operators
  channel: release-2.13
  installPlanApproval: Automatic
  name: advanced-cluster-management
EOF

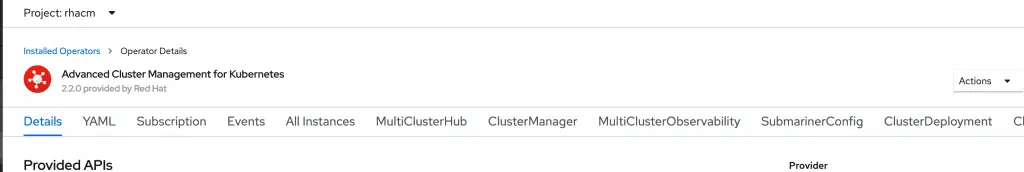

Wait for the Operator to install. This takes a few minutes as OpenShift pulls the Operator images and creates the necessary resources. Check the installation status:

oc get csv -n open-cluster-management

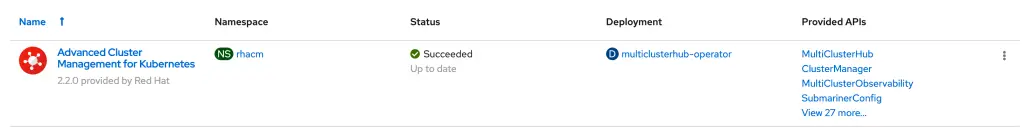

The output shows the ClusterServiceVersion reaching the Succeeded phase when the Operator is ready:

NAME                                 DISPLAY                                      VERSION   REPLACES   PHASE
advanced-cluster-management.v2.13.0  Advanced Cluster Management for Kubernetes   2.13.0               Succeeded

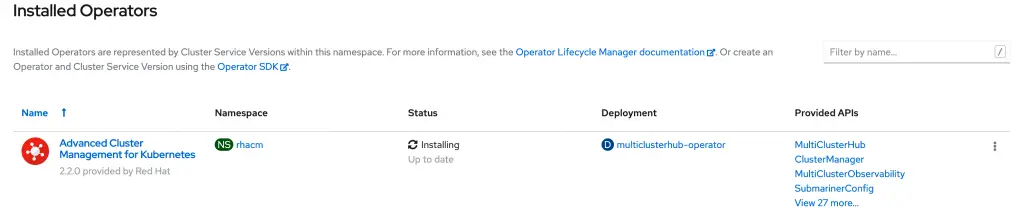

If the phase shows Installing, wait a minute and check again. The Operator pods should also be running in the namespace:

oc get pods -n open-cluster-management

You should see the multiclusterhub-operator pod in a Running state:

NAME                                                  READY   STATUS    RESTARTS   AGE
multiclusterhub-operator-7d5c8f5b9-k4xrq              1/1     Running   0          2m

Step 2: Create the MultiClusterHub Instance

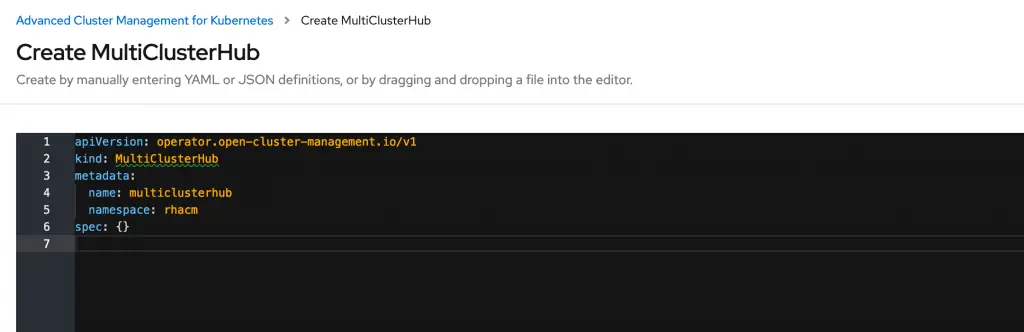

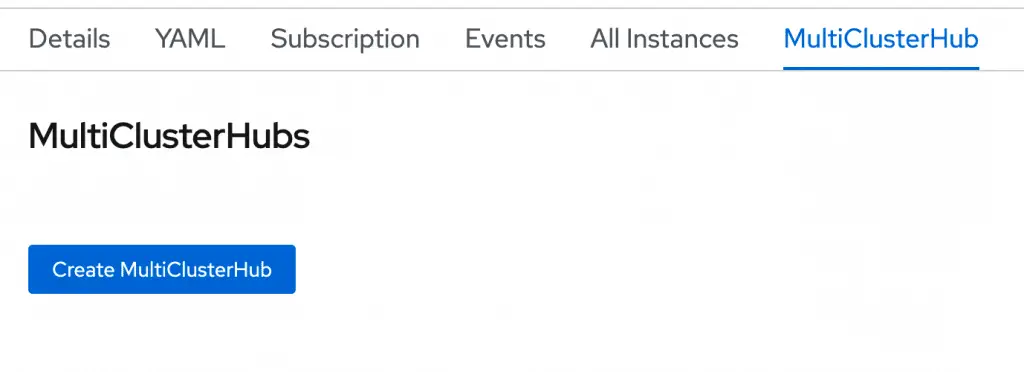

The Operator itself does not deploy ACM's management components - you need to create a MultiClusterHub custom resource to trigger the full deployment. This resource tells the Operator to deploy the hub services including the console, cluster manager, governance framework, and application lifecycle components.

cat << 'EOF' | oc apply -f -
apiVersion: operator.open-cluster-management.io/v1
kind: MultiClusterHub
metadata:
  name: multiclusterhub
  namespace: open-cluster-management
spec: {}
EOF

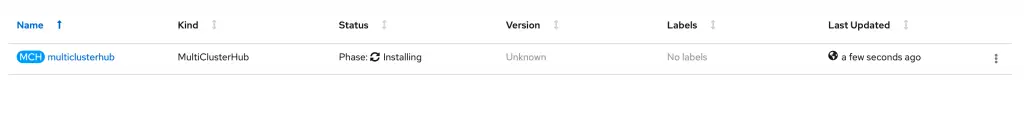

The MultiClusterHub deployment takes 10-15 minutes. It creates dozens of pods across multiple components. Monitor the progress:

oc get multiclusterhub -n open-cluster-management -w

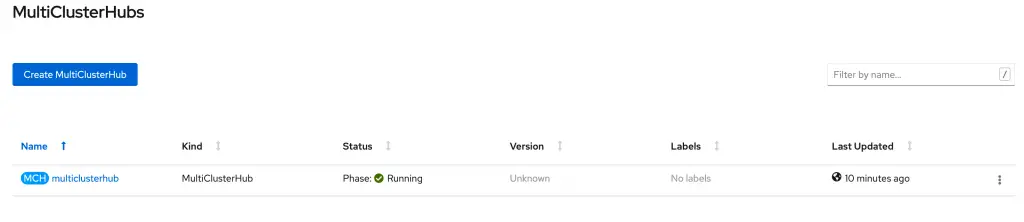

Watch for the status to transition from Installing to Running:

NAME               STATUS    AGE
multiclusterhub    Running   12m

Once the status shows Running, verify all pods in the namespace are healthy:

oc get pods -n open-cluster-management | grep -v Running | grep -v Completed

If this returns only the header line, all pods are either Running or Completed, which is the expected state. Any pods stuck in CrashLoopBackOff or Pending indicate resource issues on your hub cluster.

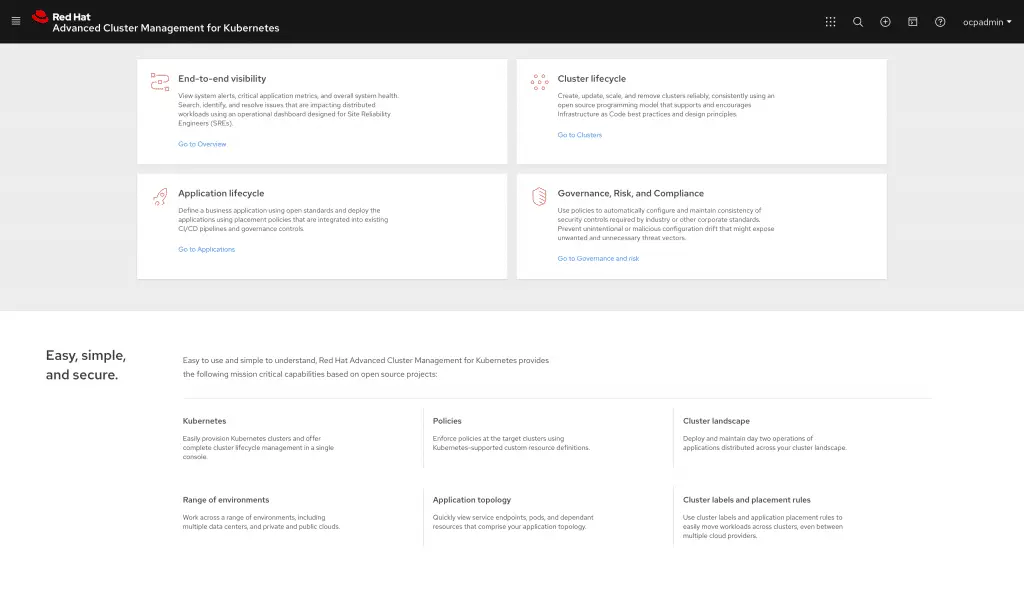

Step 3: Access the ACM Console

ACM deploys its own web console that integrates with the OpenShift console. You can access it through the OpenShift console's application menu or directly via its route. Retrieve the ACM console URL:

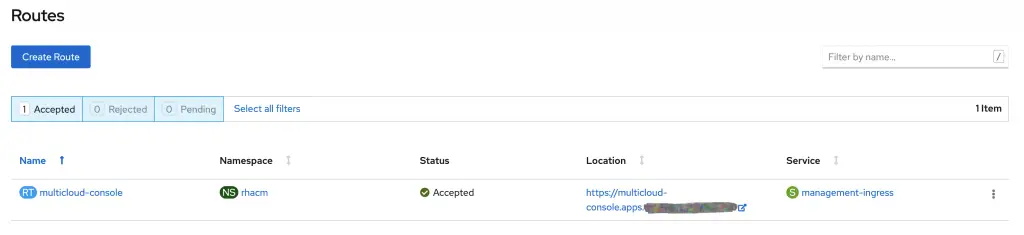

oc get route multicloud-console -n open-cluster-management -o jsonpath='{.spec.host}'

The output returns the hostname for the ACM console:

multicloud-console.apps.ocp.example.com

Open https://multicloud-console.apps.ocp.example.com in your browser and log in with your OpenShift cluster-admin credentials. The ACM dashboard shows an overview of all managed clusters, compliance status, and application deployments. You can also access the console from the OpenShift web console by clicking the grid icon in the top navigation bar and selecting "Advanced Cluster Management".

Step 4: Import Existing Clusters into ACM

With ACM running on your hub cluster, you can import existing OpenShift or Kubernetes clusters as managed clusters. Importing a cluster installs a klusterlet agent on the target cluster that communicates back to the hub. This works for any cluster with network access to the hub - including clusters in different clouds or on-premises.

Create a ManagedCluster resource on the hub to start the import process:

cat << 'EOF' | oc apply -f -
apiVersion: cluster.open-cluster-management.io/v1
kind: ManagedCluster
metadata:
  name: cluster-prod-east
  labels:
    cloud: Amazon
    vendor: OpenShift
    environment: production
spec:
  hubAcceptsClient: true
EOF

Labels on the ManagedCluster resource are important - they drive policy placement and application targeting later. Use labels like environment, cloud, vendor, and region to organize your clusters.

Next, create the KlusterletAddonConfig to define which add-ons run on the managed cluster:

cat << 'EOF' | oc apply -f -
apiVersion: agent.open-cluster-management.io/v1
kind: KlusterletAddonConfig
metadata:
  name: cluster-prod-east
  namespace: cluster-prod-east
spec:
  clusterName: cluster-prod-east
  clusterNamespace: cluster-prod-east
  applicationManager:
    enabled: true
  certPolicyController:
    enabled: true
  iamPolicyController:
    enabled: true
  policyController:
    enabled: true
  searchCollector:
    enabled: true
EOF

Now generate the import command that you run on the target cluster. Extract it from the secret that ACM creates:

oc get secret cluster-prod-east-import -n cluster-prod-east -o jsonpath='{.data.crds\.yaml}' | base64 -d > /tmp/klusterlet-crd.yaml
oc get secret cluster-prod-east-import -n cluster-prod-east -o jsonpath='{.data.import\.yaml}' | base64 -d > /tmp/klusterlet-import.yaml

Copy these two files to the target cluster and apply them. On the target cluster, run:

oc apply -f /tmp/klusterlet-crd.yaml
oc apply -f /tmp/klusterlet-import.yaml

After applying, the klusterlet agent on the target cluster establishes a connection back to the hub. Verify the import on the hub cluster:

oc get managedcluster cluster-prod-east

The cluster should show True under the JOINED and AVAILABLE columns:

NAME                HUB ACCEPTED   MANAGED CLUSTER URLS   JOINED   AVAILABLE   AGE
cluster-prod-east   true                                  True     True        5m

Step 5: Create Managed Clusters with ACM

Beyond importing existing clusters, ACM can provision new OpenShift clusters directly on supported cloud providers - AWS, Azure, GCP, VMware vSphere, and bare metal. The cluster creation workflow uses Hive under the hood, which manages the OpenShift installer and cluster lifecycle.

To create a cluster on AWS, you first need to store your cloud credentials as a secret. Create a credentials secret:

cat << 'EOF' | oc apply -f -
apiVersion: v1
kind: Secret
metadata:
  name: aws-credentials
  namespace: open-cluster-management
type: Opaque
stringData:
  aws_access_key_id: YOUR_ACCESS_KEY
  aws_secret_access_key: YOUR_SECRET_KEY
  baseDomain: example.com
  pullSecret: 'YOUR_PULL_SECRET'
  ssh-publickey: 'ssh-rsa YOUR_SSH_KEY'
EOF

Then create a ClusterDeployment along with the required ManagedCluster and KlusterletAddonConfig. The easiest path is through the ACM console - navigate to Infrastructure > Clusters > Create cluster, select your provider, and fill in the cluster details. The console generates all the required YAML resources and handles the provisioning workflow.

For the CLI approach, you need a ClusterDeployment, MachinePool, and Install Config secret. Here is the ClusterDeployment resource:

cat << 'EOF' | oc apply -f -
apiVersion: hive.openshift.io/v1
kind: ClusterDeployment
metadata:
  name: cluster-dev-west
  namespace: cluster-dev-west
spec:
  baseDomain: example.com
  clusterName: cluster-dev-west
  platform:
    aws:
      credentialsSecretRef:
        name: aws-credentials
      region: us-west-2
  provisioning:
    installConfigSecretRef:
      name: cluster-dev-west-install-config
    imageSetRef:
      name: img4.14.0-x86-64
  pullSecretRef:
    name: cluster-dev-west-pull-secret
EOF

Monitor the cluster provisioning progress from the hub:

oc get clusterdeployment cluster-dev-west -n cluster-dev-west -w

Provisioning a new cluster typically takes 30-45 minutes. The ClusterDeployment resource tracks the progress through stages: initializing, provisioning, and installed.

Step 6: Configure Policies and Governance

ACM's governance framework lets you define policies that enforce security, configuration, and compliance standards across all managed clusters. Policies use a templating engine that evaluates conditions on target clusters and reports violations back to the hub. You can set policies to inform (alert only) or enforce (auto-remediate).

Here is a policy that checks whether namespace resource quotas exist on managed clusters:

cat << 'EOF' | oc apply -f -
apiVersion: policy.open-cluster-management.io/v1
kind: Policy
metadata:
  name: policy-namespace-quota
  namespace: open-cluster-management
  annotations:
    policy.open-cluster-management.io/standards: NIST SP 800-53
    policy.open-cluster-management.io/categories: CM Configuration Management
    policy.open-cluster-management.io/controls: CM-2 Baseline Configuration
spec:
  remediationAction: inform
  disabled: false
  policy-templates:
    - objectDefinition:
        apiVersion: policy.open-cluster-management.io/v1
        kind: ConfigurationPolicy
        metadata:
          name: check-resource-quotas
        spec:
          remediationAction: inform
          severity: medium
          object-templates:
            - complianceType: musthave
              objectDefinition:
                apiVersion: v1
                kind: ResourceQuota
                metadata:
                  name: default-quota
                spec:
                  hard:
                    requests.cpu: "4"
                    requests.memory: 8Gi
                    limits.cpu: "8"
                    limits.memory: 16Gi
EOF

Policies by themselves do not target clusters - you need a PlacementBinding and Placement to define which clusters the policy applies to:

cat << 'EOF' | oc apply -f -
apiVersion: cluster.open-cluster-management.io/v1beta1
kind: Placement
metadata:
  name: placement-production
  namespace: open-cluster-management
spec:
  predicates:
    - requiredClusterSelector:
        labelSelector:
          matchLabels:
            environment: production
---
apiVersion: policy.open-cluster-management.io/v1
kind: PlacementBinding
metadata:
  name: binding-policy-quota
  namespace: open-cluster-management
spec:
  placementRef:
    apiGroup: cluster.open-cluster-management.io
    kind: Placement
    name: placement-production
  subjects:
    - apiGroup: policy.open-cluster-management.io
      kind: Policy
      name: policy-namespace-quota
EOF

This placement targets all clusters labeled environment: production. Check the compliance status of the policy across your clusters:

oc get policy policy-namespace-quota -n open-cluster-management -o yaml | grep -A5 status

The status section shows each cluster's compliance state - either Compliant or NonCompliant. You can view a consolidated governance dashboard in the ACM console under Governance > Policies.

Step 7: Application Lifecycle Management

ACM provides an application model that deploys workloads across multiple clusters from a single definition. Applications in ACM reference Git repositories, Helm charts, or object storage buckets as sources, and use placement rules to determine which clusters receive the deployment. This is similar to what ArgoCD provides but with built-in multi-cluster awareness.

Create a Channel resource that points to your Git repository:

cat << 'EOF' | oc apply -f -
apiVersion: apps.open-cluster-management.io/v1
kind: Channel
metadata:
  name: my-app-channel
  namespace: open-cluster-management
spec:
  type: Git
  pathname: https://github.com/your-org/your-app-manifests.git
EOF

Next, create a Subscription that references the channel and defines which branch and path to use:

cat << 'EOF' | oc apply -f -
apiVersion: apps.open-cluster-management.io/v1
kind: Subscription
metadata:
  name: my-app-subscription
  namespace: my-app
  annotations:
    apps.open-cluster-management.io/git-branch: main
    apps.open-cluster-management.io/git-path: deploy/
  labels:
    app: my-app
spec:
  channel: open-cluster-management/my-app-channel
  placement:
    placementRef:
      kind: Placement
      name: placement-production
EOF

The Subscription watches the Git repository and automatically deploys any Kubernetes manifests found in the deploy/ directory of the main branch to all clusters matched by the Placement rule. When you push changes to the repository, ACM detects them and rolls out updates to all target clusters.

Verify the application status:

oc get subscriptions.apps.open-cluster-management.io my-app-subscription -n my-app -o yaml | grep -A10 status

The ACM console provides a topology view under Applications that visualizes the application components and their deployment status across clusters.

Step 8: Configure Observability with Thanos and Grafana

ACM's observability stack collects metrics from all managed clusters and aggregates them on the hub using Thanos for long-term storage and Grafana for dashboards. This gives you a single-pane view of resource usage, cluster health, and application performance across your entire fleet. Observability is not enabled by default - you need to create a MultiClusterObservability resource.

First, create a secret with your object storage configuration. Thanos requires an S3-compatible bucket for metric retention. Create the open-cluster-management-observability namespace and the secret:

oc create namespace open-cluster-management-observability

Copy the pull secret from the openshift-config namespace so the observability pods can pull images:

DOCKER_CONFIG_JSON=$(oc extract secret/pull-secret -n openshift-config --to=-)
oc create secret generic multiclusterhub-operator-pull-secret \
  -n open-cluster-management-observability \
  --from-literal=.dockerconfigjson="$DOCKER_CONFIG_JSON" \
  --type=kubernetes.io/dockerconfigjson

Create the Thanos object storage configuration secret. This example uses AWS S3:

cat << 'EOF' | oc apply -f -
apiVersion: v1
kind: Secret
metadata:
  name: thanos-object-storage
  namespace: open-cluster-management-observability
type: Opaque
stringData:
  thanos.yaml: |
    type: s3
    config:
      bucket: acm-observability-metrics
      endpoint: s3.us-east-1.amazonaws.com
      insecure: false
      access_key: YOUR_ACCESS_KEY
      secret_key: YOUR_SECRET_KEY
EOF

Now create the MultiClusterObservability resource to deploy the full observability stack:

cat << 'EOF' | oc apply -f -
apiVersion: observability.open-cluster-management.io/v1beta2
kind: MultiClusterObservability
metadata:
  name: observability
spec:
  observabilityAddonSpec: {}
  storageConfig:
    metricObjectStorage:
      name: thanos-object-storage
      key: thanos.yaml
    statefulSetSize: 10Gi
  retentionConfig:
    retentionResolutionRaw: 14d
    retentionResolution5m: 30d
    retentionResolution1h: 90d
EOF

The observability deployment takes 5-10 minutes. It deploys Thanos components (compactor, querier, receiver, store gateway), Grafana, and Alertmanager on the hub. Each managed cluster gets a metrics-collector sidecar that forwards data to the hub. Verify the deployment:

oc get pods -n open-cluster-management-observability

You should see multiple pods for each Thanos component and Grafana in Running state. Access the Grafana dashboard from the ACM console by navigating to Infrastructure > Clusters and clicking the Grafana link, or retrieve the route directly:

oc get route grafana -n open-cluster-management-observability -o jsonpath='{.spec.host}'

Grafana comes pre-loaded with dashboards for cluster health, resource utilization, and Kubernetes API server metrics across all managed clusters. You can also configure custom Grafana dashboards and alerts based on Thanos-aggregated metrics.

Step 9: Cluster Upgrade Management

ACM simplifies OpenShift cluster upgrades by letting you manage version updates across your fleet from the hub. You can stage upgrades, apply them to groups of clusters using labels, and monitor progress from the ACM console. The ClusterCurator resource automates pre-upgrade checks, the upgrade itself, and post-upgrade validation using Ansible hooks.

Create a ClusterCurator to orchestrate an upgrade for a managed cluster:

cat << 'EOF' | oc apply -f -
apiVersion: cluster.open-cluster-management.io/v1beta1
kind: ClusterCurator
metadata:
  name: cluster-prod-east
  namespace: cluster-prod-east
spec:
  desiredCuration: upgrade
  upgrade:
    desiredUpdate: 4.14.12
    channel: stable-4.14
    upstream: https://api.openshift.com/api/upgrades_info/v1/graph
EOF

The ClusterCurator triggers the upgrade on the target cluster and reports progress back. Monitor the upgrade status:

oc get clustercurator cluster-prod-east -n cluster-prod-east -o yaml | grep -A20 conditions

For batch upgrades across multiple clusters, use the ACM console. Navigate to Infrastructure > Clusters, select the clusters you want to upgrade, and click Actions > Upgrade. You can stage upgrades by environment - update development clusters first, validate, then proceed to staging and production.

To view the upgrade channels and available versions for your managed clusters, run:

oc get managedclusterinfo -A -o jsonpath='{range .items[*]}{.metadata.name}{"\t"}{.status.distributionInfo.ocp.version}{"\n"}{end}'

This lists each managed cluster alongside its current OpenShift version, making it easy to identify clusters that need upgrades.

Conclusion

You now have Red Hat Advanced Cluster Management running on your OpenShift hub cluster with the ability to import clusters, provision new ones, enforce governance policies, manage application deployments, monitor fleet-wide metrics, and orchestrate upgrades. For production environments, configure RBAC to restrict ACM access by team, enable the cluster logging operator alongside observability for complete visibility, and use policy sets to group related compliance checks into manageable bundles.

Josphat Mutai

Founder of Computingforgeeks. Expertise in Virtualization, Cloud, Linux/UNIX Administration, Automation,Storage Systems, Containers, Server Clustering e.t.c.

Related Articles

Containers How to run hyperswitch in Docker Container and Compose Cloud Managing Containerd Containers using ctr and crictl Containers Ship Kubernetes Logs to External Elasticsearch with Filebeat and Fluentd Automation How To Expose Ansible AWX Service using Nginx Ingress

Leave a Comment

Press ESC to close
