The objective of this guide is to help install and configure Apache Tomcat 10.x on Ubuntu 20.04|18.04 Linux server. Apache Tomcat is an open source implementation of the Java Servlet, JavaServer Pages, Java Expression Language and Java WebSocket technologies. Tomcat is a platform-independent tool and runs where Java is installed.

You need access to Ubuntu shell as a user with sudo permissions. We’ll perform an installation of Java before we download Apache Tomcat 10 on Ubuntu 20.04/18.04. Without much theory let’s proceed to install and configure Java Development Kit / OpenJDK on Ubuntu

Step 1: Install Java Ubuntu 20.04/18.04

For this guide, we will install Oracle Java JDK Ubuntu Linux system. You can perform the installation from PPA repository like ppa:webupd8team/java or install OpenJDK edition.

sudo apt update
sudo apt install default-jdk

Hit the y key in your keyboard to continue with the installation:

0 upgraded, 95 newly installed, 0 to remove and 146 not upgraded.
Need to get 303 MB of archives.
After this operation, 837 MB of additional disk space will be used.
Do you want to continue? [Y/n] y

Confirm installation by checking the Java version:

$ java --version

Step 2: Install Apache Tomcat 10 on Ubuntu 20.04/18.04

Now that we have Java Open JDK installed, we should be ready to start the installation of Apache Tomcat on Ubuntu 20.04/18.04. The installation process is as below:

Download Apache Tomcat archive

Let’s download Apache tomcat 10 using wget:

sudo apt install wget
wget https://downloads.apache.org/tomcat/tomcat-10/v10.0.6/bin/apache-tomcat-10.0.6.tar.gz

Extract tar archive and install Tomcat

After the download extract the archive file:

tar xvf apache-tomcat-10.0.6.tar.gz

Move extracted files to /usr

sudo mv apache-tomcat-10.0.6 /usr/share/apache-tomcat

Create apache tomcat user:

sudo useradd -M -d /usr/share/apache-tomcat tomcat
sudo chown -R tomcat /usr/share/apache-tomcat

Step 3: Configure Apache Tomcat 10 on Ubuntu 20.04/18.04

Allow access to Apache Tomcat UI from trusted network/Ip:

Edit the files:

sudo vim /usr/share/apache-tomcat/webapps/manager/META-INF/context.xml
sudo vim /usr/share/apache-tomcat/webapps/host-manager/META-INF/context.xml

Modify allow line to add IP from which you want to access UI interface.

allow="127\.\d+\.\d+\.\d+|::1|0:0:0:0:0:0:0:1|192.168.1.20" />

Alternatively comment out the IP address restriction to allow connections from anywhere:

<!--<Valve className="org.apache.catalina.valves.RemoteAddrValve"
         allow="127\.\d+\.\d+\.\d+|::1|0:0:0:0:0:0:0:1" />-->

Secure Access to admin/manager dashboard

We need to secure access to admin areas of tomcat UI, edit the file:

sudo vim /usr/share/apache-tomcat/conf/tomcat-users.xml

Add the following content before </tomcat-users>

<!-- manager section user role -->
<role rolename="manager-gui" />
<user username="manager" password="StronPassw0rd123" roles="manager-gui" />

<!-- admin section user role -->
<role rolename="admin-gui" />
<user username="admin" password="StronPassw0rd123" roles="manager-gui,admin-gui" />

Configure Systemd service

Create Systemd unit file for Tomcat 10:

sudo vim /etc/systemd/system/tomcat.service

Then paste below content into the file:

[Unit]
Description=Tomcat
After=syslog.target network.target

[Service]
Type=forking

User=tomcat
Group=tomcat

Environment=JAVA_HOME=/usr/lib/jvm/default-java
Environment='JAVA_OPTS=-Djava.awt.headless=true'

Environment=CATALINA_HOME=/usr/share/apache-tomcat
Environment=CATALINA_BASE=/usr/share/apache-tomcat
Environment=CATALINA_PID=/usr/share/apache-tomcat/temp/tomcat.pid

ExecStart=/usr/share/apache-tomcat/bin/catalina.sh start
ExecStop=/usr/share/apache-tomcat/bin/catalina.sh stop

[Install]
WantedBy=multi-user.target

Reload systemd daemon:

sudo systemctl daemon-reload

Run the commands below to start the tomcat service:

sudo systemctl restart tomcat

Enable tomcat to start at system boot:

sudo systemctl enable tomcat

If the start was successful, you should see port 8080 on your system being used by a Java process.

$ sudo ss -tunelp | grep 8080
tcp LISTEN 0 100 *:8080 *:* users:(("java",pid=15131,fd=49)) ino:9110112 sk:18 v6only:0 <->

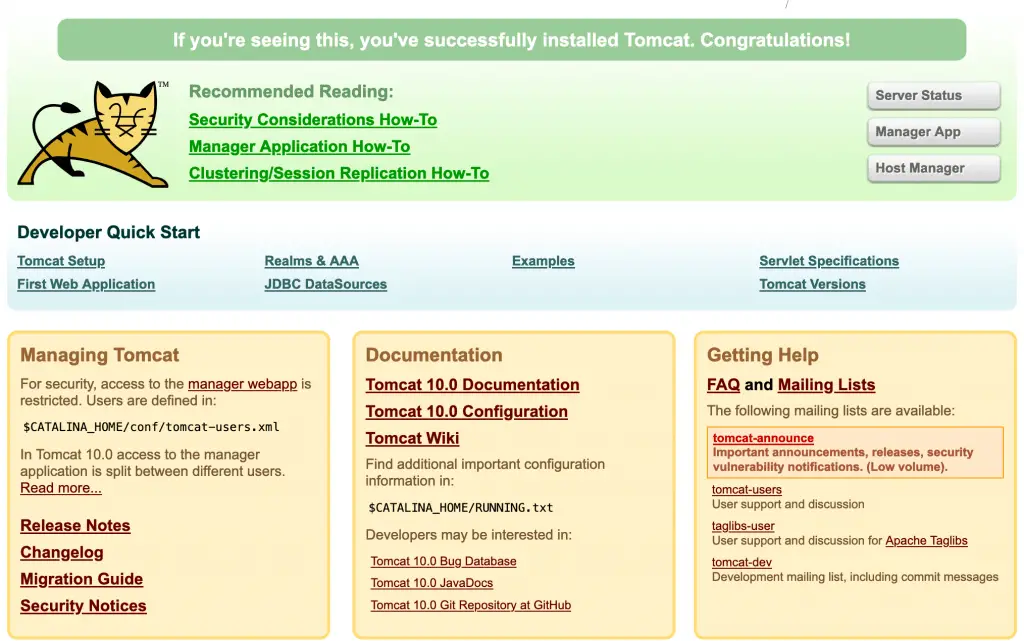

Try to access port 8080 on your web browser using the server IP address or its hostname:

install apache tomcat ubuntu 01

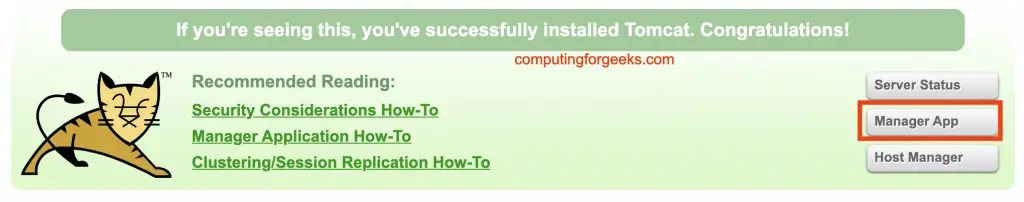

The Manager App console is accessible via the link or http://[server_domain_or_IP]:8080/manager/html

install apache tomcat ubuntu 02

The Web Application Manager allows you to manage your Java applications – Deploy, Start, Stop, Reload, and remove from web console.

install apache tomcat ubuntu 03

Start

tomcat install debian 04

If you have an active firewall service, allow access to port 8080:

sudo ufw allow 8080

To this end you should have a working installation of Tomcat 10 on Ubuntu 20.04 / 18.04. Your on the roll to deploy your own Java web applications on Tomcat server running on Ubuntu.
