Overview of Hyper-V

Hyper-V is a Microsoft Product that is used to accomplish hardware virtualization. Virtualization as you know basically allows you to run several virtual machines (software computer) on the same hardware. These virtual machines behave exactly like a native/normal computer allowing you to install applications on top of an operating system.

Microsoft asserts that Hyper-V runs each virtual machine in its own isolated space, which means you can run more than one virtual machine on the same hardware at the same time.

Even though Hyper-V can be installed on a standard Windows Server 2019 as a role, it should be noted that Hyper-V is also available as a downloadable, standalone server product known as Microsoft Hyper-V Server.

Check out more about Hyper-V on Microsoft.

Step 1: Wake Server Manager

Hit your Windows keyboard key and search for “Server Manager” and fire it up.

Step 2: Add Roles and Features

Once your Server Manager is breathing nicely click on “Add Roles and Features” and click on “Next” on the first Window/Wizard that shows up as illustrated.

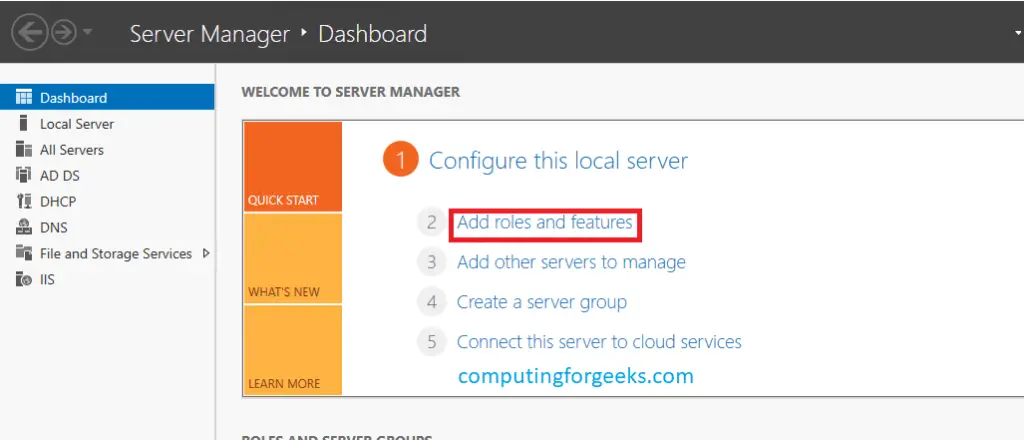

Hyper v step2

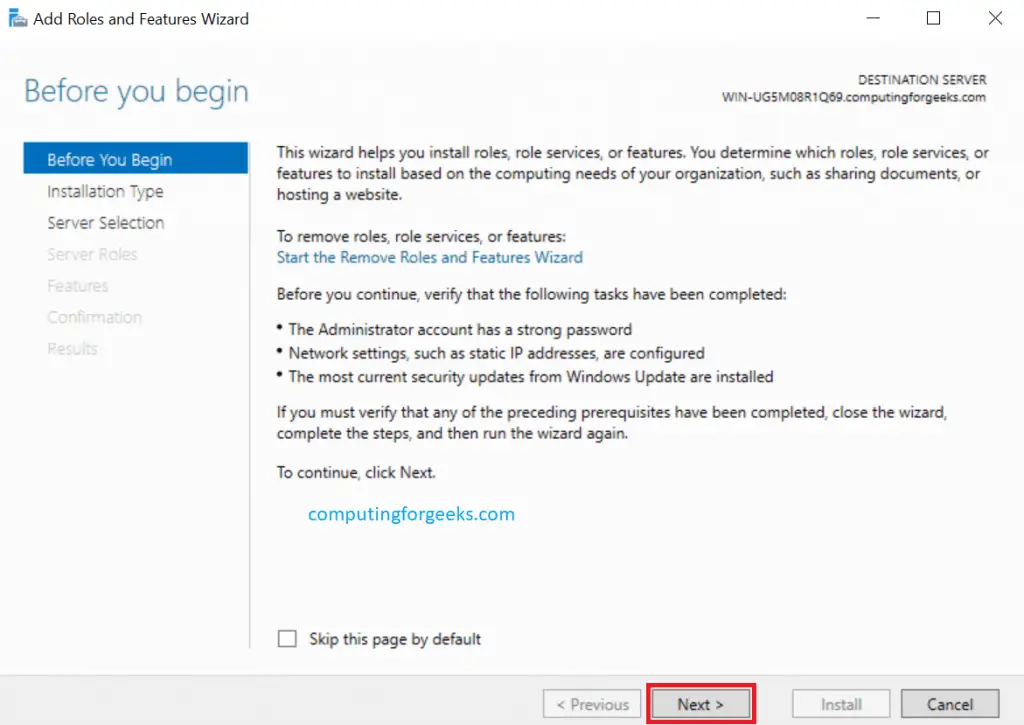

Hyper v step2 1

Step 3: Role-based or feature-based installation

On the next Window for “Select installation type“, choose Role-based or feature-based installation radio button and gladly hit “Next“.

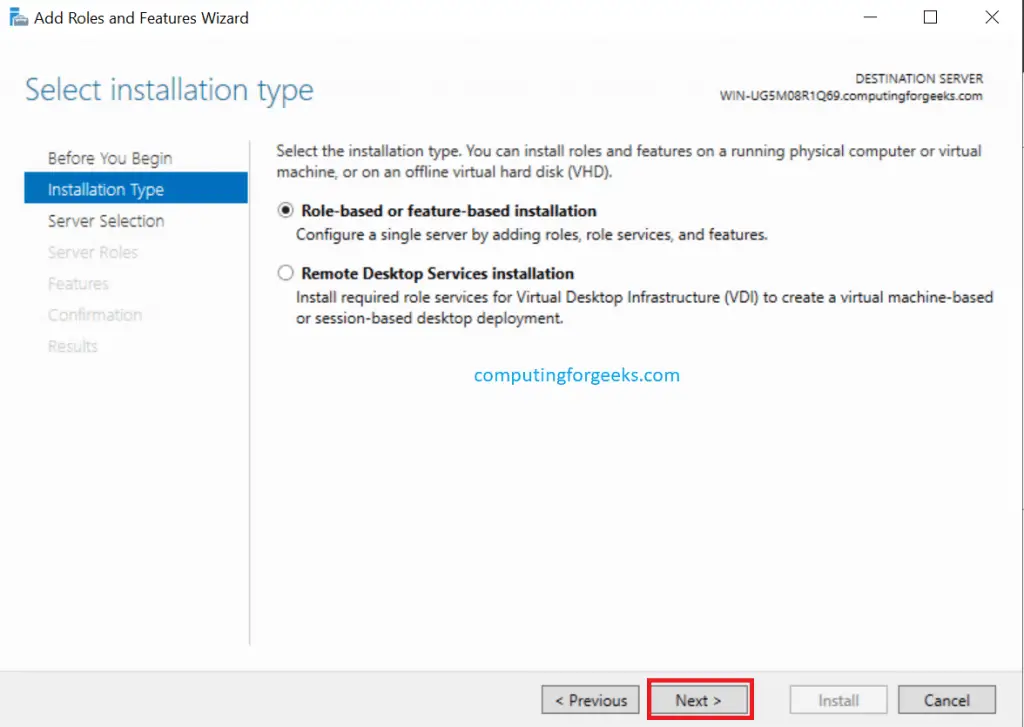

Hyper v step3

Step 4: Select Destination Server

Choose the server you would wish to install Hyper-V on this window. Hit “Next” after that.

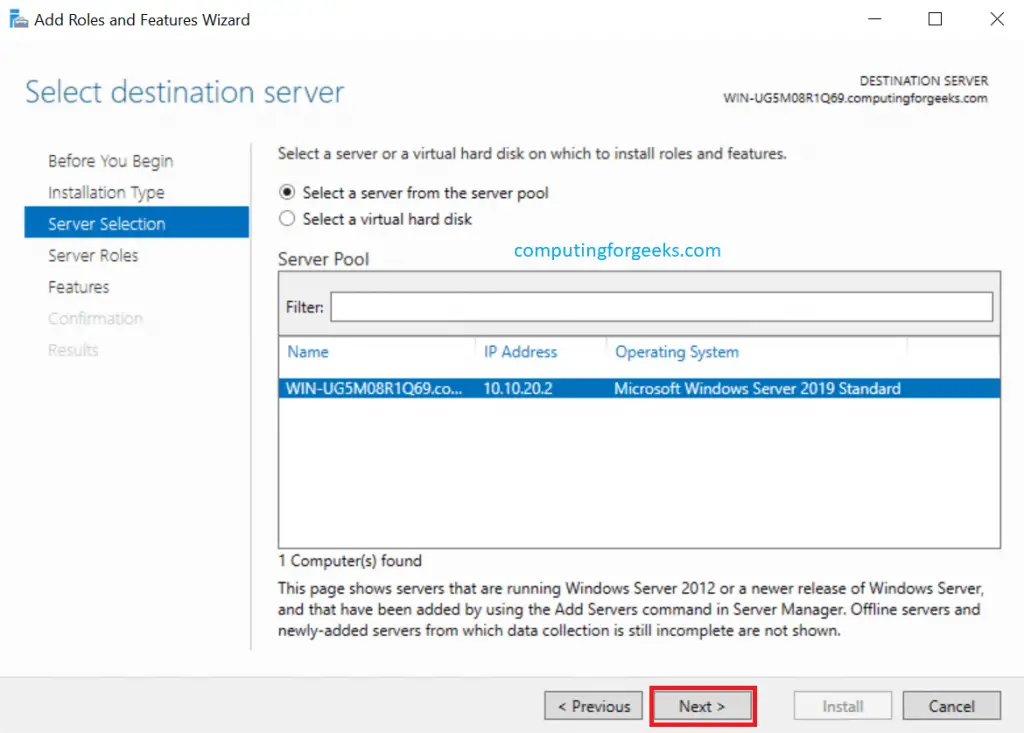

Hyper v step4

Step 5: Select Hyper-V server Role

The window that follows after step 4 gives you a list of many roles you can add to your server. Since we are in need of Hyper-V, go ahead and choose “Hyper-V” box. Click “Next” after you are done.

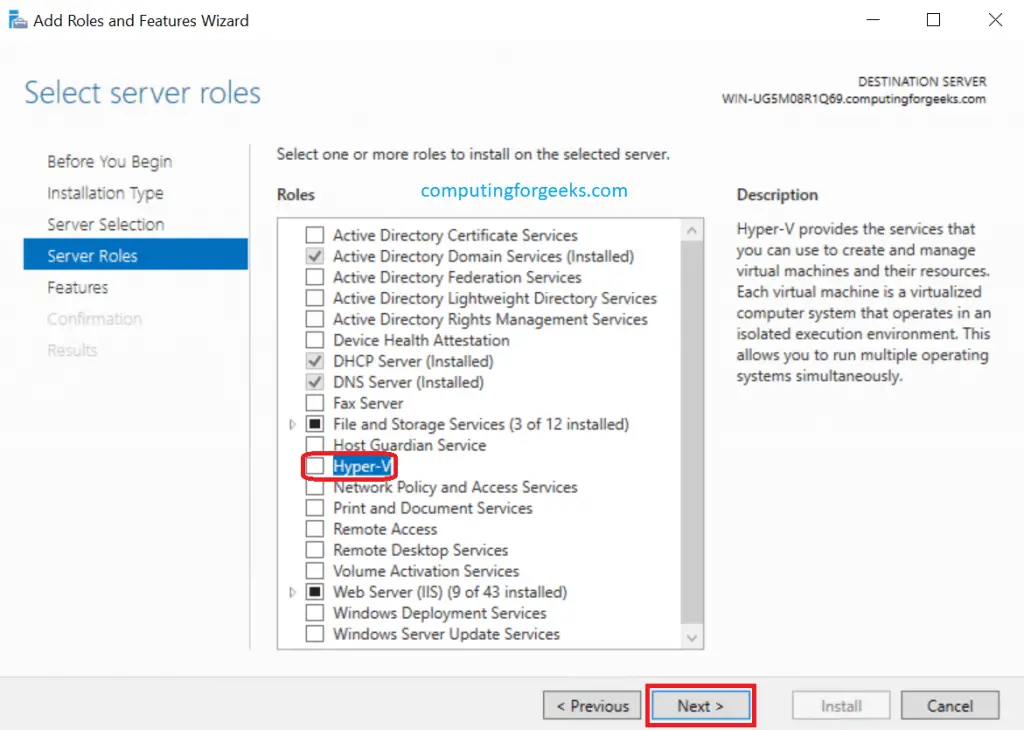

Hyper v step5

Step 6: Add Features

Clicking on Next on Step 5 will bring up a small pop-up window. On it, simply click on “Add Features” tab and click “Next” when done.

Hyper v step6
Hyper v step6 1

Step 7: Click “Next” on the next two consecutive windows

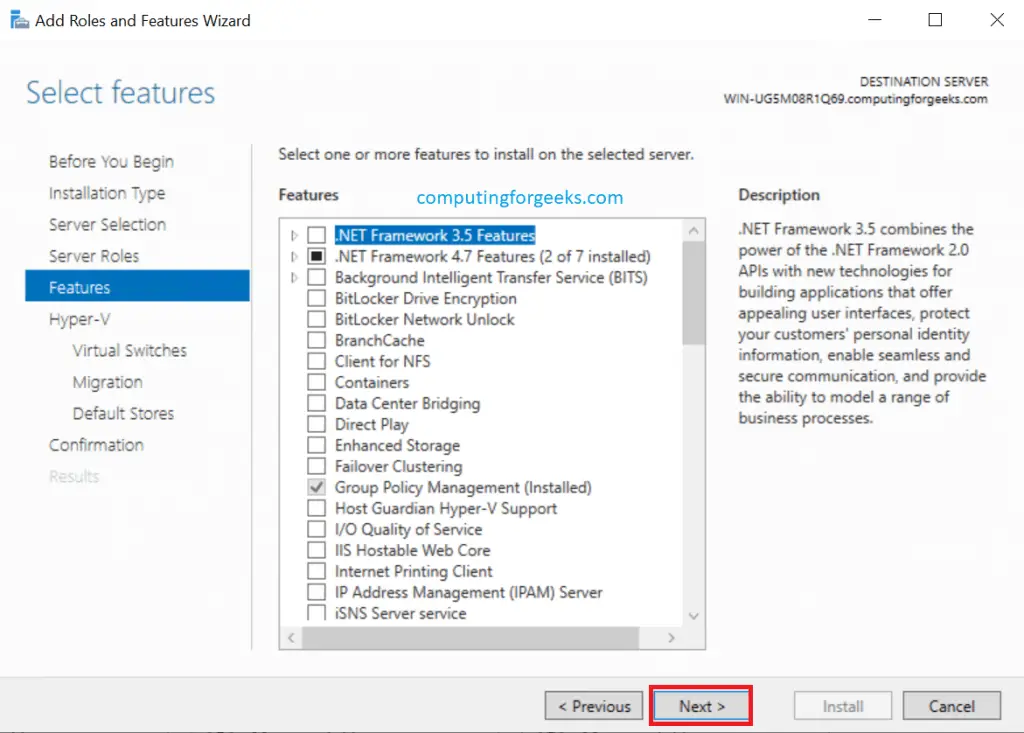

Hyper v step7

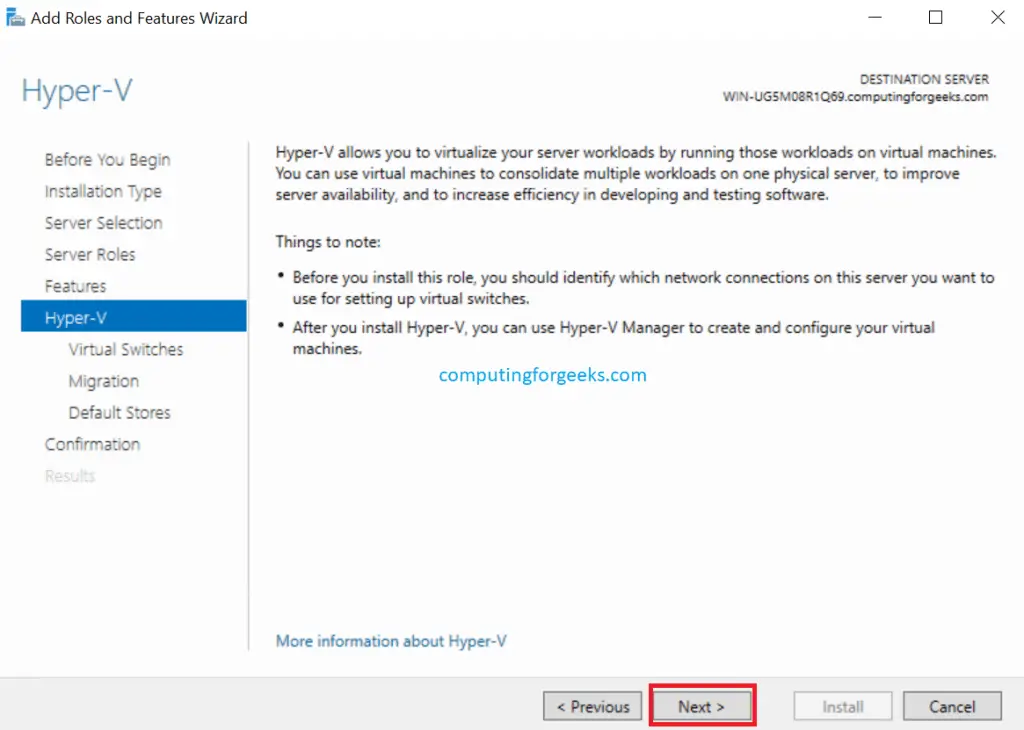

Hyper v step7 1

Step 8: Create Virtual Switches

Virtual Switches make it possible for Virtual Machines to talk to each other. We are going to create one in this step and Link it with a physical network. Choose one or more of the Physical Networks available on your Physical Host Server.

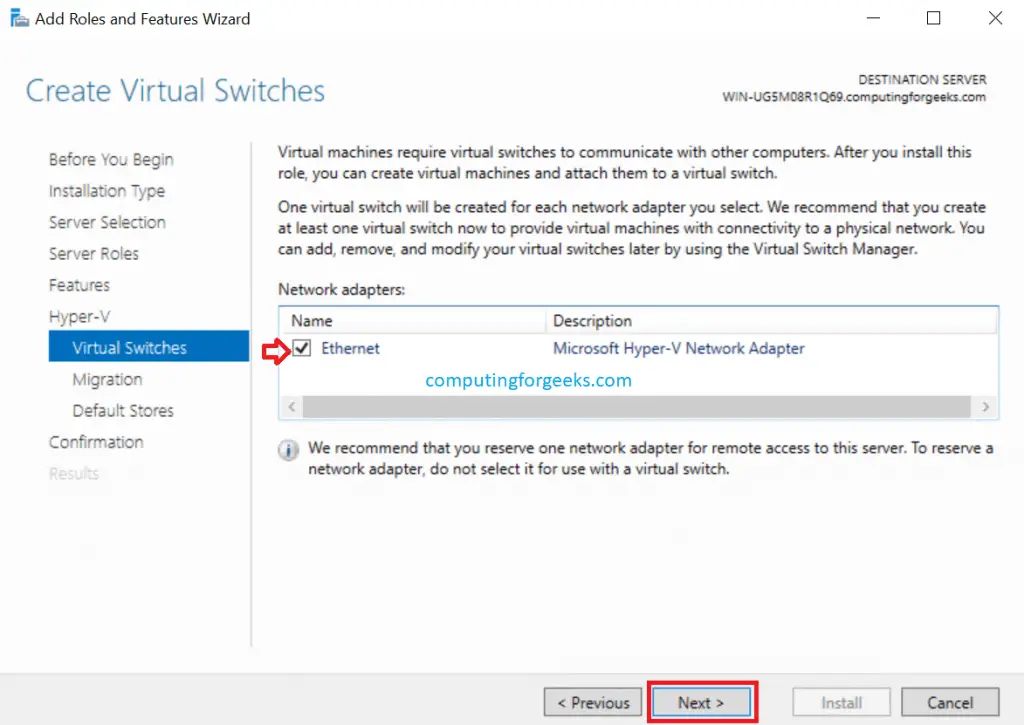

Hyper v step8

Step 9: Virtual Machine Migration

The configuration of this step depends on whether you have a cluster or not. We are going to leave the defaults in this step since it is a standalone host. Click on “Next

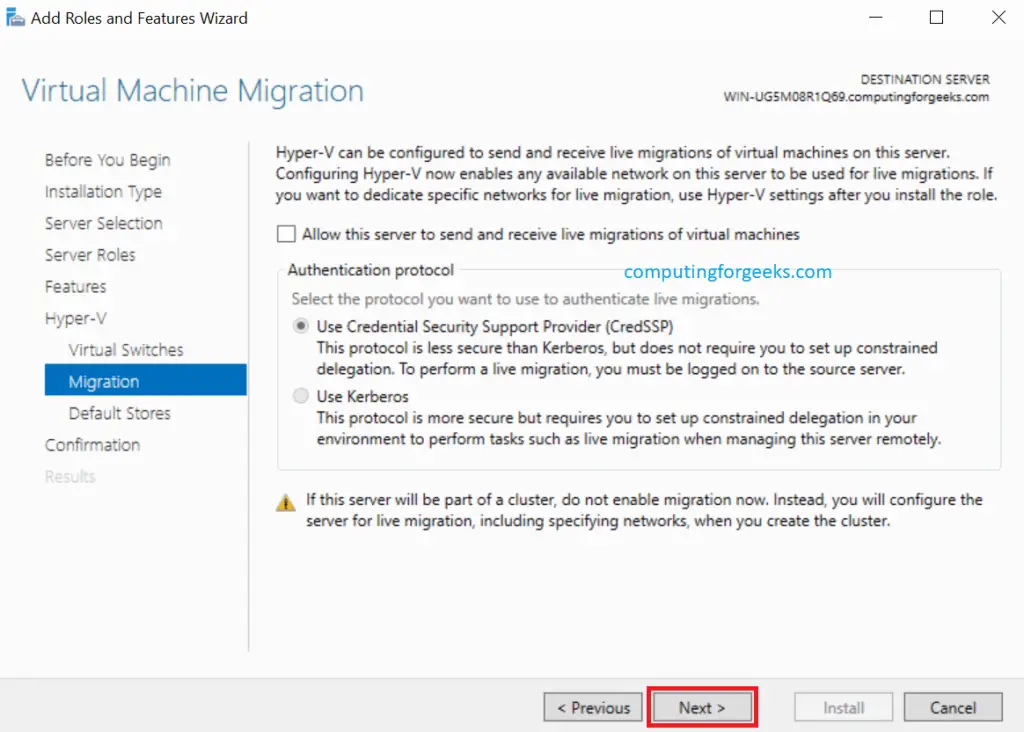

Hyper v step9

Step 10: Default Stores

In this step, we are going to specify where Hyper-V stores virtual hard disk files and virtual machine configuration files. You can specify the locations or partitions at your pleasure. Click “Next” after you are done.

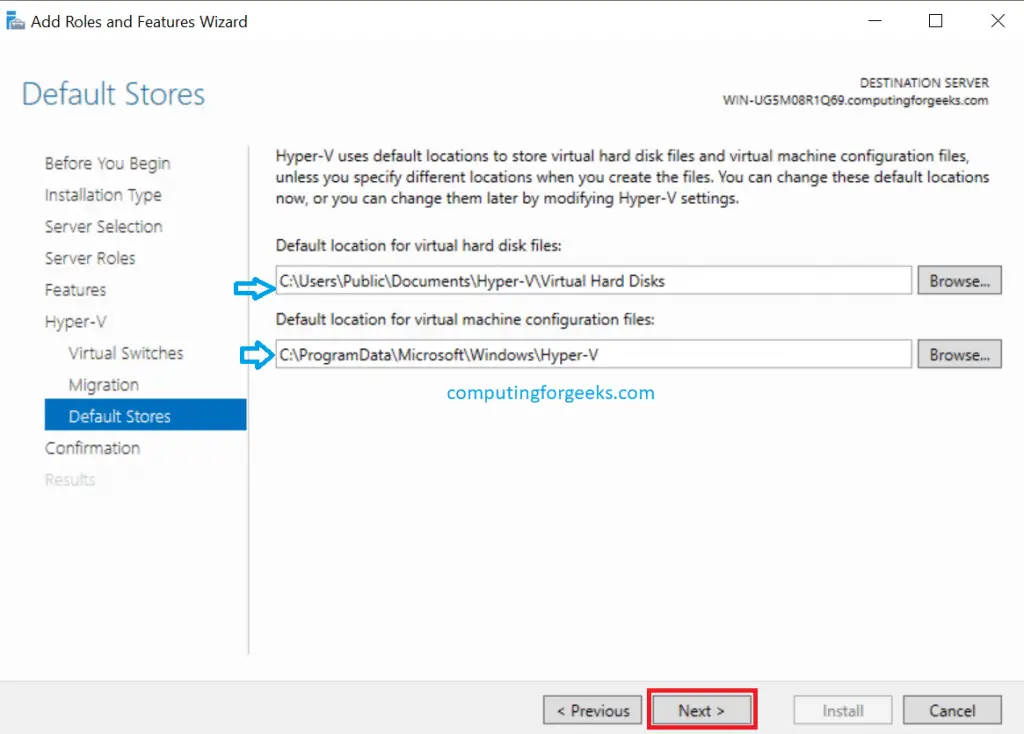

Hyper v step10

Step 11: Confirm your installation selections

Confirm if everything you would wish to be installed appears on the list that appears on this window. If all is okay, click “Install“.

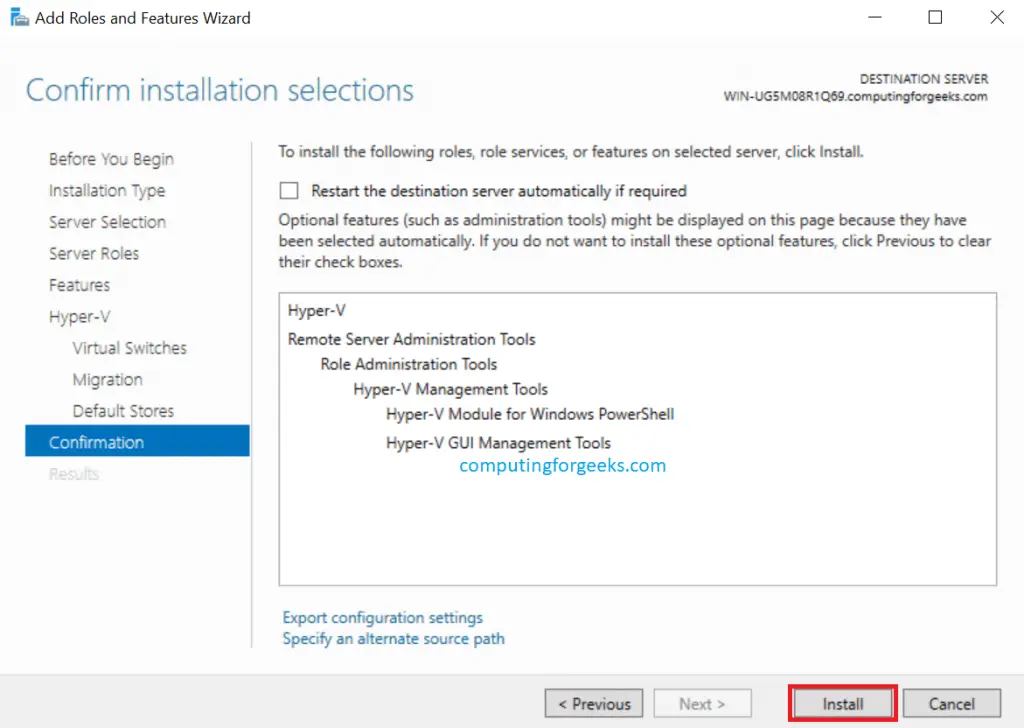

Hyper v step11

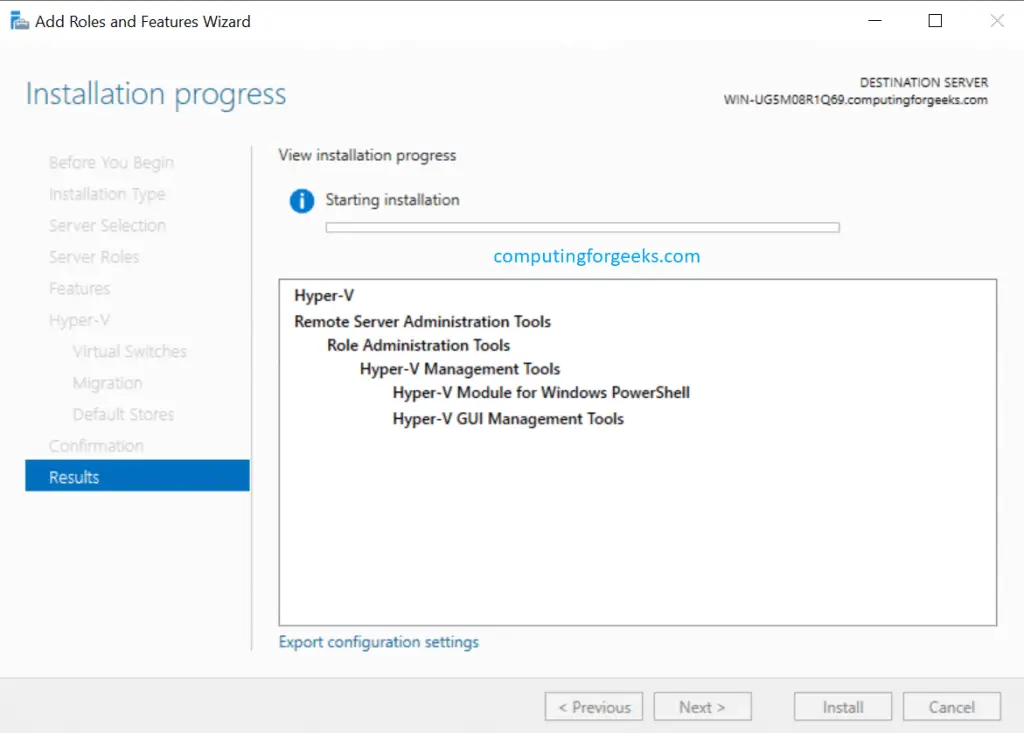

Hyper v step11 1

Step 12: Reboot after done installing

Once your installation is complete, click on “Close” and then reboot/restart your server. And we are done!

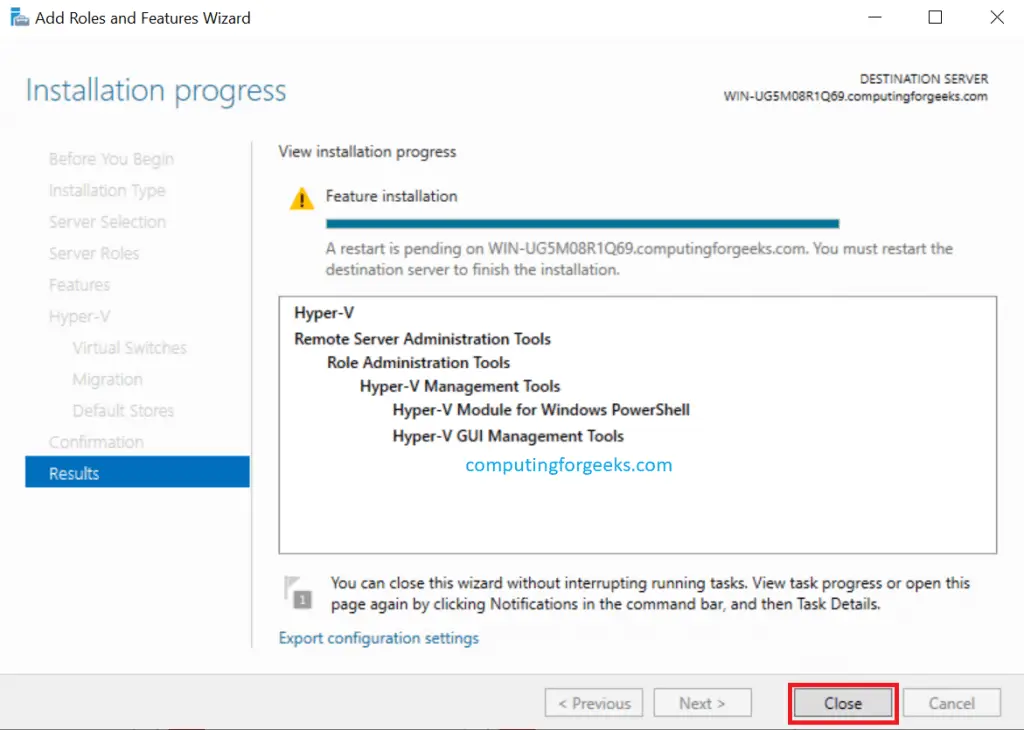

Hyper v step12


We now have Hyper-V installed and running. Next, we are going to add a Windows and Linux virtual machines to make sure that everything works perfectly.
