(Last Updated On: May 6, 2019)

How can I install ELK Stack on CentOS 7 / Fedora 30/29/28?. “ELK” is the acronym for Elasticsearch, Logstash, and Kibana. A short description of these tools is covered in the next block.

  • Elasticsearch: This is an open source, distributed, RESTful, JSON-based search engine. It is scalable, easy to use, and flexible
  • Logstash : This is a server‑side data processing pipeline that ingests data from multiple sources simultaneously, transforms it, and then sends it to a “stash” like Elasticsearch.
  • Kibana lets users visualize data with charts and graphs in Elasticsearch.

For RHEL 8, refer to:

How to Install ELK Stack on RHEL / CentOS 8

Please follow our steps below to install and configure ELK stack tools on CentOS 7 / Fedora 30/29/28.

Step 1: Install Java

As Elasticsearch depends on Java, you need to install Java on your CentOS 7 / Fedora system.

sudo yum -y install java-openjdk-devel java-openjdk

Step 2: Add ELK repository

Once you have Java installed, add ELK stack repository which provides ELK stack packages.

For Elasticsearch 7.x

cat <<EOF | sudo tee /etc/yum.repos.d/elasticsearch.repo
[elasticsearch-7.x]
name=Elasticsearch repository for 7.x packages
baseurl=https://artifacts.elastic.co/packages/7.x/yum
gpgcheck=1
gpgkey=https://artifacts.elastic.co/GPG-KEY-elasticsearch
enabled=1
autorefresh=1
type=rpm-md
EOF

For Elasticsearch 6.x

cat <<EOF | sudo tee /etc/yum.repos.d/elasticsearch.repo
[elasticsearch-6.x]
name=Elasticsearch repository for 6.x packages
baseurl=https://artifacts.elastic.co/packages/6.x/yum
gpgcheck=1
gpgkey=https://artifacts.elastic.co/GPG-KEY-elasticsearch
enabled=1
autorefresh=1
type=rpm-md
EOF

The above command will configure Elasticsearch 6.x repository. If you want Elasticsearch 5.x, add below instead

cat <<EOF | sudo tee /etc/yum.repos.d/elasticsearch.repo
[elasticsearch-5.x]
name=Elasticsearch repository for 5.x packages
baseurl=https://artifacts.elastic.co/packages/5.x/yum
gpgcheck=1
gpgkey=https://artifacts.elastic.co/GPG-KEY-elasticsearch
enabled=1
autorefresh=1
type=rpm-md
EOF

After adding the repo, import GPG key:

sudo rpm --import https://artifacts.elastic.co/GPG-KEY-elasticsearch

Clear and update your YUM package index.

sudo yum clean all
sudo yum makecache

Step 3: Install and Configure Elasticsearch

Elasticsearch repository is ready for use. You can install Elasticsearch using the command below:

sudo yum -y install elasticsearch

Confirm package installation.

$ rpm -qi elasticsearch
Name : elasticsearch
Epoch : 0
Version : 7.0.1
Release : 1
Architecture: x86_64
Install Date: Mon 06 May 2019 09:59:57 PM EAT
Group : Application/Internet
Size : 571521653
License : Elastic License
Signature : RSA/SHA512, Mon 29 Apr 2019 05:14:11 PM EAT, Key ID d27d666cd88e42b4
Source RPM : elasticsearch-7.0.1-1-src.rpm
Build Date : Mon 29 Apr 2019 04:06:59 PM EAT
Build Host : packer-virtualbox-iso-1553723689
Relocations : /usr
Packager : Elasticsearch
Vendor : Elasticsearch
URL : https://www.elastic.co/
Summary : Elasticsearch is a distributed RESTful search engine built for the cloud. Reference documentation can be found at https://www.elastic.co/guide/en/elasticsearch/reference/current/index.html and the 'Elasticsearch: The Definitive Guide' book can be found at https://www.elastic.co/guide/en/elasticsearch/guide/current/index.html
Description :
Elasticsearch subproject :distribution:packages

You can set JVM options like memory limits by editing the file: /etc/elasticsearch/jvm.options

Example below sets initial/maximum size of total heap space

-Xms1g
-Xmx1g

If your system has less memory, you can configure it to use small megabytes of ram.

-Xms256m
-Xmx512m

Start and enable elasticsearch service on boot:

$ sudo systemctl enable --now elasticsearch.service
Synchronizing state of elasticsearch.service with SysV service script with /usr/lib/systemd/systemd-sysv-install.
Executing: /usr/lib/systemd/systemd-sysv-install enable elasticsearch
Created symlink /etc/systemd/system/multi-user.target.wants/elasticsearch.service → /usr/lib/systemd/system/elasticsearch.service.

Test to verify that it is working:

$ curl http://127.0.0.1:9200
{
"name" : "bBzN5Kg",
"cluster_name" : "elasticsearch",
"cluster_uuid" : "LKyqXXSvRvCpX9QAwKlP2Q",
"version" : {
"number" : "6.5.4",
"build_flavor" : "default",
"build_type" : "rpm",
"build_hash" : "d2ef93d",
"build_date" : "2018-12-17T21:17:40.758843Z",
"build_snapshot" : false,
"lucene_version" : "7.5.0",
"minimum_wire_compatibility_version" : "5.6.0",
"minimum_index_compatibility_version" : "5.0.0"
},
"tagline" : "You Know, for Search"
}

Create a test index:

$ curl -X PUT "http://127.0.0.1:9200/mytest_index"
{"acknowledged":true,"shards_acknowledged":true,"index":"mytest_index"}

Step 3: Install and Configure Kibana

Download and install Kibana from added Elasticsearch repository.

sudo yum -y install kibana

After a successful installation, configure Kibana:

$ sudo vim /etc/kibana/kibana.yml
server.host: "0.0.0.0"
server.name: "kibana.example.com"
elasticsearch.url: "http://localhost:9200"

Change other settings as desired then start kibana service:

sudo systemctl enable --now kibana

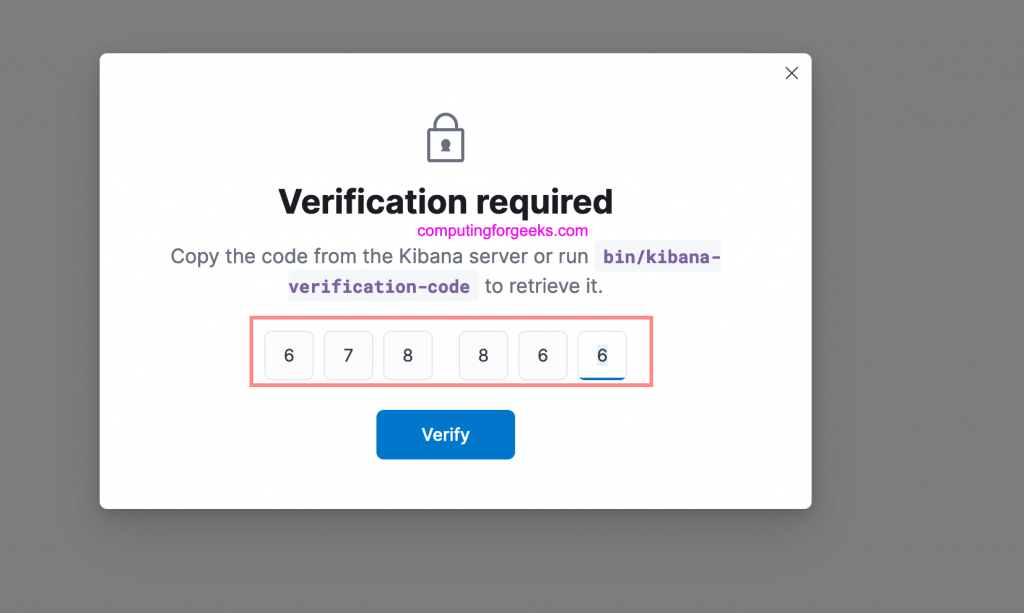

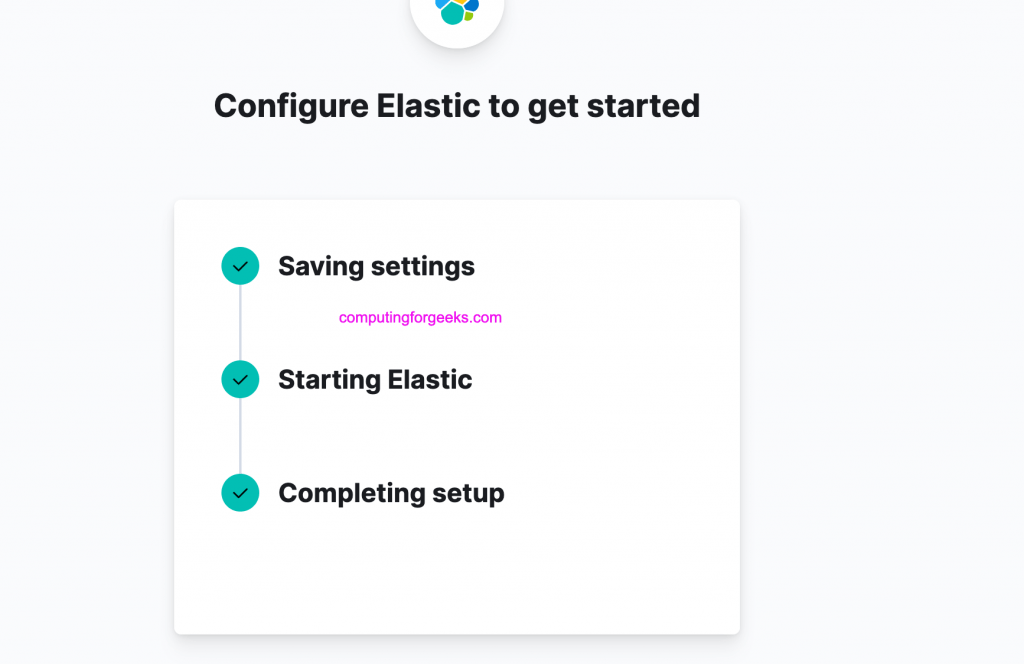

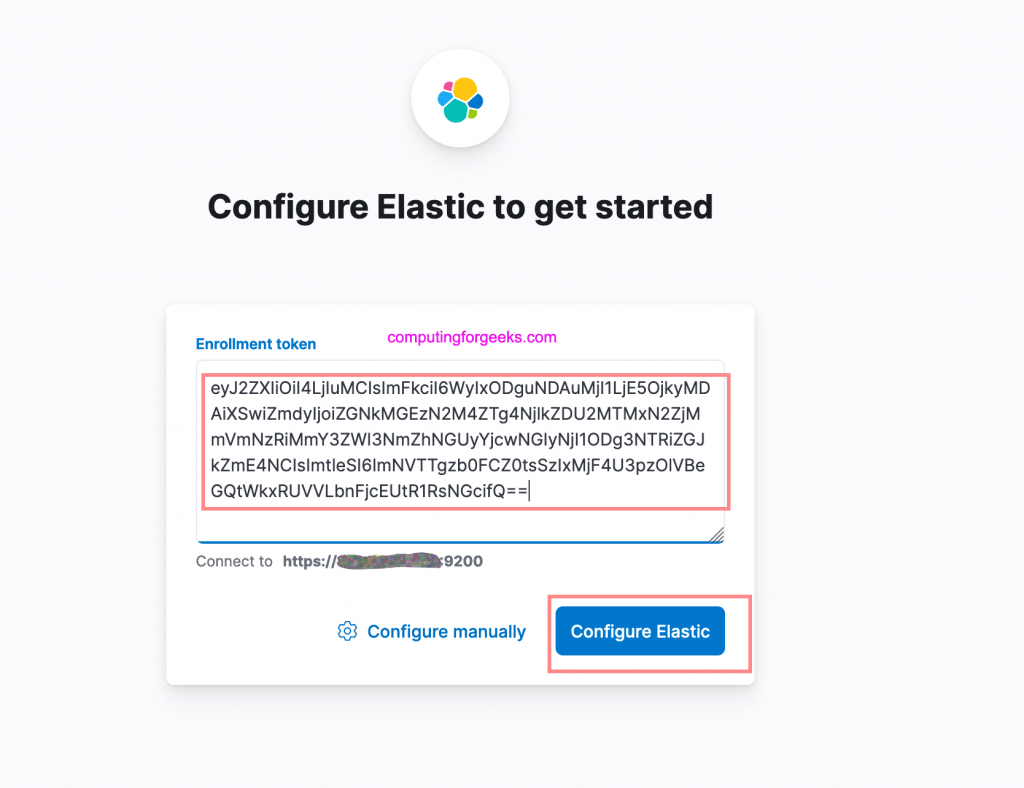

Access http://ip-address:5601 to open Kibana Dashboard:

If you have an active firewall service, allow TCP port 5601

sudo firewall-cmd --add-port=5601/tcp --permanent
sudo firewall-cmd --reload

Step 4: Install and Configure Logstash

The last installation is for Logstash. It will act as a centralized logs server for your client systems which runs an agent like filebeat.

sudo yum -y install logstash

Logstash custom configurations can be placed under the /etc/logstash/conf.d/directory.

Check Logstash Configuration manual for more details.

Step 5: Install other ELK tools – Bonus

Other ELK tools that can be installed include:

  • Filebeat: Lightweight Shipper for Logs. It helps you keep the simple things simple by offering a lightweight way to forward and centralize logs and files
  • Metricbeat: Collect metrics from your systems and services. From CPU to memory, Redis to NGINX, and much more, Metricbeat is a lightweight way to send system and service statistics.
  • Packetbeat: Lightweight Shipper for Network Data
  • Heartbeat: Lightweight Shipper for Uptime Monitoring. It helps you monitor services for their availability with active probing
  • Auditbeat: Lightweight shipper that helps you audit the activities of users and processes on your systems

These tools can be installed with yum package manager using their respective names. The example below will install all ELK addon tools.

sudo yum install filebeat auditbeat metricbeat packetbeat heartbeat-elastic

Refer to official ELK stack documentation and Resources and Training for each tool configuration and further reading.
