This guide will discuss how one can create a CentOS 8 KVM image to be used on OpenStack when creating CentOS 8 instances. CentOS 8 was released on September 24th, 2019 and guys are starting to adopt it for running Production workloads. OpenStack is one of the main Virtualization/Cloud environment used by many. companies.

UPDATE:

Official Cloud Image for OpenStack has been released, refer to below guide:

Uploading CentOS 8 Cloud Image to OpenStack Glance

For Vagrant use, check: How To run CentOS 8 VM using Vagrant on KVM / VirtualBox / VMWare / Parallels

Step 1 : Download CentOS 8 ISO image

Download CentOS 8 ISO image to your Workstation.

wget http://isoredirect.centos.org/centos/8/isos/x86_64/CentOS-8-x86_64-1905-dvd1.iso

Upload CentOS 8 ISO image to OpenStack.

openstack image create CentOS8-ISO \
--file CentOS-8-x86_64-1905-dvd1.iso \
--disk-format iso --container-format bare

Confirm image upload from Glance.

 $ openstack image list
+--------------------------------------+---------------+--------+
| ID                                   | Name          | Status |
+--------------------------------------+---------------+--------+
| b8d75f31-fb6b-428b-8b83-f3904b0bd114 | CentOS-7      | active |
| 685d52c7-ad42-45e6-9419-a9971dcad9c1 | CentOS8-ISO   | active |
| fbcf16a0-c7cc-42c1-b836-a39bc34c9666 | Cirros        | active |
| d900bcad-047a-4d01-bcbc-42426bb4315d | CoreOS        | active |
| f0ac705b-ee73-4de8-95f7-4e06569f0f5c | Debian-10     | active |
| 01e6f07b-ca99-439d-9cd0-ab28c2573abf | Fedora-30     | active |
| 1953e548-779c-4fe5-86c1-854d71f35d14 | FreeBSD12     | active |
| 7bd462ad-cc11-4d89-8b85-9aab0cfe114b | Ubuntu-18     | active |
| 86e42aae-d959-4b79-b9a4-b899d85ba303 | fed31         | active |
| 3a56d733-de76-490a-9dac-1419219b5803 | manageiq      | active |
| 47b5b6ed-5599-420a-a602-35d964e86de5 | rhcos         | active |
| 6b3dc49b-a53f-4cfc-98e0-9eb6925219de | rhel-7        | active |
| 965cb833-b97e-4488-9bc6-84495b9a9b7b | rhel-8        | active |
+--------------------------------------+---------------+--------+

Step 2: Launch CentOS 8 Instance from ISO

Login to your OpenStack Horizon dashboard.

deploy openstack devstack ubuntu login

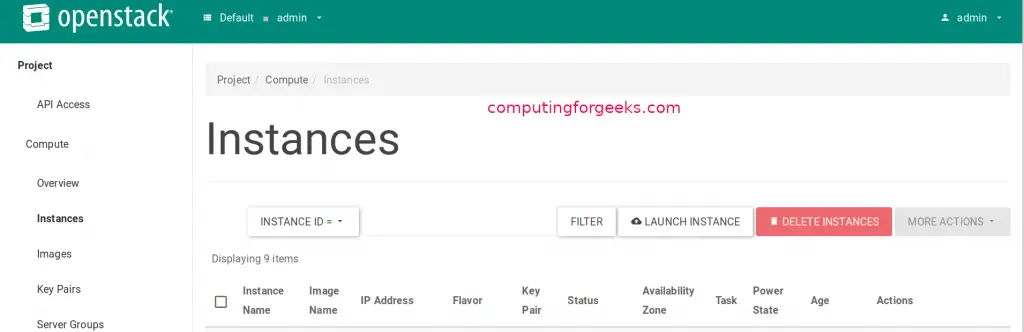

Navigate to Project > Compute > Instances.

create centos 8 openstack template 01

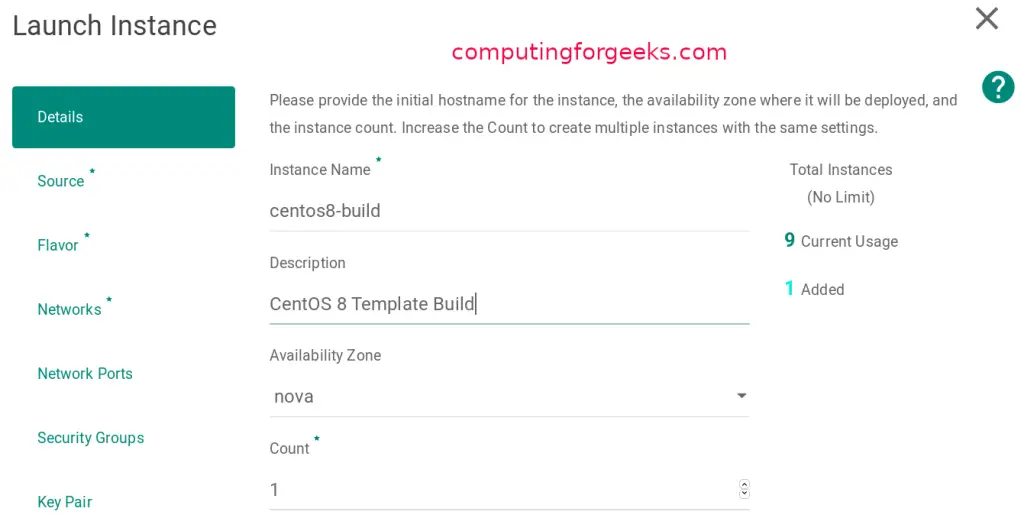

Click on “Launch Instance“. Give the VM a name and description under details section.

create centos 8 openstack template 02

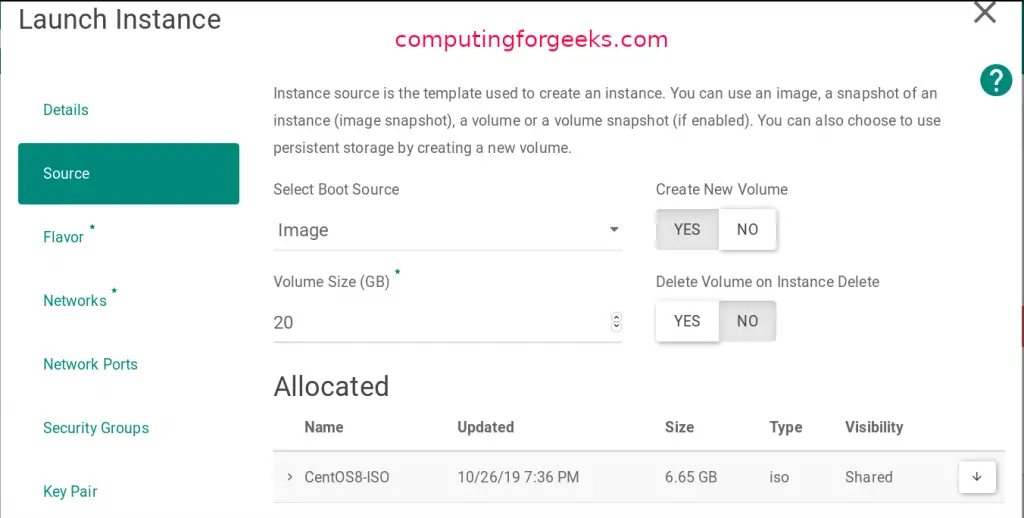

Under source, select image as boot source, create Volume of 20GB then pick the CentOS 8 ISO image uploaded earlier.

create centos 8 openstack template 03

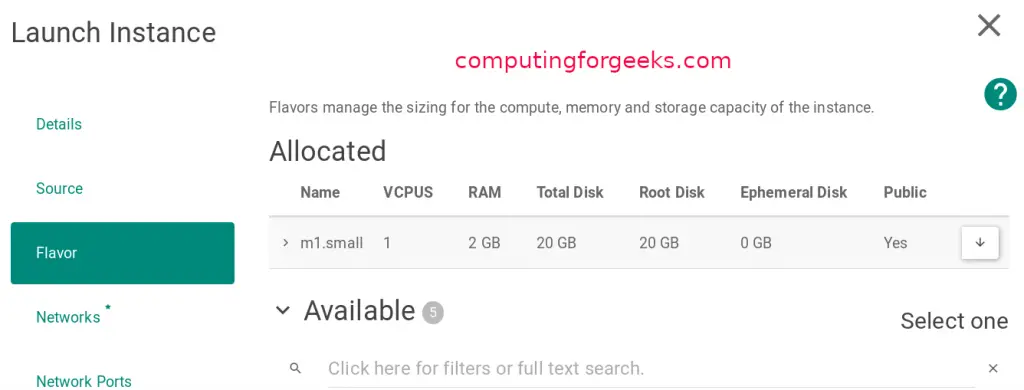

Select flavor to use in the next page. I’ll use m1.small flavor which has 20GB of disk space, 1vcpu and 2GB of RAM. See how to create OpenStack Flavors for more details.

create centos 8 openstack template 04

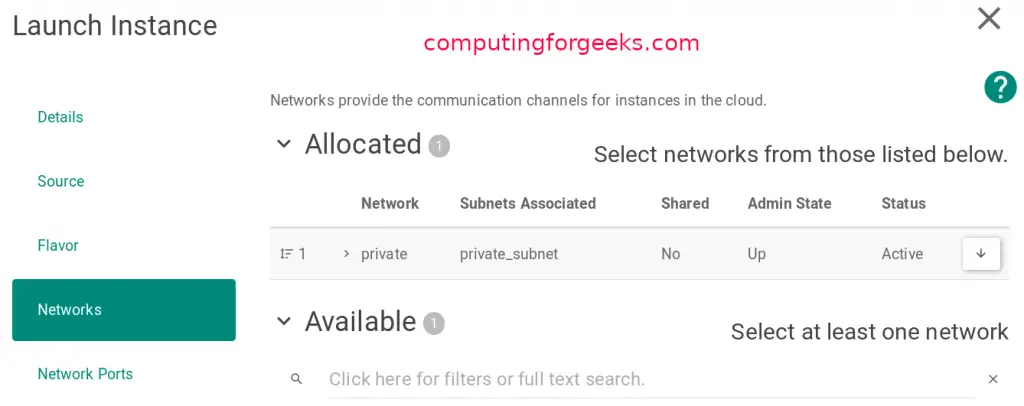

Choose network to use for VM creation.

create centos 8 openstack template 05

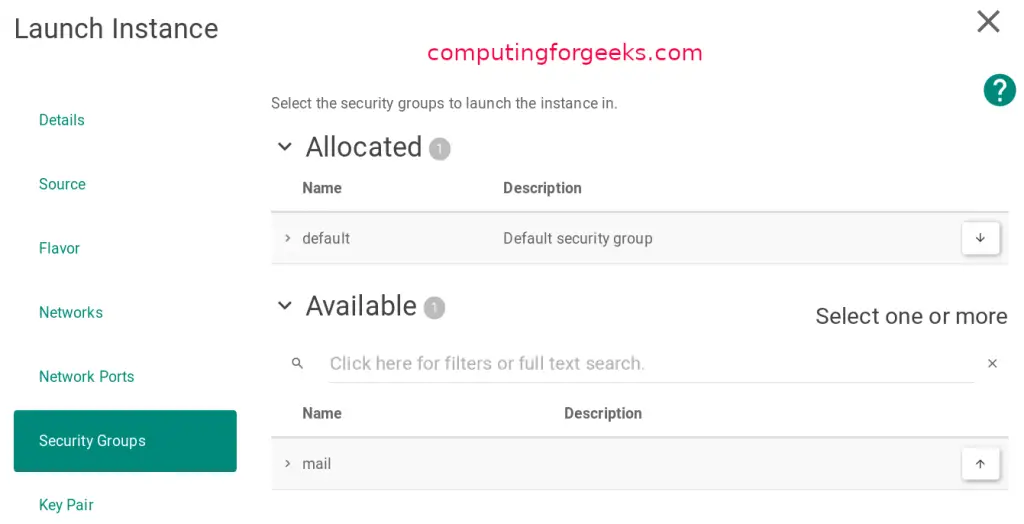

Select security group to assign and other optional parameters then Launch the instance.

create centos 8 openstack template 06

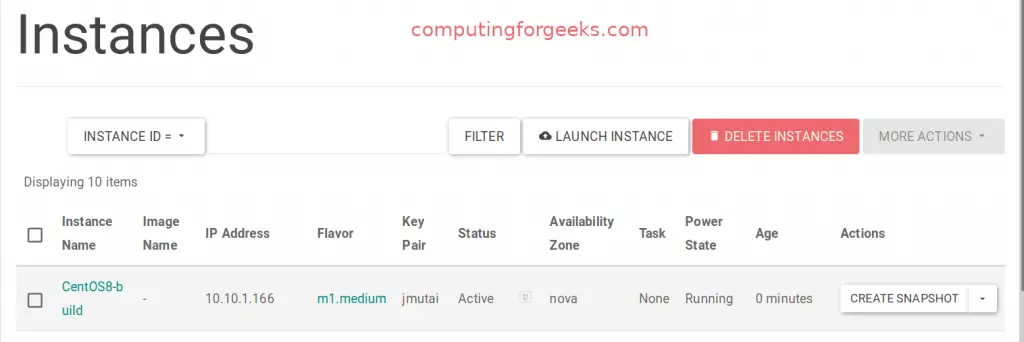

Wait for the instance to enter “Active” state.

create centos 8 openstack template 07

Step 3: Create a Cinder Volume

Once the VM is in active state, create a volume then attach to the instance by following our guide How To Create OpenStack Cinder Volumes and Attach to a VM Instance to create and attach volume. This is where OS will be installed.

Step 4: Begin CentOS 8 Installation

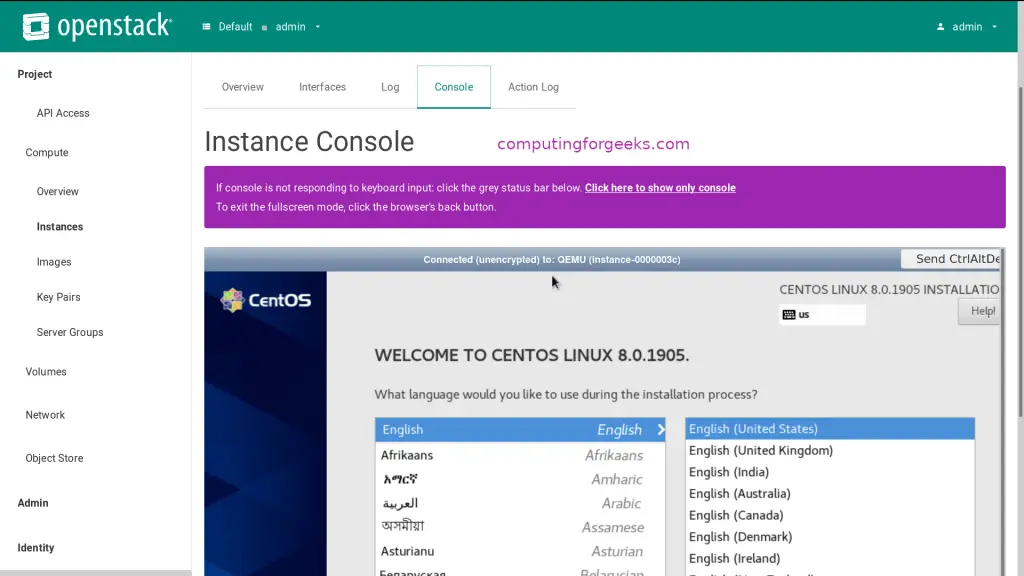

Once the volume is attached, Click on the instance, then “Console” tab

create centos 8 openstack template 08

Follow the standard CentOS installation as covered in:

Installing CentOS 8 Step by Step with Screenshots

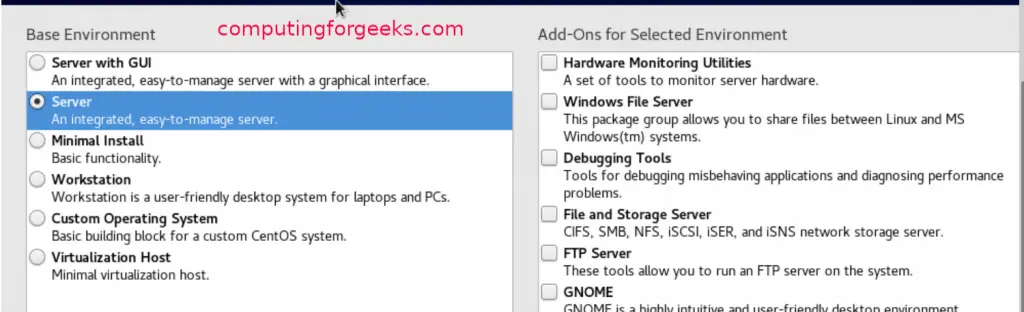

But on Software selection, choose Server.

create centos 8 openstack template 09

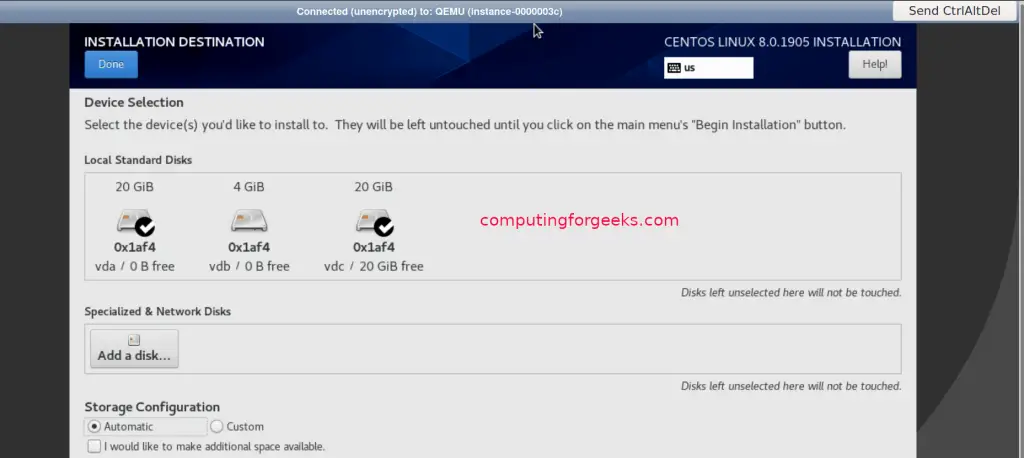

Choose the second disk added for OS installation.

create centos 8 openstack template 10

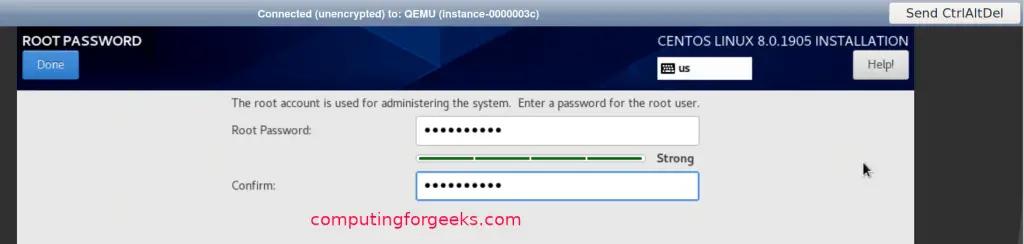

Once you confirm all settings to be okay, begin installation of CentOS 8. Set root password.

create centos 8 openstack template 12

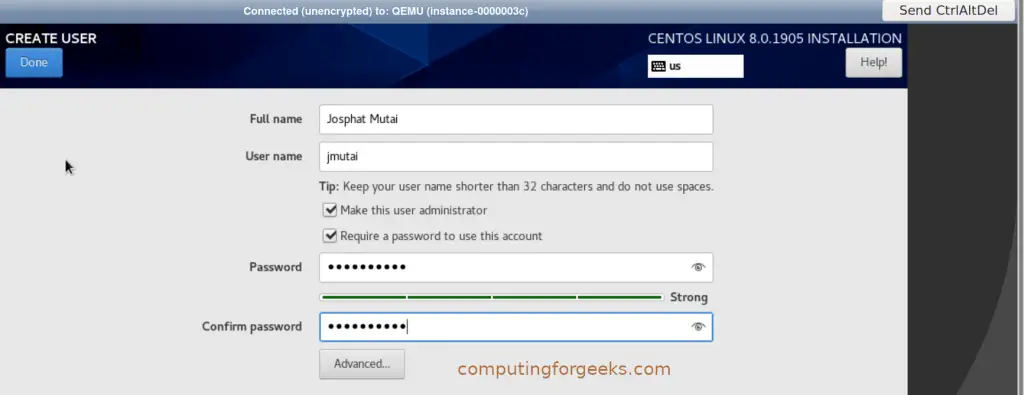

Optionally create admin user, although cloud-init will be used to create a user later.

create centos 8 openstack template 13

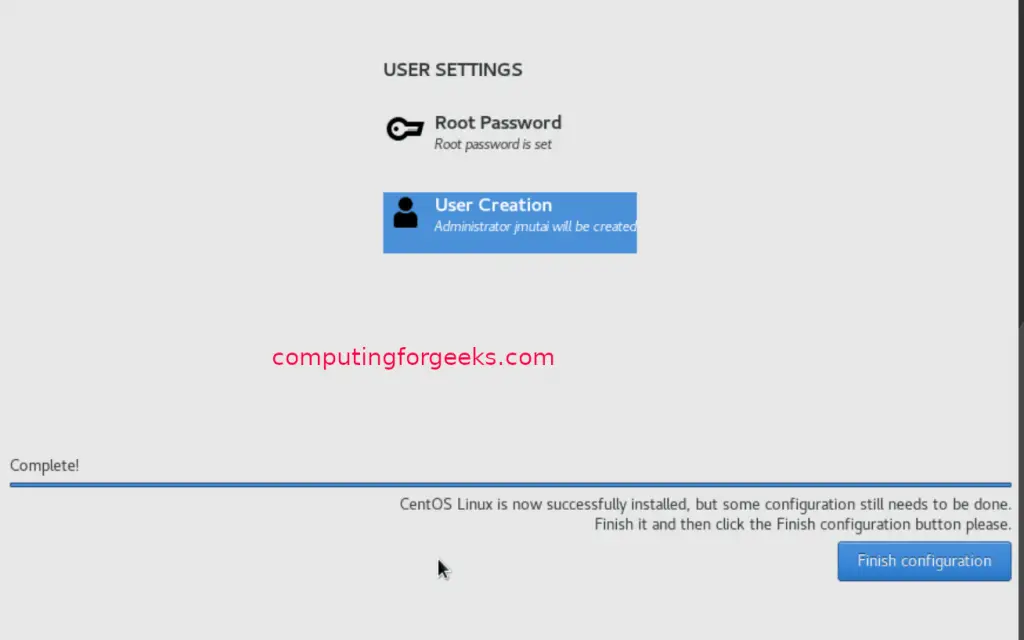

Finish CentOS 8 configuration.

create centos 8 openstack template 14

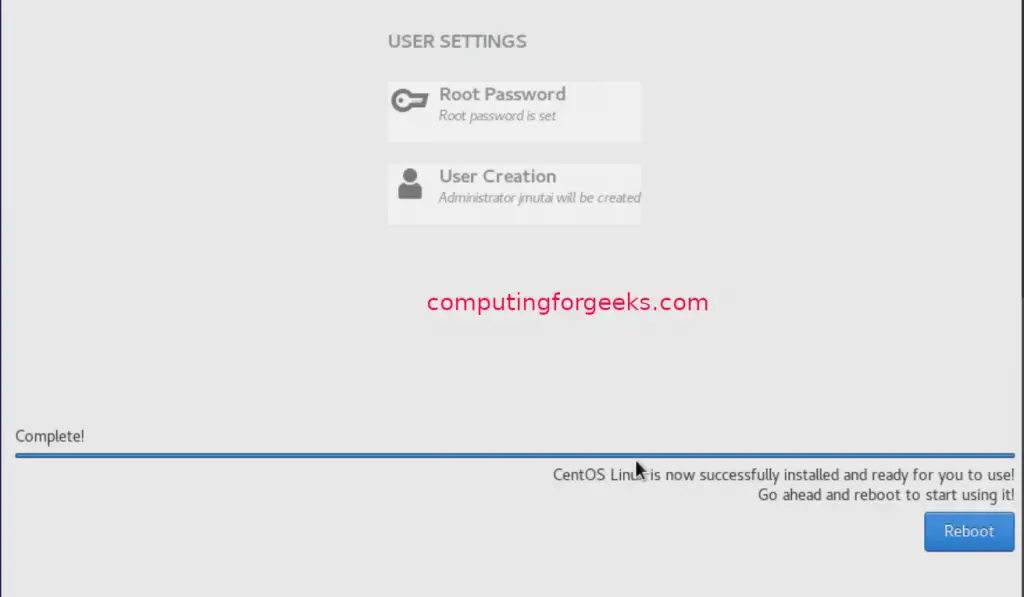

Reboot the system once installation is complete.

create centos 8 openstack template 15

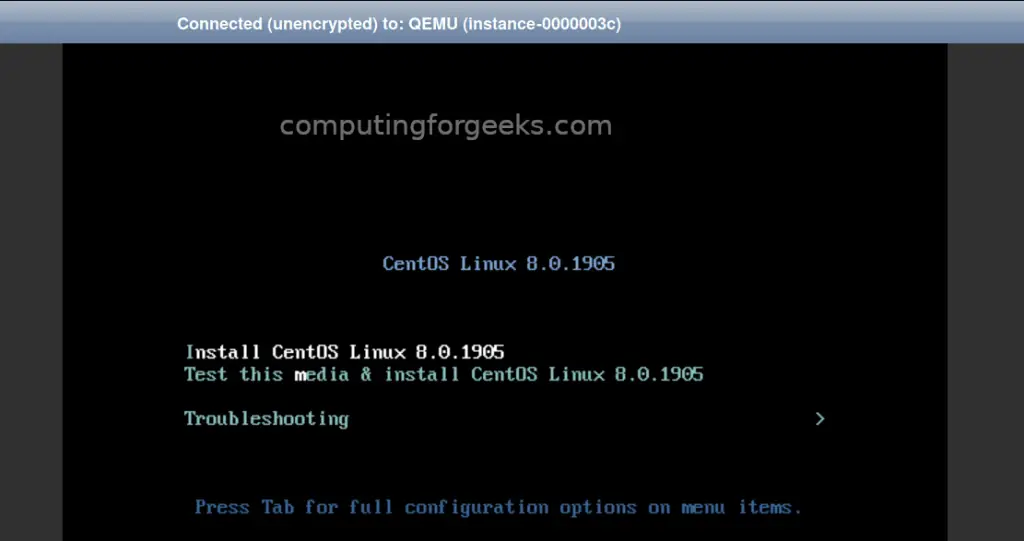

The server attempt to boot from the ISO image once more. Press any key to stop the countdown.

create centos 8 openstack template 16

Step 7: Terminate CentOS 8 Build Instance

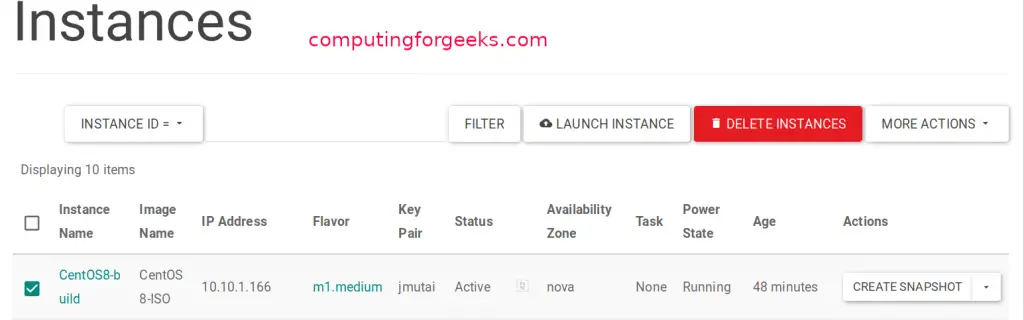

We can now terminate the instance we created under Project > Compute > Instances

create centos 8 openstack template 17

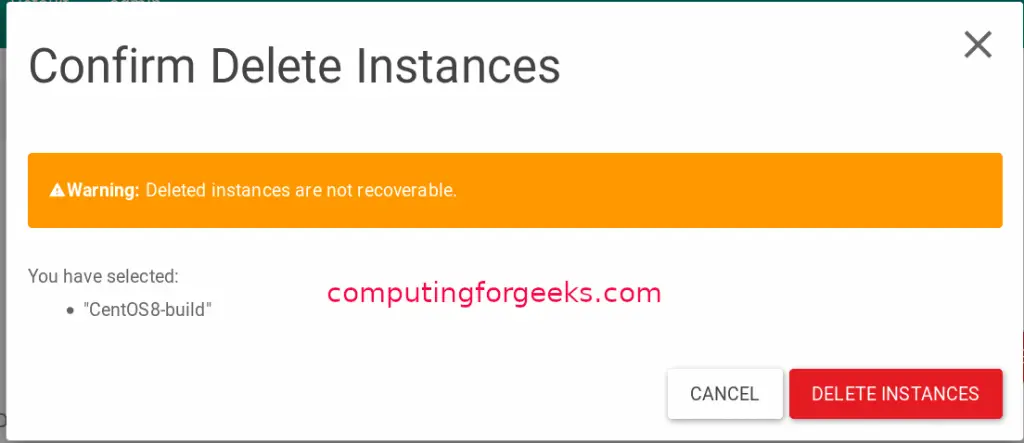

Select “CentOS8-build” and hit the “Delete Instances” button. Confirm deletion.

create centos 8 openstack template 18

Step 8: Convert Volume to Qcow2 Image

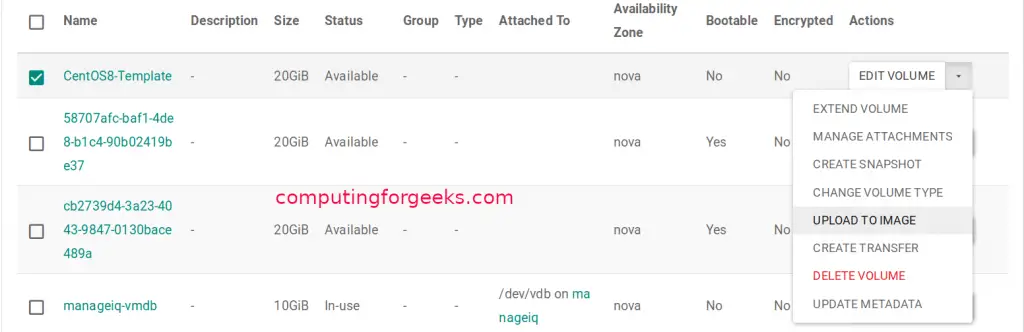

Upload the Volume with CentOS 8 installation to Glance Image. This is done by navigating to Project > Compute > Volumes. Select the volume and click “UPLOAD TO IMAGE”

create centos 8 openstack template 19

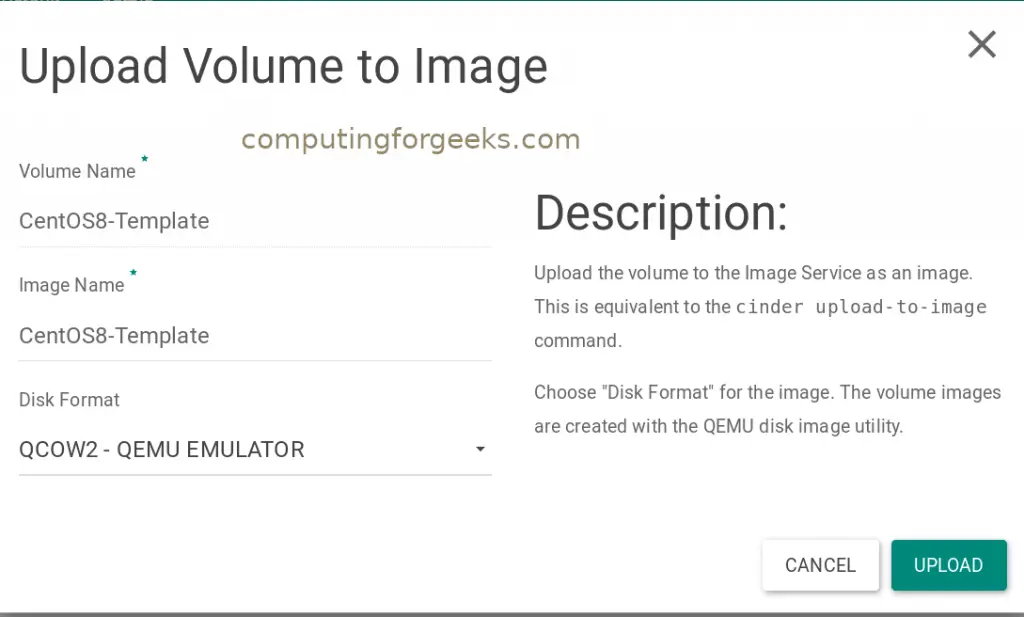

Give it a name and choose QCOW2 Disk Format.

create centos 8 openstack template 20

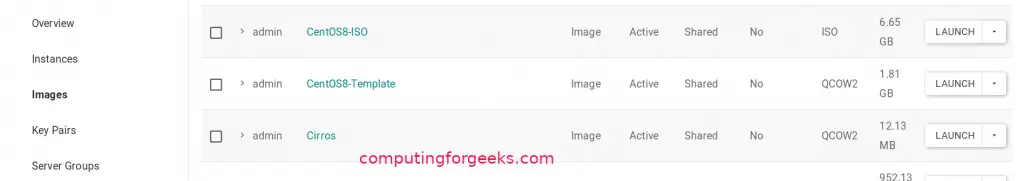

Confirm if image was successfully uploaded under Project > Compute > Images

create centos 8 openstack template 21

Select image and update metadata like below:

hypervisor_type: kvm
auto_disk_config: true
hw_qemu_guest_agent: true

To update image Metadata, enter metadata name in the custom box and click on the + button, then provide the value on the right side box.

create centos 8 openstack template 22

Save settings when done. You can now delete the Volume on Project > Volumes > CentOS8-Template > Delete

Step 9: Create Instance from new Image

Create an instance from the image we just uploaded to Glance. Click on Project > Compute > Instances > Launch Instance.

create centos 8 openstack template 01

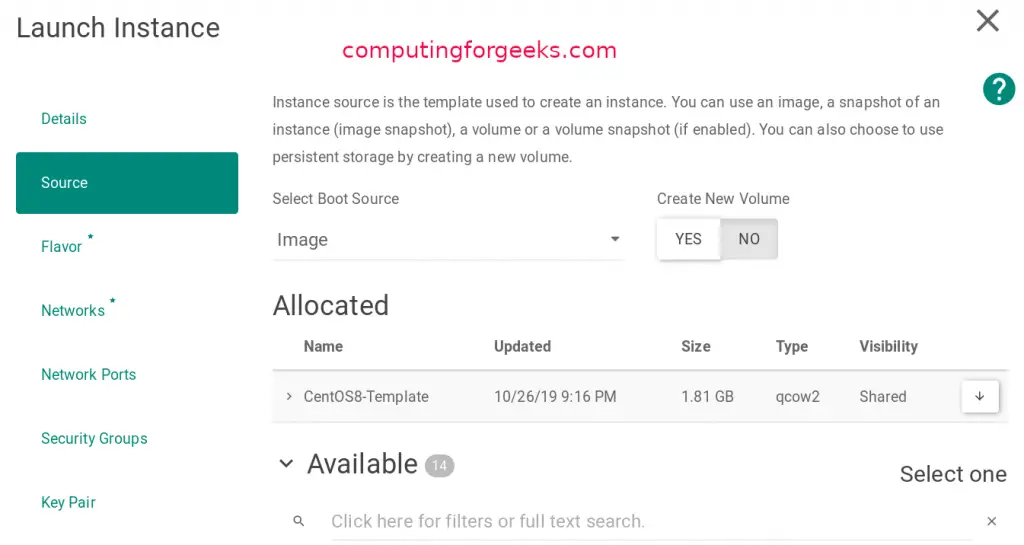

Give the instance the name “centOS8-build”, use m1.small flavor (One with 20GB disk), and select “Boot from image” and the “CentOS8-Template” image.

create centos 8 openstack template 23

Launch the instance and wait for it to enter Active state. SSH to the new instance as “root“, using the root password used during setup, or access the instance using OpenStack Console.

$ ssh [email protected]
The authenticity of host '10.10.1.71 (10.10.1.71)' can't be established.
ECDSA key fingerprint is SHA256:9OOv/wC5aB5XownQPr4udNtiKvouvzr8UQoDcj6wdfE.
ECDSA key fingerprint is MD5:b6:32:c7:59:fd:25:48:07:11:f5:fb:cf:7e:cb:25:45.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '10.10.1.71' (ECDSA) to the list of known hosts.
[email protected]'s password:
Activate the web console with: systemctl enable --now cockpit.socket

Last login: Sat Oct 26 21:44:14 2019 from 10.10.1.186
[[email protected] ~]#

Prepare Instance to be used as OpenStack template.

Update system

sudo yum -y update

Install cloud-init, qemu guest agent, vim, bash-completion, cloud-utils-growpart.

sudo yum -y install vim bash-completion cloud-init qemu-guest-agent cloud-utils-growpart

Start and enable the qemu-guest-agent service:

sudo systemctl enable --now qemu-guest-agent.service

Disable the zeroconf route

For the instance to access the metadata service, you must disable the default zeroconf route:

echo "NOZEROCONF=yes" >> /etc/sysconfig/network

Enable kernel console logging:

Open the file /etc/sysconfig/grub

sudo vim /etc/sysconfig/grub

Delete the rhgb quiet and add console=tty0 console=ttyS0,115200n8 to the option. Mine looks like below.

GRUB_CMDLINE_LINUX="crashkernel=auto resume=/dev/mapper/cl-swap rd.lvm.lv=cl/root rd.lvm.lv=cl/swap console=tty0 console=ttyS0,115200n8"

Run the following command to save the changes:

# grub2-mkconfig -o /boot/grub2/grub.cfg
Generating grub configuration file ...
done

Update cloud-init configuration file

You can change the name of the account used by cloud-init by editing the /etc/cloud/cloud.cfg file and adding a line with a different user.

sudo vim /etc/cloud/cloud.cfg

The default user created is cloud-user:

system_info:
  default_user:
    name: cloud-user
    lock_passwd: true
    gecos: Cloud User
    groups: [wheel, adm, systemd-journal]
    sudo: ["ALL=(ALL) NOPASSWD:ALL"]
    shell: /bin/bash
  distro: rhel
  paths:
    cloud_dir: /var/lib/cloud
    templates_dir: /etc/cloud/templates
  ssh_svcname: sshd

Root account is disabled, to enable, set the line (Not recommended)

disable_root: 0

When done, delete the static network configuration file:

rm /etc/sysconfig/network-scripts/ifcfg-ens3

Then clear the bash history for root user.

rm /root/.bash_history; history -c

Step 10: Create Final CentOS 8 image

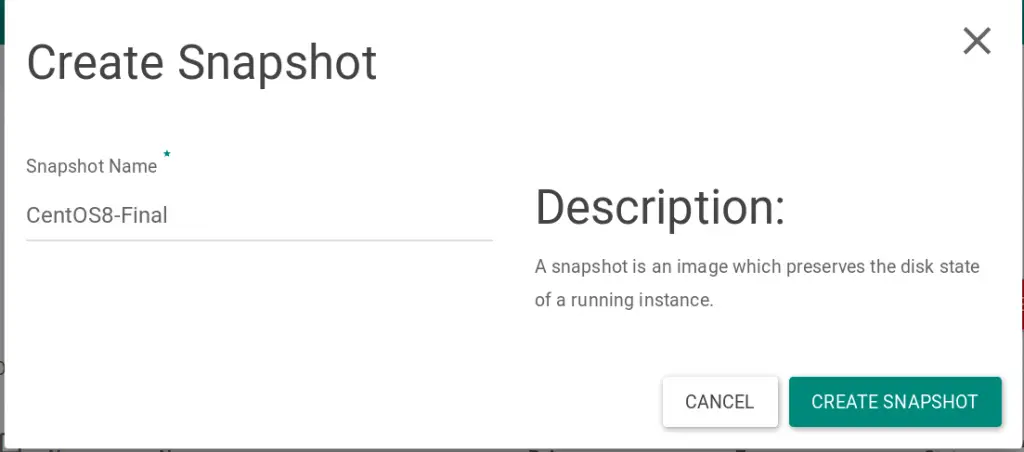

Navigate to Compute > Instances >centos8-build > Create Snapshot button.

create centos 8 openstack template 24

Give it a name then create the Snapshot.

create centos 8 openstack template 25

You can now delete the centos8-build Instance and centos8-template image created earlier. Use the Image created to launch CentOS 8 instances on OpenStack.
