You want to assign an OpenStack Instance a floating IP address from your public network?. When an virtual instance is created in OpenStack, it is automatically assigned a fixed IP in the network to which it is assigned . This IP address is permanently associated with the instance until the instance is terminated.

OpenStack also gives you an option to use floating IP address created from external network’s subnet. A “floating IP” is an IP address that can be dynamically added to a running virtual instance. The floating IP association can be modified at any time regardless of the state of the instance in question.

Here is the process you’ll use to create a floating IP Address in OpenStack and assign it to an instance.

Step 1: Create an Instance on private network

First create a Virtual instance from OpenStack horizon dashboard or CLI in a private network.

I have two networks – public and private. The instance will be created on the private subnet.

$ openstack network list
+--------------------------------------+---------+--------------------------------------+
| ID                                   | Name    | Subnets                              |
+--------------------------------------+---------+--------------------------------------+
| b94431cb-08cf-42ea-be61-55f5cf459276 | private | 57601b99-ea64-41a8-a927-fbd591ae3f2b |
| f7ccac3b-73eb-49bf-a4ec-af750216b819 | public  | 7536e4a8-6aa8-45dc-aed6-1a98afcf416d |
+--------------------------------------+---------+--------------------------------------+

$ openstack subnet list
+--------------------------------------+----------------+--------------------------------------+----------------+
| ID                                   | Name           | Network                              | Subnet         |
+--------------------------------------+----------------+--------------------------------------+----------------+
| 57601b99-ea64-41a8-a927-fbd591ae3f2b | private_subnet | b94431cb-08cf-42ea-be61-55f5cf459276 | 10.10.1.0/24   |
| 7536e4a8-6aa8-45dc-aed6-1a98afcf416d | public_subnet  | f7ccac3b-73eb-49bf-a4ec-af750216b819 | 96.220.99.8/29 |
+--------------------------------------+----------------+--------------------------------------+----------------+

I’ll create an Instance called testfloating from Ubuntu 18.04 template.

openstack server create \
 --image Ubuntu-18 \
 --key-name jmutai \
 --flavor m1.small \
 --security-group  7fffea2a-b756-473a-a13a-219dd0f1913a  \
 --network private  \
 testfloating

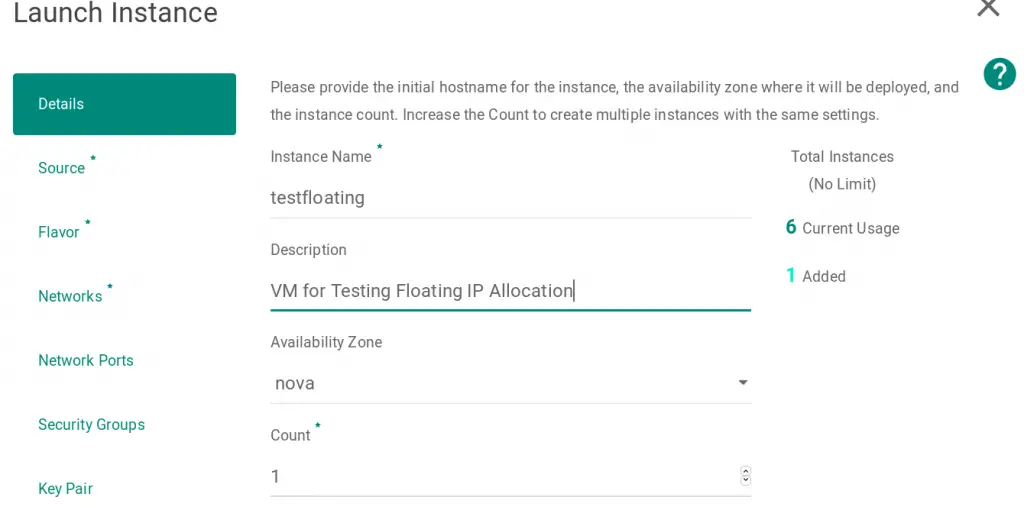

VM creation can be done from your OpenStack Dashboard.

openstack use floating ip 01

After creation, confirm the server is running.

$ openstack server show testfloating
+-------------------------------------+----------------------------------------------------------+
| Field                               | Value                                                    |
+-------------------------------------+----------------------------------------------------------+
| OS-DCF:diskConfig                   | MANUAL                                                   |
| OS-EXT-AZ:availability_zone         | nova                                                     |
| OS-EXT-SRV-ATTR:host                | server1.computingforgeeks.com                            |
| OS-EXT-SRV-ATTR:hypervisor_hostname | server1.computingforgeeks.com                            |
| OS-EXT-SRV-ATTR:instance_name       | instance-0000002e                                        |
| OS-EXT-STS:power_state              | Running                                                  |
| OS-EXT-STS:task_state               | None                                                     |
| OS-EXT-STS:vm_state                 | active                                                   |
| OS-SRV-USG:launched_at              | 2019-09-22T07:13:40.000000                               |
| OS-SRV-USG:terminated_at            | None                                                     |
| accessIPv4                          |                                                          |
| accessIPv6                          |                                                          |
| addresses                           | private=10.10.1.185                                      |
| config_drive                        |                                                          |
| created                             | 2019-09-22T07:13:35Z                                     |
| flavor                              | m1.small (1)                                             |
| hostId                              | da0a05ef20a03e97f301563551bab9b669ef04adbce232d941519946 |
| id                                  | a731e48d-d3b5-4fcf-8fc7-f8f280b51b44                     |
| image                               | Ubuntu-18 (7bd462ad-cc11-4d89-8b85-9aab0cfe114b)         |
| key_name                            | jmutai                                                   |
| name                                | testfloating                                             |
| progress                            | 0                                                        |
| project_id                          | 06bcc3c56ab1489282b65681e782d7f6                         |
| properties                          |                                                          |
| security_groups                     | name='default'                                           |
| status                              | ACTIVE                                                   |
| updated                             | 2019-09-22T07:13:40Z                                     |
| user_id                             | 336acbb7421f47f8be4891eabf0c9cc8                         |
| volumes_attached                    |                                                          |
+-------------------------------------+----------------------------------------------------------+

Step 2: Reserve a floating IP address from external network pool.

You need to reserve a floating IP address from external network subnet pool. This can be done from the web dashboard or CLI.

From CLI:

openstack floating ip create --project admin --subnet public_subnet public

Where:

  • admin is the Owner’s project. Created floating IP will be available for association in this project.
  • public_subnet is the name of the subnet on which you want to create the floating IP.
  • public is the name of the network to allocate floating IP from.

See all options by typing:

$ openstack floating ip create --help

From Dashboard:

Log in to the dashboard as a user that has the Member role. The navigate to:

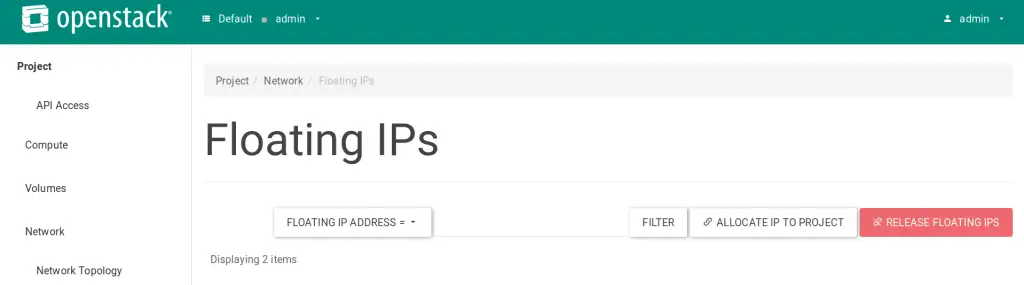

Project > Network > Floating IPs

openstack use floating ip 02

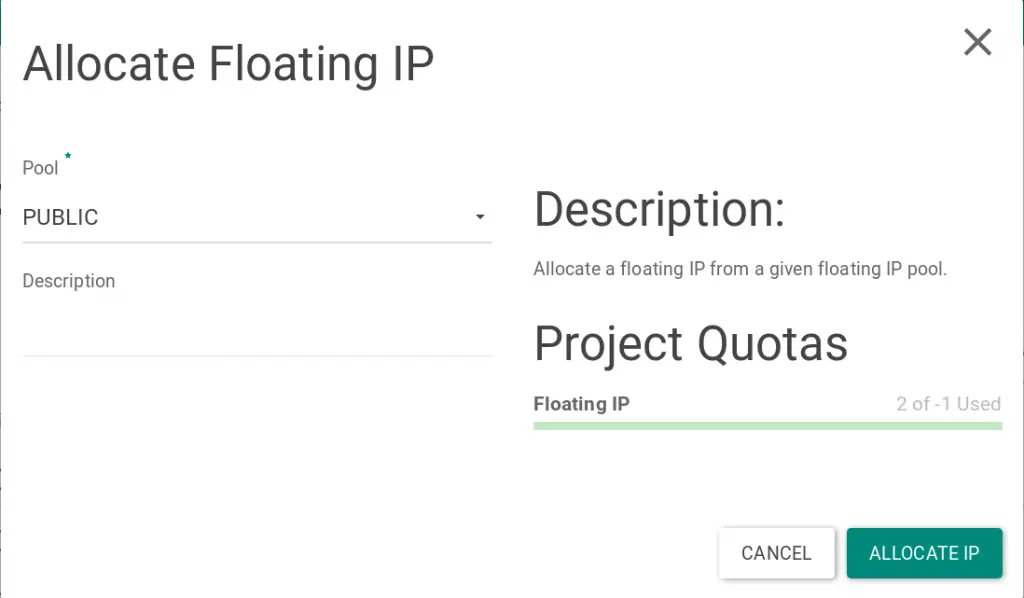

Click on the “ALLOCATE IP TO PROJECT” button. On the new window, select a Pool, provide description and click on “ALLOCATE IP“.

openstack use floating ip 03

Step 3: Associate the reserved floating IP address with the instance.

Once the floating IP address is reserved, we can associate it with an instance.

From CLI:

$ openstack floating ip list
$ openstack server list
$ openstack server add floating ip <server> <ip-address>

# Example:
$ openstack server add floating ip testfloating 96.220.99.11

From dashboard:

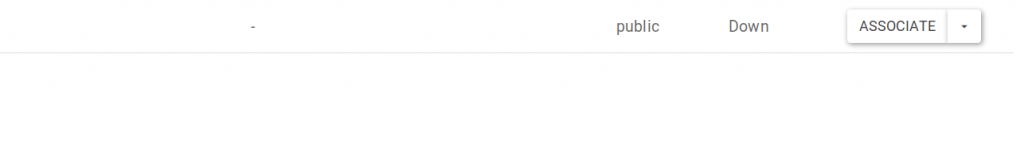

Option 1: Project > Network > Floating IPs > Select IP > Associate

openstack use floating ip 04

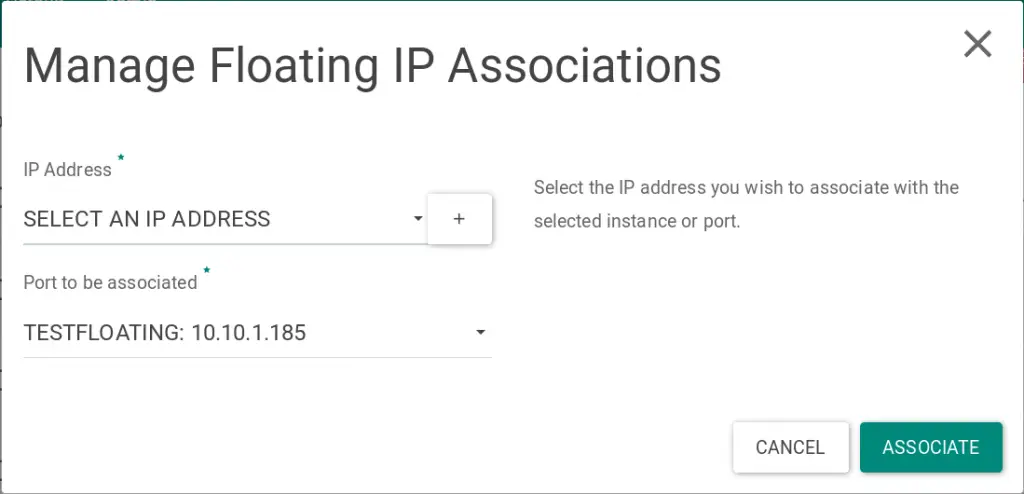

Pick a floating IP, an instance and a port to associate.

openstack use floating ip 05

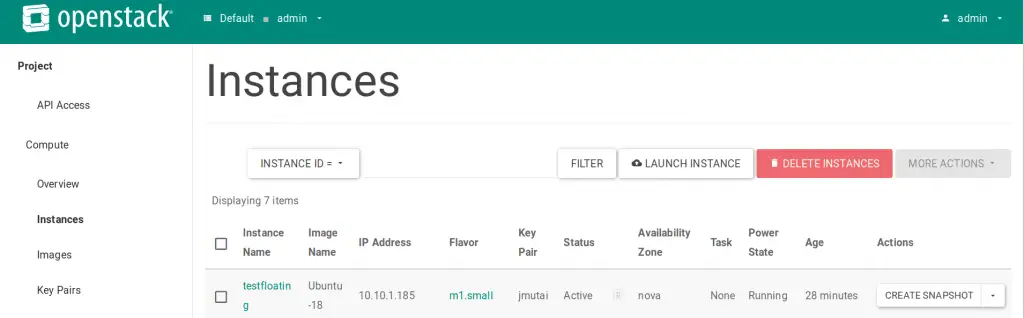

Option 2: Project > Compute > Instances

openstack use floating ip 06

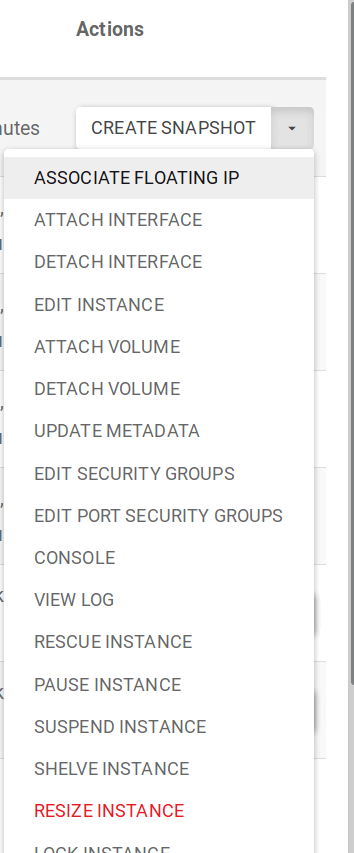

Under actions, select “ASSOCIATE FLOATING IP”

openstack use floating ip 07

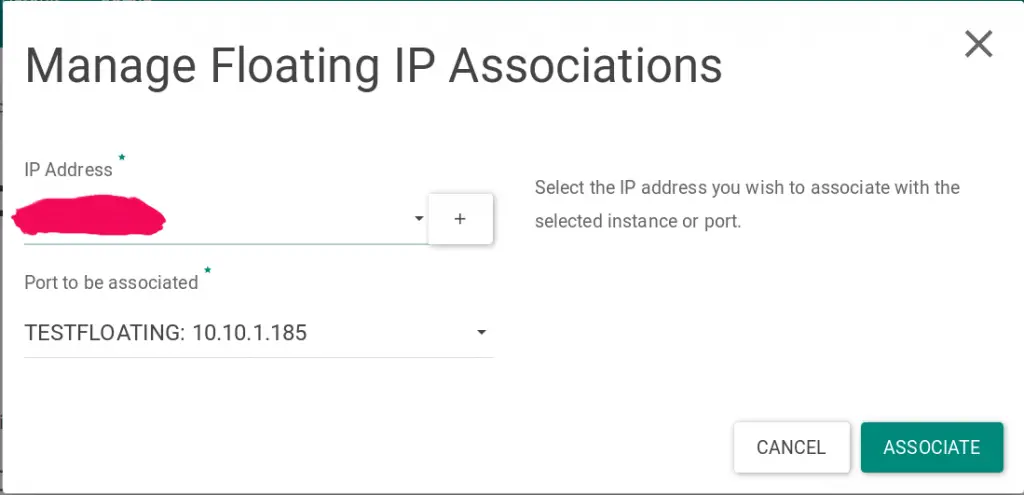

Select an IP address and click “ASSOCIATE”.

openstack use floating ip 08

Disassociate a floating IP Address

To disassociate IP address, use either of below methods:

CLI:

$ openstack server remove floating ip <server> <ip-address>

Dashboard:

  • Project > Network > Floating IPs > DISASSOCIATE
  • Project > Compute > Instances > Actions > DISASSOCIATE FLOATING IP

That’s all on how to associate a floating IP address to an instance running on OpenStack.
