GlusterFS is an open-source software developed by Gluster Inc and currently maintained by Redhat. It is used to provide object, block, and file storage interfaces. It provides affordable and flexible storage for unstructured data and is often used in high data-intensive workloads that include cloud storage media streaming and CDN. It can be deployed on-prem or in the cloud and supports innumerable protocols that include NFS, SMB, CIFS, HTTP, and FTP

Heketi can be used to manage the lifecycle of Gluster Storage volumes by providing a RESTful management interface. This makes it easy for GlusterFS to be integrated with cloud services such as Kubernetes, OpenStack Manila and OpenShift for the dynamic provisioning of volumes. Heketi automatically determines the locations of bricks across the cluster, placing them and their replicas in different failure domains. It also supports innumerable GlusterFS clusters, making it possible to provide network file storage with no limitation of a single GlusterFS cluster. Generally, Heketi makes it easier for the system admin to manage or configure bricks, disks, or trusted storage pools. This service manages all the hardware for the admin enabling the location of storage on demand.

Today, we will learn how to configure GlusterFS on Ubuntu 22.04 With Heketi

Getting Started

For this guide, we will have an environment configured as shown:

  • 3 Ubuntu 22.04 servers for GlusterFS
  • Each server has 3 secondary disk of 10GB attached
  • sudo access
  • Heketi will be set up on one of the servers

DNS resolution can be configured at /etc/hosts on each server for those who do not have a DNS server

$ sudo vim /etc/hosts
192.168.200.90 gluster01.computingforgeeks.com  gluster01
192.168.200.91 gluster02.computingforgeeks.com  gluster02
192.168.200.92  gluster03.computingforgeeks.com  gluster03

1. Configure NTP time synchronization

Before we begin, it is important that the time on all the 3 servers is synchronized. This can be done using Network Time Protocol (NTP) or the Chrony daemon.

To achieve that, ensure that Chrony has been installed:

sudo apt -y install chrony

Start and enable the service:

sudo systemctl enable --now chronyd

Set the Timezone on all the 3 servers:

sudo timedatectl set-timezone Africa/Nairobi --adjust-system-clock
sudo timedatectl set-ntp yes

Verify the changes:

$ timedatectl
               Local time: J5 2023-06-14 14:44:50 EAT
           Universal time: J5 2023-06-14 11:44:50 UTC
                 RTC time: J5 2023-06-14 11:44:50
                Time zone: Africa/Nairobi (EAT, +0300)
System clock synchronized: yes
              NTP service: active
          RTC in local TZ: no

2. Install GlusterFS packages

GlusterFS exists in the default Ubuntu 22.04 repositories. This makes the installation so easy. To install GlusterFS on Ubuntu 22.04, execute the command below:

sudo apt install glusterfs-server

Once installed, ensure that the service has been started and enabled:

sudo systemctl enable --now glusterd

View the status of the service:

$ systemctl status glusterd
● glusterd.service - GlusterFS, a clustered file-system server
     Loaded: loaded (/lib/systemd/system/glusterd.service; enabled; vendor preset: enabled)
     Active: active (running) since Wed 2023-06-14 14:46:22 EAT; 4s ago
       Docs: man:glusterd(8)
    Process: 14472 ExecStart=/usr/sbin/glusterd -p /var/run/glusterd.pid --log-level $LOG_LEV>
   Main PID: 14473 (glusterd)
      Tasks: 9 (limit: 4617)
     Memory: 11.0M
        CPU: 1.481s
     CGroup: /system.slice/glusterd.service
             └─14473 /usr/sbin/glusterd -p /var/run/glusterd.pid --log-level INFO

Jun 14 14:46:21 gluster01.computingforgeeks.com systemd[1]: Starting GlusterFS,

If you have a firewall enabled, allow the service through it:

sudo ufw allow 24007/tcp

Once the installation is complete on all the 3 nodes, we will probe other nodes in the cluster. Form one node gluster01 say, execute the commands below:

# Perform on Node 01
sudo gluster peer probe gluster02
sudo gluster peer probe gluster03

View the status:

sudo gluster peer status

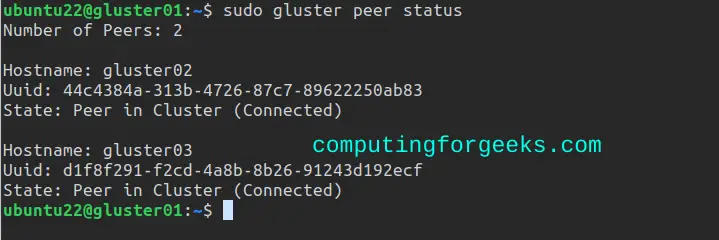

Sample Output:

Configuring GlusterFS on Ubuntu 22.04 With Heketi

3. Install Heketi

As stated earlier, Heketi will be installed on only one node in the cluster. For this guide, we will install it on gluster01. Download the latest release of Heketi from the  GitHub releases page.

You can also pull the binary with the command:

wget https://github.com/heketi/heketi/releases/download/v10.4.0/heketi-v10.4.0-release-10.linux.amd64.tar.gz

Extract the archive:

for i in `ls | grep heketi | grep .tar.gz`; do tar xvf $i; done

Copy the extracted binaries to your PATH:

sudo cp heketi/{heketi,heketi-cli} /usr/local/bin

Now verify the installation:

$ heketi --version
Heketi v10.4.0-release-10 (using go: go1.15.14)

$ heketi-cli --version
heketi-cli v10.4.0-release-10

4. Configure Heketi

There are several configurations we need to make before Heketi can be used. First, create a dedicated user for Heketi:

sudo groupadd --system heketi
sudo useradd -s /sbin/nologin --system -g heketi heketi

Then proceed and create configurations and data paths for Heketi:

sudo mkdir -p /var/lib/heketi /etc/heketi /var/log/heketi
sudo cp heketi/heketi.json /etc/heketi

Now we can modify the created config file as desired:

sudo vim /etc/heketi/heketi.json

In the file, there are several variables that can be modified, these include:

##Set service port##
"port": "8080"

##Set admin and use secrets##
"_jwt": "Private keys for access",
  "jwt": {
    "_admin": "Admin has access to all APIs",
    "admin": {
      "key": "jvd7df8RN7QNeKV1"
    },
    "_user": "User only has access to /volumes endpoint",
    "user": {
      "key": "lMPgdZ8NtFNj6jgk"
    }
  },

##Configure glusterfs executor##
_sshexec_comment": "SSH username and private key file information",
    "sshexec": {
      "keyfile": "/etc/heketi/heketi_key",
      "user": "root",
      "port": "22",
      "fstab": "/etc/fstab",
......
},

##database path settings
"_db_comment": "Database file name",
    "db": "/var/lib/heketi/heketi.db",
....
},

Also in the file, comment out the below lines by adding (_) as shown:

    "_sshexec_comment": "SSH username and private key file information",
....
      "_xfs_sw": "Optional: Specify number of data disks in the underlying RAID device",
      "_xfs_su": "Optional: Specifies a stripe unit or RAID chunk size.",
      "_gluster_cli_timeout": "Optional: Timeout, in seconds, passed to the gluster cli invocations",
      "_debug_umount_failures": "Optional: boolean to capture more details in case brick unmounting fails",

    "_kubeexec_comment": "Kubernetes configuration",
      "_xfs_sw": "Optional: Specify number of data disks in the underlying RAID device.",
      "_xfs_su": "Optional: Specifies a stripe unit or RAID chunk size.",
      "_gluster_cli_timeout": "Optional: Timeout, in seconds, passed to the gluster cli invocations",
      "_debug_umount_failures": "Optional: boolean to capture more details in case brick unmounting fails",
.....

If you use an SSH user other than root, ensure that you have configured passwordless for sudo. Once the desired changes have been made, save the file and generate the SSH keys for the user provided for example root:

sudo -i
ssh-keygen -f /etc/heketi/heketi_key -t rsa -N ''
chown heketi:heketi /etc/heketi/heketi_key*

First, ensure that root login is permitted on all the 3 servers if using root as the user:

$ vim /etc/ssh/sshd_config
PermitRootLogin yes

Restart the service:

sudo systemctl restart sshd

Copy the public key created to all the other GlusterFS nodes using the command:

for i in gluster01 gluster02 gluster03; do
 ssh-copy-id -i /etc/heketi/heketi_key.pub root@$i
done

Verify access to GlusterFS nodes from gluster01 with the private key:

root@gluster01:~# ssh -i /etc/heketi/heketi_key root@gluster02
Welcome to Ubuntu 22.04 LTS (GNU/Linux 5.19.0-41-generic x86_64)

 * Documentation:  https://help.ubuntu.com
 * Management:     https://landscape.canonical.com
 * Support:        https://ubuntu.com/advantage

460 updates can be applied immediately.
255 of these updates are standard security updates.
To see these additional updates run: apt list --upgradable

Last login: Wed Jun 14 17:10:36 2023 from 192.168.200.90
root@gluster02:~# exit

That shows that the SSH keys are working as desired. Exit the session and proceed with the configurations below.

Create a service file for Heketi:

sudo vim /etc/systemd/system/heketi.service

Add these lines to the file:

[Unit]
Description=Heketi Server

[Service]
Type=simple
WorkingDirectory=/var/lib/heketi
EnvironmentFile=-/etc/heketi/heketi.env
User=heketi
ExecStart=/usr/local/bin/heketi --config=/etc/heketi/heketi.json
Restart=on-failure
StandardOutput=syslog
StandardError=syslog

[Install]
WantedBy=multi-user.target

Save the file and download an environment file:

sudo wget -O /etc/heketi/heketi.env https://raw.githubusercontent.com/heketi/heketi/master/extras/systemd/heketi.env

Assign all the required permissions for the Heketi user:

sudo chown -R heketi:heketi /var/lib/heketi /var/log/heketi /etc/heketi

Load all the Kernel modules required by Heketi:

for i in dm_snapshot dm_mirror dm_thin_pool; do
  sudo modprobe $i
done

Reload the daemon and start the service:

sudo systemctl daemon-reload
sudo systemctl enable --now heketi

Verify if the service is up:

$ systemctl status heketi
● heketi.service - Heketi Server
     Loaded: loaded (/etc/systemd/system/heketi.service; enabled; vendor preset: enabled)
     Active: active (running) since Wed 2023-06-14 17:48:36 EAT; 4s ago
   Main PID: 4545 (heketi)
      Tasks: 7 (limit: 4617)
     Memory: 5.7M
        CPU: 16ms
     CGroup: /system.slice/heketi.service
             └─4545 /usr/local/bin/heketi --config=/etc/heketi/heketi.json

Jun 14 17:48:36 gluster01.computingforgeeks.com heketi[4545]: Heketi v10.4.0-release-10 (using go: go1.15.14)
Jun 14 17:48:36 gluster01.computingforgeeks.com heketi[4545]: [heketi] INFO 2023/06/14 17:48:36 Loaded mock executor
....
Jun 14 17:48:36 gluster01.computingforgeeks.com heketi[4545]: Listening on port 8080

5. Create the Heketi Topology file

For this guide, we will use Ansible scripts to generate and maintain the Heketi topology file since editing the JSON file manually can be tiring.

To ma it easier, install Ansible on your system:

sudo apt update
sudo apt install software-properties-common
sudo apt-add-repository --yes --update ppa:ansible/ansible
sudo apt install ansible

Next, create a project folder:

mkdir -p ~/projects/ansible/roles/heketi/{tasks,templates,defaults}

Now create the template for the Topology file:

$ vim ~/projects/ansible/roles/heketi/templates/topology.json.j2
{
  "clusters": [
    {
      "nodes": [
      {% if gluster_servers is defined and gluster_servers is iterable %}
      {% for item in gluster_servers %}
        {
          "node": {
            "hostnames": {
              "manage": [
                "{{ item.servername }}"
              ],
              "storage": [
                "{{ item.serverip }}"
              ]
            },
            "zone": {{ item.zone }}
          },
          "devices": [
            "{{ item.disks | list | join ("\",\"") }}"
          ]
        }{% if not loop.last %},{% endif %}
    {% endfor %}
    {% endif %}
      ]
    }
  ]
}

Save this file and create a variables file that matches the defined values:

vim ~/projects/ansible/roles/heketi/defaults/main.yml

Add the below lines, replacing correctly where required:

---
# GlusterFS nodes
gluster_servers:
  - servername: gluster01
    serverip: 192.168.200.90
    zone: 1
    disks:
      - /dev/sdb
      - /dev/sdc
      - /dev/sdd
  - servername: gluster02
    serverip: 192.168.200.91
    zone: 1
    disks:
      - /dev/sdb
      - /dev/sdc
      - /dev/sdd
  - servername: gluster03
    serverip: 192.168.200.92
    zone: 1
    disks:
      - /dev/sdb
      - /dev/sdc
      - /dev/sdd

Create an Ansible task:

vim ~/projects/ansible/roles/heketi/tasks/main.yml

In the file, provide the below content:

---
- name: Copy heketi topology file
  template:
    src: topology.json.j2
    dest: /etc/heketi/topology.json

- name: Set proper file ownership
  file:
   path:  /etc/heketi/topology.json
   owner: heketi
   group: heketi

Create the Ansible playbook file:

vim ~/projects/ansible/heketi.yml

Add these lines to the file:

---
- name: Generate Heketi topology file and copy to Heketi Server
  hosts: gluster01
  become: yes
  become_method: sudo
  roles:
    - heketi

Create the hosts file:

$ vim ~/projects/ansible/hosts
gluster01

Navigate into the directory:

cd ~/projects/ansible

View everything created:

$ tree
.
├── heketi.yml
├── hosts
└── roles
    └── heketi
        ├── defaults
        │   └── main.yml
        ├── tasks
        │   └── main.yml
        └── templates
            └── topology.json.j2

5 directories, 5 files

Now run the Ansible playbook using the command:s

ansible-playbook -i hosts --user myuser --ask-pass --ask-become-pass heketi.yml

Alternatively, you can use the root user or sudo Passwordless user with the command:

ansible-playbook -i hosts --user myuser heketi.yml

Sample Output:

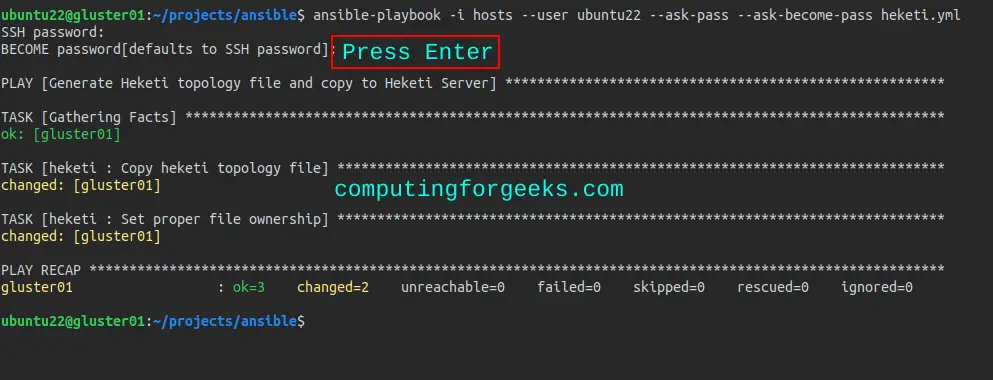

Configuring GlusterFS on Ubuntu 22.04 With Heketi 1

Now you will have a topology file generated as shown:

$ cat /etc/heketi/topology.json
{
  "clusters": [
    {
      "nodes": [
                    {
          "node": {
            "hostnames": {
              "manage": [
                "gluster01"
              ],
              "storage": [
                "192.168.200.90"
              ]
            },
            "zone": 1
          },
          "devices": [
            "/dev/sdb","/dev/sdc","/dev/sdd"
          ]
        },            {
          "node": {
            "hostnames": {
              "manage": [
                "gluster02"
              ],
              "storage": [
                "192.168.200.91"
              ]
            },
            "zone": 1
          },
          "devices": [
            "/dev/sdb","/dev/sdc","/dev/sdd"
          ]
        },            {
          "node": {
            "hostnames": {
              "manage": [
                "gluster03"
              ],
              "storage": [
                "192.168.200.92"
              ]
            },
            "zone": 1
          },
          "devices": [
            "/dev/sdb","/dev/sdc","/dev/sdd"
          ]
        }              ]
    }
  ]
}

6. Load the Heketi Topology File

Once the topology fie has been created with the above steps, we can load and use it on Heketi. To load it using the CI, run the command with the below syntax

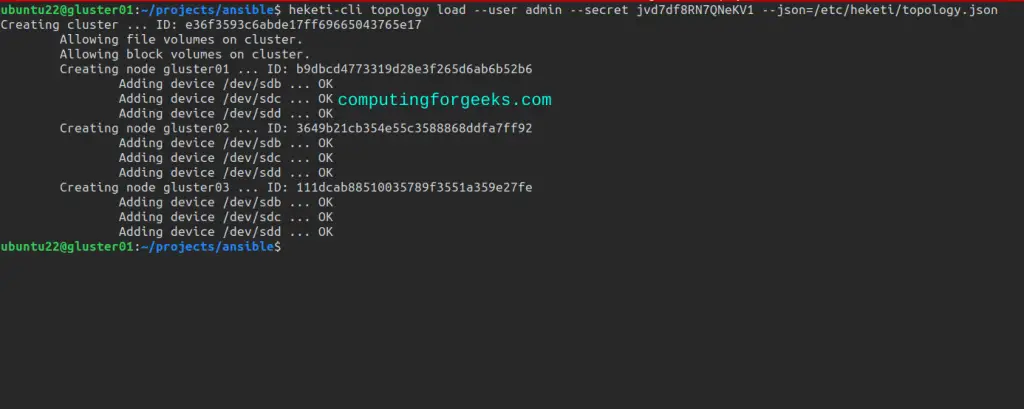

heketi-cli topology load --user admin --secret <heketi_admin_secret> --json=/etc/heketi/topology.json

Replace the heketi_admin_secret, for example:

heketi-cli topology load --user admin --secret jvd7df8RN7QNeKV1 --json=/etc/heketi/topology.json

Sample Output:

Configuring GlusterFS on Ubuntu 22.04 With Heketi 2

Now export the variables:

$ vim ~/.bashrc
export HEKETI_CLI_SERVER=http://heketiserverip:8080
export HEKETI_CLI_USER=admin
export HEKETI_CLI_KEY="Adminsecret"

Source the profile:

source ~/.bashrc

Now view the cluster:

$ heketi-cli cluster list
Clusters:
Id:e36f3593c6abde17ff69665043765e17 [file][block]

Show the nodes available:

$ heketi-cli node list
Id:111dcab88510035789f3551a359e27fe	Cluster:e36f3593c6abde17ff69665043765e17
Id:3649b21cb354e55c3588868ddfa7ff92	Cluster:e36f3593c6abde17ff69665043765e17
Id:b9dbcd4773319d28e3f265d6ab6b52b6	Cluster:e36f3593c6abde17ff69665043765e17

You can also use the below command to view the nodes:

$ sudo gluster pool list
UUID					Hostname 	State
44c4384a-313b-4726-87c7-89622250ab83	gluster02	Connected
d1f8f291-f2cd-4a8b-8b26-91243d192ecf	gluster03	Connected
d1f8f291-f2cd-4a8b-8b26-91243d192ece	localhost	Connected

View more details of the cluster

heketi-cli node info <NODE_ID>

For example:

$ heketi-cli node info 111dcab88510035789f3551a359e27fe
Node Id: 111dcab88510035789f3551a359e27fe
State: online
Cluster Id: e36f3593c6abde17ff69665043765e17
Zone: 1
Management Hostname: gluster03
Storage Hostname: 192.168.200.92
Devices:
Id:1072f75242b8f7cd32d450344c2bf9b4   Name:/dev/sdd            State:online    Size (GiB):500     Used (GiB):0       Free (GiB):500     Bricks:0
Id:49e832b9834ec185b21960f411891292   Name:/dev/sdc            State:online    Size (GiB):500     Used (GiB):0       Free (GiB):500     Bricks:0
Id:a8aca352fb2d742e9bda4d04e48877a9   Name:/dev/sdb            State:online    Size (GiB):500     Used (GiB):0       Free (GiB):500     Bricks:0

To verify if the Gluster volumes are working as desired, we will use Heketi to create a volume:

# heketi-cli volume create --size=1
Name: vol_e3791aa3f720f8e1e50c3d433326030f
Size: 1
Volume Id: e3791aa3f720f8e1e50c3d433326030f
Cluster Id: e36f3593c6abde17ff69665043765e17
Mount: 192.168.200.92:vol_e3791aa3f720f8e1e50c3d433326030f
Mount Options: backup-volfile-servers=192.168.200.91,192.168.200.90
Block: false
Free Size: 0
Reserved Size: 0
Block Hosting Restriction: (none)
Block Volumes: []
Durability Type: replicate
Distribute Count: 1
Replica Count: 3

View the created volume:

# heketi-cli volume list
Id:e3791aa3f720f8e1e50c3d433326030f    Cluster:e36f3593c6abde17ff69665043765e17    Name:vol_e3791aa3f720f8e1e50c3d433326030f

To view the topology, execute:

heketi-cli topology info

Now toy can proceed and use GlusterFS as desired. To integrate it with Kubernetes, follow the aid provided here:

There are many other use cases, feel free to explore them. I hope this guide was significant to you.

See more:

RELATED ARTICLESMORE FROM AUTHOR

LEAVE A REPLY

Please enter your comment!
Please enter your name here
