Monitoring Production Kubernetes Cluster(s) is an important and progressive operation for any Cluster Administrator. There are myriad of solutions that fall into the category of Kubernetes monitoring stack, and some of them are Prometheus and Grafana. This guide is created with an intention of guiding Kubernetes users to Setup Prometheus and Grafana on Kubernetes using prometheus-operator.

Prometheus is a full fledged solution that enables Developers and SysAdmins to access advanced metrics capabilities in Kubernetes. The metrics are collected in a time internal of 30 seconds, this is a default settings. The information collected include resources such as Memory, CPU, Disk Performance and Network IO as well as R/W rates. By default the metrics are exposed on your cluster for up to a period of 14 days, but the settings can be adjusted to suit your environment.

Grafana is used for analytics and interactive visualization of metrics that’s collected and stored in Prometheus database. You can create custom charts, graphs, and alerts for Kubernetes cluster, with Prometheus being data source. In this guide we will perform installation of both Prometheus and Grafana on a Kubernetes Cluster. For this setup kubectl configuration is required, with Cluster Admin role binding.

Prometheus Operator

We will be using Prometheus Operator in this installation to deploy Prometheus monitoring stack on Kubernetes. The Prometheus Operator is written to ease the deployment and overall management of Prometheus and its related monitoring components. By using the Operator we simplify and automate Prometheus configuration on any any Kubernetes cluster using Kubernetes custom resources.

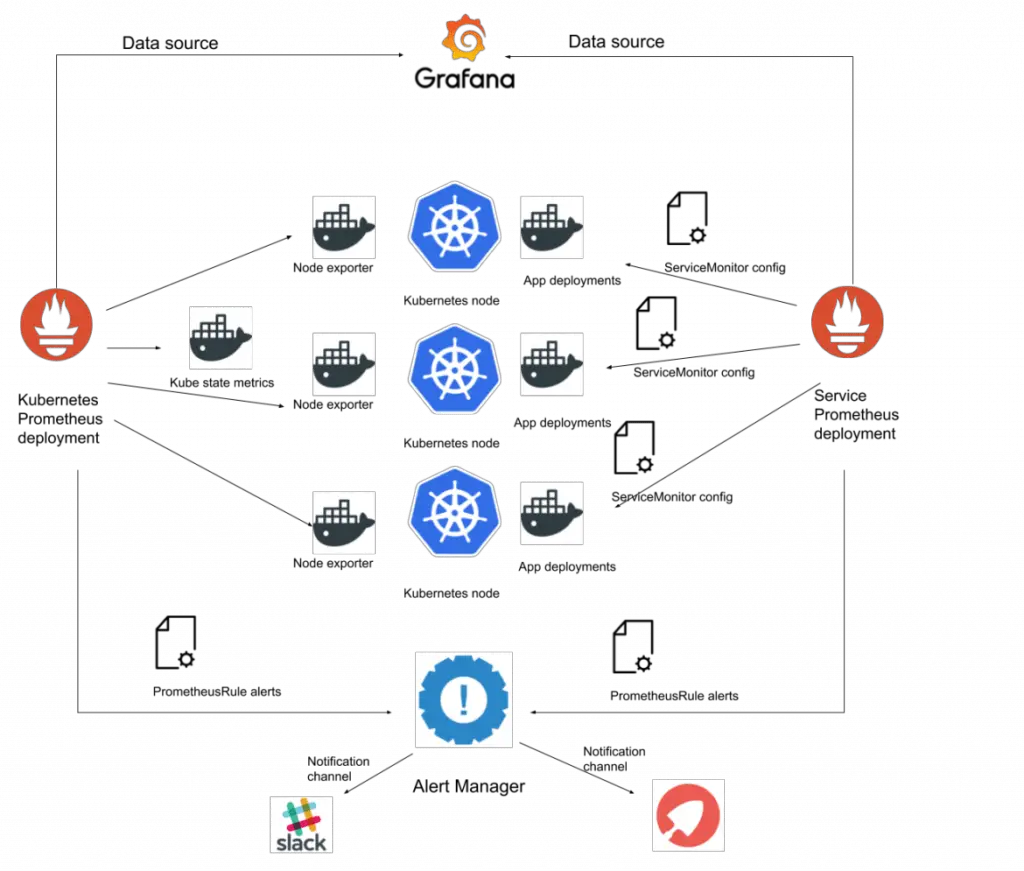

The diagram below shows the components of the Kubernetes monitoring that we’ll deploy:

prometheus operator kubernetes

The Operator uses the following custom resource definitions (CRDs) to deploy and configure Prometheus monitoring stack:

  • Prometheus – This defines a desired Prometheus deployment on Kubernetes
  • Alertmanager – This defines a desired Alertmanager deployment on Kubernetes cluster
  • ThanosRuler – This defines Thanos desired Ruler deployment.
  • ServiceMonitor – Specifies how groups of Kubernetes services should be monitored
  • PodMonitor – Declaratively specifies how group of pods should be monitored
  • Probe – Specifies how groups of ingresses or static targets should be monitored
  • PrometheusRule – Provides specification of Prometheus alerting desired set. The Operator generates a rule file, which can be used by Prometheus instances.
  • AlertmanagerConfig – Declaratively specifies subsections of the Alertmanager configuration, allowing routing of alerts to custom receivers, and setting inhibit rules.

Deploy Prometheus / Grafana Monitoring Stack on Kubernetes

To get a complete an entire monitoring stack we will use kube-prometheus project which includes Prometheus Operator among its components. The kube-prometheus stack is meant for cluster monitoring and is pre-configured to collect metrics from all Kubernetes components, with a default set of dashboards and alerting rules.

You should have kubectl configured and confirmed to be working:

$ kubectl cluster-info
Kubernetes control plane is running at https://192.168.10.12:6443
CoreDNS is running at https://192.168.10.12:6443/api/v1/namespaces/kube-system/services/kube-dns:dns/proxy

To further debug and diagnose cluster problems, use 'kubectl cluster-info dump'.

Step 1: Clone kube-prometheus project

Use git command to clone kube-prometheus project to your local system:

git clone https://github.com/prometheus-operator/kube-prometheus.git

Navigate to the kube-prometheus directory:

cd kube-prometheus

Step 2: Create monitoring namespace, CustomResourceDefinitions & operator pod

Create a namespace and required CustomResourceDefinitions:

kubectl create -f manifests/setup

Command execution results as seen in the terminal screen.

namespace/monitoring created
customresourcedefinition.apiextensions.k8s.io/alertmanagerconfigs.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/alertmanagers.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/podmonitors.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/probes.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/prometheuses.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/prometheusrules.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/servicemonitors.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/thanosrulers.monitoring.coreos.com created
clusterrole.rbac.authorization.k8s.io/prometheus-operator created
clusterrolebinding.rbac.authorization.k8s.io/prometheus-operator created
deployment.apps/prometheus-operator created
service/prometheus-operator created
serviceaccount/prometheus-operator created

The namespace created with CustomResourceDefinitions is named monitoring:

$ kubectl get ns monitoring
NAME         STATUS   AGE
monitoring   Active   2m41s

Confirm that Prometheus operator pods are running:

$ kubectl get pods -n monitoring
NAME                                   READY   STATUS    RESTARTS   AGE
prometheus-operator-84dc795dc8-jbgjm   2/2     Running   0          91s

Step 3: Deploy Prometheus Monitoring Stack on Kubernetes

Once you confirm the Prometheus operator is running you can go ahead and deploy Prometheus monitoring stack.

kubectl create -f manifests/

Here is my deployment progress output:

poddisruptionbudget.policy/alertmanager-main created
prometheusrule.monitoring.coreos.com/alertmanager-main-rules created
secret/alertmanager-main created
service/alertmanager-main created
serviceaccount/alertmanager-main created
servicemonitor.monitoring.coreos.com/alertmanager created
clusterrole.rbac.authorization.k8s.io/blackbox-exporter created
clusterrolebinding.rbac.authorization.k8s.io/blackbox-exporter created
configmap/blackbox-exporter-configuration created
deployment.apps/blackbox-exporter created
service/blackbox-exporter created
serviceaccount/blackbox-exporter created
servicemonitor.monitoring.coreos.com/blackbox-exporter created
secret/grafana-datasources created
configmap/grafana-dashboard-alertmanager-overview created
configmap/grafana-dashboard-apiserver created
configmap/grafana-dashboard-cluster-total created
configmap/grafana-dashboard-controller-manager created
configmap/grafana-dashboard-k8s-resources-cluster created
configmap/grafana-dashboard-k8s-resources-namespace created
configmap/grafana-dashboard-k8s-resources-node created
configmap/grafana-dashboard-k8s-resources-pod created
configmap/grafana-dashboard-k8s-resources-workload created
configmap/grafana-dashboard-k8s-resources-workloads-namespace created
configmap/grafana-dashboard-kubelet created
configmap/grafana-dashboard-namespace-by-pod created
configmap/grafana-dashboard-namespace-by-workload created
configmap/grafana-dashboard-node-cluster-rsrc-use created
configmap/grafana-dashboard-node-rsrc-use created
configmap/grafana-dashboard-nodes created
configmap/grafana-dashboard-persistentvolumesusage created
configmap/grafana-dashboard-pod-total created
configmap/grafana-dashboard-prometheus-remote-write created
configmap/grafana-dashboard-prometheus created
configmap/grafana-dashboard-proxy created
configmap/grafana-dashboard-scheduler created
configmap/grafana-dashboard-workload-total created
configmap/grafana-dashboards created
deployment.apps/grafana created
service/grafana created
serviceaccount/grafana created
servicemonitor.monitoring.coreos.com/grafana created
prometheusrule.monitoring.coreos.com/kube-prometheus-rules created
clusterrole.rbac.authorization.k8s.io/kube-state-metrics created
clusterrolebinding.rbac.authorization.k8s.io/kube-state-metrics created
deployment.apps/kube-state-metrics created
prometheusrule.monitoring.coreos.com/kube-state-metrics-rules created
service/kube-state-metrics created
serviceaccount/kube-state-metrics created
servicemonitor.monitoring.coreos.com/kube-state-metrics created
prometheusrule.monitoring.coreos.com/kubernetes-monitoring-rules created
servicemonitor.monitoring.coreos.com/kube-apiserver created
servicemonitor.monitoring.coreos.com/coredns created
servicemonitor.monitoring.coreos.com/kube-controller-manager created
servicemonitor.monitoring.coreos.com/kube-scheduler created
servicemonitor.monitoring.coreos.com/kubelet created
clusterrole.rbac.authorization.k8s.io/node-exporter created
clusterrolebinding.rbac.authorization.k8s.io/node-exporter created
daemonset.apps/node-exporter created
prometheusrule.monitoring.coreos.com/node-exporter-rules created
service/node-exporter created
serviceaccount/node-exporter created
servicemonitor.monitoring.coreos.com/node-exporter created
clusterrole.rbac.authorization.k8s.io/prometheus-adapter created
clusterrole.rbac.authorization.k8s.io/system:aggregated-metrics-reader created
clusterrolebinding.rbac.authorization.k8s.io/prometheus-adapter created
clusterrolebinding.rbac.authorization.k8s.io/resource-metrics:system:auth-delegator created
clusterrole.rbac.authorization.k8s.io/resource-metrics-server-resources created
configmap/adapter-config created
deployment.apps/prometheus-adapter created
poddisruptionbudget.policy/prometheus-adapter created
rolebinding.rbac.authorization.k8s.io/resource-metrics-auth-reader created
service/prometheus-adapter created
serviceaccount/prometheus-adapter created
servicemonitor.monitoring.coreos.com/prometheus-adapter created
clusterrole.rbac.authorization.k8s.io/prometheus-k8s created
clusterrolebinding.rbac.authorization.k8s.io/prometheus-k8s created
prometheusrule.monitoring.coreos.com/prometheus-operator-rules created
servicemonitor.monitoring.coreos.com/prometheus-operator created
poddisruptionbudget.policy/prometheus-k8s created
prometheus.monitoring.coreos.com/k8s created
prometheusrule.monitoring.coreos.com/prometheus-k8s-prometheus-rules created
rolebinding.rbac.authorization.k8s.io/prometheus-k8s-config created
rolebinding.rbac.authorization.k8s.io/prometheus-k8s created
rolebinding.rbac.authorization.k8s.io/prometheus-k8s created
rolebinding.rbac.authorization.k8s.io/prometheus-k8s created
role.rbac.authorization.k8s.io/prometheus-k8s-config created
role.rbac.authorization.k8s.io/prometheus-k8s created
role.rbac.authorization.k8s.io/prometheus-k8s created
role.rbac.authorization.k8s.io/prometheus-k8s created
service/prometheus-k8s created
serviceaccount/prometheus-k8s created
servicemonitor.monitoring.coreos.com/prometheus-k8s created

Give it few seconds and the pods should start coming online. This can be checked with the commands below:

$ kubectl get pods -n monitoring
NAME                                   READY   STATUS    RESTARTS   AGE
alertmanager-main-0                    2/2     Running   0          113s
alertmanager-main-1                    2/2     Running   0          113s
alertmanager-main-2                    2/2     Running   0          113s
blackbox-exporter-6c95587d7-2vf28      3/3     Running   0          113s
grafana-9b54884bf-9s82l                1/1     Running   0          112s
kube-state-metrics-b545789dd-27xg4     3/3     Running   0          111s
node-exporter-cbjx5                    2/2     Running   0          111s
node-exporter-fs2vj                    2/2     Running   0          111s
node-exporter-gswkl                    2/2     Running   0          111s
node-exporter-hxv7l                    2/2     Running   0          111s
node-exporter-ktnd8                    2/2     Running   0          111s
prometheus-adapter-5c977869c-7mhz2     1/1     Running   0          111s
prometheus-adapter-5c977869c-8fndf     1/1     Running   0          111s
prometheus-k8s-0                       2/2     Running   1          109s
prometheus-k8s-1                       2/2     Running   1          109s
prometheus-operator-84dc795dc8-jbgjm   2/2     Running   0          7m37s

To list all the services created you’ll run the command:

$ kubectl get svc -n monitoring
NAME                    TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)                      AGE
alertmanager-main       ClusterIP   10.254.220.101   <none>        9093/TCP                     3m20s
alertmanager-operated   ClusterIP   None             <none>        9093/TCP,9094/TCP,9094/UDP   3m20s
blackbox-exporter       ClusterIP   10.254.41.39     <none>        9115/TCP,19115/TCP           3m20s
grafana                 ClusterIP   10.254.226.247   <none>        3000/TCP                     3m19s
kube-state-metrics      ClusterIP   None             <none>        8443/TCP,9443/TCP            3m19s
node-exporter           ClusterIP   None             <none>        9100/TCP                     3m18s
prometheus-adapter      ClusterIP   10.254.193.17    <none>        443/TCP                      3m18s
prometheus-k8s          ClusterIP   10.254.92.43     <none>        9090/TCP                     3m17s
prometheus-operated     ClusterIP   None             <none>        9090/TCP                     3m17s
prometheus-operator     ClusterIP   None             <none>        8443/TCP                     9m4s

Step 4: Access Prometheus, Grafana, and Alertmanager dashboards

We now have the monitoring stack deployed, but how can we access the dashboards of Grafana, Prometheus and Alertmanager?. There are two ways to achieve this;

First method: Accessing Prometheus UI and Grafana dashboards using kubectl proxy

An easy way to access Prometheus, Grafana, and Alertmanager dashboards is by using kubectl port-forward once all the services are running:

Grafana Dashboard
kubectl --namespace monitoring port-forward svc/grafana 3000

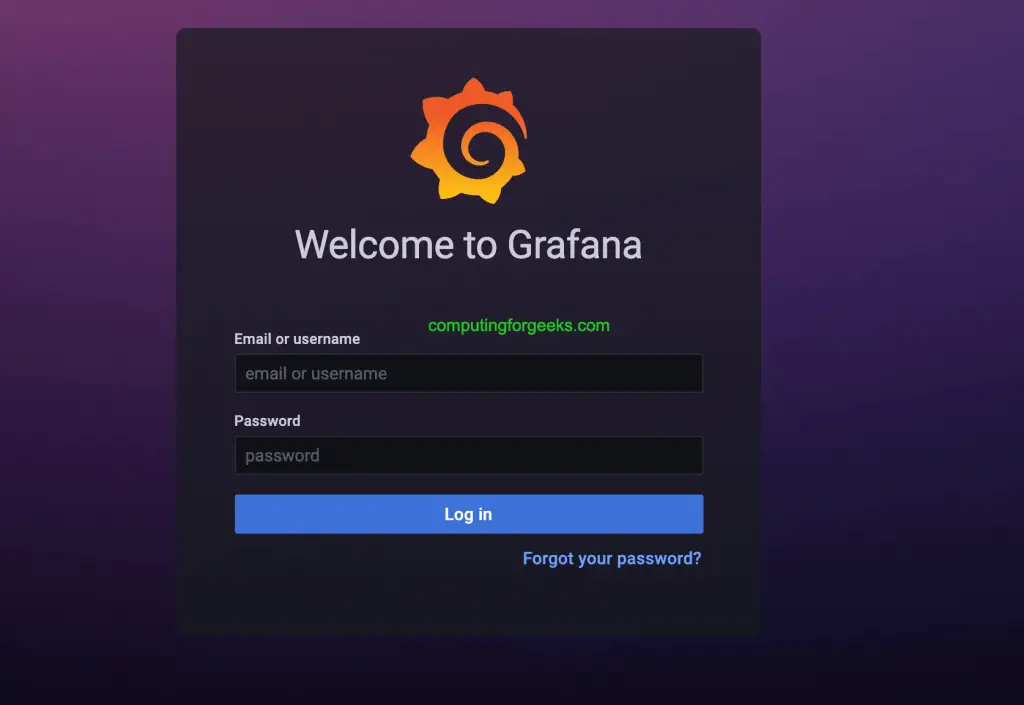

Then access Grafana dashboard on your local browser on URL:  http://localhost:3000

install grafana kubernetes 01

Default Logins are:

Username: admin
Password: admin

You’re required to change the password on first login:

install grafana kubernetes 02
Prometheus Dashboard

For Prometheus port forwarding run the commands below:

 kubectl --namespace monitoring port-forward svc/prometheus-k8s 9090

And web console is accessible through the URL: http://localhost:9090

install prometheus kubernetes 01
Alert Manager Dashboard

For Dashboard Alert Manager Dashboard:

kubectl --namespace monitoring port-forward svc/alertmanager-main 9093

Access URL is http://localhost:9093

Second method: Accessing Prometheus UI and Grafana dashboard using NodePort (Only for private clusters)

To access Prometheus, Grafana, and Alertmanager dashboards using one of the worker nodes IP address and a port you’ve to edit the services and set the type to NodePort.

The Node Port method is only recommended for local clusters not exposed to the internet. The basic reason for this is insecurity of Prometheus/Alertmanager services.

Prometheus:

$ kubectl --namespace monitoring edit svc/prometheus-k8s
#Update inside spec section
spec:
  type: NodePort

Alertmanager:

$ kubectl --namespace monitoring edit svc/alertmanager-main
#Update inside spec section
spec:
  type: NodePort

Grafana:

$ kubectl --namespace monitoring edit svc/grafana
#Update inside spec section
spec:
  type: NodePort

Confirm that the each of the services have a Node Port assigned:

$ kubectl -n monitoring get svc  | grep NodePort
alertmanager-main       NodePort    10.254.220.101   <none>        9093:31237/TCP               45m
grafana                 NodePort    10.254.226.247   <none>        3000:31123/TCP               45m
prometheus-k8s          NodePort    10.254.92.43     <none>        9090:32627/TCP               45m

In this example we can access the services as below:

# Grafana
http://node_ip:31123

# Prometheus
http://node_ip:31123

# Alert Manager
http://node_ip:31237

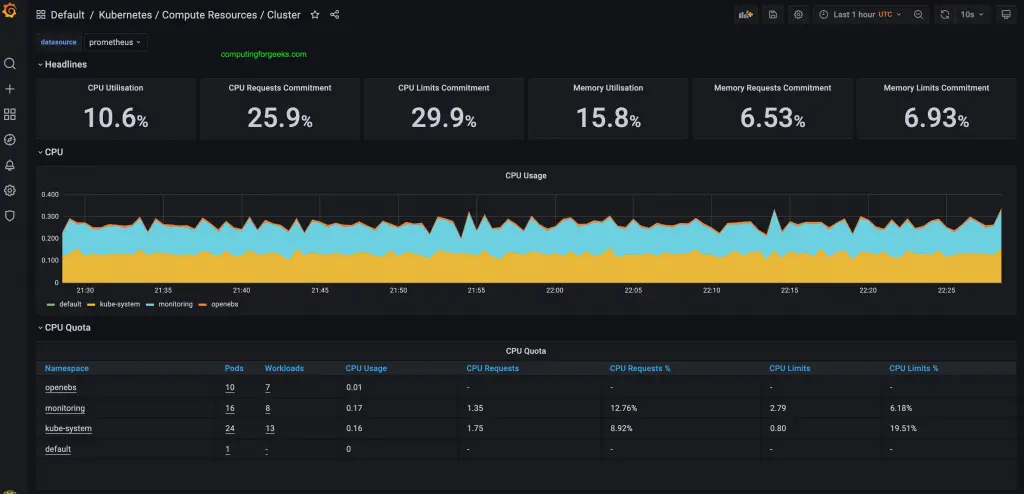

An example of default grafana dashboard showing cluster-wide compute resource usage.

install grafana kubernetes 03

Destroying down Prometheus monitoring stack

If at some point you feel like tearing down Prometheus Monitoring stack in your Kubernetes Cluster, you can run kubectl delete command and pass the path to the manifest files we used during deployment.

kubectl delete --ignore-not-found=true -f manifests/ -f manifests/setup

Within some few minutes the stack is deleted and you can re-deploy if that was the intention.

Your support is our everlasting motivation,
that cup of coffee is what keeps us going!


As we continue to grow, we would wish to reach and impact more people who visit and take advantage of the guides we have on our blog. This is a big task for us and we are so far extremely grateful for the kind people who have shown amazing support for our work over the time we have been online.

Thank You for your support as we work to give you the best of guides and articles. Click below to buy us a coffee.

LEAVE A REPLY

Please enter your comment!
Please enter your name here
