This guide will cover the steps required to Install RabbitMQ on CentOS 7 / CentOS 6 server. My Lab is based on my previous guide Using Vagrant with Libvirt on Linux. RabbitMQ is a message broker software that implements AMQP (Advanced Message Queuing Protocol).

For Ubuntu, check: How to install Latest RabbitMQ Server on Ubuntu

Installation Requirements:

  1. EPEL repository
  2. Erlang repository
  3. RabbitMQ repository

I prefer using repositories to install the Rabbitmq server and Erlang as opposed to using rpm packages which tends to bring package dependency issues and having to manually update packages.

1. Set System Hostname

You can start by configuring the hostname for your server.

Set server hostname on CentOS 6:

$ sudo vi /etc/sysconfig/network
NETWORKING=yes
HOSTNAME=mq-01.example.com

Restart network service once you make the changes.

sudo /etc/init.d/network restart

Then confirm current hostname setting:

$ hostname
mq-01.example.com

To temporarily set the hostname for the current shell session, use:

sudo hostname mq-01.example.com

Set server hostname on CentOS 7:

For CentOS 7 server, you can easily set server hostname using a hostnamectl command.

sudo hostnamectl set-hostname mq-01.example.com --static

2. Add EPEL repository

Add epel repository to your system using yum command as below:

sudo yum -y install epel-release wget

You can check the repository has been added and working using the following command:

sudo yum repolist

3. Install Erlang

Add Erlang official YUM repository:

wget https://packages.erlang-solutions.com/erlang-solutions-2.0-1.noarch.rpm
sudo rpm -Uvh erlang-solutions-2.0-1.noarch.rpm

Then install Erlang RPM package:

sudo yum install erlang

Accept installation prompt and import GPG key:

...
Transaction Summary
======================================================================================================================================================================================================
Install  1 Package (+91 Dependent packages)

Total download size: 62 M
Installed size: 163 M
Is this ok [y/d/N]: y

....
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Total                                                                                                                                                                  16 MB/s |  62 MB  00:00:03
Retrieving key from file:///etc/pki/rpm-gpg//erlang_solutions.asc
Importing GPG key 0xA14F4FCA:
 Userid     : "Erlang Solutions Ltd. <[email protected]>"
 Fingerprint: 4349 75bd 900c cbe4 f7ee 1b1e d208 507c a14f 4fca
 Package    : erlang-solutions-2.0-1.noarch (installed)
 From       : /etc/pki/rpm-gpg//erlang_solutions.asc
Is this ok [y/N]: y

Confirm Erlang installation by checking the version and CLI tool access

$ erl
Erlang/OTP 24 [erts-12.0.3] [source] [64-bit] [smp:2:2] [ds:2:2:10] [async-threads:1]

Eshell V12.0.3  (abort with ^G)
1>
BREAK: (a)bort (A)bort with dump (c)ontinue (p)roc info (i)nfo
       (l)oaded (v)ersion (k)ill (D)b-tables (d)istribution
q

4. Install RabbitMQ Server

Add RabbitMQ Repository:

Run the commands below to add RabbitMQ YUM repository to your CentOS 7 / CentOS 6:

cat << EOF | sudo tee /etc/yum.repos.d/rabbitmq.repo
[rabbitmq_rabbitmq-server]
name=rabbitmq_rabbitmq-server
baseurl=https://packagecloud.io/rabbitmq/rabbitmq-server/el/\$releasever/\$basearch
repo_gpgcheck=1
gpgcheck=0
enabled=1
gpgkey=https://packagecloud.io/rabbitmq/rabbitmq-server/gpgkey
sslverify=1
sslcacert=/etc/pki/tls/certs/ca-bundle.crt
metadata_expire=300
EOF

Update repositories cache

sudo yum clean all
sudo yum makecache

List available repositories as configured in the system:

$ sudo yum repolist
Failed to set locale, defaulting to C
Loaded plugins: fastestmirror
Loading mirror speeds from cached hostfile
 * base: centos.mirror.constant.com
 * epel: d2lzkl7pfhq30w.cloudfront.net
 * extras: mirror.math.princeton.edu
 * updates: mirrors.advancedhosters.com
repo id                                                                                  repo name                                                                                              status
base/7/x86_64                                                                            CentOS-7 - Base                                                                                        10072
droplet-agent/x86_64                                                                     DigitalOcean Droplet Agent                                                                                 5
epel/x86_64                                                                              Extra Packages for Enterprise Linux 7 - x86_64                                                         13665
erlang-solutions/7/x86_64                                                                Centos 7 - x86_64 - Erlang Solutions                                                                    5704
extras/7/x86_64                                                                          CentOS-7 - Extras                                                                                        500
rabbitmq_rabbitmq-server/7/x86_64                                                        rabbitmq_rabbitmq-server                                                                                  78
updates/7/x86_64                                                                         CentOS-7 - Updates                                                                                      2747
repolist: 32771

Install rabbitmq-server package.

sudo yum -y install rabbitmq-server

Start and enable rabbitmq-server to start on boot.

CentOS 7:

sudo systemctl enable --now rabbitmq-server

Check service status:

$ systemctl status rabbitmq-server
● rabbitmq-server.service - RabbitMQ broker
   Loaded: loaded (/usr/lib/systemd/system/rabbitmq-server.service; enabled; vendor preset: disabled)
   Active: active (running) since Mon 2021-09-13 09:19:14 UTC; 48s ago
 Main PID: 9636 (beam.smp)
   CGroup: /system.slice/rabbitmq-server.service
           ├─9636 /usr/lib64/erlang/erts-12.0.3/bin/beam.smp -W w -MBas ageffcbf -MHas ageffcbf -MBlmbcs 512 -MHlmbcs 512 -MMmcs 30 -P 1048576 -t 5000000 -stbt db -zdbbl 128000 -sbwt none -sbwtdc...
           ├─9651 erl_child_setup 32768
           ├─9676 /usr/lib64/erlang/erts-12.0.3/bin/epmd -daemon
           ├─9699 inet_gethost 4
           └─9700 inet_gethost 4

Sep 13 09:19:06 centos rabbitmq-server[9636]: Doc guides:  https://rabbitmq.com/documentation.html
Sep 13 09:19:06 centos rabbitmq-server[9636]: Support:     https://rabbitmq.com/contact.html
Sep 13 09:19:06 centos rabbitmq-server[9636]: Tutorials:   https://rabbitmq.com/getstarted.html
Sep 13 09:19:06 centos rabbitmq-server[9636]: Monitoring:  https://rabbitmq.com/monitoring.html
Sep 13 09:19:06 centos rabbitmq-server[9636]: Logs: /var/log/rabbitmq/[email protected]
Sep 13 09:19:06 centos rabbitmq-server[9636]: /var/log/rabbitmq/rabbit@centos_upgrade.log
Sep 13 09:19:06 centos rabbitmq-server[9636]: <stdout>
Sep 13 09:19:06 centos rabbitmq-server[9636]: Config file(s): (none)
Sep 13 09:19:14 centos rabbitmq-server[9636]: Starting broker... completed with 0 plugins.
Sep 13 09:19:14 centos systemd[1]: Started RabbitMQ broker.

CentOS 6:

Use the commands below to start the service on CentOS 6:

sudo chkconfig rabbitmq-server on
sudo chkconfig --list | grep rabbitmq
sudo service rabbitmq-server start

To use RabbitMQ, add user first. By default, only guest user exists and he can connect from localhost.

$ rabbitmqctl add_user admin NUaiMe0k
Adding user "admin" ...

$ rabbitmqctl set_user_tags admin administrator
$ rabbitmqctl list_users
Listing users ...
admin [administrator]
guest [administrator]

Other rabbitmqctl administration commands are:

Delete User:

rabbitmqctl delete_user user

Change User Password:

rabbitmqctl change_password user strongpassword

Add virtualhost:

rabbitmqctl add_vhost /my_vhost

List virtualhosts:

rabbitmqctl list_vhosts

Delete virtualhost:

rabbitmqctl delete_vhost /my_vhost

Grant user permissions for vhost:

rabbitmqctl set_permissions -p /my_vhost user ".*" ".*" ".*"

List vhost permissions:

rabbitmqctl list_permissions -p /my_vhost

To list user permissions:

rabbitmqctl list_user_permissions user

Delete user permissions:

rabbitmqctl clear_permissions -p /my_vhost user

5. Enable RabbitMQ UI

You can enable the Management Plugin to use a web-based interface to administer RabbitMQ.

### For CentOS 7 ###
sudo rabbitmq-plugins enable rabbitmq_management
sudo systemctl restart rabbitmq-server

### For CentOS 6 ###
sudo service rabbitmq-server restart

Configure Firewall

Open ports on the firewall:

sudo firewall-cmd --add-port={4369/tcp,25672}/tcp --permanent

With Iptables:

sudo iptables -A INPUT -p tcp -m tcp --dport&nbsp;4369 -j ACCEPT
sudo iptables -A INPUT -p tcp -m tcp --dport 25672 -j ACCEPT

Access RabbitMQ Admin web console

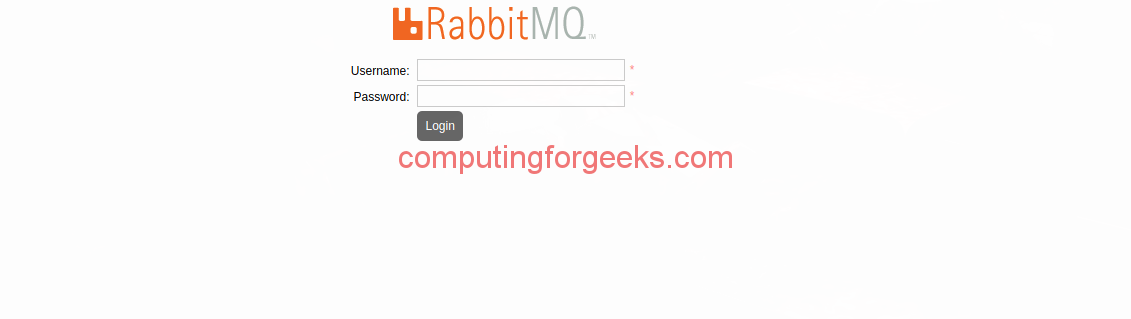

Access to the “http://server:15672/” from a client: You should get a login window:

raabitmq ui

Login with username and the password created earlier:

raabitmq dashboard
