Most Docker tutorials stop at installing containers by hand. That works for a single server, but the moment you have five, ten, or fifty hosts running containers, you need something repeatable. Ansible gives you that: define the desired state of your containers in YAML, run the playbook, and every host converges to the same configuration. No SSH loops, no shell scripts checking if something already exists.
This guide covers the full spectrum of managing Docker with Ansible using the community.docker collection. From installing Docker across mixed RHEL and Debian fleets, through container lifecycle, image builds, custom networks, Docker Compose deployments, to secrets management with Ansible Vault. Every playbook here was tested on real VMs, and the errors you will see are errors we actually hit.
Tested March 2026 on Rocky Linux 10.1 and Ubuntu 24.04.4 LTS with ansible-core 2.16.14, community.docker 5.1.0, Docker CE 29.3.1, Compose v5.1.1
Prerequisites
You will need the following to follow along with this guide:
- Control node: Rocky Linux 10 or Ubuntu 24.04 with ansible-core installed
- Managed nodes: One or more Rocky Linux 10 or Ubuntu 24.04 servers (we tested with one of each)
- SSH key-based authentication from the control node to all managed nodes
- A user with sudo privileges on all managed nodes
- Internet connectivity on all nodes (to pull Docker packages and images)
Set Up the Ansible Control Node
Install ansible-core and the community.docker collection on your control node. If you already have Ansible installed, skip to the collection install step.
On Rocky Linux 10 / RHEL 10 / AlmaLinux 10:
sudo dnf install -y ansible-coresudo apt update && sudo apt install -y ansible-coreInstall the community.docker collection from Ansible Galaxy:
ansible-galaxy collection install community.dockerConfirm both are installed:
ansible --version
ansible-galaxy collection list community.dockerThe output confirms ansible-core 2.16.14 and community.docker 5.1.0:
ansible [core 2.16.14]
config file = /etc/ansible/ansible.cfg
configured module search path = ['/home/rocky/.ansible/plugins/modules', '/usr/share/ansible/plugins/modules']
...
python version = 3.12.8
Collection Version
---------------- -------
community.docker 5.1.0Configure SSH and Inventory
Generate an SSH key on the control node and distribute it to all managed nodes. If you need a refresher on SSH key management, see the Ansible user credential guide.
ssh-keygen -t ed25519 -f ~/.ssh/id_ed25519 -N ''
ssh-copy-id [email protected]
ssh-copy-id [email protected]Create a project directory and an inventory file that groups your Docker hosts:
mkdir -p ~/ansible-docker && cd ~/ansible-dockerCreate inventory.ini with the following content:
[docker_hosts]
rocky-node ansible_host=192.168.1.121 ansible_user=rocky
ubuntu-node ansible_host=192.168.1.122 ansible_user=root
[docker_hosts:vars]
ansible_ssh_common_args='-o StrictHostKeyChecking=no'Verify connectivity with the Ansible ping module:

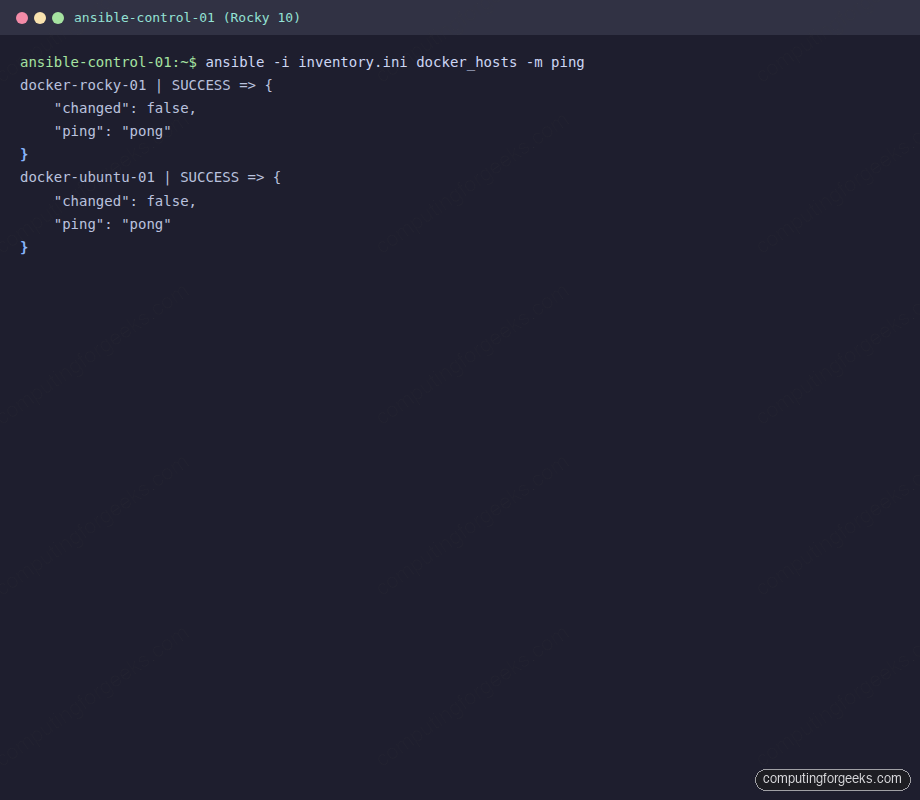

ansible -i inventory.ini docker_hosts -m ping --becomeBoth nodes should respond with pong:
rocky-node | SUCCESS => {
"changed": false,
"ping": "pong"
}
ubuntu-node | SUCCESS => {
"changed": false,
"ping": "pong"
}Install Docker CE with Ansible
The first real playbook handles Docker installation across both RHEL and Debian families. If you need Docker installed manually first (without Ansible), check the Docker CE installation guide. The two OS families differ in repository configuration, package names, and a critical kernel module requirement on Rocky Linux 10.
Create install-docker.yml:
---
- name: Install Docker CE on RHEL and Debian systems
hosts: docker_hosts
become: true
vars:
docker_users:
- "{{ ansible_user }}"
tasks:
- name: Install prerequisites (RHEL family)
ansible.builtin.dnf:
name:
- dnf-plugins-core
- device-mapper-persistent-data
- lvm2
- python3-pip
- kernel-modules-extra-{{ ansible_kernel }}
state: present
when: ansible_os_family == 'RedHat'
- name: Load kernel modules for Docker networking (RHEL family)
community.general.modprobe:
name: "{{ item }}"
state: present
persistent: present
loop:
- xt_addrtype
- br_netfilter
when: ansible_os_family == 'RedHat'
- name: Add Docker repo (RHEL family)
ansible.builtin.yum_repository:
name: docker-ce
description: Docker CE Stable
baseurl: https://download.docker.com/linux/rhel/$releasever/$basearch/stable
gpgcheck: true
gpgkey: https://download.docker.com/linux/rhel/gpg
enabled: true
when: ansible_os_family == 'RedHat'
- name: Install prerequisites (Debian family)
ansible.builtin.apt:
name:
- ca-certificates
- curl
- gnupg
state: present
update_cache: true
when: ansible_os_family == 'Debian'
- name: Create keyrings directory (Debian family)
ansible.builtin.file:
path: /etc/apt/keyrings
state: directory
mode: '0755'
when: ansible_os_family == 'Debian'
- name: Add Docker GPG key (Debian family)
ansible.builtin.get_url:
url: https://download.docker.com/linux/ubuntu/gpg
dest: /etc/apt/keyrings/docker.asc
mode: '0644'
when: ansible_os_family == 'Debian'
- name: Add Docker repo (Debian family)
ansible.builtin.apt_repository:
repo: "deb [arch=amd64 signed-by=/etc/apt/keyrings/docker.asc] https://download.docker.com/linux/ubuntu {{ ansible_distribution_release }} stable"
state: present
filename: docker
when: ansible_os_family == 'Debian'
- name: Install Docker CE (RHEL family)
ansible.builtin.dnf:
name:
- docker-ce
- docker-ce-cli
- containerd.io
- docker-compose-plugin
state: present
when: ansible_os_family == 'RedHat'
- name: Install Docker CE (Debian family)
ansible.builtin.apt:
name:
- docker-ce
- docker-ce-cli
- containerd.io
- docker-compose-plugin
state: present
update_cache: true
when: ansible_os_family == 'Debian'
- name: Start and enable Docker service
ansible.builtin.systemd:
name: docker
state: started
enabled: true
- name: Add users to docker group
ansible.builtin.user:
name: "{{ item }}"
groups: docker
append: true
loop: "{{ docker_users }}"
- name: Install Python Docker SDK (RHEL family)
ansible.builtin.pip:
name: docker>=7.0.0
state: present
when: ansible_os_family == 'RedHat'
- name: Install Python Docker SDK (Debian family)
ansible.builtin.apt:
name: python3-docker
state: present
when: ansible_os_family == 'Debian'
- name: Verify Docker installation
ansible.builtin.command: docker --version
register: docker_version
changed_when: false
- name: Show Docker version
ansible.builtin.debug:
var: docker_version.stdoutRun the playbook:
ansible-playbook -i inventory.ini install-docker.ymlA successful run shows Docker 29.3.1 installed on both nodes:
PLAY RECAP *********************************************************************
rocky-node : ok=10 changed=0 unreachable=0 failed=0 skipped=6
ubuntu-node : ok=11 changed=0 unreachable=0 failed=0 skipped=5
TASK [Show Docker version] *****************************************************
ok: [rocky-node] => {
"docker_version.stdout": "Docker version 29.3.1, build c2be9cc"
}
ok: [ubuntu-node] => {
"docker_version.stdout": "Docker version 29.3.1, build c2be9cc"
}Notice the kernel-modules-extra package and the modprobe tasks for RHEL. Rocky Linux 10 (kernel 6.12) ships without xt_addrtype, a kernel module Docker needs for its iptables NAT rules. Without it, dockerd crashes on startup with: failed to add jump rules to ipv4 NAT table: Extension addrtype revision 0 not supported, missing kernel module. The Docker installation guide for Rocky Linux covers this in more detail.
The Python Docker SDK installation also differs between OS families. On Ubuntu 24.04, pip install fails with PEP 668’s “externally managed environment” error, so we use the python3-docker system package instead. On Rocky 10, pip works because there is no system package for the Docker SDK.
Container Lifecycle Management
The community.docker.docker_container module handles the full container lifecycle: create, start, stop, restart, and remove. Every operation is idempotent, meaning running the same playbook twice produces no changes on the second run.
Create container-lifecycle.yml:
---
- name: Docker container lifecycle management
hosts: docker_hosts
become: true
tasks:
- name: Pull the Nginx image
community.docker.docker_image_pull:
name: nginx
tag: stable-alpine
- name: Create and start an Nginx container
community.docker.docker_container:
name: web-server
image: nginx:stable-alpine
state: started
ports:
- "8080:80"
restart_policy: unless-stopped
labels:
environment: production
app: web
- name: Get container info
community.docker.docker_container_info:
name: web-server
register: container_info
- name: Display container details
ansible.builtin.debug:
msg: "Container {{ container_info.container.Name }} is running (ID: {{ container_info.container.Id[:12] }})"
- name: Verify container is accessible
ansible.builtin.uri:
url: http://localhost:8080
return_content: true
register: web_response
- name: Show web response status
ansible.builtin.debug:
msg: "HTTP {{ web_response.status }} - Nginx is responding"
- name: Stop the container
community.docker.docker_container:
name: web-server
state: stopped
- name: Start the container again
community.docker.docker_container:
name: web-server
state: started
- name: Restart the container
community.docker.docker_container:
name: web-server
state: started
restart: true
- name: Remove the container
community.docker.docker_container:
name: web-server
state: absentRun it:
ansible-playbook -i inventory.ini container-lifecycle.ymlThe output shows each lifecycle state change:
TASK [Display container details] ***********************************************
ok: [rocky-node] => {
"msg": "Container /web-server is running (ID: 1b6a59227a07)"
}
ok: [ubuntu-node] => {
"msg": "Container /web-server is running (ID: a5402c869862)"
}
TASK [Show web response status] ************************************************
ok: [rocky-node] => {
"msg": "HTTP 200 - Nginx is responding"
}
ok: [ubuntu-node] => {
"msg": "HTTP 200 - Nginx is responding"
}
PLAY RECAP *********************************************************************
rocky-node : ok=14 changed=4 unreachable=0 failed=0
ubuntu-node : ok=14 changed=4 unreachable=0 failed=0Deploy Containers with Environment Variables, Volumes, and Health Checks
Production containers need more than just a port mapping. This playbook shows how to configure environment variables, bind mount host directories, set resource limits, define health checks, execute commands inside running containers, and copy files into them.
Create container-advanced.yml:
---
- name: Advanced container configuration
hosts: docker_hosts
become: true
tasks:
- name: Create a data directory on the host
ansible.builtin.file:
path: /opt/app-data
state: directory
mode: '0755'
- name: Create a custom index page on the host
ansible.builtin.copy:
content: |
<html><body><h1>Served by Nginx inside Docker</h1>
<p>Managed by Ansible</p></body></html>
dest: /opt/app-data/index.html
- name: Deploy container with full configuration
community.docker.docker_container:
name: app-container
image: nginx:stable-alpine
state: started
ports:
- "8081:80"
env:
APP_ENV: production
LOG_LEVEL: info
DB_HOST: 192.168.1.100
volumes:
- /opt/app-data:/usr/share/nginx/html:ro
restart_policy: unless-stopped
memory: 256m
cpus: 0.5
healthcheck:
test: ["CMD-SHELL", "wget -q --spider http://localhost || exit 1"]
interval: 30s
timeout: 10s
retries: 3
start_period: 10s
- name: Verify the custom page is served
ansible.builtin.uri:
url: http://localhost:8081
return_content: true
register: custom_page
- name: Show the custom page content
ansible.builtin.debug:
msg: "{{ custom_page.content | trim }}"
- name: Execute a command inside the container
community.docker.docker_container_exec:
container: app-container
command: /bin/sh -c "nginx -v 2>&1"
register: exec_result
- name: Show Nginx version from inside container
ansible.builtin.debug:
msg: "{{ exec_result.stdout }}"
- name: Copy a config file into the container
community.docker.docker_container_copy_into:
container: app-container
content: |
server {
listen 8080;
location /health {
return 200 'OK';
add_header Content-Type text/plain;
}
}
container_path: /etc/nginx/conf.d/health.conf
mode: "0644"
- name: Cleanup
community.docker.docker_container:
name: app-container
state: absentThe output confirms environment variables, volume mount, resource limits, and health check are all applied:
TASK [Show the custom page content] ********************************************
ok: [rocky-node] => {
"msg": "<html><body><h1>Served by Nginx inside Docker</h1>\n<p>Managed by Ansible</p></body></html>"
}
TASK [Show Nginx version from inside container] ********************************
ok: [rocky-node] => {
"msg": "nginx version: nginx/1.28.3"
}
PLAY RECAP *********************************************************************
rocky-node : ok=12 changed=4 unreachable=0 failed=0
ubuntu-node : ok=12 changed=4 unreachable=0 failed=0Notice the volume is mounted with :ro (read-only). If you need the container to write to the volume, remove the :ro suffix or use :rw explicitly. The docker_container_exec module runs commands inside running containers without SSH, and docker_container_copy_into pushes files directly (the mode parameter is required when using content).
Docker Image Management
The community.docker collection provides granular image modules: docker_image_pull, docker_image_build, docker_image_info, and docker_image_remove. These replaced the monolithic docker_image module for clearer playbooks.
Create image-management.yml:
---
- name: Docker image management
hosts: docker_hosts
become: true
tasks:
- name: Pull multiple images
community.docker.docker_image_pull:
name: "{{ item.name }}"
tag: "{{ item.tag }}"
loop:
- { name: redis, tag: "7-alpine" }
- { name: postgres, tag: "17-alpine" }
- { name: alpine, tag: latest }
register: pulled_images
- name: Show pulled image details
ansible.builtin.debug:
msg: "Pulled {{ item.image.RepoTags[0] }} ({{ (item.image.Size / 1048576) | round(1) }} MB)"
loop: "{{ pulled_images.results }}"
loop_control:
label: "{{ item.image.RepoTags[0] | default('unknown') }}"
- name: Get detailed info for Redis image
community.docker.docker_image_info:
name: redis:7-alpine
register: redis_info
- name: Show Redis image details
ansible.builtin.debug:
msg: "Redis ID: {{ redis_info.images[0].Id[:19] }}, Created: {{ redis_info.images[0].Created }}"
- name: Create build context directory
ansible.builtin.file:
path: /opt/build-context
state: directory
mode: '0755'
- name: Create a Dockerfile
ansible.builtin.copy:
content: |
FROM nginx:stable-alpine
COPY index.html /usr/share/nginx/html/index.html
EXPOSE 80
HEALTHCHECK --interval=30s --timeout=5s \
CMD wget -q --spider http://localhost/ || exit 1
dest: /opt/build-context/Dockerfile
- name: Create index.html for the custom image
ansible.builtin.copy:
content: |
<html><body><h1>Custom Image Built by Ansible</h1></body></html>
dest: /opt/build-context/index.html
- name: Build a custom Docker image
community.docker.docker_image_build:
name: my-app
tag: "1.0"
path: /opt/build-context
register: build_result
- name: Show build result
ansible.builtin.debug:
msg: "Built image: my-app:1.0 (ID: {{ build_result.image.Id[:19] }})"
- name: Run the custom image
community.docker.docker_container:
name: custom-app
image: my-app:1.0
state: started
ports:
- "8082:80"
- name: Test the custom app
ansible.builtin.uri:
url: http://localhost:8082
return_content: true
register: app_response
retries: 3
delay: 2
until: app_response.status == 200
- name: Show response from custom image
ansible.builtin.debug:
msg: "{{ app_response.content | trim }}"
- name: List all images on the host
community.docker.docker_host_info:
images: true
register: host_info
- name: Show all images
ansible.builtin.debug:
msg: "{{ item.RepoTags[0] | default('none') }} - {{ (item.Size / 1048576) | round(1) }} MB"
loop: "{{ host_info.images }}"
loop_control:
label: "{{ item.RepoTags[0] | default('untagged') }}"
- name: Remove unused images
community.docker.docker_image_remove:
name: "{{ item }}"
loop:
- alpine:latest
- postgres:17-alpine
- name: Cleanup container and build files
community.docker.docker_container:
name: custom-app
state: absentThe build output confirms the custom image was created and serves content:
TASK [Show pulled image details] ***********************************************
ok: [rocky-node] => (item=redis:7-alpine) => {
"msg": "Pulled redis:7-alpine (16.5 MB)"
}
ok: [rocky-node] => (item=postgres:17-alpine) => {
"msg": "Pulled postgres:17-alpine (106.0 MB)"
}
ok: [rocky-node] => (item=alpine:latest) => {
"msg": "Pulled alpine:latest (3.7 MB)"
}
TASK [Show build result] *******************************************************
ok: [rocky-node] => {
"msg": "Built image: my-app:1.0 (ID: sha256:ae15ac784fbe)"
}
TASK [Show response from custom image] *****************************************
ok: [rocky-node] => {
"msg": "<html><body><h1>Custom Image Built by Ansible</h1></body></html>"
}Docker Networks and Volumes
Containers on custom networks can resolve each other by name, which eliminates hardcoded IPs between services. Named volumes persist data beyond the container lifecycle. Both are managed declaratively through Ansible.
Create networks-volumes.yml:
---
- name: Docker networks and volumes
hosts: docker_hosts
become: true
tasks:
- name: Create a custom bridge network with a defined subnet
community.docker.docker_network:
name: app-network
driver: bridge
ipam_config:
- subnet: 172.20.0.0/16
gateway: 172.20.0.1
register: network_result
- name: Show network details
ansible.builtin.debug:
msg: "Network {{ network_result.network.Name }} (ID: {{ network_result.network.Id[:12] }})"
- name: Create an internal network (no external access)
community.docker.docker_network:
name: db-network
driver: bridge
internal: true
- name: Create a named volume for persistent data
community.docker.docker_volume:
name: db-data
driver: local
register: vol_result
- name: Show volume details
ansible.builtin.debug:
msg: "Volume {{ vol_result.volume.Name }} at {{ vol_result.volume.Mountpoint }}"
- name: Deploy Redis on the app network
community.docker.docker_container:
name: redis-cache
image: redis:7-alpine
state: started
networks:
- name: app-network
ipv4_address: 172.20.0.10
volumes:
- db-data:/data
restart_policy: unless-stopped
- name: Deploy Nginx on the same network
community.docker.docker_container:
name: web-frontend
image: nginx:stable-alpine
state: started
ports:
- "8080:80"
networks:
- name: app-network
ipv4_address: 172.20.0.20
restart_policy: unless-stopped
- name: Verify containers can reach each other by name
community.docker.docker_container_exec:
container: web-frontend
command: /bin/sh -c "ping -c 2 redis-cache"
register: ping_result
- name: Show inter-container connectivity
ansible.builtin.debug:
msg: "{{ ping_result.stdout }}"
- name: Cleanup containers, networks, and volumes
community.docker.docker_container:
name: "{{ item }}"
state: absent
loop:
- web-frontend
- redis-cache
- name: Remove networks
community.docker.docker_network:
name: "{{ item }}"
state: absent
loop:
- app-network
- db-network
- name: Remove volumes
community.docker.docker_volume:
name: db-data
state: absentThe ping test confirms DNS resolution works between containers on the same custom network:
TASK [Show inter-container connectivity] ***************************************
ok: [rocky-node] => {
"msg": "PING redis-cache (172.20.0.10): 56 data bytes
64 bytes from 172.20.0.10: seq=0 ttl=64 time=0.083 ms
64 bytes from 172.20.0.10: seq=1 ttl=64 time=0.053 ms
--- redis-cache ping statistics ---
2 packets transmitted, 2 packets received, 0% packet loss
round-trip min/avg/max = 0.053/0.068/0.083 ms"
}The internal: true flag on db-network prevents containers on that network from reaching the internet, which is useful for database tiers that should only accept connections from application containers.
Deploy Multi-Container Apps with Docker Compose
For applications with multiple services (web server, database, cache), the docker_compose_v2 module manages the entire stack from a single compose file. This module wraps the Docker Compose CLI plugin (v2), which replaced the legacy docker-compose Python tool that was removed in community.docker 4.0.
Create docker-compose-deploy.yml. This example deploys WordPress with MariaDB:
---
- name: Deploy multi-container app with Docker Compose
hosts: docker_hosts
become: true
tasks:
- name: Create project directory
ansible.builtin.file:
path: /opt/wordpress
state: directory
mode: '0755'
- name: Create docker-compose.yml
ansible.builtin.copy:
content: |
services:
db:
image: mariadb:11
restart: unless-stopped
environment:
MARIADB_ROOT_PASSWORD: rootpass123
MARIADB_DATABASE: wordpress
MARIADB_USER: wpuser
MARIADB_PASSWORD: wppass456
volumes:
- db_data:/var/lib/mysql
networks:
- wp-network
healthcheck:
test: ["CMD", "healthcheck.sh", "--connect", "--innodb_initialized"]
interval: 10s
timeout: 5s
retries: 5
wordpress:
image: wordpress:6-apache
restart: unless-stopped
depends_on:
db:
condition: service_healthy
ports:
- "8083:80"
environment:
WORDPRESS_DB_HOST: db
WORDPRESS_DB_USER: wpuser
WORDPRESS_DB_PASSWORD: wppass456
WORDPRESS_DB_NAME: wordpress
volumes:
- wp_data:/var/www/html
networks:
- wp-network
volumes:
db_data:
wp_data:
networks:
wp-network:
driver: bridge
dest: /opt/wordpress/docker-compose.yml
- name: Deploy the WordPress stack
community.docker.docker_compose_v2:
project_src: /opt/wordpress
state: present
register: compose_result
- name: Show deployment result
ansible.builtin.debug:
msg: "Services: {{ compose_result.containers | map(attribute='Name') | list }}"
- name: Wait for WordPress to be ready
ansible.builtin.uri:
url: http://localhost:8083
status_code: [200, 302]
register: wp_check
retries: 10
delay: 5
until: wp_check.status in [200, 302]
- name: Show WordPress status
ansible.builtin.debug:
msg: "WordPress is up: HTTP {{ wp_check.status }}"
- name: Pull updated images for the stack
community.docker.docker_compose_v2_pull:
project_src: /opt/wordpress
- name: Stop the WordPress stack
community.docker.docker_compose_v2:
project_src: /opt/wordpress
state: stopped
- name: Remove the stack completely (with volumes)
community.docker.docker_compose_v2:
project_src: /opt/wordpress
state: absent
remove_volumes: trueRun the playbook:
ansible-playbook -i inventory.ini docker-compose-deploy.ymlThe stack comes up with WordPress accessible on port 8083:
TASK [Show deployment result] **************************************************
ok: [rocky-node] => {
"msg": "Services: ['wordpress-db-1', 'wordpress-wordpress-1']"
}
TASK [Show WordPress status] ***************************************************
ok: [rocky-node] => {
"msg": "WordPress is up: HTTP 200"
}
ok: [ubuntu-node] => {
"msg": "WordPress is up: HTTP 200"
}The state: absent with remove_volumes: true tears down everything: containers, networks, and named volumes. Without remove_volumes, the data volumes persist for redeployment. For a deeper look at running Docker Compose outside of Ansible, see the standalone Docker Compose guide.
Manage Secrets with Ansible Vault
Hardcoding passwords in playbooks is a security risk. Ansible Vault encrypts sensitive variables so they can be safely committed to version control.
Create an encrypted variables file:
mkdir -p varsCreate vars/secrets.yml with the following content:
db_root_password: SuperSecretRoot!2026
db_user: appuser
db_password: AppUserP@ss789
app_secret_key: 9f8e7d6c5b4a3210Encrypt the file with Ansible Vault:
ansible-vault encrypt vars/secrets.ymlEnter a vault password when prompted. The file is now encrypted:
$ANSIBLE_VAULT;1.1;AES256
30393665656339326239383333636334626239396666313237636564386335363762
396137633832...Create vault-deploy.yml that references the encrypted variables:
---
- name: Deploy containers with Ansible Vault secrets
hosts: docker_hosts
become: true
vars_files:
- vars/secrets.yml
tasks:
- name: Create app network
community.docker.docker_network:
name: secure-app
- name: Deploy MariaDB with vault-encrypted credentials
community.docker.docker_container:
name: secure-db
image: mariadb:11
state: started
env:
MARIADB_ROOT_PASSWORD: "{{ db_root_password }}"
MARIADB_DATABASE: myapp
MARIADB_USER: "{{ db_user }}"
MARIADB_PASSWORD: "{{ db_password }}"
volumes:
- secure-db-data:/var/lib/mysql
networks:
- name: secure-app
restart_policy: unless-stopped
healthcheck:
test: ["CMD", "healthcheck.sh", "--connect", "--innodb_initialized"]
interval: 10s
timeout: 5s
retries: 5
- name: Wait for MariaDB to be healthy
community.docker.docker_container_info:
name: secure-db
register: db_info
until: db_info.container.State.Health.Status == "healthy"
retries: 12
delay: 5
- name: Show MariaDB health
ansible.builtin.debug:
msg: "MariaDB status: {{ db_info.container.State.Health.Status }}"
- name: Verify database credentials work
community.docker.docker_container_exec:
container: secure-db
command: "mariadb -u{{ db_user }} -p{{ db_password }} -e 'SELECT VERSION();' myapp"
register: db_version
- name: Show database version
ansible.builtin.debug:
msg: "{{ db_version.stdout }}"Run with the vault password:
ansible-playbook -i inventory.ini vault-deploy.yml --ask-vault-passThe vault-encrypted credentials are injected at runtime. No passwords appear in the playbook or in ansible-playbook output:
TASK [Show MariaDB health] *****************************************************
ok: [rocky-node] => {
"msg": "MariaDB status: healthy"
}
TASK [Show database version] ***************************************************
ok: [rocky-node] => {
"msg": "VERSION()\n11.8.6-MariaDB-ubu2404"
}
ok: [ubuntu-node] => {
"msg": "VERSION()\n11.8.6-MariaDB-ubu2404"
}For CI/CD pipelines, store the vault password in a file and pass it with --vault-password-file .vault_pass instead of entering it interactively. The Ansible Vault cheat sheet covers additional vault operations like rekeying, editing encrypted files, and using multiple vault IDs.
Docker System Cleanup with Ansible
Docker accumulates stopped containers, unused images, dangling volumes, and build cache over time. The docker_prune module cleans all of these in one shot, and docker_host_info gives you a system overview before and after. For manual cleanup without Ansible, see the Docker image optimization guide.
---
- name: Docker system cleanup
hosts: docker_hosts
become: true
tasks:
- name: Get Docker host information
community.docker.docker_host_info:
containers: true
images: true
register: host_info
- name: Show Docker system summary
ansible.builtin.debug:
msg: >
Docker {{ host_info.host_info.ServerVersion }} |
Containers: {{ host_info.host_info.Containers }}
(running={{ host_info.host_info.ContainersRunning }}) |
Images: {{ host_info.host_info.Images }} |
Storage: {{ host_info.host_info.Driver }}
- name: Prune stopped containers
community.docker.docker_prune:
containers: true
register: prune_containers
- name: Show pruned containers
ansible.builtin.debug:
msg: "Pruned {{ prune_containers.containers | length }} container(s)"
- name: Prune unused images
community.docker.docker_prune:
images: true
- name: Full system prune (everything unused)
community.docker.docker_prune:
containers: true
images: true
networks: true
volumes: true
builder_cache: true
register: full_prune
- name: Show full prune summary
ansible.builtin.debug:
msg: "Build cache reclaimed: {{ (full_prune.builder_cache_space_reclaimed / 1048576) | round(1) }} MB"A scheduled cleanup playbook prevents disk space issues on long-running Docker hosts:
TASK [Show Docker system summary] **********************************************
ok: [rocky-node] => {
"msg": "Docker 29.3.1 | Containers: 0 (running=0) | Images: 5 | Storage: overlayfs"
}
TASK [Show full prune summary] *************************************************
ok: [rocky-node] => {
"msg": "Build cache reclaimed: 7.7 MB"
}Rocky Linux 10 vs Ubuntu 24.04: Key Differences
Running the same playbooks against both OS families revealed several differences worth documenting:
| Item | Rocky Linux 10 / RHEL 10 | Ubuntu 24.04 |
|---|---|---|
| Package manager | dnf | apt |
| Docker repo URL | download.docker.com/linux/rhel | download.docker.com/linux/ubuntu |
| GPG key method | yum_repository gpgkey | get_url to /etc/apt/keyrings/ |
| Kernel module fix | kernel-modules-extra + modprobe xt_addrtype required | Not needed |
| Python Docker SDK | pip install docker | apt install python3-docker (PEP 668) |
| SELinux | Enforcing by default, Docker runs as container_runtime_t | AppArmor, no action needed for Docker |
| Firewall | firewall-cmd --add-port=8080/tcp --permanent | ufw allow 8080/tcp |
| Service name | docker | docker |
Troubleshooting
These are real errors encountered during testing on Rocky Linux 10.1 and Ubuntu 24.04.4, not hypothetical issues.
Error: “Extension addrtype revision 0 not supported, missing kernel module”
This occurs on Rocky Linux 10 / RHEL 10 when Docker tries to configure iptables NAT rules. The xt_addrtype kernel module is not included in the default kernel package on RHEL 10.
The full error from journalctl -u docker:
failed to start daemon: Error initializing network controller: error obtaining
controller instance: failed to register "bridge" driver: failed to add jump
rules to ipv4 NAT table: failed to append jump rules to nat-PREROUTING:
(iptables failed: iptables --wait -t nat -A PREROUTING -m addrtype
--dst-type LOCAL -j DOCKER: Warning: Extension addrtype revision 0 not
supported, missing kernel module?
iptables v1.8.11 (nf_tables): RULE_APPEND failed (No such file or directory):
rule in chain PREROUTING (exit status 4))Fix: install kernel-modules-extra for your running kernel, then load the modules:
sudo dnf install -y kernel-modules-extra-$(uname -r)
sudo modprobe xt_addrtype
sudo modprobe br_netfilter
sudo systemctl restart dockerMake the modules persistent across reboots:
echo -e "xt_addrtype\nbr_netfilter" | sudo tee /etc/modules-load.d/docker.confError: “externally-managed-environment” when installing Python Docker SDK
Ubuntu 24.04 enforces PEP 668, which prevents pip install from modifying system Python packages. The Ansible pip module fails with:
error: externally-managed-environment
× This environment is externally managed
╰─> To install Python packages system-wide, try apt install
python3-xyz, where xyz is the package you are trying to install.Fix: use the system package python3-docker instead of pip on Debian/Ubuntu systems. The playbook in this guide handles this with separate tasks for each OS family.
Error: “missing parameter(s) required by ‘content’: mode”
When using docker_container_copy_into with the content parameter (inline content rather than a source file), you must also specify mode. The module requires knowing what file permissions to set when creating a file from raw content.
# Wrong - missing mode
- community.docker.docker_container_copy_into:
container: myapp
content: "config data"
container_path: /etc/app/config.txt
# Correct - mode specified
- community.docker.docker_container_copy_into:
container: myapp
content: "config data"
container_path: /etc/app/config.txt
mode: "0644"All community.docker Modules
The collection includes 39 modules as of version 5.1.0. Here is the full list grouped by function:
| Category | Modules |
|---|---|
| Containers | docker_container, docker_container_info, docker_container_exec, docker_container_copy_into |
| Images | docker_image_pull, docker_image_build, docker_image_push, docker_image_remove, docker_image_tag, docker_image_info, docker_image_load, docker_image_export |
| Compose | docker_compose_v2, docker_compose_v2_pull, docker_compose_v2_exec, docker_compose_v2_run |
| Networks | docker_network, docker_network_info |
| Volumes | docker_volume, docker_volume_info |
| Swarm | docker_swarm, docker_swarm_info, docker_swarm_service, docker_swarm_service_info, docker_node, docker_node_info |
| Swarm Config/Secrets | docker_config, docker_secret |
| Stack | docker_stack, docker_stack_info, docker_stack_task_info |
| System | docker_host_info, docker_login, docker_plugin, docker_prune, current_container_facts |
For Swarm cluster management, see the Docker Swarm setup guide.
Going Further
- Dynamic inventory: the
docker_containersinventory plugin auto-discovers running containers as Ansible hosts, useful for running playbooks inside containers. See the Ansible automation introduction for more on inventory concepts - Docker API connection: the
docker_apiconnection plugin lets Ansible execute modules inside containers without SSH, using the Docker API directly - CI/CD integration: combine these playbooks with GitLab CI/CD pipelines to build images and deploy containers automatically on every push
- Monitoring: after deploying containers, set up Prometheus and Grafana monitoring for Docker to track container resource usage
- Private registries: use
docker_loginto authenticate with private registries before pulling images, anddocker_image_pushto publish custom images. You can also run containers as systemd services for persistent deployments without Compose
