This tutorial describes all the steps required to install Arch Linux with LVM on UEFI system using GPT (GUID partition table). This tutorial uses LVM (Logical Volume Manager) for installation of Arch Linux.

The steps may seem complicated if you’re doing this for the first time but I’ve simplified them to be clear and precise.To install Arch Linux with LVM, you’ll be required to handle LVM stuff. Please note that this tutorial assumes you are doing installation on an empty hard drive. if you have data on your drive, be careful to avoid corrupting your crucial data.

Prerequisites

Download and create bootable flash or CD/DVD

  1. Download Arch ISO

Download Link

2. Create bootable installation media

# dd if=path-to-image.iso  of=/dev/sdX bs=4M

Start to install Arch Linux with LVM

Once you have installation media ready, boot into live Arch Linux to start install Arch Linux with LVM. You’ll be prompted with screen similar to one below:

install Arch Linux with LVM

Select appropriate version of Arch to install on your machine. In my case it’s the first one. You may have to run lsblk command to confirm block devices attached before beginning to partition.

# lsblk

install Arch Linux with LVM

Disk Partitioning

Here we’ll create a new GPT partition table for UEFI system using parted command. Then we’ll create necessary partitions for LVM.

Steps to follow are:

  1. Create GPT partition table
  2. Create bootable EFI System Partition ( recommended size is 512MiB)
  3. Mark EFI System partition with the boot flag
  4. Create partiton for /boot
  5. Mark remaining partition for LVM

The syntax to create partition with parted is:

(parted) mkpart part-type fs-type start end

part-type: primary,extended or logical ( meaningful for MBR partition tables only)

fs-type: Used by parted to set 1-byte code used by boot loaders to preview type of data in a partition. It won’t actually create file system.

start: Beginning of the partition from the start of the device. Consist of number followed by unit e.g 1MiB

end: End of the partition from the start of the device. 100% means ends at the end of the device ( use all the remaining space)

Commands:

# parted /dev/sda
(parted) mklabel gpt
(parted) mkpart ESP fat32 1MiB 513MiB
(parted) set 1 boot on
(parted) name 1 efi-partition
(parted) mkpart primary 513MiB 800MiB
(parted) name 2 boot-partition
(parted) mkpart primary 800MiB 100%
(parted) name 3 lvm-partition
(parted) print
(parted) quit

install Arch Linux with LVM

Create LVM and File systems on partitions

Remember that our third partition starts at 800MiB and ends at 100%, we’ll mark it for LVM so that we can create Logical volumes on it.

# parted /dev/sda set 3 lvm on
# parted /dev/sda print

install Arch Linux with LVM

Create Physical volume

# pvcreate /dev/sda3

Create Volume group

# vgcreate  arch-lvm /dev/sda3

Before you can install install Arch Linux with LVM:

Create Logical volumes:

# lvcreate -n arch-root -L 20G arch-lvm
# lvcreate -n arch-swap -L 2G arch-lvm
# lvcreate -n arch-home -l 100%FREE arch-lvm
# lvs

install Arch Linux with LVM

Create file systems

# mkfs.fat -F32 /dev/sda1
# mkfs.ext2 /dev/sda2
# mkfs.btrfs -L root /dev/arch-lvm/arch-root
# mkfs.btrfs -L home /dev/arch-lvm/arch-home
# mkswap /dev/arch-lvm/arch-swap
# swapon /dev/arch-lvm/arch-swap

Create mount points and mount the file systems

# mkdir /mnt/{home,boot}
# mkdir /mnt/boot/efi
# mount /dev/arch-lvm/arch-root /mnt
# mount /dev/sda2 /mnt/boot
# mount /dev/sda1 /mnt/boot/efi
# mount /dev/arch-lvm/arch-home /mnt/home

Install base system

Install base system

Packages to install are base-devel packages,efibootmgr and btrfs-progs package:

# pacstrap /mnt base base-devel efibootmgr vim btrfs-progs --noconfirm

Do system configurations

Generate fstab file with all relevant mount points

# genfstab -U -p /mnt > /mnt/etc/fstab

Make /mnt base root

# arch-chroot /mnt /bin/bash

Edit /etc/mkinitcpio.conf to include modules needed for btrfs and LVM

# vim /etc/mkinitcpio.conf

Look for the line starting with HOOKS=”…”. Modify the line to add lvm2 BEFORE filesystems as shown below

include-lvm-modules-mkinitcpio

Then you have to regenerate initrd image. use command below

# mkinitcpio -p linux

regenerate-initrd-image

Install grub2  bootloader. For a 32-bit system replace x86_64 with i386.

# pacman -S grub
# grub-install --target=x86_64-efi --efi-directory=/boot/efi \
--bootloader-id=grub

Generate grub config files

# grub-mkconfig -o /boot/grub/grub.cfg
# grub-mkconfig -o  /boot/efi/EFI/arch/grub.cfg

Set root password and add standard user

# passwd root
# useradd -G power,audio,wheel,storage username
# passwd username

Configure hostname and Locale

# echo "arch.localhost" > /etc/hostname
# vim /etc/locale.gen

Uncomment line 168 to look like below:

en_US.UTF-8 UTF-8

Now generate locale with locale-gen command

# locale-gen
# echo "LANG=en_US.UTF-8" > /etc/locale.conf

Configure Timezone

#  ln -s /usr/share/zoneinfo/Africa/Nairobi  /etc/localtime

Configure pacman to enable multilib.

# vim /etc/pacman.conf

[multilib]
Include = /etc/pacman.d/mirrorlist

Add AUR repo

[archlinuxfr]
SigLevel = Never
Server = http://repo.archlinux.fr/$arch

Add archlinuxcn repo if you want ( Optional)

[archlinuxcn]
SigLevel = Never
Server = http://repo.archlinuxcn.org/$arch

Install basic software

# pacman -S bash-completion openssh zsh chromium sudo dhclient --noconfirm

Install X11 server

# pacman -S xorg --noconfirm

Install audio drivers

# pacman -S alsa-{utils,plugins,firmware} \
 pulseaudio pulseaudio-{equalizer,alsa,gconf} --noconfirm

Install Synaptics touchpad drivers:

# pacman -S xf86-input-{keyboard,synaptics,mouse,libinput}

Install Video intel drivers if you don’t have graphics card

#  pacman -S xf86-video-intel

else:

# pacman -S nvidia nvidia-utils nvidia-settings xorg-server-devel opencl-nvidia

Allow member of wheel group to be able to run any command

# echo "export EDITOR=vim" >> ~/.bashrc
# source ~/.bashrc
# visudo

And uncomment the line

# %wheel ALL=(ALL) ALL

to be:

%wheel ALL=(ALL) ALL

Then save and quit.

Install Desktop Environment/Windows manager

KDE:

# pacman -S plasma kde-applications-meta
# systemctl enable sddm.service

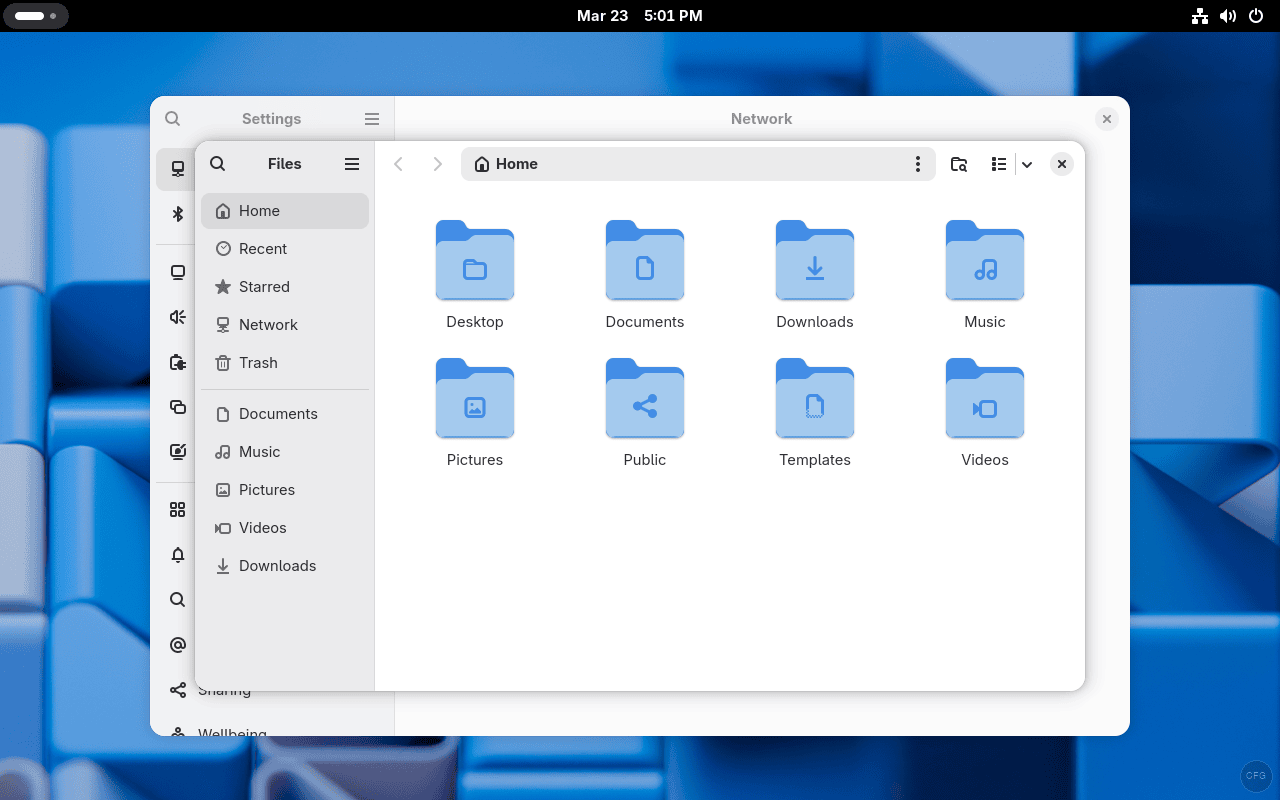

Gnome:

# pacman -S gnome gnome-extra gnome-tweak-tool
# pacman -S gdm
# systemctl enable gdm

XFCE:

# pacman -S xfce4 xfce4-goodies xfce4-mixer gstreamer0.10-good-plugins \
libxnvctrl xscreensaver
# pacman -S lightdm lightdm-gtk-greeter
# systemctl enable lightdm.service

Cinnamon:

# pacman -S cinnamon
# pacman –S gdm
# systemctl enable gdm

i3 Window manager:

# pacman -S i3 dmenu xorg-xinit rofi feh i3blocks
# vim ~/.xinitrc

Add:

#!/bin/sh
exec i3
# vim /etc/profile

Add:

[ -z "$DISPLAY" -a "$(fgconsole)" -eq 1 ] && exec startx

Finish the installation:

# exit
# umount -R /mnt
# reboot

This marks the end of how to install Arch Linux with LVM. Your system should boot successfully to installed Arch. Next i”ll cover customizing i3 window manager on newly installed Arch.

  • A good guide.

    A couple of small issues though:

    # mkdir /mnt/{home,boot}
    # mkdir /mnt/boot/efi
    # mount /dev/arch-lvm/arch-root /mnt
    # mount /dev/sda2 /mnt/boot
    # mount /dev/sda1 /mnt/boot/efi
    # mount /dev/arch-lvm/arch-home /mnt/home

    should actually be:

    # mount /dev/arch-lvm/arch-root /mnt
    # mkdir /mnt/{home,boot}
    # mount /dev/sda2 /mnt/boot
    # mkdir /mnt/boot/efi
    # mount /dev/sda1 /mnt/boot/efi
    # mount /dev/arch-lvm/arch-home /mnt/home

    Also, in case, the following fails, do not proceed without taking measures:

    # grub-mkconfig -o /boot/efi/EFI/arch/grub.cfg

    Measures:
    1. Create /boot/efi/EFI/arch directory
    2. Execute:

    # grub-mkconfig -o /boot/efi/EFI/arch/grub.cfg
